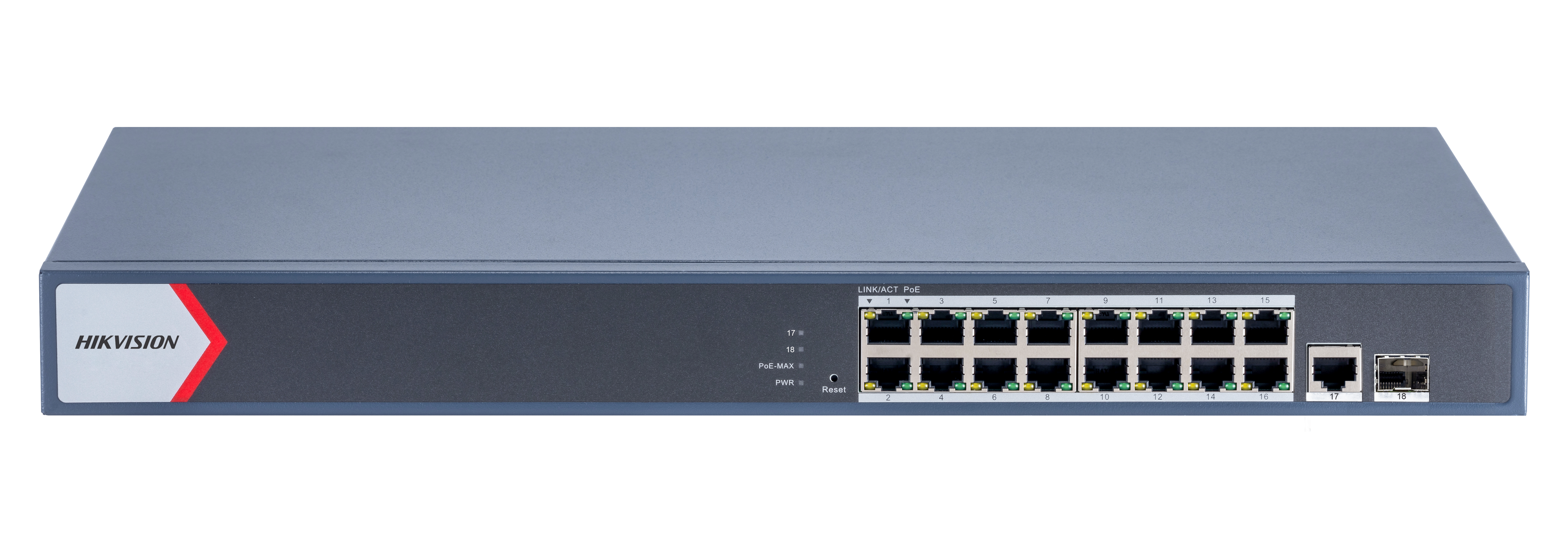

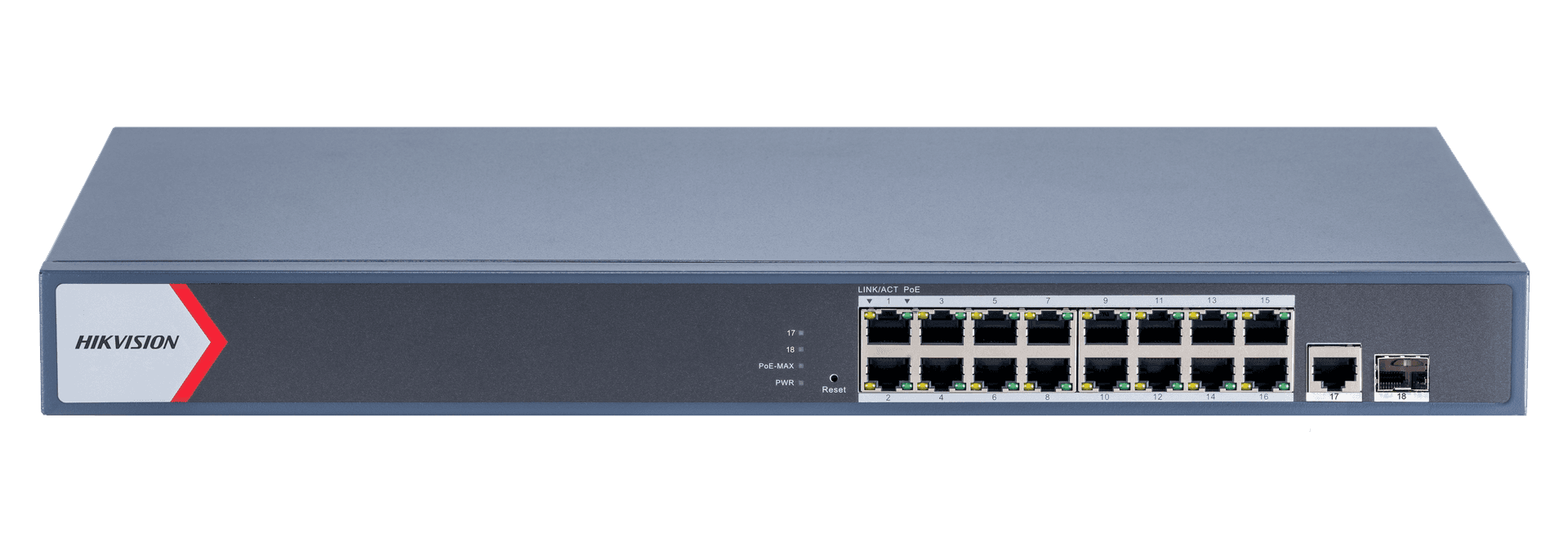

Hikvision DS-3E1518P-EI/M 16-Port Gigabit Smart PoE Switch, 130W Budget, 300m Long Range, SFP Fiber Uplink, PoE Watchdog & DHCP Snooping
Model :
SKU : NS-HIK DS-3E1518P-EI/M
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Elevate your network infrastructure with the Hikvision DS-3E1518P-EI/M. This 16-port Gigabit Smart Managed Switch is engineered for modern 2026 security requirements, providing the high-speed data throughput necessary for 4K/8K IP cameras and high-density wireless environments. By integrating Gigabit speeds with "smart" management features, it offers professional-grade control over power delivery and data security in a durable, rack-ready chassis.
Key Features
Self-Healing PoE Watchdog: Minimize on-site maintenance with the intelligent PoE Watchdog. The switch constantly monitors the heartbeat of connected cameras; if a device stops responding, the switch automatically power-cycles the port to reboot the camera and restore the feed instantly.
- Full Gigabit & Fiber Connectivity: Experience non-blocking performance across 16 Gigabit PoE ports. The inclusion of a dedicated Gigabit RJ45 uplink and a Gigabit SFP fiber optical port allows for high-speed backbone connections to servers or remote buildings via fiber optics.
Advanced Security & DHCP Snooping: Protect your network from unauthorized access. DHCP Snooping ensures that only trusted DHCP servers can assign IP addresses, while 802.1Q VLAN tagging and Port Isolation allow you to segment sensitive traffic and improve overall network health.
Eco-Friendly & Energy Efficient: Built for sustainability, the switch supports IEEE 802.3az (Energy Efficient Ethernet) and user-configurable energy-saving plans. These technologies significantly reduce power consumption during periods of low data activity without sacrificing network readiness.
Performance / Reliability The DS-3E1518P-EI/M is built to withstand electrical volatility with 6KV surge protection, shielding your internal hardware from lightning strikes and spikes. For installers, the switch provides powerful diagnostic tools, including cable detection to identify short circuits and measure cable length, as well as STP/RSTP to prevent crippling network loops.
Smart Management via Cloud Manage your entire setup from anywhere using Hik-Partner Pro or Hik-Central Pro. Through the intuitive web interface or mobile app, you can monitor real-time bandwidth utilization, check PoE power levels, and perform remote firmware upgrades, making this switch a centerpiece of a modern, managed security ecosystem.
Specification
16-Port Gigabit PoE Managed Switch – Technical Specifications
| General | |
|---|---|
| Network Parameters | |
| PoE Power Supply | |
| Software & Management Features | |
| HPP & System Maintenance | |
| Certifications & Compliance | |
| Shell | Metal Material |
| Net Weight | 2.7 kg (5.9 lb) |
| Gross Weight | 2.9 kg (6.4 lb) |
| Dimensions (W × H × D) | 440.0 × 44.0 × 220.8 mm (17.32" × 1.73" × 8.69") |
| Operating Temperature | 0 °C to 45 °C (0 °F to 113 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (No Condensation) |
| Relative Humidity | 5% to 95% (No Condensation) |
| Power Supply | 100~240 VAC, 50/60 Hz, Max. 2.5 A |
| Installation Mode | Rack-Mounted (Mounting Ears Included) |
| Max. Power Consumption | 150 W |
| Power Consumption (Idle) | 20 W |
| Surge Protection | 6 kV |
| Ports | 16 × Gigabit PoE Ports 1 × Gigabit RJ45 Port 1 × Gigabit Fiber Optical Port |
| MAC Address Table | 8 K |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| Internal Cache | 4.1 Mbits |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Ports | Ports 1 to 16 |
| Max. Port Power | 30 W |
| PoE Power Budget | 130 W |
| Long Range Mode | Ports 1 to 16: up to 300 m (Depending on camera & cable condition) |
| Port Isolation | Ports 1 to 18 Isolated ports cannot communicate with each other, but can communicate with ports outside the group |
| PoE Watchdog | Ports 1 to 16: Auto-detect and restart unresponsive cameras |
| Link Aggregation | Static Link Aggregation Supported Up to 8 Aggregation Groups |
| QoS | Port-based Priority Configuration SP and WRR Scheduling Modes |
| Loop Prevention | IEEE 802.1D STP IEEE 802.1w RSTP |
| VLAN | IEEE 802.1Q VLAN ID: 1–4094 Trunk / Access Modes Maximum 32 VLANs |
| Hik-Partner Pro (HPP) | One-click activation and remote management Port Rate & Bandwidth Monitoring PoE Power Usage Monitoring Topology & Alarm Display Port & Device Restart Long Range Mode Control Remote Firmware Upgrade |
| System Maintenance | Web Management DHCP Client (Enabled by Default) Configurable Super IP (Default: 10.180.190.200) Hik-Central Pro Support Cable Detection IEEE 802.1ab LLDP Port Mirroring DHCP Snooping |
| EMC | CE-EMC (EN 55032:2015+A11:2020) EN IEC 61000-3-2:2019 EN 61000-3-3:2013+A1:2019 EN 50130-4:2011+A1:2014 EN 55035:2017+A11:2020 |
| Safety | CB (IEC 62368-1:2014, AMD1:2009, AMD2:2013) CE-LVD (EN 62368-1:2014+A11:2017) |
| Chemistry Compliance | CE-RoHS (2011/65/EU) WEEE (2012/19/EU) REACH (EC No.1907/2006) |
