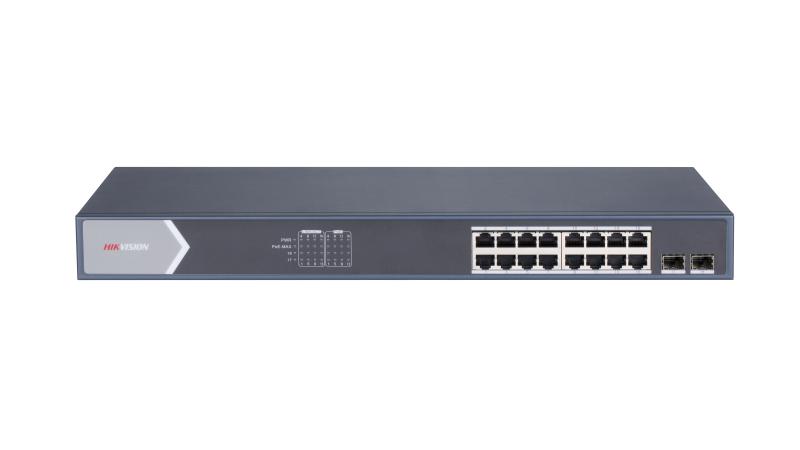

Hikvision DS-3E1518P-SI Smart Managed 16-Port Gigabit PoE Switch, 16x Gigabit PoE ports, and 2x Gigabit fiber optical ports, 6 KV surge protection for PoE ports.
Model :
SKU : NS-HIKVISI DS-3E1518P-SI
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Hikvision DS-3E1518P-SI Smart Managed 16-Port Gigabit PoE Switch, 16x Gigabit PoE ports, and 2x Gigabit fiber optical ports, 6 KV surge protection for PoE ports Specification
| Shell | Metal material |
| Net Weight | 2.735 kg (6.03 lb) |
| Gross Weight | 3.31 kg (7.30 lb) |
| Dimensions (W ?? H ?? D) | 440 mm ?? 44 mm ?? 220.8 mm (17.32??? ?? 1.73??? ?? 8.69???) |
| Operating Temperature | 0 ??C to 45 ??C (0 ??F to 113 ??F) |
| Storage Temperature | -40 ??C to 85 ??C (-40 ??F to 185 ??F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100 to 240 VAC, 50/60 Hz, Max. 4 A |
| Installation Mode | Rack (equipped with mounting ears) |
| Max. Power Consumption | 250 W |
| Power Consumption in Idle | 25 W |
| Surge Protection | 6 KV surge protection for PoE ports |
Network Parameters
| Ports | 16 ?? Gigabit PoE port, 2 ?? Gigabit fiber optical port |
| MAC Address Table | 8 K |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| Internal Cache | 4.1 Mbits |
PoE Power Supply
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(+), 3/6(-) |
| PoE Port | PoE: Ports 1 to 16 |
| Max. Port Power | 30 W |
| PoE Power Budget | 225 W |
Software Function
| Long Range | Ports 1 to 16: up to 300 m (dependent on camera model or cable condition) |
| Port Isolation | Ports 1 to 16: Port isolation mode to improve network security |
| PoE Watchdog | Ports 1 to 16: Auto detect and restart the cameras that do not respond |
| Link Aggregation | Support static link aggregation (up to 8 aggregation groups) |
| QoS | Support port-based priority configuration, SP, and WRR priority schedule mode |
| Loop Prevention | Support 802.1D STP (disabled by default) |
| VLAN | Support 802.1Q, Configurable VLAN ID from 1-4094, Support Max. 4094 VLAN |
| HPP | Support one-click activation and remote management via Hik-Partner Pro |
System Maintenance
| System Maintenance Functions | Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import/export configuration, time sync |
| Port Rate-Limiting | Port bandwidth adjustment to prevent network congestion |
| Storm Control | Prevent network blocking by broadcast/multicast storms (port rate limiting) |
Approval
| EMC | FCC, CE-EMC, IC, RCM |
| Safety | UL, CB, CE-LVD |
| Chemistry | CE-RoHS, WEEE, Reach |
