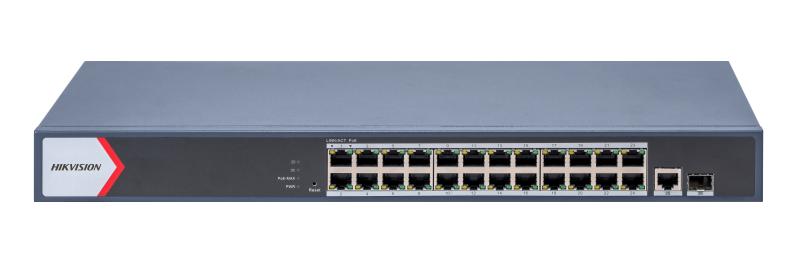

Hikvision DS-3E1526P-EI/M 24-Port Gigabit Smart PoE Switch, 24x Gigabit PoE RJ45 ports, 1x Gigabit RJ45 port, 1x Gigabit fiber optical port
Model :
SKU : NS-HIK DS-3E1526P-E1/M
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
| Shell | Metal material |
| Net Weight | 2.96 kg (6.52 lb) |
| Gross Weight | 3.2 kg (7.05 lb) |
| Dimensions (W ?? H ?? D) | 440.0 mm ?? 220.8 mm ?? 44.0 mm (17.32'' ?? 8.69'' ?? 1.73'') |
| Operating Temperature | 0 ??C to 45 ??C (0 ??F to 113 ??F) |
| Storage Temperature | -40 ??C to 85 ??C (-40 ??F to 185 ??F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100~240 VAC, 50/60 Hz, Max. 4 A |
| Installation Mode | Rack (equipped with mounting ears) |
| Max. Power Consumption | 250 W |
| Power Consumption in Idle | 30 W |
| Surge Protection | 6 KV |
| Ports | 24 ?? Gigabit PoE port, 1 ?? Gigabit RJ45 port, 1 ?? Gigabit fiber optical port |
| MAC Address Table | 8 K |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| Internal Cache | 4.1 Mbits |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 24 |
| Max. Port Power | 30 W |
| PoE Power Budget | 230 W |
| Long Range | Ports 1 to 24: up to 300 m. Long range performance may vary depending on camera model or cable condition. |
| Port Isolation | Ports 1 to 24: port isolation mode to improve network security. |
| PoE Watchdog | Ports 1 to 24: auto detect and restart the cameras that do not respond. |
| Link Aggregation | Support static link aggregation. Support 8 aggregation groups. |
| Loop Prevention | Support 802.1D STP, 802.1w RSTP. Disabled by default. |
| VLAN | Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN. |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. |
| System Maintenance | Support device management via web, DHCP Client, Super IP, remote management via Hik-Partner Pro, and more. |
| Approval (EMC) | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Approval (Safety) | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)) |
| Approval (Chemistry) | CE-RoHS (201165EU), WEEE (201219EU), Reach (Regulation (EC) No.19072006) |
