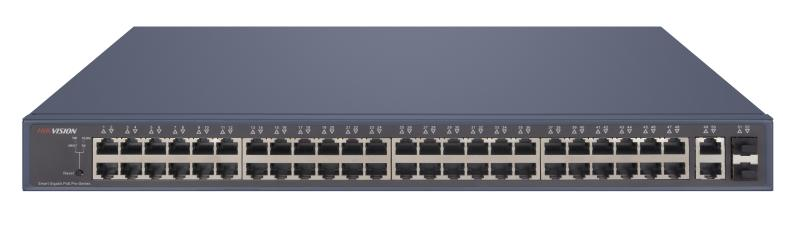

Hikvision DS-3E1552P-SI 48 Port Gigabit Smart POE Switch, IEEE 802.3af/at PoE standard, 48 x Gigabit PoE Ports, 2 ?? gigabit RJ45, 2 x fiber optical ports, 470W, 104 Gbps Switching Capacity, 16K MAC Address Entries, PoE Watchdog, STP/RSTP, VLAN, SNMP, QoS
Model :
SKU : NS-HIK DS-3E1552P-SI 48 P
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Switch Specifications table { border-collapse: collapse; width: 100%; margin-top: 20px; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
Hikvision DS-3E1552P-SI 48 Port Gigabit Smart POE Switch, IEEE 802.3af/at PoE standard, 48 x Gigabit PoE Ports, 2 ?? gigabit RJ45, 2 x fiber optical ports, 470W, 104 Gbps Switching Capacity, 16K MAC Address Entries, PoE Watchdog, STP/RSTP, VLAN, SNMP, QoS
| General | Shell |
| Net Weight | 4.35 kg (9.59 lb) |
| Gross Weight | 4.5 kg (9.92 lb) |
| Dimensions (W ?? H ?? D) | 440.00 mm ?? 44.00 mm ?? 323.80 mm (17.32'' ?? 1.73'' ?? 12.71'') |
| Operating Temperature | 0 ??C to 45 ??C (32 ??F to 113 ??F) |
| Storage Temperature | -40 ??C to 85 ??C (-40 ??F to 185 ??F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 220 VAC, 50/60 Hz |
| Max. Power Consumption | 500 W |
| Power Consumption In Idle | 30 W |
| Network Parameters | Ports |
| 48 ?? 1 Gigabit PoE port,2 ?? 1 Gigabit fiber optical port,2 ?? 1 Gigabit RJ45 port | |
| Port Type | |
| RJ45 port,full duplex,MDIMDI-X adaptive | |
| Standard | |
| IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z | |
| Forwarding Mode | |
| Store-and-forward switching | |
| Working Mode | |
| Standard mode (default),Extend mode | |
| MAC Address Table | |
| 16 K | |
| Switching Capacity | |
| 104 Gbps | |
| Packet Forwarding Rate | |
| 77.376 Mpps | |
| Internal Cache | |
| 12 Mbits | |
| PoE Power Supply | |
| PoE Standard | |
| IEEE 802.3af,IEEE 802.3at | |
| PoE Power Pin | |
| End-span: 1/2/7/8(-)???3/4/5/6(+) | |
| PoE Port | |
| PoE: Ports 1 to 48 | |
| Max. Port Power | |
| 30 W | |
| PoE Power Budget | |
| 470 W | |
| Dialing Function | Long Range |
| Up to 300 m transmission | |
| Software Function | Device Maintenance |
| Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization. | |
| Port Configuration | |
| Support port rate configuration, flow control, and ports enabling. | |
| PoE Configuration | |
| PoE watchdog: Ports 1 to 48 auto detect and restart the cameras that do not respond. PoE enabling: supported | |
| Port Rate-Limiting | |
| Rate-limiting for ingress and egress ports | |
| Storm Control | |
| Storm control of unknown unicast, multicast, and broadcast | |
| Port Mirroring | |
| Supported | |
| Link Aggregation | |
| Support static link aggregation. | |
| Port Isolation | |
| Ports in an isolation group cannot communicate with each other. | |
| QoS | |
| WRR and SP scheduling and port priority | |
| VLAN | |
| Supported | |
| STP | |
| STP and RSTP | |
| SNMP | |
| SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces | |
| LLDP | |
| LLDP supported for port configuration, global configuration, and neighbor discovery | |
| DHCP | |
| DHCP supported | |
| Approval | EMC |
| FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015) | |
| Safety | |
| UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017) | |
| Chemistry | |
| CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006) |
