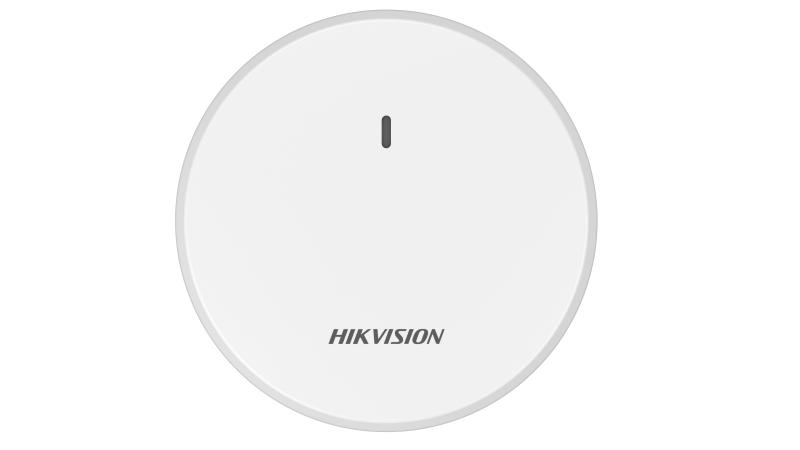

Hikvision DS-3WAP622G-SI Wi-Fi 6 1800M Celling Access Point, 1 Gigabit Port with PoE Input, Auto RF Optimization, Desk-Mounted, Wall-Mounted, Ceiling Mounting
Model :
SKU : WAP-HIKVIS DS-3WAP622G-SI
About this item
About this item
Description
Specification
| General | |
| Weight | 0.4 kg (0.88 lb) |
| Installation Mode | Desk-Mounted, Wall-Mounted, Ceiling Mounting |
| Working Temperature | 0 ??C to 40 ??C (32 ??F to 104 ??F) |
| Working Humidity | 5% to 95% (no condensation) |
| Storage Temperature | -40 ??C to 70 ??C (-40 ??F to 158 ??F) |
| Storage Humidity | 5% to 95% (no condensation) |
| Product Dimensions (W ?? H ?? D) | 220 mm ?? 220 mm ?? 35 mm (8.66'' ?? 8.66'' ?? 1.37'') |
| Packing List | 1800 M Access Point ??1, Screw Pack ?? 1, Quick Start Guide ?? 1, Regulatory Compliance and Safety Information ?? 1 |
| Power Consumption | Max. 11.35 W |
| WLAN Parameters | |
| Maximum Number of Clients | 256 |
| Recommended Number of Clients | 100 |
| Maximum Number of SSIDs | 8 |
| Working Frequency Band | Radio 1: 5G (11a/n/ac/ax), Radio 2: 2.4G (11b/g/n/ax) |
| Wi-Fi Standards | Wi-Fi 6 |
| Wi-Fi Speed | 2.4 G: 574 Mbps, 5 G: 1201 Mbps |
| Spatial Streams | 2.4 GHz: 2 ?? 2 MU-MIMO 5 GHz: 2 ?? 2 MU-MIMO |
| Channel Width | 2.4 GHz: Auto/20/40 MHz 5 GHz: Auto/20/40/80 MHz |
| Number of Antennas | 2.4 GHz: 2 5 GHz: 2 |
| Antenna Type | Built-in omnidirectional antennas |
| Antenna Gain | 2.4 GHz: 3 dBi 5 GHz: 4 dBi |
| Transmit Power | 20 dBm |
| Modulation Technology | OFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps, 16-QAM@24 Mbps, 64-QAM@48/54 Mbps DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, CCK@5.5/11 Mbps MIMO-OFDM (11n): MCS 0-15 MIMO-OFDM (11ac): MCS 0-9 MIMO-OFDM (11ax): MCS 0-11 |
| Software Specifications | |
| WLAN Security | WPA-PSK, WPA2-PSK, WPA-WPA2-PSK Blocklist & Allowlist Support for multiple encryption key-triggered dynamic unicast/multicast key updates Open system/shared key authentication Wireless endpoint access SSID and VLAN binding 802.11i support |
| Management & Maintenance | Centralized AC management |
| Version Upgrade | Upgrade via Web |
| Hardware Specifications | |
| Interface | 1 ?? Gigabit RJ45 uplink port |
| Power Supply | IEEE 802.3af/at POE, 12 VDC 1.5 A |
| LED Indicator | Yellow/green/blue for different working states, flashing mode |
| Reset Button | Hardware Resetting Button |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)) CE-LVD (EN 62368-1: 2014+A11: 2017) UL (UL 60950-1) |
| Chemistry | CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No.1907/2006) |
| Radio | EN 301 893, EN 300 440, EN 62311, EN 301 489-3, EN 301 489-17 |
