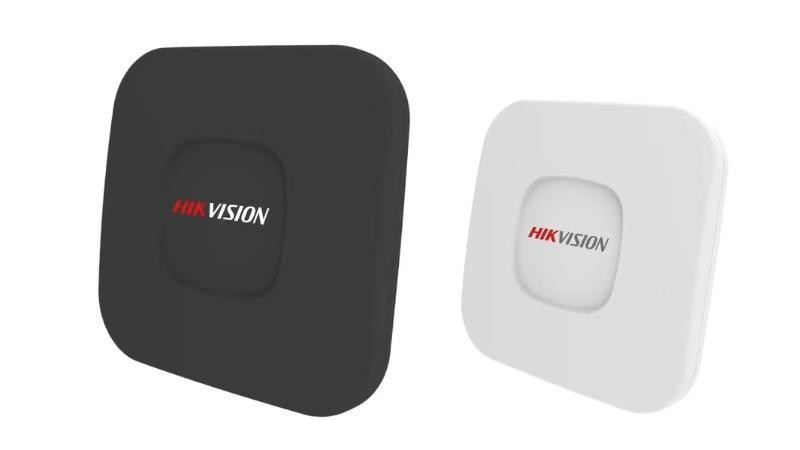

Hikvision DS-3WF01C-2N 2.4Ghz 300Mbps 500m Elevator Wireless Bridge (CPE), Up to 100m Range, 300Mbps 802.11n Wireless, Built-in 8 dBi 2 x 2 MIMO Antenna, IEEE 802.11b/g/n Standard, 2x10/100Mbps LAN, Ideal Solution for Elevator Connection, Plug and Play
Model :
SKU : DS-3WF01C-2N
About this item
Description
Hikvision DS-3WF01C-2N 2.4Ghz 300Mbps 500m Elevator Wireless Bridge (CPE), Up to 100m Range, 300Mbps 802.11n Wireless, Built-in 8 dBi 2 x 2 MIMO Antenna, IEEE 802.11b/g/n Standard, 2x10/100Mbps LAN, Ideal Solution for Elevator Connection, Plug and Play
| Standard | IEEE802.11 b/g/n (2T2R 300Mbps) |
| Operation Frequency | 2412 to 2472 MHz (More Non-standard channels are available, 2312MHz to 2732MHz) |
| Antenna | Internal, 6dBi, H: 65?? V: 60?? |
| Max Output Power | 27dBm |
| Receive Sensitivity | -72dBm@65Mbps, -97dBm@1Mbps |
| Max Transmission Rate | 11n: 300Mbps(HT40)/130Mbps(HT20) 11g: 54Mbps |
| Power Supply | 48V/0.25A PoE or 12 VDC |
| Interface | 3??10/100M Base-TX (Cat. 5/5E, RJ-45) ports |
| Operation Temperature | -30??? to +65??? (-22??? to +149???) |
| Storage Temperature | -40??? to +85??? (-40??? to +185???) |
| Operation Humidity | 5% to 95%RH non-condensing |
| Dimensions | 150??150??31.6 mm (5.9??5.9??1.24 inch) |
| Application Scenarios | Elevator Room/IP Camera |
| Encryption | WPA-PSK/WPA2-PSK |
| Network Mode | Router/Bridge |
| Security | IP/MAC filter, SSID hidden, Interface Isolation |
| Network Protocol | TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP |
| TDMA | Supported (Extend private communication protocol) |
| Auto ACK Timing Adjust | Supported (It can automatically detect the distances of the devices, keep the performance always the best) |
| Management And Logs | NTP, Syslog, Telnet, AC |
| Web Based Configuration | Supported |
| Firmware Update | Support update firmware by Web page |
| Bandwidth | 20M/40MHz |
Specification
Hikvision DS-3WF01C-2N 2.4Ghz 300Mbps 500m Elevator Wireless Bridge (CPE), Up to 100m Range, 300Mbps 802.11n Wireless, Built-in 8 dBi 2 x 2 MIMO Antenna, IEEE 802.11b/g/n Standard, 2x10/100Mbps LAN, Ideal Solution for Elevator Connection, Plug and Play
| Standard | IEEE802.11 b/g/n (2T2R 300Mbps) |
| Operation Frequency | 2412 to 2472 MHz (More Non-standard channels are available, 2312MHz to 2732MHz) |
| Antenna | Internal, 6dBi, H: 65?? V: 60?? |
| Max Output Power | 27dBm |
| Receive Sensitivity | -72dBm@65Mbps, -97dBm@1Mbps |
| Max Transmission Rate | 11n: 300Mbps(HT40)/130Mbps(HT20) 11g: 54Mbps |
| Power Supply | 48V/0.25A PoE or 12 VDC |
| Interface | 3??10/100M Base-TX (Cat. 5/5E, RJ-45) ports |
| Operation Temperature | -30??? to +65??? (-22??? to +149???) |
| Storage Temperature | -40??? to +85??? (-40??? to +185???) |
| Operation Humidity | 5% to 95%RH non-condensing |
| Dimensions | 150??150??31.6 mm (5.9??5.9??1.24 inch) |
| Application Scenarios | Elevator Room/IP Camera |
| Encryption | WPA-PSK/WPA2-PSK |
| Network Mode | Router/Bridge |
| Security | IP/MAC filter, SSID hidden, Interface Isolation |
| Network Protocol | TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP |
| TDMA | Supported (Extend private communication protocol) |
| Auto ACK Timing Adjust | Supported (It can automatically detect the distances of the devices, keep the performance always the best) |
| Management And Logs | NTP, Syslog, Telnet, AC |
| Web Based Configuration | Supported |
| Firmware Update | Support update firmware by Web page |
| Bandwidth | 20M/40MHz |
