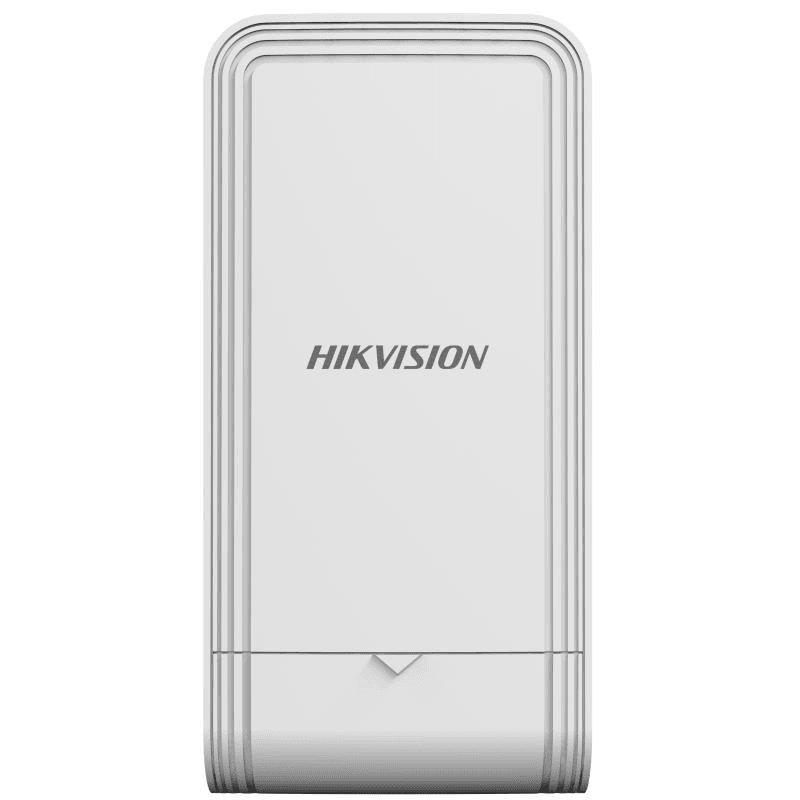

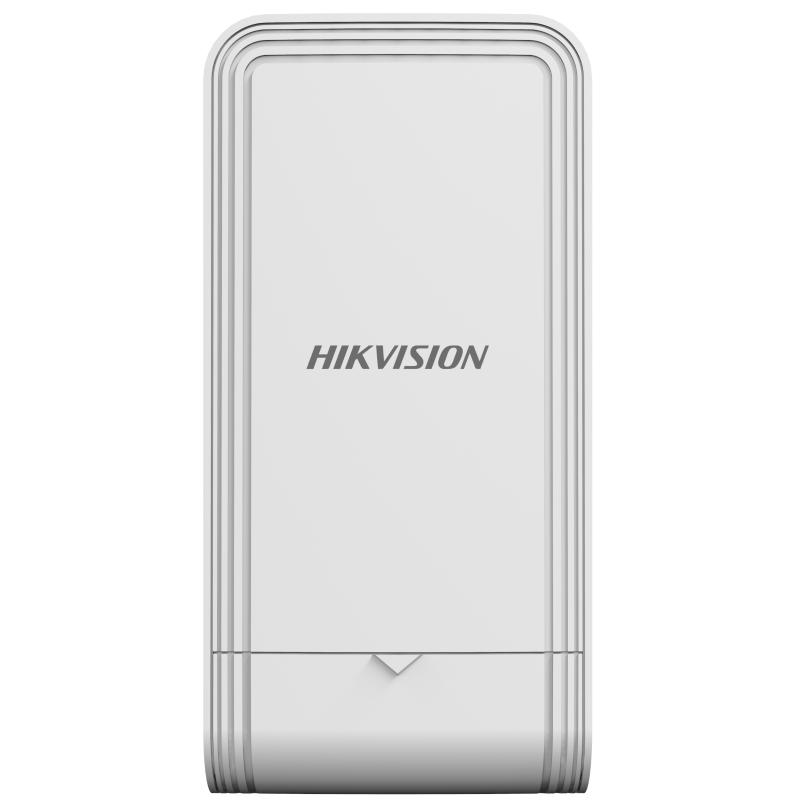

Hikvision DS-3WF02C-5AC/O Wireless Bridge, All gigabit LAN ports, TDMA supported, Quick match through DIP switch, Visualized topology management, Up to 5 km wireless transmission distance
Model :
SKU : DS-3WF02C-5AC/O
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Description for Hikvision DS-3WF02C-5AC/O Wireless Bridge, All gigabit LAN ports, TDMA supported, Quick match through DIP switch, Visualized topology management, Up to 5 km wireless transmission distance
Blast your network signal outdoors with the Hikvision DS-3WF02C-5AC/O Wireless Bridge! This bridge conquers long distances (up to 5km) with a stable 5GHz connection, ideal for connecting remote buildings, security cameras, and more. Gigabit LAN ports provide seamless wired network integration, while TDMA technology optimizes traffic for smooth data flow. Easy setup with Quick Match and weatherproof build make this bridge perfect for extending your outdoor network!
Hikvision DS-3WF02C-5AC/O Wireless Bridge, All gigabit LAN ports, TDMA supported, Quick match through DIP switch, Visualized topology management, Up to 5 km wireless transmission distance Specifications
| Feature | Specification |
|---|---|
| Product Dimensions (W ?? H ?? D) | 92 mm ?? 187 mm ?? 58 mm (3.62" ?? 7.36" ?? 2.28") |
| Package Dimensions (W ?? H ?? D) | 132 mm ?? 228 mm ?? 91 mm (5.19" ?? 8.97" ?? 3.58") |
| Net Weight | 0.307 kg (0.677 lb) |
| Gross Weight | 0.807 kg (1.779 lb) |
| Packing List | Wireless bridge ?? 1, power adapter (12 VDC, 1 A) ?? 1, 1000 MB PoE injector ?? 1, binding tape ?? 2, quick start guide ?? 1 |
| Packing Method | Single unit packing |
| Working Temperature | -30??C to 70??C (-22??F to 158??F) |
| Working Humidity | 5% to 95% (no condensation) |
| Storage Temperature | -40??C to 85??C (-40??F to 185??F) |
| Storage Humidity | 5% to 95% (no condensation) |
| Installation Mode | Pole mounting |
| Power Consumption | 2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W |
| Max. Transmission Rate Of Air Interface | ??? 867 Mbps |
| Wireless Standard | IEEE 802.11/a/n/ac |
| Working Frequency Band | 5150 to 5250 MHz, 5250 to 5350 MHz (DFS), 5470 to 5725 MHz (DFS), 5725 to 5850 MHz |
| Transmitting Power | 22 dBm (Note: Transmitting power may vary with local regulations.) |
| Receiving Sensitivity | -58 ?? 2 dBm@AC80 -MCS9; -84 ?? 2 dBm@AC80 -MCS0 |
| Antenna Gain | 12 dBi |
| Antenna Angle | Beamwidth [3dB] (35???? 5??) |
| Networking Mode | Point to point: Support up to 4-ch IPC (2MP) in Max. 5 KM distance and Max. 20 Mbps bandwidth, Point to point: Support up to 40-ch IPC (2MP) in Max. 1 KM distance and Max. 200 Mbps bandwidth, Point to multi-point: Support up to 16-ch IPC (2MP) in Max. 1 KM distance and Max. 80 Mbps bandwidth within 30??, Max. 1 to 8 PTMP connection |
| Port Numbers | 2 ?? Gigabit RJ45 ports |
| LED Indicator | Power indicator, LAN indicator, signal intensity indicator |
| Reset | Hardware resetting button |
| Power Supply | 12 VDC/1 A Passive PoE; 12 VDC, 1 A |
| Application Function | TDMA, DFS, TPC, IFM, IPM |
| Channel Width | 20/40/80 MHz |
| Channel Selection | Auto/manual selection |
| Network Protocol | NTP (network time synchronization), SADP (auto search for IP address), HTTPS (web management), SSH (debugging) |
| Security Mode | WPA2-PSK |
| Security Mechanism | Wireless network name hidden |
| Management Method | Web, HCP |
| Upgrade | Web, iVMS-4200 |
| System Log | Syslog, control center information |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020); IC (ICES-003: Issue 7:2020); RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1); CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006) |
| Radio | EN 301 893; EN 300 440; EN 62311; EN 301 489-3; EN 301 489-17; FCC Part 15.247 |
Specification
Description for Hikvision DS-3WF02C-5AC/O Wireless Bridge, All gigabit LAN ports, TDMA supported, Quick match through DIP switch, Visualized topology management, Up to 5 km wireless transmission distance
Blast your network signal outdoors with the Hikvision DS-3WF02C-5AC/O Wireless Bridge! This bridge conquers long distances (up to 5km) with a stable 5GHz connection, ideal for connecting remote buildings, security cameras, and more. Gigabit LAN ports provide seamless wired network integration, while TDMA technology optimizes traffic for smooth data flow. Easy setup with Quick Match and weatherproof build make this bridge perfect for extending your outdoor network!
Hikvision DS-3WF02C-5AC/O Wireless Bridge, All gigabit LAN ports, TDMA supported, Quick match through DIP switch, Visualized topology management, Up to 5 km wireless transmission distance Specifications
| Feature | Specification |
|---|---|
| Product Dimensions (W ?? H ?? D) | 92 mm ?? 187 mm ?? 58 mm (3.62" ?? 7.36" ?? 2.28") |
| Package Dimensions (W ?? H ?? D) | 132 mm ?? 228 mm ?? 91 mm (5.19" ?? 8.97" ?? 3.58") |
| Net Weight | 0.307 kg (0.677 lb) |
| Gross Weight | 0.807 kg (1.779 lb) |
| Packing List | Wireless bridge ?? 1, power adapter (12 VDC, 1 A) ?? 1, 1000 MB PoE injector ?? 1, binding tape ?? 2, quick start guide ?? 1 |
| Packing Method | Single unit packing |
| Working Temperature | -30??C to 70??C (-22??F to 158??F) |
| Working Humidity | 5% to 95% (no condensation) |
| Storage Temperature | -40??C to 85??C (-40??F to 185??F) |
| Storage Humidity | 5% to 95% (no condensation) |
| Installation Mode | Pole mounting |
| Power Consumption | 2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W |
| Max. Transmission Rate Of Air Interface | ??? 867 Mbps |
| Wireless Standard | IEEE 802.11/a/n/ac |
| Working Frequency Band | 5150 to 5250 MHz, 5250 to 5350 MHz (DFS), 5470 to 5725 MHz (DFS), 5725 to 5850 MHz |
| Transmitting Power | 22 dBm (Note: Transmitting power may vary with local regulations.) |
| Receiving Sensitivity | -58 ?? 2 dBm@AC80 -MCS9; -84 ?? 2 dBm@AC80 -MCS0 |
| Antenna Gain | 12 dBi |
| Antenna Angle | Beamwidth [3dB] (35???? 5??) |
| Networking Mode | Point to point: Support up to 4-ch IPC (2MP) in Max. 5 KM distance and Max. 20 Mbps bandwidth, Point to point: Support up to 40-ch IPC (2MP) in Max. 1 KM distance and Max. 200 Mbps bandwidth, Point to multi-point: Support up to 16-ch IPC (2MP) in Max. 1 KM distance and Max. 80 Mbps bandwidth within 30??, Max. 1 to 8 PTMP connection |
| Port Numbers | 2 ?? Gigabit RJ45 ports |
| LED Indicator | Power indicator, LAN indicator, signal intensity indicator |
| Reset | Hardware resetting button |
| Power Supply | 12 VDC/1 A Passive PoE; 12 VDC, 1 A |
| Application Function | TDMA, DFS, TPC, IFM, IPM |
| Channel Width | 20/40/80 MHz |
| Channel Selection | Auto/manual selection |
| Network Protocol | NTP (network time synchronization), SADP (auto search for IP address), HTTPS (web management), SSH (debugging) |
| Security Mode | WPA2-PSK |
| Security Mechanism | Wireless network name hidden |
| Management Method | Web, HCP |
| Upgrade | Web, iVMS-4200 |
| System Log | Syslog, control center information |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020); IC (ICES-003: Issue 7:2020); RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1); CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006) |
| Radio | EN 301 893; EN 300 440; EN 62311; EN 301 489-3; EN 301 489-17; FCC Part 15.247 |
