Hikvision DS-3WF0AC-2NT 2.4Ghz 300Mbps 100m Elevator Wireless Bridge (CPE), Up to 100m Range, 300Mbps 802.11n Wireless, Built-in 8 dBi 2 x 2 MIMO Antenna, Ideal Solution for Elevator Connection, Dual power supply mode, Plug and Play
Model :
SKU : DS-3WF0AC-2NT BRIDGE
About this item
Description
Hikvision DS-3WF0AC-2NT 2.4Ghz 300Mbps 100m Elevator Wireless Bridge (CPE), Up to 100m Range, 300Mbps 802.11n Wireless, Built-in 8 dBi 2 x 2 MIMO Antenna, Ideal Solution for Elevator Connection, Plug and Play
| Net Weight | 0.69 kg | |
| Installation | Pole | |
| Wireless Standard | IEEE802.11 b/g/n | |
| Operation Frequency | 2412 to 2472 MHz (Note: Available channel may vary depending on local regulations) | |
| Antenna | Internal, Gain 8dBi, H: 60?? V: 30?? | |
| Max Output Power | 20dBm (Note: Maximum output power may vary in different channels depending on local regulations) | |
| Receive Sensitivity | -92??1.5 dBm@1 Mbps, -72??1.5 dBm@ MSC7 | |
| Max Transmission Rate | 300 Mbps | |
| Gross Weight | 0.77 kg | |
| Power Supply | 12 V/1 A passive PoE or 12 V/1 A DC | |

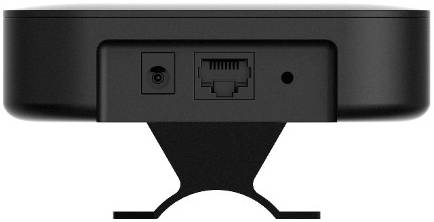

| Interface | 10/100 M Base-TX ?? 1 | |
| Operation Temperature | -30??C ~ 55??C (-22??F ~131??F) | |
| Storage Temperature | -30??C ~ 70??C (-22??F ~158??F) | |
| Operation Humidity | 10% - 90% RH (non-condensing) | |
| Dimensions | 193.5mm ?? 80mm ?? 67.5mm | |
| Encryption | WPA-PSK/WPA2-PSK | |
| Security | IP/MAC filter, SSID hidden | |
| Network Protocol | TCP/UDP/ARP/ICMP/HTTP/NTP | |
| Management And Logs | NTP, Syslog, SNMP | |
| Web Based Configuration | Supported | |
| Firmware Update | Support update firmware by Web page | |
| Bandwidth | 20M/40MHz | |
| Unmanaged PoE L2 Series | Max.Power Consumption | 2.8 W |
