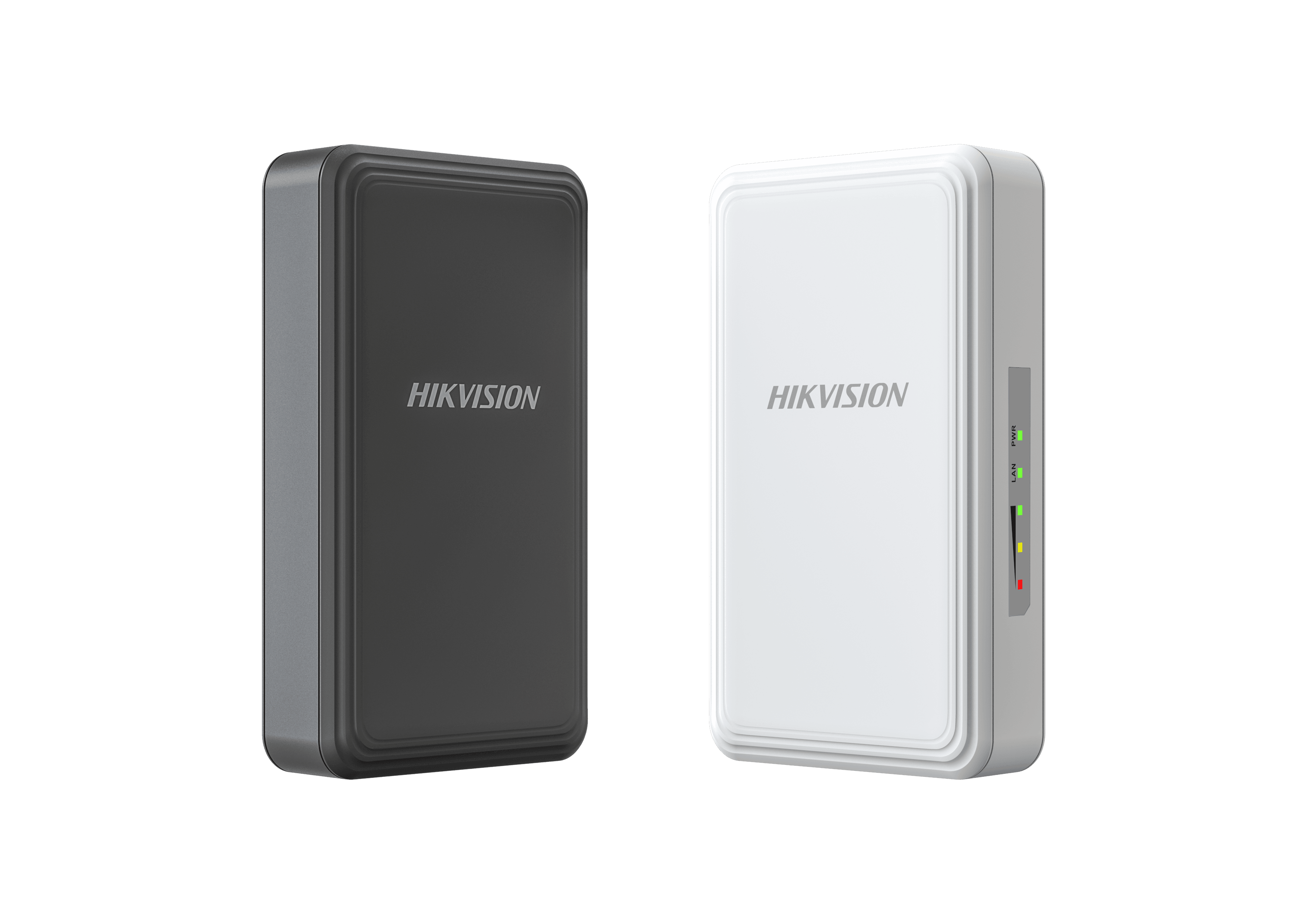

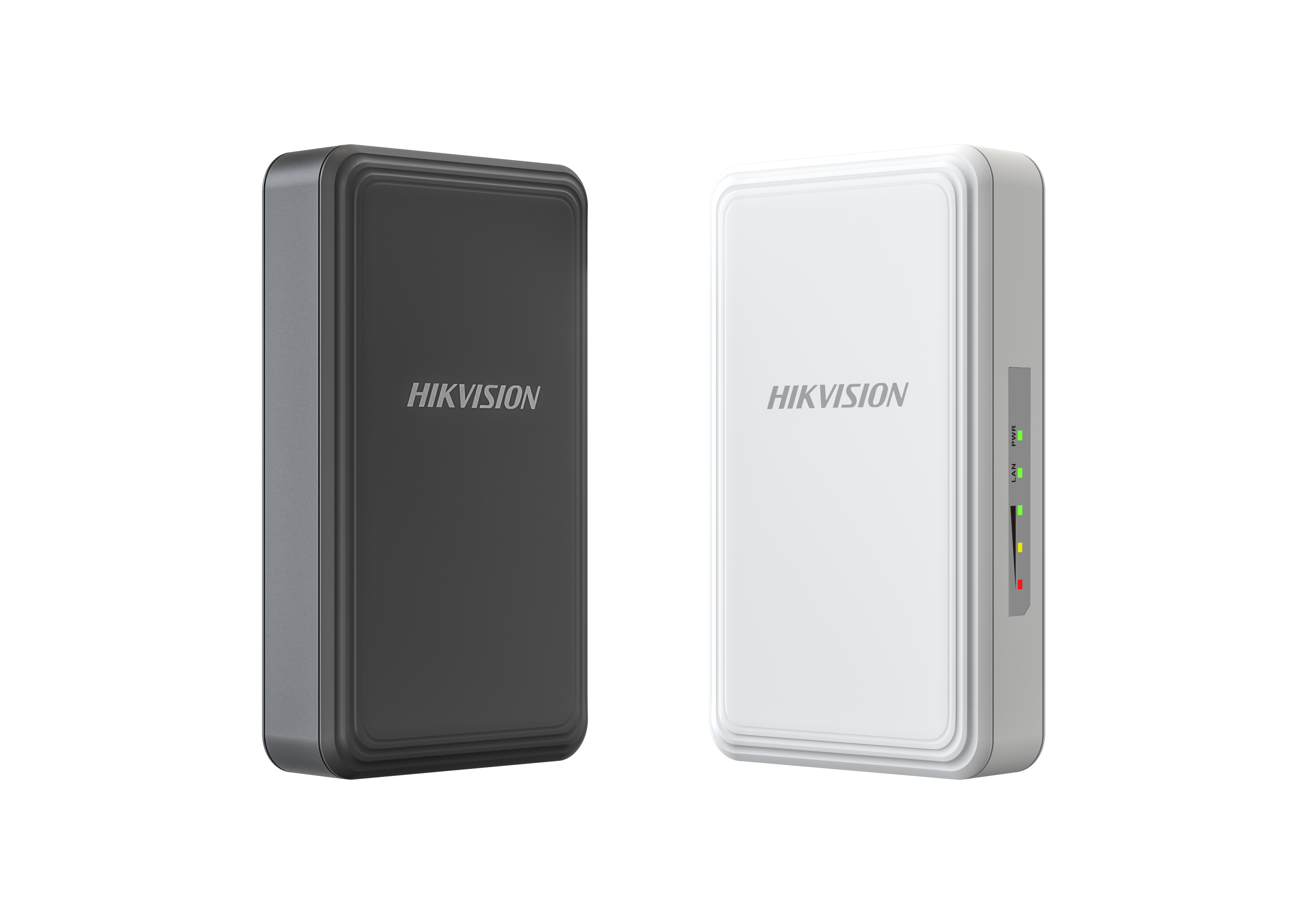

Hikvision DS-3WF0BC-2NT(B) 2.4Ghz 300Mbps 200m Elevator Wireless Bridge
Model :
SKU : DS-3WF0BC-2NT(B) BRIDGE
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
| Product Dimensions (W × H × D) | 80 mm × 41.94 mm × 136 mm (3.15'' × 1.65'' × 5.35'') |
| Package Dimensions (W × H × D) | 256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38") |
| Net Weight | 0.12 kg (0.26 lb) per device |
| Gross Weight | 0.7 kg (1.54 lb) |
| Packing List | Wireless Bridge × 2, Power Adapter (12 VDC, 1 A) × 2, 10/100 Mbps PoE Injector × 2, Binding Tape × 4, Quick Start Guide ×1, Regulatory Compliance and Safety Information × 1 |
| Packing Method | Packing in pairs |
| Working Temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Working Humidity | 5% to 95% (no condensation) |
| Storage Temperature | -40 °C to 80 °C (-40 °F to 176 °F) |
| Storage Humidity | 5% to 95% (no condensation) |
| Installation Mode | Pole Mounting |
| Ingress Protection | IP41 |
| Power Consumption | 1 W for typical (1-ch 2MP IPC), Max. 2 W |
| Max. Transmission Rate of Air Interface | ≤ 72 Mbps |
| Wireless Standard | IEEE 802.11b/g/n |
| Working Frequency Band | 2400 MHz ~ 2483.5 MHz |
| Antenna Gain | 7 dBi |
| Antenna Angle | (H) Beamwidth [3 dB] 50° (V) Beamwidth [3 dB] 50° |
| Transmitting Power | 16 dBm @11b 1Mbps (Note: Transmitting power may vary with local regulations.) |
| Receiving Sensitivity | -85±2dBm @HT20 MCS0 |
| Throughput Rate | PTP: 30 Mbps/0.2 KM (HT20) |
| Network Interface | 1 × 10/100 Mbps RJ45 ports |
| LED Indicator | Power indicator, LAN indicator, Signal intensity indicator |
| Reset | Hardware resetting button |
| Power Supply | 12-24 VDC Passive PoE |
| Channel Width | 10/20 MHz |
| Channel Selection | Auto/manual selection |
| Network Protocol | NTP (network time synchronization), SADP (auto search for IP address), SSH (debugging) |
| Security Mode | WPA2-PSK |
| Security Mechanism | Wireless network name hidden |
| Management Method | Web, iVMS-4200 |
| Upgrade | Web, iVMS-4200 |
| System Log | Syslog |
| Features | Support adaptive frequency hopping. Support fault self-healed. |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006) |
| Radio | EN 301 893, EN 300 440, EN 62311, EN 301 489-3, EN 301 489-17 |
