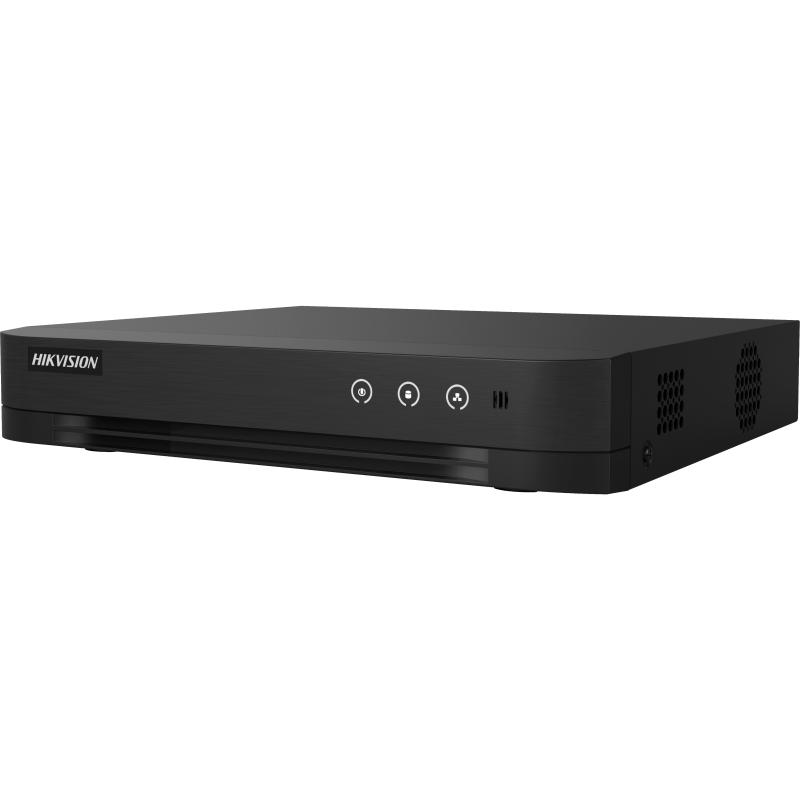

Hikvision DS-7216HGHI-K1 16-channel 1080p Lite 1U H.265 DVR, Up to 18-ch IP camera inputs (up to 5 MP), Deep learning based human and vehicle targets classification of Motion Detection 2.0, Max. 1200 m for 720p HDTVI signal, H.265 Pro+
Model :
SKU : DS-7216HGHI-K1
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
| Motion Detection | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify humans and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; |
| Quick search by object or event type is supported; | |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF |
| For 720p stream access: 720p/WD1/4CIF/VGA/CIF | |
| For standard definition stream access: WD1/4CIF/VGA/CIF | |
| Frame Rate | Main stream: |
| For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps | |
| For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps | |
| For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) | |
| Sub-stream: | |
| For 1080p and 720p stream access CIF/QVGA@15 fps | |
| For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N) | |
| Video Bitrate | 32 Kbps to 4 Mbps |
| Dual-Stream Support | Stream Type: Video, Video & Audio |
| Audio Compression: G.711u | |
| Audio Bitrate: 64 Kbps | |
| Video And Audio | IP Video Input: 2-ch (up to 18-ch) |
| Up to 5 MP resolution | |
| Support H.265+/H.265/H.264+/H.264 IP cameras | |
| Analog Video Input: 16-ch BNC interface (1.0 Vp-p, 75 ??), supporting coaxitron connection | |
| HDTVI Input: 1080p25, 1080p30, 720p25, 720p30 | |
| AHD Input: 1080p25, 1080p30, 720p25, 720p30 | |
| HDCVI Input: 1080p25, 1080p30, 720p25, 720p30 | |
| CVBS Input: PAL/NTSC | |
| HDMI Output | 1-ch, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz |
| VGA Output | 1-ch, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Input | 1-ch RCA (2.0 Vp-p, 1 K??), and 16-ch via coaxial cable |
| Audio Output | 1-ch, RCA (Linear, 1 K??) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 K??) (using the first audio input) |
| Synchronous Playback | 16-ch |
| Network | |
| Total Bandwidth | 96 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP???, HTTPS, ONVIF |
| Remote Connection | 128 |
| Network Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| Auxiliary Interface | SATA |
| 1, SATA interface | |
| Capacity | Up to 10 TB capacity for each disk |
| USB Interface | 2 ?? USB 2.0 |
| General | |
| Power Supply | 12 VDC, 1.6 A |
| Consumption | ??? 10 W (without HDD) |
| Working Temperature | -10 ??C to 55 ??C (14 ??F to 131 ??F) |
| Working Humidity | 10% to 90% |
| Dimension (W ?? D ?? H) | 260 ?? 222 ?? 45 mm (10.2 ?? 8.7 ?? 1.8 inch) |
| Weight | ??? 1.1 kg (without HDD, 2.4 lb.) |
Specification
| Motion Detection | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify humans and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; |
| Quick search by object or event type is supported; | |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF |
| For 720p stream access: 720p/WD1/4CIF/VGA/CIF | |
| For standard definition stream access: WD1/4CIF/VGA/CIF | |
| Frame Rate | Main stream: |
| For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps | |
| For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps | |
| For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) | |
| Sub-stream: | |
| For 1080p and 720p stream access CIF/QVGA@15 fps | |
| For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N) | |
| Video Bitrate | 32 Kbps to 4 Mbps |
| Dual-Stream Support | Stream Type: Video, Video & Audio |
| Audio Compression: G.711u | |
| Audio Bitrate: 64 Kbps | |
| Video And Audio | IP Video Input: 2-ch (up to 18-ch) |
| Up to 5 MP resolution | |
| Support H.265+/H.265/H.264+/H.264 IP cameras | |
| Analog Video Input: 16-ch BNC interface (1.0 Vp-p, 75 ??), supporting coaxitron connection | |
| HDTVI Input: 1080p25, 1080p30, 720p25, 720p30 | |
| AHD Input: 1080p25, 1080p30, 720p25, 720p30 | |
| HDCVI Input: 1080p25, 1080p30, 720p25, 720p30 | |
| CVBS Input: PAL/NTSC | |
| HDMI Output | 1-ch, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz |
| VGA Output | 1-ch, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Input | 1-ch RCA (2.0 Vp-p, 1 K??), and 16-ch via coaxial cable |
| Audio Output | 1-ch, RCA (Linear, 1 K??) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 K??) (using the first audio input) |
| Synchronous Playback | 16-ch |
| Network | |
| Total Bandwidth | 96 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP???, HTTPS, ONVIF |
| Remote Connection | 128 |
| Network Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| Auxiliary Interface | SATA |
| 1, SATA interface | |
| Capacity | Up to 10 TB capacity for each disk |
| USB Interface | 2 ?? USB 2.0 |
| General | |
| Power Supply | 12 VDC, 1.6 A |
| Consumption | ??? 10 W (without HDD) |
| Working Temperature | -10 ??C to 55 ??C (14 ??F to 131 ??F) |
| Working Humidity | 10% to 90% |
| Dimension (W ?? D ?? H) | 260 ?? 222 ?? 45 mm (10.2 ?? 8.7 ?? 1.8 inch) |
| Weight | ??? 1.1 kg (without HDD, 2.4 lb.) |
