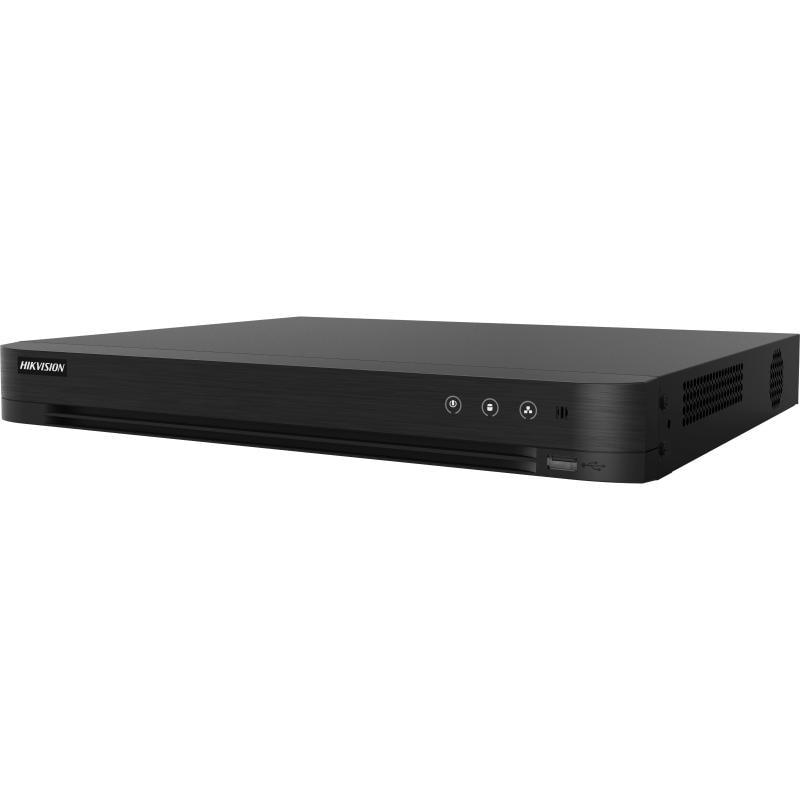

Hikvision DS-7232HGHI-M2 32 channel 720p 1U H.265 digital video recorder
Model :
SKU : DS-7232HGHI-M2
About this item
About this item
Description
DVR Specifications
| Motion Detection 2.0 | Deep learning-based motion detection 2.0, enabled by default for all analog channels, classifies humans and vehicles to reduce false alarms from objects like leaves and lights. |
| Quick Search | Supports quick search by object or event type. |
| Video and Audio | |
| IP Video Input | 2 channels (up to 18 channels), supports up to 5 MP resolution, compatible with H.265+/H.265/H.264+/H.264 IP cameras. |
| Analog Video Input | 32 channels, BNC interface (1.0 Vp-p, 75 ??), supports coaxitron connection. |
| HDTVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| HDMI Output | 1 channel, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz |
| VGA Output | 1 channel, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz |
| CVBS Output | 1 channel, BNC (1.0 Vp-p, 75 ??) |
| Audio Input | 1 channel, RCA (2.0 Vp-p, 1 K??), 32 channels via coaxial cable |
| Audio Output | 1 channel, RCA (Linear, 1 K??) |
| Two-Way Audio | 1 channel, RCA (2.0 Vp-p, 1 K??) (uses the first audio input) |
| Synchronous Playback | 16 channels |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | 1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
| Frame Rate | Main Stream: - 1080p stream: 1080p lite/720p lite/WD1/4CIF/VGA @ 15fps; CIF @ 25fps - 720p stream: 720p/WD1/4CIF/VGA @ 15fps; CIF @ 25fps - Standard definition: WD1/4CIF/VGA/CIF @ 25fps Sub-stream: CIF/QVGA @ 15fps |
| Video Bitrate | 32 Kbps to 4 Mbps |
| Dual-stream | Not supported |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Network | |
| Remote Connection | 128 |
| Total Bandwidth | 128 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP???, HTTPS, ONVIF, EHome |
| Network Interface | 1 ?? RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Wi-Fi | Connectable to Wi-Fi network via USB Wi-Fi dongle |
| Auxiliary Interface | |
| Serial Interface | RS-485 (half-duplex) |
| SATA | 2 SATA interfaces |
| Capacity | Up to 10 TB per disk |
| USB Interface | Front: 1 ?? USB 2.0, Rear: 1 ?? USB 3.0 |
| General | |
| Power Supply | 12 VDC, 3.33 A |
| Power Consumption | ??? 18 W (without HDD) |
| Working Temperature | -10??C to 55??C (14??F to 131??F) |
| Working Humidity | 10% to 90% |
| Dimensions (W ?? D ?? H) | 384 ?? 317 ?? 52 mm (15.1 ?? 12.5 ?? 2.0 inches) |
| Weight | ??? 2.2 kg (4.9 lb.) without HDD |
Specification
DVR Specifications
| Motion Detection 2.0 | Deep learning-based motion detection 2.0, enabled by default for all analog channels, classifies humans and vehicles to reduce false alarms from objects like leaves and lights. |
| Quick Search | Supports quick search by object or event type. |
| Video and Audio | |
| IP Video Input | 2 channels (up to 18 channels), supports up to 5 MP resolution, compatible with H.265+/H.265/H.264+/H.264 IP cameras. |
| Analog Video Input | 32 channels, BNC interface (1.0 Vp-p, 75 ??), supports coaxitron connection. |
| HDTVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| HDMI Output | 1 channel, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz |
| VGA Output | 1 channel, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz |
| CVBS Output | 1 channel, BNC (1.0 Vp-p, 75 ??) |
| Audio Input | 1 channel, RCA (2.0 Vp-p, 1 K??), 32 channels via coaxial cable |
| Audio Output | 1 channel, RCA (Linear, 1 K??) |
| Two-Way Audio | 1 channel, RCA (2.0 Vp-p, 1 K??) (uses the first audio input) |
| Synchronous Playback | 16 channels |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | 1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
| Frame Rate | Main Stream: - 1080p stream: 1080p lite/720p lite/WD1/4CIF/VGA @ 15fps; CIF @ 25fps - 720p stream: 720p/WD1/4CIF/VGA @ 15fps; CIF @ 25fps - Standard definition: WD1/4CIF/VGA/CIF @ 25fps Sub-stream: CIF/QVGA @ 15fps |
| Video Bitrate | 32 Kbps to 4 Mbps |
| Dual-stream | Not supported |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Network | |
| Remote Connection | 128 |
| Total Bandwidth | 128 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP???, HTTPS, ONVIF, EHome |
| Network Interface | 1 ?? RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Wi-Fi | Connectable to Wi-Fi network via USB Wi-Fi dongle |
| Auxiliary Interface | |
| Serial Interface | RS-485 (half-duplex) |
| SATA | 2 SATA interfaces |
| Capacity | Up to 10 TB per disk |
| USB Interface | Front: 1 ?? USB 2.0, Rear: 1 ?? USB 3.0 |
| General | |
| Power Supply | 12 VDC, 3.33 A |
| Power Consumption | ??? 18 W (without HDD) |
| Working Temperature | -10??C to 55??C (14??F to 131??F) |
| Working Humidity | 10% to 90% |
| Dimensions (W ?? D ?? H) | 384 ?? 317 ?? 52 mm (15.1 ?? 12.5 ?? 2.0 inches) |
| Weight | ??? 2.2 kg (4.9 lb.) without HDD |
