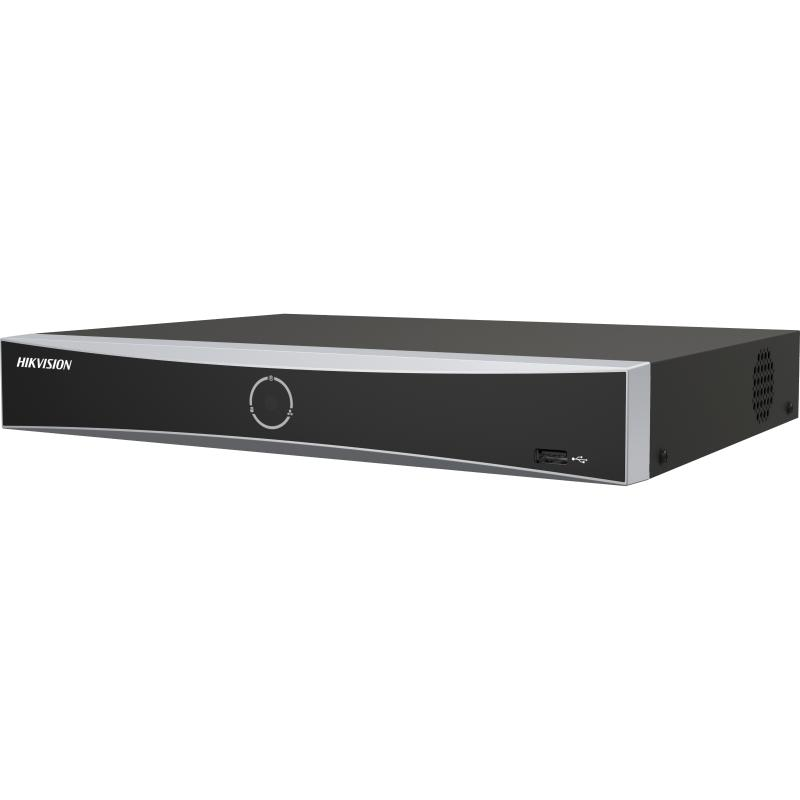

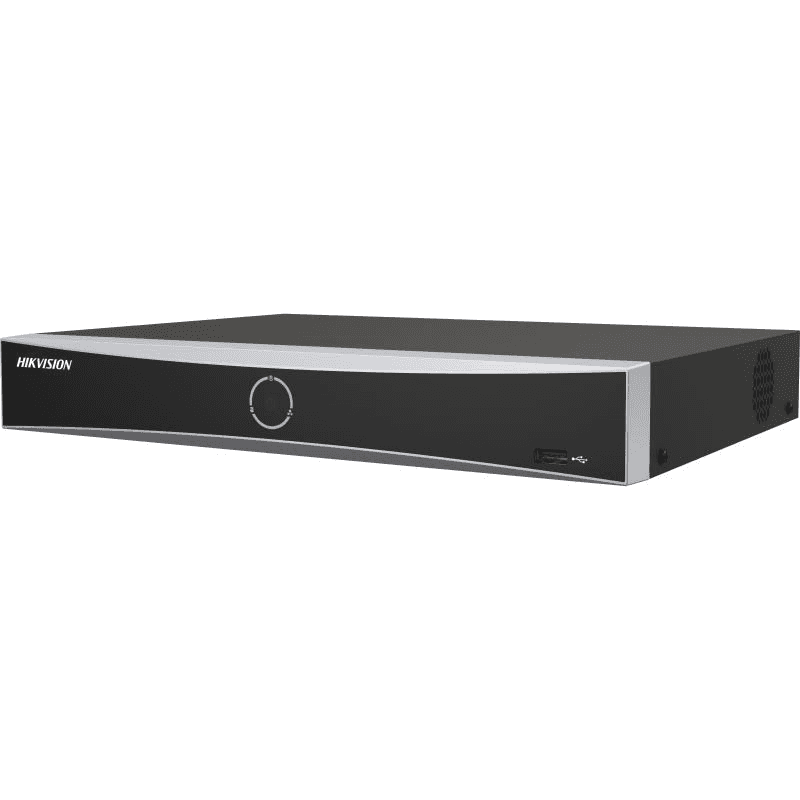

Hikvision DS-7604NXI-K1/4P 4-ch PoE 1U K Series AcuSense 4K NVR, Up to 4-ch IP camera inputs, plug & play with 4 power-over-Ethernet (PoE), Up to 1-ch@12 MP, Up to 40 Mbps, Facial recognition, perimeter protection, motion detection 2.0 (AI)

Model :

SKU : DS-7604NXI-K1/4P(STD)

About this item



About this item

Description

Hikvision DS-7604NXI-K1/4P 4-ch PoE 1U K Series AcuSense 4K NVR, Up to 4-ch IP camera inputs, plug & play with 4 power-over-Ethernet (PoE), Up to 1-ch@12 MP, Up to 40 Mbps, Facial recognition, perimeter protection, motion detection 2.0

AI By DeviceFacial recognition, perimeter protection, motion detection 2.0
AI By CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
Facial Recognition
  • Face Attributes: N/A
  • Facial Detection And Analytics: Face picture comparison, human face capture, face picture search
  • Face Picture Library: Up to 16 face picture libraries, with up to 5,000 face pictures in total (each picture ??? 1MB, total capacity ??? 73MB); Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ??? 4 MB, total capacity ??? 1 GB)
  • Facial Detection And Analytics Performance: 1-ch, 4 MP; 1-ch, 8 MP
  • Face Picture Comparison (Captured From Camera): 2-ch
Motion Detection 2.0
  • By Device: All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
  • By Camera: All channels
Perimeter Protection
  • By Device: 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
  • By Camera: All channels
Video And Audio
  • IP Video Input: 4-ch
  • Incoming Bandwidth: 40 Mbps
  • Outgoing Bandwidth: 80 Mbps
  • HDMI Output: 1-ch, 4K (3840 ?? 2160)/30 Hz, 2K (2560 ?? 1440)/60 Hz, 1920 ?? 1080/60 Hz, 1600 ?? 1200/60 Hz, 1280 ?? 1024/60 Hz, 1280 ?? 720/60 Hz
  • VGA Output: 1-ch, 1920 ?? 1080/60 Hz, 1280 ?? 1024/60 Hz, 1280 ?? 720/60 Hz
  • Video Output Mode: HDMI1/VGA simultaneous output
  • CVBS Output: N/A
  • Audio Output: 1-ch, RCA (Linear, 1 K??)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K??, using the audio input)
Decoding
  • Decoding Format: H.265/H.265+/H.264+/H.264
  • Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback: 4-ch
  • Decoding Capability:
    • AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
    • AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC
Network
  • Remote Connection: 128
  • API: ONVIF (profile S/G); SDK; ISAPI
  • Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP???, HTTP, HTTPS
  • Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • PoE Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power
  • Power: ??? 50 W
  • Standard: IEEE 802.3af/at
Auxiliary Interface
  • SATA: 1 SATA interface
  • Capacity: Up to 10 TB capacity for each HDD
  • USB Interface: Front panel: 1 ?? USB 2.0; Rear panel: 1 ?? USB 2.0
  • Alarm In/Out: 4/1; N/A; N/A (4/1 is optional)
General
  • GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
  • Power Supply: 48 VDC, 1.35 A
  • Consumption: ??? 10 W (without HDD and PoE off)
  • Working Temperature: -10 ??C to 55 ??C (14 ??F to 131 ??F)
  • Working Humidity: 10% to 90%
  • Dimension (W ?? D ?? H): 320 mm ?? 240 mm ?? 48 mm (12.6"?? 9.4" ?? 1.9")
  • Weight: ??? 1 kg (without HDD, 2.2 lb.)
  • Certification: CE, EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
  • Obtained Certification: CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS; CE, CB, KC, Reach, WEEE, RCM, UKCA, LOA

Specification

Hikvision DS-7604NXI-K1/4P 4-ch PoE 1U K Series AcuSense 4K NVR, Up to 4-ch IP camera inputs, plug & play with 4 power-over-Ethernet (PoE), Up to 1-ch@12 MP, Up to 40 Mbps, Facial recognition, perimeter protection, motion detection 2.0

AI By DeviceFacial recognition, perimeter protection, motion detection 2.0
AI By CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
Facial Recognition
  • Face Attributes: N/A
  • Facial Detection And Analytics: Face picture comparison, human face capture, face picture search
  • Face Picture Library: Up to 16 face picture libraries, with up to 5,000 face pictures in total (each picture ??? 1MB, total capacity ??? 73MB); Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ??? 4 MB, total capacity ??? 1 GB)
  • Facial Detection And Analytics Performance: 1-ch, 4 MP; 1-ch, 8 MP
  • Face Picture Comparison (Captured From Camera): 2-ch
Motion Detection 2.0
  • By Device: All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
  • By Camera: All channels
Perimeter Protection
  • By Device: 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
  • By Camera: All channels
Video And Audio
  • IP Video Input: 4-ch
  • Incoming Bandwidth: 40 Mbps
  • Outgoing Bandwidth: 80 Mbps
  • HDMI Output: 1-ch, 4K (3840 ?? 2160)/30 Hz, 2K (2560 ?? 1440)/60 Hz, 1920 ?? 1080/60 Hz, 1600 ?? 1200/60 Hz, 1280 ?? 1024/60 Hz, 1280 ?? 720/60 Hz
  • VGA Output: 1-ch, 1920 ?? 1080/60 Hz, 1280 ?? 1024/60 Hz, 1280 ?? 720/60 Hz
  • Video Output Mode: HDMI1/VGA simultaneous output
  • CVBS Output: N/A
  • Audio Output: 1-ch, RCA (Linear, 1 K??)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K??, using the audio input)
Decoding
  • Decoding Format: H.265/H.265+/H.264+/H.264
  • Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback: 4-ch
  • Decoding Capability:
    • AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
    • AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC
Network
  • Remote Connection: 128
  • API: ONVIF (profile S/G); SDK; ISAPI
  • Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP???, HTTP, HTTPS
  • Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • PoE Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power
  • Power: ??? 50 W
  • Standard: IEEE 802.3af/at
Auxiliary Interface
  • SATA: 1 SATA interface
  • Capacity: Up to 10 TB capacity for each HDD
  • USB Interface: Front panel: 1 ?? USB 2.0; Rear panel: 1 ?? USB 2.0
  • Alarm In/Out: 4/1; N/A; N/A (4/1 is optional)
General
  • GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
  • Power Supply: 48 VDC, 1.35 A
  • Consumption: ??? 10 W (without HDD and PoE off)
  • Working Temperature: -10 ??C to 55 ??C (14 ??F to 131 ??F)
  • Working Humidity: 10% to 90%
  • Dimension (W ?? D ?? H): 320 mm ?? 240 mm ?? 48 mm (12.6"?? 9.4" ?? 1.9")
  • Weight: ??? 1 kg (without HDD, 2.2 lb.)
  • Certification: CE, EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
  • Obtained Certification: CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS; CE, CB, KC, Reach, WEEE, RCM, UKCA, LOA
