Model :

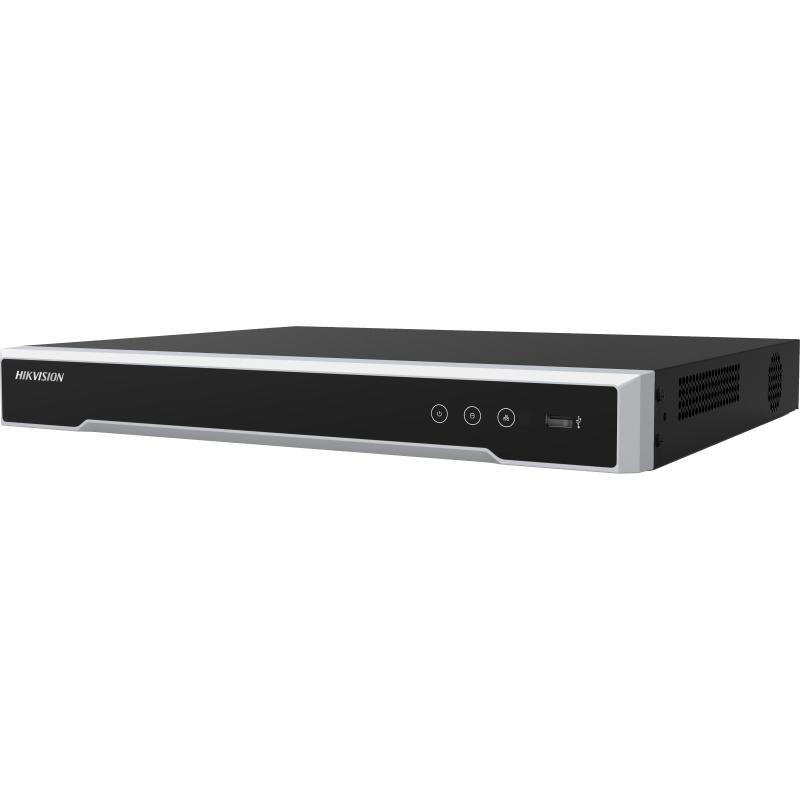

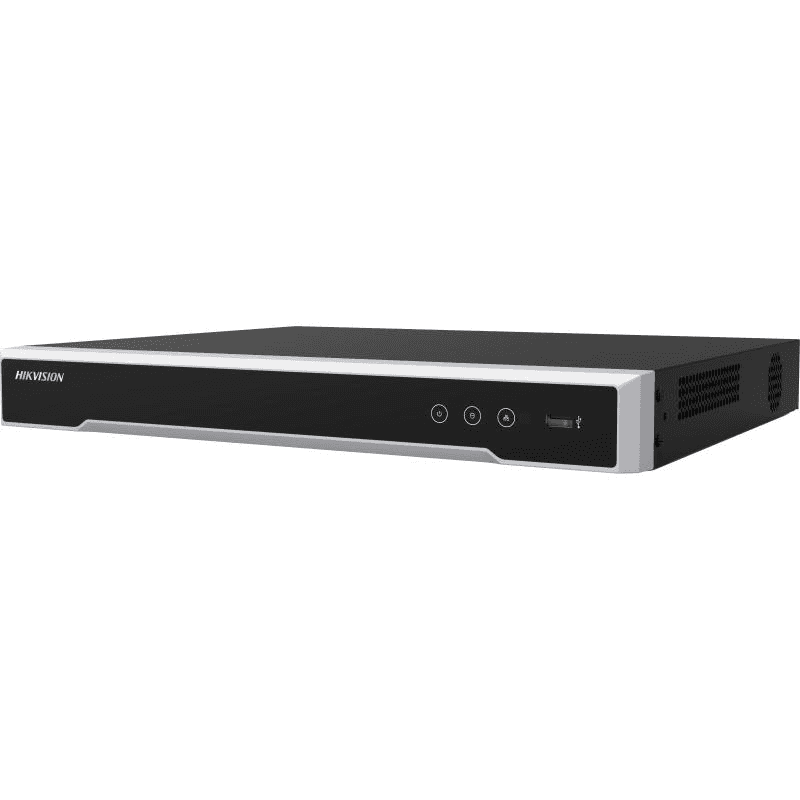

SKU : DS-7616NI-M2/16P
The Hikvision DS-7616NI-M2/16P is a masterclass in high-velocity surveillance engineering, meticulously designed to provide a surgical recording advantage for flagship M-Series security ecosystems. Featuring professional-grade 8K decoding and a surgical 16-channel input with integrated PoE ports, it delivers elite-tier power and data transmission through a single-cable connection for each camera. With its high-impact H.265+ compression and specialized dual SATA expansion capacity, this NVR serves as a reliable and technically dominant pillar for comprehensive, high-production security infrastructures in the UAE.
The DS-7616NI-M2/16P M-Series NVR represents a surgical fusion of ultra-high-bandwidth digital recording and professional-grade power efficiency. Designed for professionals who operate within zero-compromise security environments, this NVR utilizes high-impact 8K resolution support to capture surgical visual details from up to 16 high-definition IP cameras. The specialized integrated 16-port PoE interface is surgically engineered to allow for high-velocity installation without the need for external power supplies, acting as a reliable pillar for streamlined system deployment in large-scale environments. Whether you are managing a high-stakes industrial facility or a high-production corporate headquarters, the DS-7616NI-M2/16P provides the technical refinement and structural integrity required to maintain absolute technical dominance over your video assets.
Key Features
16-Channel IP Video Input: Meticulously designed for surgical management of up to 16 high-definition IP cameras, providing a high-impact recording foundation.
Integrated 16-Port PoE: Features a surgical Plug-and-Play interface surgically engineered to provide high-velocity power and data via a single network cable per camera.
8K Ultra-HD HDMI 2.1 Output: Equipped with surgical video output capable of high-velocity 8K resolution, providing a surgical advantage in monitoring and high-definition forensic review.
H.265+ Compression Technology: Surgically tuned to optimize storage space and bandwidth, acting as a reliable pillar for extended recording duration without visual degradation in the UAE.
Dual SATA Interfaces: Equipped with high-velocity support for two internal hard drives up to 14TB each, providing a surgical and reliable archival anchor for massive datasets.
160 Mbps Incoming Bandwidth: Meticulously crafted to handle high-velocity data streams from multiple high-resolution cameras simultaneously, ensuring a surgical advantage in smooth video capture.
Advanced VCA Support: Features high-impact Video Content Analytics support, acting as a reliable anchor for surgical event detection, facial recognition, and rapid intrusion alerts.
Hik-Connect Cloud Support: Meticulously designed for high-velocity remote access and mobile management, providing a surgical link to your security feed from anywhere.
Why This Product Stands Out
The Hikvision DS-7616NI-M2/16P stands out by offering flagship 8K recording capabilities and a specialized integrated 16-port PoE architecture within a single high-velocity M-Series chassis. While standard recorders are limited to 4K and external switches, the 8K decoding power and internal PoE delivery of the M2/16P model act as a major differentiator, providing a surgical advantage in installation speed and future-proof evidence quality. Its professional aesthetic and ultra-precise hardware construction are high-impact benefits for users in the UAE who demand professional-grade hardware. For the security professional who requires technical dominance and a flagship-tier 16-channel anchor, this NVR offers a level of refinement and mechanical excellence that redefines the high-end surveillance category.
| Attribute | Specification |
|---|---|
| IP Video Input | 16-ch |
| Resolution | Up to 32 MP |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI Output | 8K (7680 ?? 4320)/30Hz, 4K (3840 ?? 2160)/60Hz, 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1920 ?? 1080/60Hz |
| VGA Output | 1920 ?? 1080/60Hz |
| Video Output Mode | HDMI/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 ??), resolution: PAL: 704 ?? 576, NTSC: 704 ?? 480 |
| Audio Output | 1-ch, RCA (Linear, 1 K??) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 K??, using the audio input) |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| Decoding Capability | 2-ch@32 MP (30 fps)+2-ch@8MP???30fps???/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) |
| Dual-Stream Recording | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Network | |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP???, HTTP, HTTPS |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ??? 200 W |
| Standard | IEEE 802.3 af/at |
| Auxiliary Interface | SATA |
| Capacity | Up to 16 TB capacity for each HDD |
| Alarm In/Out | 4/1 |
| USB Interface | Front panel: 1 ?? USB 2.0; Rear panel: 1 ?? USB 3.0 |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ??? 15 W (without HDD and PoE off) |
| Working Temperature | -10 ??C to 55 ??C (14 ??F to 131 ??F) |
| Working Humidity | 10% to 90% |
| Dimension (W ?? D ?? H) | 385 ?? 315?? 52 mm (15.2" ?? 12.4" ?? 2.0") |
| Weight | ??? 3 kg (without HDD, 2.2 lb.) |
| Certification | FCC: Part 15 Subpart B, ANSI C63.4-2014 CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
