Model :
SKU : DS-7616NI-Q2/16P

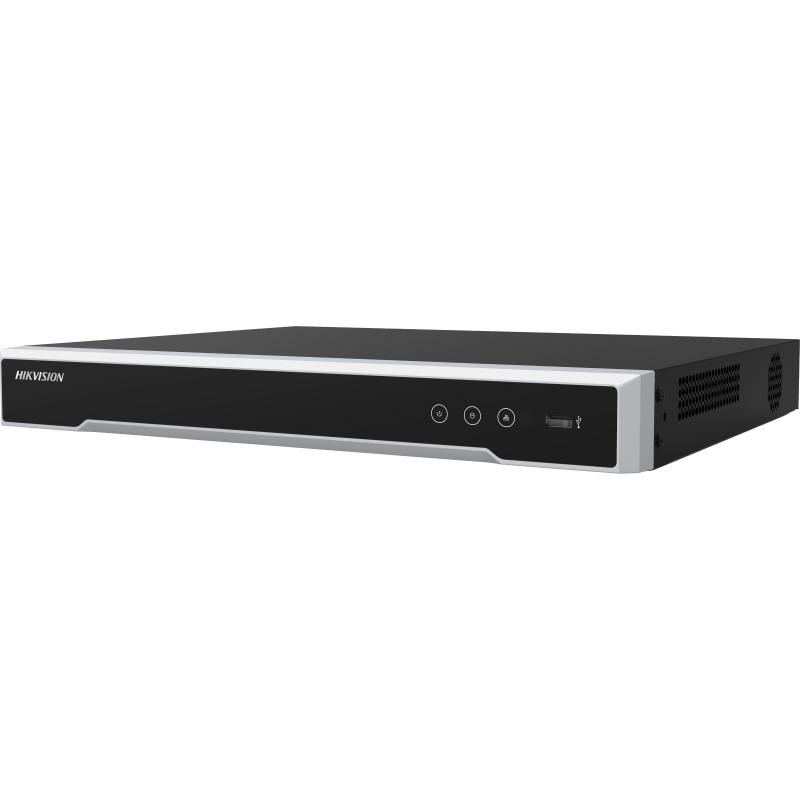

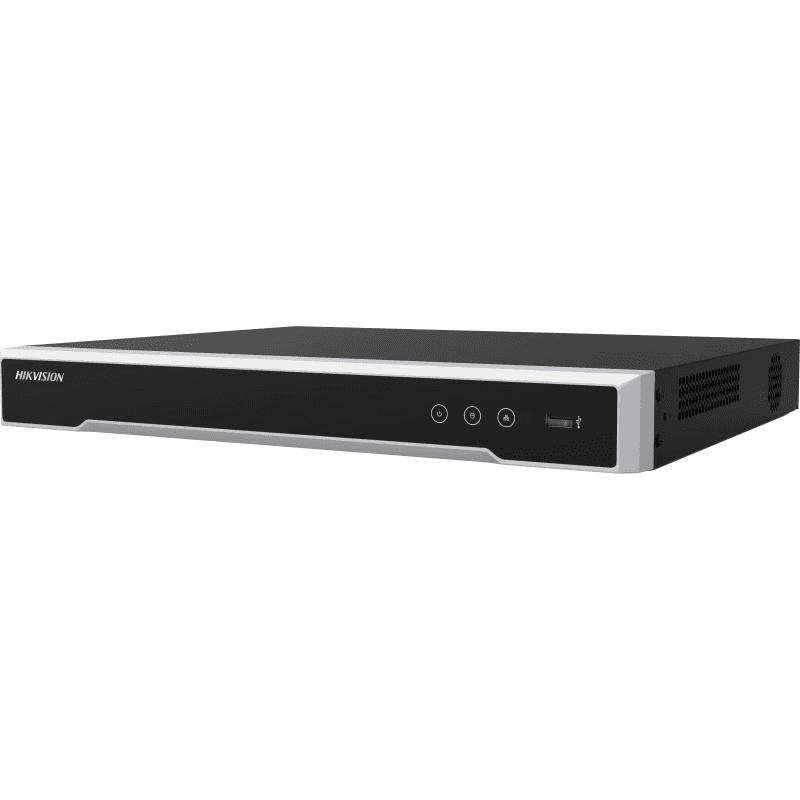

The Hikvision DS-7616NI-Q2/16P is a masterclass in high-velocity surveillance engineering, meticulously designed to provide a surgical recording advantage for flagship high-density security ecosystems. Featuring professional-grade 4K decoding and a surgical 16-channel input with integrated PoE ports, it delivers elite-tier power and data transmission through a single cable per camera. With its high-impact 160Mbps bit rate and dual SATA expansion capacity, this NVR serves as a reliable and technically dominant pillar for comprehensive, high-production security infrastructures in the UAE.
The DS-7616NI-Q2/16P 7600-Series NVR represents a surgical fusion of high-bandwidth digital recording and professional-grade power efficiency. Designed for professionals who operate within zero-compromise security environments, this NVR utilizes high-impact 4K resolution support to capture surgical visual details from up to 16 high-definition IP cameras simultaneously. The specialized integrated 16-port PoE interface is surgically engineered to allow for high-velocity installation without the need for external power supplies or complex network configurations, acting as a reliable pillar for streamlined system deployment. Whether you are managing a high-stakes commercial complex or a high-production corporate office, the DS-7616NI-Q2/16P provides the technical refinement and structural integrity required to maintain absolute technical dominance over your video assets.
Key Features
16-Channel IP Video Input: Meticulously designed for surgical management of up to 16 high-definition IP cameras, providing a high-impact recording foundation.
Integrated 16-Port PoE: Features a surgical Plug-and-Play interface surgically engineered to provide high-velocity power and data via a single network cable per camera.
160Mbps Incoming Bandwidth: Equipped with high-velocity processing surgically engineered to handle heavy data traffic from multiple 4K streams without latency.
4K Ultra-HD HDMI Output: Features surgical video output capable of high-velocity 4K resolution, providing a surgical advantage in monitoring and forensic review.
H.265+ Compression Technology: Surgically tuned to optimize storage space and bandwidth, acting as a reliable pillar for extended recording duration without visual degradation in the UAE.
Dual SATA Interfaces: Equipped with high-velocity support for two internal hard drives (up to 8TB each), providing a surgical and reliable archival anchor for large datasets.
Professional 1U Chassis: Meticulously crafted in a 380mm 1U case, ensuring surgical heat dissipation and high-impact durability for rack-mount or desktop deployment.
Hik-Connect Cloud Support: Meticulously designed for high-velocity remote access and mobile management, providing a surgical link to your security feed from anywhere.
Why This Product Stands Out
The Hikvision DS-7616NI-Q2/16P stands out by offering flagship 4K recording capabilities and a specialized integrated 16-port PoE architecture within a single high-velocity 1U chassis. While standard recorders require complex external switches for high-channel counts, the internal PoE power delivery and 160Mbps bandwidth of the Q2/16P model act as a major differentiator, providing a surgical advantage in installation speed and system stability. Its professional aesthetic and ultra-precise hardware construction are high-impact benefits for users in the UAE who demand professional-grade hardware. For the security professional who requires technical dominance and a flagship-tier 16-channel anchor, this NVR offers a level of refinement and mechanical excellence that redefines the professional surveillance category.
| Human/Vehicle Analysis | 4-ch |
| Video And Audio | IP Video Input: 16-ch HDMI Output: 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz VGA Output: 1-ch, 1920 ?? 1080/60 Hz, 1280 ?? 1024/60 Hz, 1280 ?? 720/60 Hz Video Output Mode: HDMI/VGA simultaneous output Incoming Bandwidth: 160 Mbps Outgoing Bandwidth: 80 Mbps Audio Output: 1-ch, RCA (Linear, 1 K??) Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k ??) |
| Decoding | Decoding Format: H.265+,H.265,H.264+,H.264 Decoding Capability: 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) Synchronous Playback: 16-ch Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Network | Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP???, HTTPS Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface PoE Interface: 16-ch; 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| RAID | No RAID supported |
| Auxiliary Interface | SATA, 2 SATA interfaces, Capacity: Up to 8TB capacity for each disk |
| USB Interface | 2 ?? USB 2.0 |
| General | Power Supply: 100-240V???, 50/60Hz, 3.2A MAX Consumption: ??? 15W Working Temperature: -10 to +55?? C (+14 to +131?? F) Working Humidity: 10 to 90 % Chassis: 1U chassis Dimension (W ?? D ?? H): 385 ?? 315 ?? 52 mm (15.2"?? 12.4" ?? 2.0") Weight: ??? 2.6 kg (5.7 lb) |
