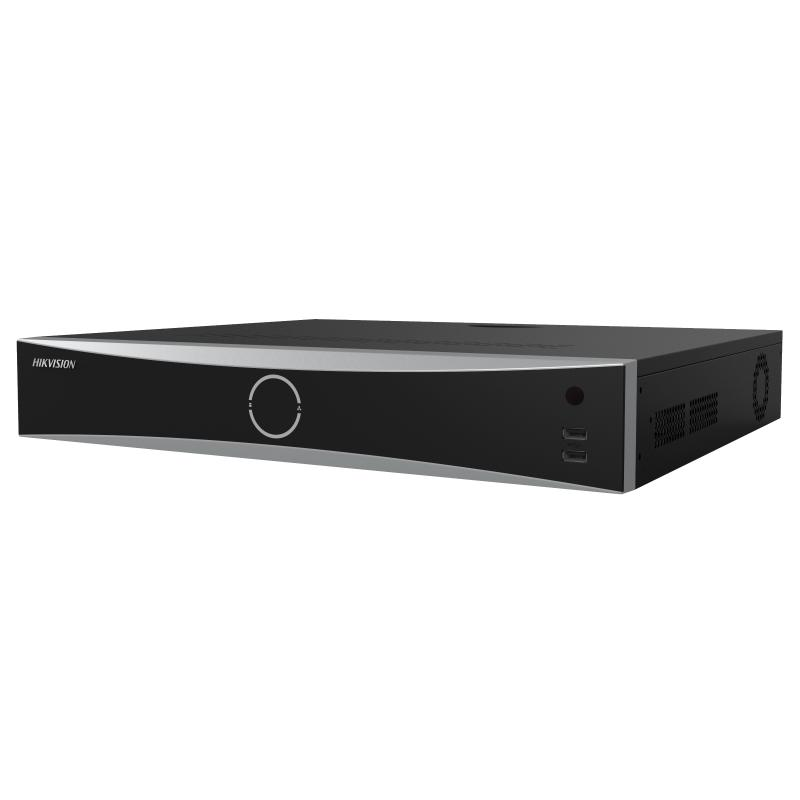

Hikvision DS-7716NXI-K4 16-ch 1.5U K Series AcuSense 4K NVR, Up to 16-ch IP camera inputs, H.265+, Up to 160 Mbps incoming bandwidth, Motion Detection 2.0, Human and Vehicle Recognition, Up to 4 SATA interfaces for HDD NON POE NVR
Model :
SKU : DS-7716NXI-K4
About this item
About this item
Description
Product Specifications table { border-collapse: collapse; width: 100%; margin-top: 20px; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
Hikvision DS-7716NXI-K4 16-ch 1.5U K Series AcuSense 4K NVR, Up to 16-ch IP camera inputs, H.265+, Up to 160 Mbps incoming bandwidth, Motion Detection 2.0, Human and Vehicle Recognition, Up to 4 SATA interfaces for HDD
| AI By Device | Facial recognition, perimeter protection, motion detection 2.0 |
| AI By Camera | Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA |
| Facial Recognition | Facial Detection And Analytics |
| Face Picture Library | Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ??? 4 MB, total capacity ??? 1 GB) |
| Facial Detection And Analytics Performance | 1-ch, 8 MP |
| Face Picture Comparison | 4-ch |
| Motion Detection 2.0 | By Device: All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm By Camera: All channels |
| Perimeter Protection | By Device: 2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm By Camera: All channels |
| Video And Audio | IP Video Input: 16-ch Incoming Bandwidth: 160 Mbps Outgoing Bandwidth: 160 Mbps HDMI Output: 1-ch, 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1920 ?? 1080/60Hz, 1600 ?? 1200/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, 1024 ?? 768/60Hz VGA Output: 1-ch, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz Video Output Mode: HDMI/VGA independent output CVBS Output: N/A Audio Output: 1-ch, RCA (Linear, 1 K??) Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K??, using the audio input) |
| Decoding | Decoding Format: H.265/H.265+/H.264+/H.264 Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback: 16-ch Decoding Capability: AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps), AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) Stream Type: Video, Video & Audio Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC |
| Network | Remote Connection: 128 API: ONVIF (profile S/G); SDK; ISAPI Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP???, HTTP, HTTPS Network Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Auxiliary Interface | SATA: 4 SATA interfaces Capacity: Up to 10 TB capacity for each HDD Serial Interface: 2 RS-485 (half-duplex), 1 RS-232 Alarm In/Out: 16/4 (16/9 is optional) USB Interface: Front panel: 2 ?? USB 2.0; Rear panel: 1 ?? USB 3.0 Ctrl 12V: N/A (optional to support) DC 12V: N/A (optional to support) |
| General | GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian Power Supply: 100 to 240 VAC, 50 to 60Hz Consumption: ??? 20 W (without HDD) Working Temperature: -10 ??C to 55 ??C (14 ??F to 131 ??F) Working Humidity: 10 to 90 % Dimension (W ?? D ?? H): 445 ?? 400 ?? 75 mm (17.5" ?? 15.7" ?? 3.0") Weight: ??? 5 kg (without HDD, 11 lb.) Certification: FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 Obtained Certification: CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS |
Specification
Product Specifications table { border-collapse: collapse; width: 100%; margin-top: 20px; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
Hikvision DS-7716NXI-K4 16-ch 1.5U K Series AcuSense 4K NVR, Up to 16-ch IP camera inputs, H.265+, Up to 160 Mbps incoming bandwidth, Motion Detection 2.0, Human and Vehicle Recognition, Up to 4 SATA interfaces for HDD
| AI By Device | Facial recognition, perimeter protection, motion detection 2.0 |
| AI By Camera | Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA |
| Facial Recognition | Facial Detection And Analytics |
| Face Picture Library | Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ??? 4 MB, total capacity ??? 1 GB) |
| Facial Detection And Analytics Performance | 1-ch, 8 MP |
| Face Picture Comparison | 4-ch |
| Motion Detection 2.0 | By Device: All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm By Camera: All channels |
| Perimeter Protection | By Device: 2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm By Camera: All channels |
| Video And Audio | IP Video Input: 16-ch Incoming Bandwidth: 160 Mbps Outgoing Bandwidth: 160 Mbps HDMI Output: 1-ch, 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1920 ?? 1080/60Hz, 1600 ?? 1200/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, 1024 ?? 768/60Hz VGA Output: 1-ch, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz Video Output Mode: HDMI/VGA independent output CVBS Output: N/A Audio Output: 1-ch, RCA (Linear, 1 K??) Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K??, using the audio input) |
| Decoding | Decoding Format: H.265/H.265+/H.264+/H.264 Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback: 16-ch Decoding Capability: AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps), AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) Stream Type: Video, Video & Audio Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC |
| Network | Remote Connection: 128 API: ONVIF (profile S/G); SDK; ISAPI Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP???, HTTP, HTTPS Network Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Auxiliary Interface | SATA: 4 SATA interfaces Capacity: Up to 10 TB capacity for each HDD Serial Interface: 2 RS-485 (half-duplex), 1 RS-232 Alarm In/Out: 16/4 (16/9 is optional) USB Interface: Front panel: 2 ?? USB 2.0; Rear panel: 1 ?? USB 3.0 Ctrl 12V: N/A (optional to support) DC 12V: N/A (optional to support) |
| General | GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian Power Supply: 100 to 240 VAC, 50 to 60Hz Consumption: ??? 20 W (without HDD) Working Temperature: -10 ??C to 55 ??C (14 ??F to 131 ??F) Working Humidity: 10 to 90 % Dimension (W ?? D ?? H): 445 ?? 400 ?? 75 mm (17.5" ?? 15.7" ?? 3.0") Weight: ??? 5 kg (without HDD, 11 lb.) Certification: FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 Obtained Certification: CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS |
