Hikvision DS-96128NI-M16/R 128-Channel 3U 4K NVR, 400Mbps Bandwidth, 8K/Dual 4K HDMI Output, RAID 0/1/5/6/10 with N+M Hot Spare, Redundant Power, IP Speaker Support
8276.72Home/Network Products/Network Video Recorders/Hikvision DS-7732NI-M4/16P M Series 8K NVR, Up to ...
Hikvision DS-7732NI-M4/16P M Series 8K NVR, Up to 32-ch IP camera inputs, 16 independent PoE, Up to 4 SATA HDD, Upto 16TB for each disk, 1 self-adaptive 10/100/1000 Mbps Ethernet, Support web access without plug-in, Smart & POS Function, HD Video Output
Model :
SKU : DS-7732NI-M4/16P
About this item
Description
Why Hikvision DS-7732NI-M4/16P M Series 8K NVR, Up to 32-ch IP camera inputs, 16 independent PoE, Up to 4 SATA HDD, Upto 16TB for each disk, 1 self-adaptive 10/100/1000 Mbps Ethernet, Support web access without plug-in, Smart & POS Function, HD Video Output?

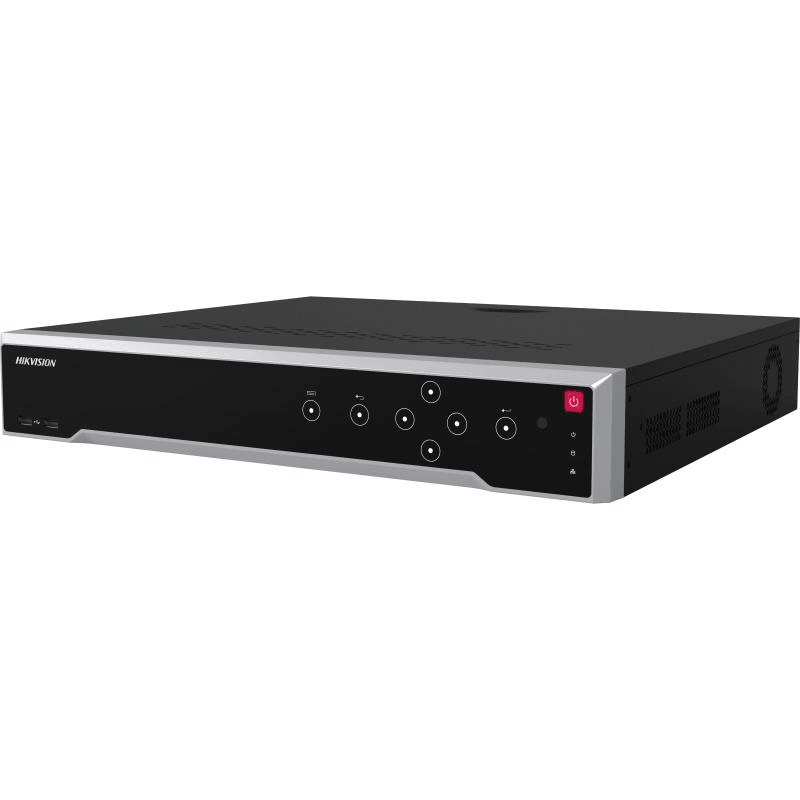

Hikvision DS-7732NI-M4/16P NVR: High-Performance Network Video Recorder for Superior Surveillance
Protect your property with crystal-clear video recording using the Hikvision DS-7732NI-M4/16P NVR. This feature-packed network video recorder supports up to 32 IP cameras, allowing you to monitor multiple locations simultaneously.
Key Features:
Ultra-High Resolution Recording: Capture every detail with support for up to 32MP resolution video input and recording.
Extensive Camera Connectivity: Connect and manage up to 32 IP cameras for comprehensive surveillance.
PoE Compatibility: Simplify installation with 16 PoE ports that power and connect your cameras (up to 100 meters).
Multiple Video Outputs: View footage on HDMI displays, VGA monitors, or legacy CVBS setups.
Efficient Storage: Store recordings on up to 4 SATA hard disk drives, each supporting up to 16TB capacity.
Advanced Video Compression: H.265+ and H.265 technologies reduce file sizes for optimized storage and bandwidth usage.
Remote Access and Management: Monitor your security system remotely via web browser, mobile app, or compatible software.
Smart Features: Benefit from intelligent video analytics for enhanced security.
2-Way Audio Support: Enable two-way communication through connected cameras with built-in audio.
Rack-mountable Design: Ideal for professional installations in server racks.
This powerful NVR is perfect for businesses, organizations, and individuals seeking a reliable and scalable video surveillance solution.
#Hikvision #NVR #CCTV #Surveillance #SecurityCamera #HighResolution #PoE #RemoteAccess #SecuritySystem
Hikvision DS-7732NI-M4/16P M Series 8K NVR, Up to 32-ch IP camera inputs, 16 independent PoE, Up to 4 SATA HDD, Upto 16TB for each disk, 1 self-adaptive 10/100/1000 Mbps Ethernet, Support web access without plug-in, Smart & POS Function, HD Video Output Specification
| Technical Spec | |
| Fan Dimension | 120??120??26.5 mm |
| Net Weight | 569 g |
| Fan Speed | 500~1800 RPM??10% |
| Fan Air Flow | 52.5 CFM |
| Fan Air Pressure | 2.08 mmAq |
| Fan Noise Level | ???28.8 dB(A) |
| Fan Connector | 4-Pin PWM |
| Fan Rated Voltage | 12VDC |
| Fan Rated Current | 0.18A |
| Fan Power Consumption | 2.16W |
| LED Type | Addressable RGB LED |
| LED Rated Voltage | 5VDC |
| LED Rated Current | 0.63A |
| LED Rated Power | 3.15W |
| LED Connector | 3-pin???+5V-D-G??? |
| EAN | 69933412710608 |
| P/N | DP-F12-AR-CF120P-WH-3P |
Video and Audio
| IP Video Input | 32-ch |
| Resolution | Up to 32 MP resolution |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| HDMI 1 Output | 8K (7680 ?? 4320)/30Hz, 4K (3840 ?? 2160)/60Hz, 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1920 ?? 1080/60Hz |
| HDMI 2 Output | 4K (3840 ?? 2160)/60Hz, 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1920 ?? 1080/60Hz |
| VGA Output | 1920 ?? 1080/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 ??), resolution: PAL: 704 ?? 576, NTSC: 704 ?? 480 |
| Audio Output | 1-ch, RCA (Linear, 1 K??) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 K??, using the audio input) |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| Decoding Capability | 2-ch@32 MP (30 fps)+2-ch@8MP???30fps???/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) |
| Dual-Stream Recording | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP???, HTTP, HTTPS |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ??? 200 W |
| Standard | IEEE 802.3 af/at |
| RAID Type | N/A |
| ESATA | 1 eSATA interface |
| SATA | 4 SATA interfaces |
| Capacity | Up to 16 TB capacity for each HDD |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| Alarm In/Out | 16/9 |
| USB Interface | Front panel: 2 ?? USB 2.0; Rear panel: 1 ?? USB 3.0 |
| Ctrl 12V | Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. |
| DC 12V | 12 VDC, 1 A power output |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ??? 15 W (without HDD and PoE off) |
| Working Temperature | -10 ??C to 55 ??C (14 ??F to 131 ??F) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension (W ?? D ?? H) | 445 ?? 400 ?? 75 mm (17.5"?? 15.7" ?? 3.0") |
| Weight | ??? 5 kg (without HDD, 11 lb.) |
| Certification | FCC: Part 15 Subpart B, ANSI C63.4-2014; CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
