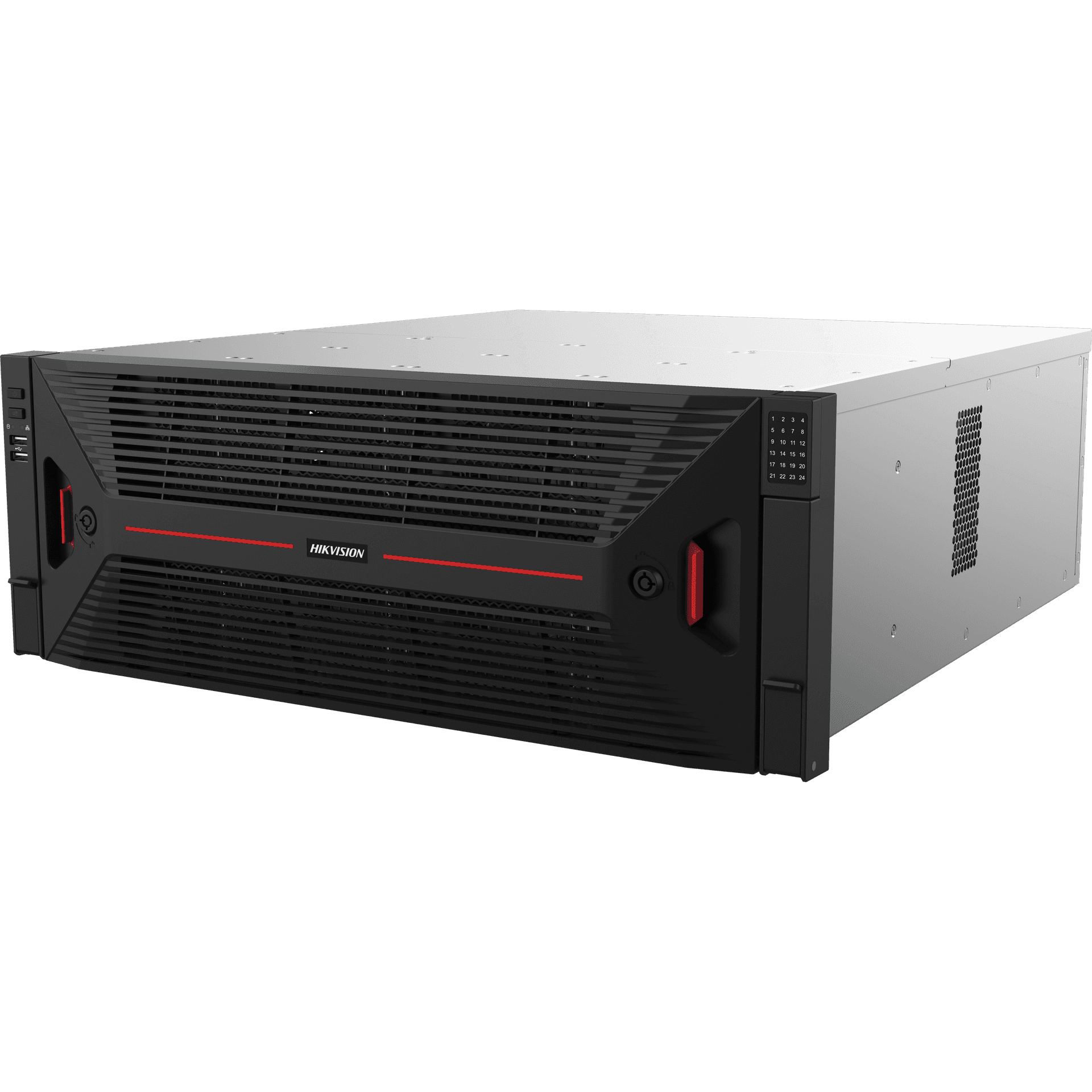

Hikvision DS-96128NI-H24R 128-Channel 4U 8K Super NVR, 1Gbps Bandwidth, 48-Ch 1080p Decoding, RAID 0/1/5/6/10 & N+1, ANPR & People Counting Support
Model :
SKU : DS-96128NI-H24R(STD)
About this item
About this item
Description
The Hikvision DS-96128NI-H24R 128-Channel 4U 8K Super NVR is a high-performance enterprise-grade network video recorder designed for large-scale surveillance systems. Built for data-intensive environments such as smart cities, airports, commercial complexes, and industrial facilities, this powerful NVR delivers exceptional recording, storage, and decoding capabilities.
Supporting up to 128 IP camera channels, the system offers 1Gbps incoming bandwidth, ensuring smooth data transmission and reliable recording even in high-traffic installations. With 48-channel 1080p decoding capability, it provides seamless live view and playback performance for monitoring multiple cameras simultaneously.
The DS-96128NI-H24R supports advanced RAID configurations (RAID 0/1/5/6/10) and N+1 hot standby, ensuring enhanced data protection and system reliability. It is designed to maintain continuous operation and safeguard critical surveillance data.
Additionally, the NVR supports intelligent features such as ANPR (Automatic Number Plate Recognition) and People Counting, making it suitable for traffic monitoring, retail analytics, and high-security applications.
With its 4U rack-mount design, 8K recording capability, and enterprise-level reliability, the Hikvision DS-96128NI-H24R is an ideal solution for large and mission-critical surveillance systems.
Key Features
128-channel IP Network Video Recorder (NVR)
4U rack-mount enterprise design
Supports up to 8K resolution recording
1Gbps incoming bandwidth
48-channel 1080p decoding capability
RAID 0/1/5/6/10 support for data protection
N+1 hot standby support for redundancy
ANPR and People Counting support
Ideal for large-scale and enterprise surveillance
Model: DS-96128NI-H24R
Specification
128-Channel 4U Network Video Recorder – Technical Specifications
Video & Audio
| IP Video Input | 128 Channels |
| Incoming Bandwidth | 1024 Mbps |
| Outgoing Bandwidth | 1024 Mbps |
| Incoming Bandwidth (RAID Mode) | 1024 Mbps |
| Outgoing Bandwidth (RAID Mode) | 1024 Mbps |
Video Output
| HDMI 1 | 4096×2160@30Hz, 3840×2160@30Hz, 2560×1440@60Hz, 1920×1080@60Hz, 1600×1200@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
| HDMI 2 | 3840×2160@60Hz/30Hz, 2560×1440@60Hz, 1920×1080@60Hz, 1600×1200@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
| VGA | 1920×1080@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
| DP 1 / DP 2 | 7680×4320@30Hz, 4096×2160@30Hz, 3840×2160@60Hz/30Hz, 2560×1440@60Hz, 1920×1080@60Hz, 1600×1200@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
| V-DP 1 / V-DP 2 | 7680×4320@30Hz, 4096×2160@30Hz, 3840×2160@60Hz/30Hz, 2560×1440@60Hz, 1920×1080@60Hz, 1600×1200@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
| Video Output Mode | 4 independent output groups: Group 1: HDMI 1 / VGA / LCD Group 2: HDMI 2 Group 3: DP 1 / V-DP 1 Group 4: DP 2 / V-DP 2 (Note: Enabling DP disables corresponding V-DP.) |
| Audio Output | 1-ch, 3.5 mm |
| Two-Way Audio | 1-ch, 3.5 mm |
Decoding
| Decoding Format | H.265+, H.265, H.264+, H.264 |
| Recording Resolution | 32MP/24MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| Decoding Capability | 3-ch@32MP (30fps) 3-ch@24MP (30fps) 6-ch@16MP (30fps) 12-ch@8MP (30fps) 24-ch@4MP (30fps) 48-ch@2MP (30fps) * Max track resolution width/height ≤ 4096 pixels |
| Audio Compression | G.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2, PCM |
Network
| Network Interface | 4 × RJ-45 (10/100/1000/2500 Mbps self-adaptive) |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Remote Connection | 256 Users |
RAID
| RAID Types | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
Storage & Interfaces
| eSATA | 1 Interface |
| SATA | 24 SATA Interfaces (Hot-Plug Supported) |
| Max HDD Capacity | Up to 20 TB per HDD |
| Serial Interface | 1 × RS-485 (Full-duplex), 1 × RS-232 |
| Alarm In/Out | 16 / 8 |
| USB | Front: 2 × USB 2.0 Rear: 4 × USB 3.0 |
General
| Power Supply | 100–240 VAC, 50–60 Hz (Redundant Power Supply) |
| Power Consumption | ≤ 75 W (Without HDD) |
| Working Temperature | 0 °C to +50 °C (32 °F to 122 °F) |
| Working Humidity | 10% to 90% |
| Chassis | 4U Rackmount |
| Dimensions (W × D × H) | 447 × 489 × 173 mm (17.6" × 19.3" × 6.8") |
| Weight | ≤ 25 kg (Without HDD) |
