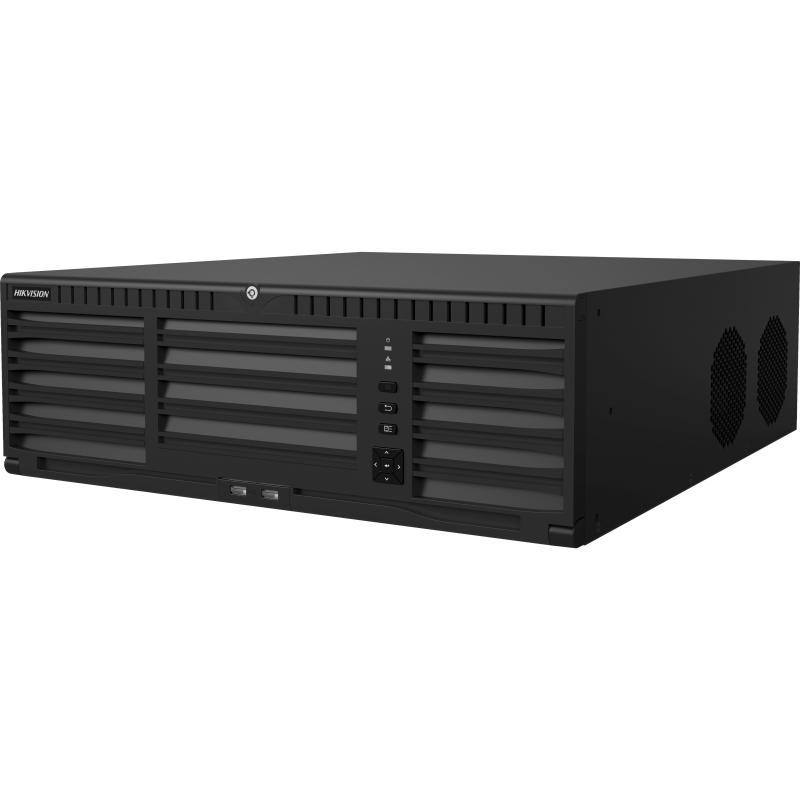

HIKVISION DS-96128NI-I 16 128-ch 3U 4K Super NVR, 512Mbps Bit Rate Input Max(up to 128-ch IP video), 16 SATA Interfaces, alarm I/O: 16/8, RAID0,1,5,6,10 supported, 3U caseRAID0,1,5,6,10 supported, 3U ca
Model :
SKU : DS-96128NI-I16
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
| IP Video Input | 128-ch |
| Incoming Bandwidth (RAID Mode) | 576 Mbps |
| Outgoing Bandwidth | 512 Mbps |
| Incoming Bandwidth | 576 Mbps |
| Outgoing Bandwidth (RAID Mode) | 512 Mbps |
| TLS Outgoing Bandwidth | 128 Mbps, or 64 Mbps (when RAID is enabled) |
| HDMI Output | Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 ?? 2160), 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1080p (1920 ?? 1080)/60Hz, UXGA (1600 ?? 1200)/60Hz, SXGA (1280 ?? 1024)/60Hz, 720p (1280 ?? 720)/60Hz, XGA (1024 ?? 768)/60Hz |
| VGA Output | 1-ch. Resolution: 1080p (1920 ?? 1080)/60Hz, UXGA (1600 ?? 1200)/60Hz, SXGA (1280 ?? 1024)/60Hz, 720p (1280 ?? 720)/60Hz, XGA (1024 ?? 768)/60Hz |
| LCD Output | Optional: One 7 inch LCD |
| Audio Output | 1-ch. RCA (2.0 Vp-p, 1 K???) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 K???) |
| Decoding Format | H.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only) |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | Up to 16 channels |
| Decoding Capability | 1-ch@32 MP (8160 ?? 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps) |
| Network Protocol | IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS |
| Camera Access Protocol | HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO |
| Network Interface | 4, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| PoE Interface | 16 SATA interfaces supporting hot-plug |
| RAID Type | RAID0, RAID1, RAID5, RAID 6, and RAID10 |
| SATA | 2 ?? mini SAS interface (optional) |
| ESATA | 1 ?? eSATA interface |
| Capacity | Up to 10 TB for each HDD |
| Serial Interface | RS-232; RS-485; Keyboard |
| USB Interface | Front Panel: 2 ?? USB 2.0; Rear Panel: 2 ?? USB 3.0 |
| Alarm In/Out | 16/8 |
| Power Supply | 100 to 240 VAC, 50 to 60Hz, 5 A |
| Consumption | ??? 140W |
| Working Temperature | 0 ??C to + 50 ??C (32 ??F to 122 ??F) |
| Working Humidity | 10% to 90% |
| Dimension (W ?? D ?? H) | 442 ?? 494 ?? 146 mm (17.4 ?? 19.4 ?? 5.7 inch) |
| Weight | ??? 16 kg (35.3 lb) |
Specification
| IP Video Input | 128-ch |
| Incoming Bandwidth (RAID Mode) | 576 Mbps |
| Outgoing Bandwidth | 512 Mbps |
| Incoming Bandwidth | 576 Mbps |
| Outgoing Bandwidth (RAID Mode) | 512 Mbps |
| TLS Outgoing Bandwidth | 128 Mbps, or 64 Mbps (when RAID is enabled) |
| HDMI Output | Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 ?? 2160), 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1080p (1920 ?? 1080)/60Hz, UXGA (1600 ?? 1200)/60Hz, SXGA (1280 ?? 1024)/60Hz, 720p (1280 ?? 720)/60Hz, XGA (1024 ?? 768)/60Hz |
| VGA Output | 1-ch. Resolution: 1080p (1920 ?? 1080)/60Hz, UXGA (1600 ?? 1200)/60Hz, SXGA (1280 ?? 1024)/60Hz, 720p (1280 ?? 720)/60Hz, XGA (1024 ?? 768)/60Hz |
| LCD Output | Optional: One 7 inch LCD |
| Audio Output | 1-ch. RCA (2.0 Vp-p, 1 K???) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 K???) |
| Decoding Format | H.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only) |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | Up to 16 channels |
| Decoding Capability | 1-ch@32 MP (8160 ?? 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps) |
| Network Protocol | IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS |
| Camera Access Protocol | HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO |
| Network Interface | 4, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| PoE Interface | 16 SATA interfaces supporting hot-plug |
| RAID Type | RAID0, RAID1, RAID5, RAID 6, and RAID10 |
| SATA | 2 ?? mini SAS interface (optional) |
| ESATA | 1 ?? eSATA interface |
| Capacity | Up to 10 TB for each HDD |
| Serial Interface | RS-232; RS-485; Keyboard |
| USB Interface | Front Panel: 2 ?? USB 2.0; Rear Panel: 2 ?? USB 3.0 |
| Alarm In/Out | 16/8 |
| Power Supply | 100 to 240 VAC, 50 to 60Hz, 5 A |
| Consumption | ??? 140W |
| Working Temperature | 0 ??C to + 50 ??C (32 ??F to 122 ??F) |
| Working Humidity | 10% to 90% |
| Dimension (W ?? D ?? H) | 442 ?? 494 ?? 146 mm (17.4 ?? 19.4 ?? 5.7 inch) |
| Weight | ??? 16 kg (35.3 lb) |
