Hikvision DS-96128NI-M16 M Series 8K NVR, Up to 128-ch IP camera inputs, Up to 32 MP, 16 SATA up to 16 TB capacity per HDD, Up to 8K, Up to 400 Mbps, 3U case, Smart & POS Function, Dual-stream recording

Model :

SKU : DS-96128NI-M16

About this item



dirham-symbol0

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

1

AED 0.00

stock : 1

About this item

Description

table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }

Hikvision DS-96128NI-M16 M Series 8K NVR, Up to 128-ch IP camera inputs, Up to 32 MP, 16 SATA up to 16 TB capacity per HDD, Up to 8K, Up to 400 Mbps, 3U case, Smart & POS Function, Dual-stream recording

IP Video Input128-ch
Incoming Bandwidth400 Mbps
Outgoing Bandwidth400 Mbps
HDMI 1 Output8K (7680 ?? 4320)/30Hz, 4K (3840 ?? 2160)/60Hz, 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1920 ?? 1080/60Hz, 1600 ?? 1200/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, 1024 ?? 768/60Hz
HDMI 2 Output4K (3840 ?? 2160)/60Hz, 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1920 ?? 1080/60Hz, 1600 ?? 1200/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, 1024 ?? 768/60Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA 1 Output1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, 1024 ?? 768/60Hz
VGA 2 Output1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, 1024 ?? 768/60Hz
Video Output ModeHDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 ??), resolution: PAL: 704 ?? 576, NTSC: 704 ?? 480
Audio Input1-ch, RCA (2.0 Vp-p, 1 K??)
Audio Output2-ch, RCA (Linear, 1 K??)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K??, using the audio input)

Decoding

Decoding FormatH.265+/H.265/H.264+/H.264
Recording Resolution32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback16-ch
Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network

Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP???, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access ProtocolONVIF(Version 2.5), RTSP

RAID

RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface

Serial Interface1 RS-485 (full-duplex), 1 RS-232
SATA16 SATA interfaces supporting hot-plug
ESATA1 eSATA interface
CapacityUp to 16 TB capacity for each disk
Alarm In/Out16/9
USB InterfaceFront panel: 2 ?? USB 2.0; Rear panel: 2 ?? USB 3.0
Ctrl 12VControllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.
DC 12V12 VDC, 1 A power output

General

Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption??? 50 W (without HDD)
Working Temperature-10 ??C to 55 ??C (14 ??F to 131 ??F)
Working Humidity10% to 90%
Chassis3U chassis
Dimension (W ?? D ?? H)445 ?? 496 ?? 150 mm (17.5" ?? 19.5" ?? 5.9")
Weight??? 12.5 kg (without HDD, 27.6 lb.)
CertificationObtained Certification
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Hikvision DS-96128NI-M16 M Series 8K NVR, Up To 128-Ch IP Camera Inputs, Up To 32 MP, 16 SATA Up To 16 TB Capacity Per HDD, Up To 8K, Up To 400 Mbps, 3U Case, Smart & POS Function, Dual-Stream Recording

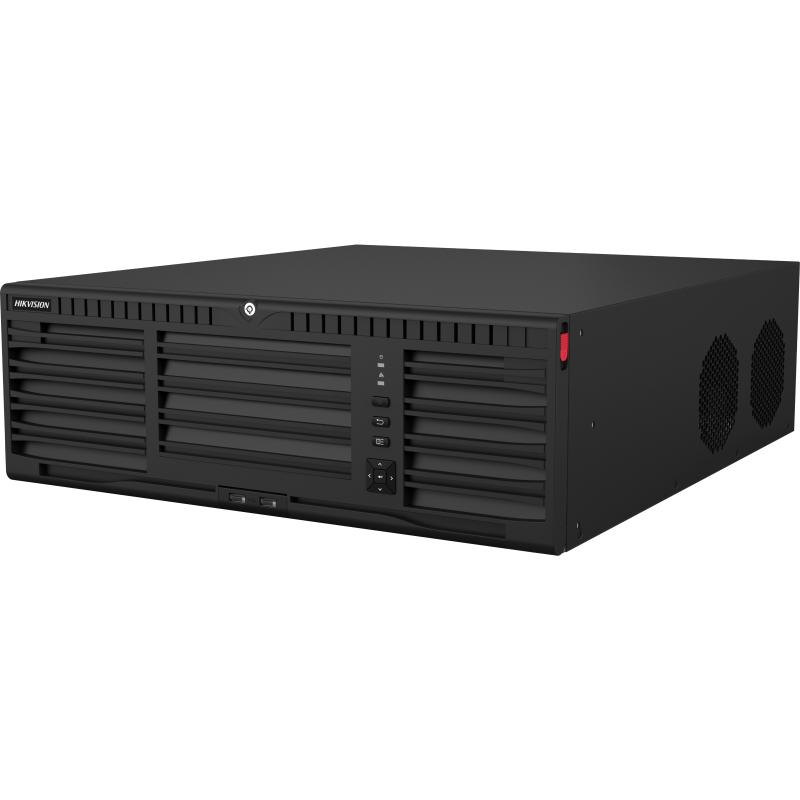

Hikvision DS-96128NI-M16 M Series 8K NVR
The Hikvision DS-96128NI-M16 M Series 8K NVR is a powerful surveillance solution designed for large-scale applications. With support for up to 128 IP camera inputs and resolutions of up to 32 megapixels, it ensures detailed and high-quality video capture. The NVR features 16 SATA interfaces, allowing for substantial storage capacity???up to 16 TB per hard drive. Whether you???re securing a facility, managing multiple camera feeds, or integrating intelligent analytics, this NVR delivers exceptional performance. Plus, its dual-stream recording capability optimizes storage efficiency. Get ready to monitor with precision and reliability

Specification

table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }

Hikvision DS-96128NI-M16 M Series 8K NVR, Up to 128-ch IP camera inputs, Up to 32 MP, 16 SATA up to 16 TB capacity per HDD, Up to 8K, Up to 400 Mbps, 3U case, Smart & POS Function, Dual-stream recording

IP Video Input128-ch
Incoming Bandwidth400 Mbps
Outgoing Bandwidth400 Mbps
HDMI 1 Output8K (7680 ?? 4320)/30Hz, 4K (3840 ?? 2160)/60Hz, 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1920 ?? 1080/60Hz, 1600 ?? 1200/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, 1024 ?? 768/60Hz
HDMI 2 Output4K (3840 ?? 2160)/60Hz, 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1920 ?? 1080/60Hz, 1600 ?? 1200/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, 1024 ?? 768/60Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA 1 Output1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, 1024 ?? 768/60Hz
VGA 2 Output1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, 1024 ?? 768/60Hz
Video Output ModeHDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 ??), resolution: PAL: 704 ?? 576, NTSC: 704 ?? 480
Audio Input1-ch, RCA (2.0 Vp-p, 1 K??)
Audio Output2-ch, RCA (Linear, 1 K??)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K??, using the audio input)

Decoding

Decoding FormatH.265+/H.265/H.264+/H.264
Recording Resolution32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback16-ch
Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network

Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP???, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access ProtocolONVIF(Version 2.5), RTSP

RAID

RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface

Serial Interface1 RS-485 (full-duplex), 1 RS-232
SATA16 SATA interfaces supporting hot-plug
ESATA1 eSATA interface
CapacityUp to 16 TB capacity for each disk
Alarm In/Out16/9
USB InterfaceFront panel: 2 ?? USB 2.0; Rear panel: 2 ?? USB 3.0
Ctrl 12VControllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.
DC 12V12 VDC, 1 A power output

General

Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption??? 50 W (without HDD)
Working Temperature-10 ??C to 55 ??C (14 ??F to 131 ??F)
Working Humidity10% to 90%
Chassis3U chassis
Dimension (W ?? D ?? H)445 ?? 496 ?? 150 mm (17.5" ?? 19.5" ?? 5.9")
Weight??? 12.5 kg (without HDD, 27.6 lb.)
CertificationObtained Certification
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Hikvision DS-96128NI-M16 M Series 8K NVR, Up To 128-Ch IP Camera Inputs, Up To 32 MP, 16 SATA Up To 16 TB Capacity Per HDD, Up To 8K, Up To 400 Mbps, 3U Case, Smart & POS Function, Dual-Stream Recording

Hikvision DS-96128NI-M16 M Series 8K NVR
The Hikvision DS-96128NI-M16 M Series 8K NVR is a powerful surveillance solution designed for large-scale applications. With support for up to 128 IP camera inputs and resolutions of up to 32 megapixels, it ensures detailed and high-quality video capture. The NVR features 16 SATA interfaces, allowing for substantial storage capacity???up to 16 TB per hard drive. Whether you???re securing a facility, managing multiple camera feeds, or integrating intelligent analytics, this NVR delivers exceptional performance. Plus, its dual-stream recording capability optimizes storage efficiency. Get ready to monitor with precision and reliability
