Model :
SKU : HIKVISION OPS 8S2

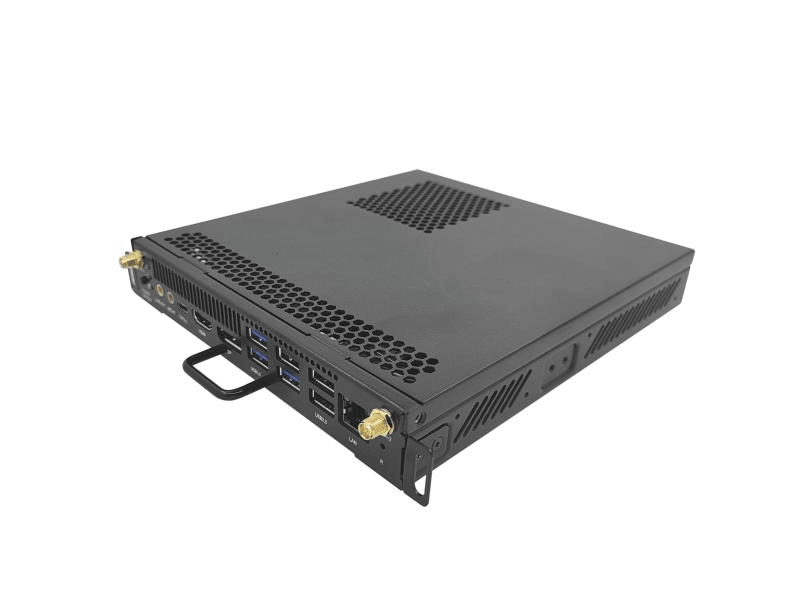

The Hikvision DS-D5AC9C5-8S2 OPS Module is a powerful and compact computing solution designed to enhance the performance of interactive flat panels, digital signage systems, conference displays, and educational presentation environments. Powered by the Intel Core i5-9400H processor, this professional OPS module delivers fast, stable, and efficient computing performance for modern collaborative and multimedia applications.
Equipped with 8GB RAM and a high-speed 256GB SSD, the DS-D5AC9C5-8S2 ensures smooth multitasking, rapid system responsiveness, and fast application loading. The integrated Intel UHD Graphics engine provides reliable visual performance with support for H.265 decoding and ultra-clear 4K resolution output, making it ideal for video playback, presentations, conferencing, and interactive learning environments.
Designed for seamless integration with compatible Hikvision interactive displays and OPS-supported screens, this module transforms interactive panels into fully functional smart collaboration systems. It supports business meetings, online training, digital classrooms, remote collaboration, multimedia presentations, and commercial display applications.
Connectivity is highly versatile with multiple USB ports including 3 USB 3.0 ports and 3 USB 2.0 ports for peripherals, accessories, and external storage devices. Additional display connectivity includes HDMI and DisplayPort outputs, enabling flexible integration with external monitors and presentation systems.
Its compact black OPS form factor allows clean and space-saving installation directly into supported interactive displays, reducing cable clutter while maintaining a professional setup. Built for reliable long-term operation, the DS-D5AC9C5-8S2 delivers dependable computing performance for educational institutions, corporate meeting rooms, and commercial digital environments.
Whether used for interactive teaching, business presentations, smart conferencing, or digital collaboration, the Hikvision DS-D5AC9C5-8S2 OPS Module provides a powerful and efficient embedded computing solution.
Upgrade your digital signage with the high-performance Hikvision DS-D5AC9C5-8S2 OPS module. Intel Core i5 processor, 8GB RAM, 256GB SSD handle demanding content. Supports H.265, 4K resolution, & dual displays. (Black)
| Built-In System | |
| Processor | Intel Core i5 9400H |
| CPU Clock Speed | 2.5GHz |
| Platform Architecture | Intel Coffeelake |
| PCH | Intel Z370 |
| Graphics | Intel?? UHD Graphics 630 |
| Memory | 8G |
| Storage | 256G |
| NIC | Integrated 10/100/1000M Adaption |
| Cooling System | Single Brass & Single Fan |
| Interface | |
| Network Interface | RJ45??1 |
| Data Transmission Interface | Bluetooth 4.2 |
| Antenna | 2 |
| Video Output | HDMIx1, DPx1 |
| Power | |
| Input Voltage | 12V-19V DC |
| Max. Consumption | 60W |
| Standby Consumption | 0.5W |
| Working Environment | |
| Storage Temperature | -20C - 60C |
| Storage Humidity | 10%-90% |
| Working Temperature | 0C - 40C |
| Working Humidity | 10%-90% |
| General | |
| Color | Black |
| Product Dimensions (W ?? H ?? D) | 180 195 30mm |
| Net Weight | About 1.24kg |
