Hikvision DS-D5C75RB/B Hikvision Interactive Flat Panel Display With Web Cam, 75 inch 4K DLED 3840x2160 60 Hz Display, 5 ms, VA Panel, 8GB RAM 128GB ROM, Android 13.0, Up to 50 point multi-touch, EDLA
Model : DS-D5CRB/B
SKU : DS-D5C75RB/B
Size :
75 Inches
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description

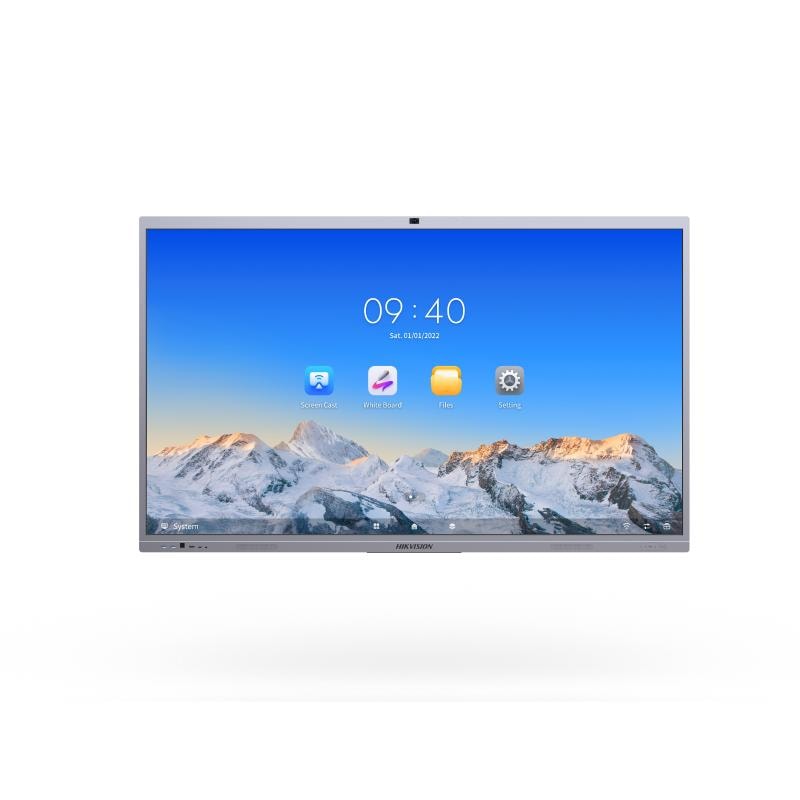

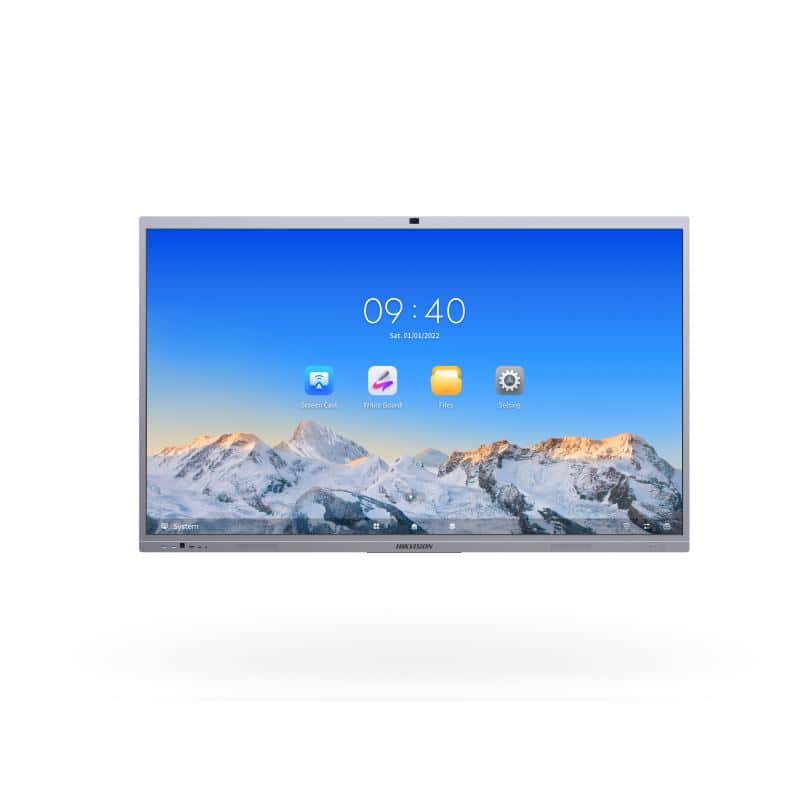

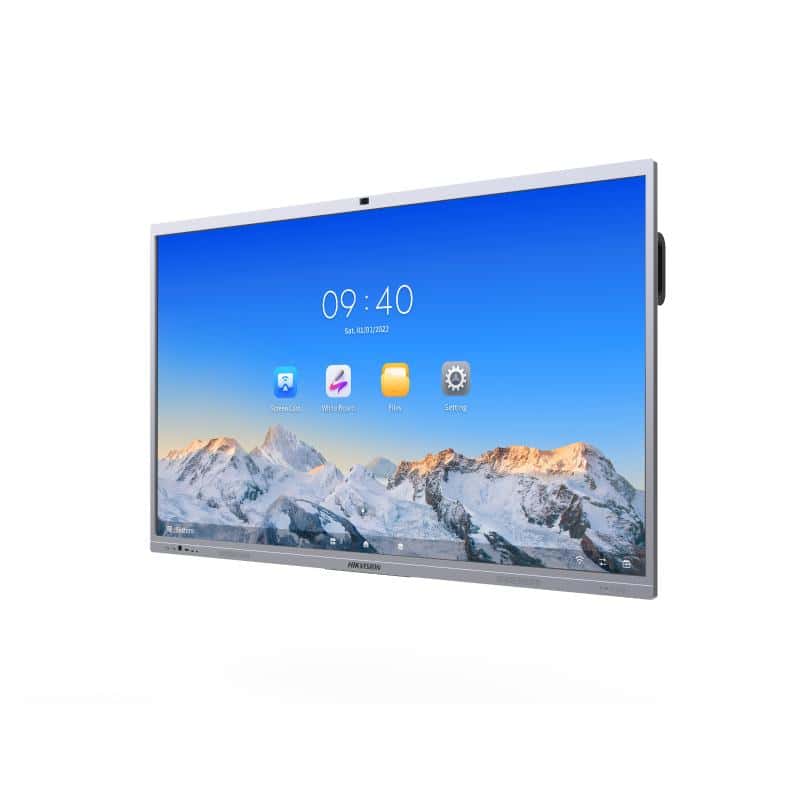

Hikvision DS-D5C75RB/B Interactive Flat Panel Display with Webcam
Enhance collaboration and presentations with the Hikvision DS-D5C75RB/B Interactive Flat Panel Display. This 75-inch 4K UHD display is designed for modern classrooms, offices, and meeting rooms, combining vibrant visuals with advanced interactive functionality.
Equipped with a built-in high-definition webcam and microphone array, it enables effortless video conferencing and remote collaboration. The multi-touch screen allows smooth writing, drawing, and gesture control, making teaching, brainstorming, and presentations more engaging. The Android-based system provides easy access to apps, wireless screen sharing, and efficient content management.
Key Features:
- 75-inch 4K UHD interactive display
- Built-in HD webcam and microphone for video conferencing
- Multi-touch technology for precise writing and control
- Android system with intuitive interface
- Wireless screen sharing from laptops, tablets, and smartphones
- Ideal for classrooms, boardrooms, and collaborative workspaces
Specification
| Product Model | DS-D5C75RB/B |
| Screen Size | 75 inch |
| Backlight | DLED |
| Pixel Pitch | 0.1645???H????? 0.4935???V???mm |
| Resolution | 3840 ?? 2160 @60 Hz |
| Brightness | 400 cd/m?? (Typ.) |
| Color Depth | 10 bit |
| Display Color | 1.07 G |
| Response Time | 5 ms |
| Panel Type | VA |
| Contrast Ratio | 5000:1 (Static), 30,000:1 (Dynamic) |
| Color Gamut | 72% NTSC (CIE1931) (Typ.) |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178?? (H)/178?? (V) |
| Aspect Ratio | 16:9 |
| Surface Hardness | 9H (Pencil), 7 (Mohs) |
| Surface Glass | Anti-Glare Glass |
| Surface Haze | 25% |
| Glass Bonding Method | Zero Lamination |
| Display Area | 1895.04mm ?? 1065.96mm |
| Working Duration | 7 ?? 16 H |
| Transmittance | 88% ?? 3 |
| Lifespan | 50,000 hours |
| Touch Type | Infrared Touch Screen |
| Touch Point | Up to 50-point multi-touch |
| Touch Response Time | ??? 2 ms |
| Minimum Touch Object | ??? 1.5 mm (??? 90% touching area) |
| Touch Precision | ?? 0.5 mm (??? 90% touching area) |
| Touch Resolution | 32767 ?? 32767 |
| Operating System | Android 13.0 |
| Memory | 8 GB |
| Built-in Storage | 128 GB |
| Processor | Quad-core Cortex-A76 ?? 4 (2.4 GHz) and quad-core Cortex-A55 ?? 4 (1.8 GHz) |
| GPU | Mali-G610 MC4 |
| HDCP Version | 2.3 |
| Camera Pixel | 48MP for Photos & 8 MP for Video |
| Camera Function | Support intelligent switching between Android system, OPS, and PC. |
| Camera Field Angle | 93.4?? (diagonal), 84.5?? (horizontal), 54.1?? (vertical) |
| Camera Distortion | ???2.5% |
| Camera Resolution | Up to 4K |
| Microphone Specification | Omni-directional 8-array layout |
| Microphone Function | Echo reduction and smart noise-cancellation |
| Voice Distance | 12 m |
| Mic Sampling Rate | 32 K |
| Mic Depth | 16 bit |
| Loudspeaker | Built-in 2 ?? 20 W+25W loudspeaker |
| Bluetooth | Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1 |
| NFC | Support screen mirroring by Android phones |
| Light Sensor | Yes |
| Image Processing Technology | Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging; support shadow correction. |
| Audio Processing Technology | Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection. |
| Video & Audio Input | HDMI In (HDMI 2.0) ?? 3, VGA In ?? 1, DP In (DP 1.2) ?? 1, Audio In ?? 1 |
| Video & Audio Output | HDMI Out (HDMI 2.0) ?? 1, Audio Out ?? 1, SPDIF Out ?? 1 |
| Control Interface | TOUCH-USB 3.0 ?? 3, RS232 ?? 1 |
| Network Interface | LAN (1000 Mbps) ?? 2; WIFI AP & Station, 2.4G/5G, WIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 ?? 2 MIMO (2.4 GHz and 5 GHz), authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP |
| Data Transmission Interface | USB 3.0 ?? 4, USB 2.0 ?? 1, Type-C ?? 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W) |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | 300 W (Max) |
| Standby Consumption | ??? 0.5 W |
| Power Interface | 1 ?? 3-pin plug |
| General Interfaces | OPS Slot ?? 1, 6.75 A@19 V/3.4 A@12 V power supply, smart interface ?? 1 |
| Working Temperature | 0??C to 40??C (32??F to 104??F) |
| Working Humidity | 10% to 90% RH (non-condensing) |
| Storage Temperature | -20??C to 60??C (-4??F to 140??F) |
| Storage Humidity | 10% to 90% RH (non-condensing) |
| Dimension (W??H??D) | 1965.3 mm ?? 1187.5 mm ?? 91 mm (77.37" ?? 46.75" ?? 3.58") |
| Package Dimensions (W??H??D) | 2130 mm ?? 1365 mm ?? 335 mm (83.86" ?? 53.74" ?? 13.19") |
| Net Weight | 63.3 kg (139.55 lb) |
| Gross Weight | 82.8 kg (182.52 lb) |
