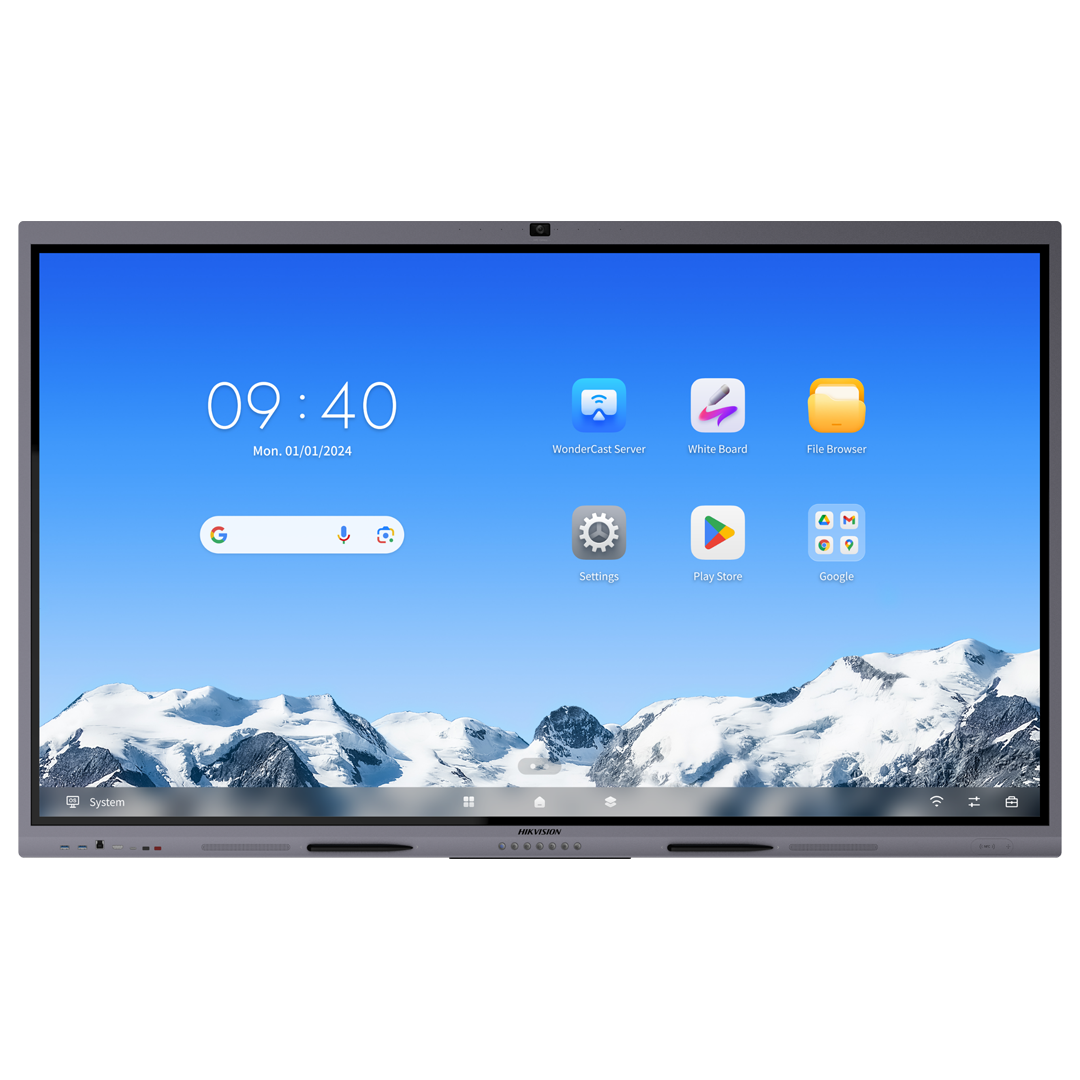

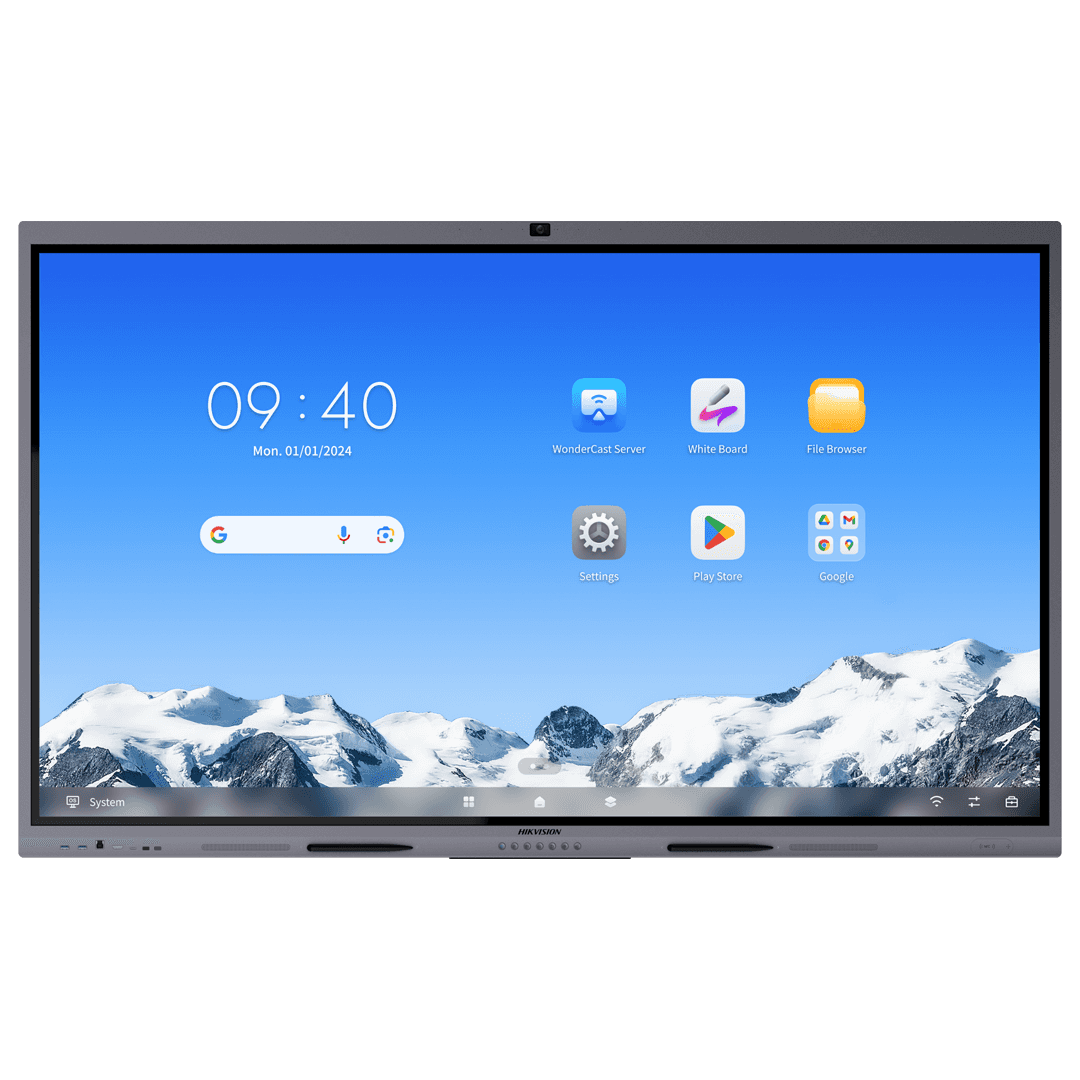

HIKVISION DS-D5C86RB/B2L (EDLA) 86-inch 4K Interactive Display, 50-Point Touch, UHD (3840 × 2160), Built-in 4K Camera, 8 GB Memory, 128 GB Storage, Android 14 OS, Dual 100W USB-C
Model :
SKU : DS-D5C86RB/B2L(EDLA)
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Collaborative Powerhouse: HIKVISION DS-D5C86RB/B2L 86-inch Interactive Display
The HIKVISION DS-D5C86RB/B2L is an all-in-one solution that revolutionizes collaboration, teaching, and presentations in large-format spaces. It combines stunning visual quality with advanced connectivity and intuitive software.
Superior Display and Interaction:
- 4K UHD Visuals: The 86-inch screen displays content in (3840X2160) resolution at 480 nits brightness. The anti-glare and anti-blocking design ensures visibility and a smooth writing experience.
- Ultra-Responsive Touch: Supports an impressive 50-point touch control, enabling multiple users to interact simultaneously with quick, fluid response times.
Flexible Dual Operating Systems:
- Android 14 (EDLA Certified): Features a built-in Android 14 system with EDLA certification, granting access to the Google ecosystem for education and productivity apps.
- OPS Windows Option: Supports optional OPS (Open Pluggable Specification) modules, allowing users to run Windows for environments requiring specific video conferencing or specialized software.
Next-Gen Connectivity and Integration:
- Dual 100W USB-C: Two full-function USB Type-C ports offer robust capabilities, supporting DisplayPort 1.2 input and up to 100W total power delivery to simultaneously charge connected laptops.
- Built-in Network Switch: Includes a network switch chip, simplifying installation and eliminating the need for extra external networking hardware.
- Smart Monitoring: Built-in sensors for light, humidity, and temperature allow for intelligent environmental monitoring and control.
- Safety and Convenience: Features tempered glass, intelligent temperature control, and convenient multi-button front design for easy classroom use.
Specification
| Product Model | |
|---|---|
| Model | DS-D5C86RB/B2L |
| Display | |
|---|---|
| Screen Size | 86 inch |
| Backlight | DLED |
| Pixel Pitch | 0.164 (H) × 0.493 (V) mm |
| Resolution | 3840 × 2160 @60 Hz |
| Brightness | 480 cd/m² (Typ.) |
| Color Depth | 10 bit (8 bit + FRC) |
| Display Color | 1.07 G |
| Response Time | 5 ms |
| Panel Type | VA |
| Contrast Ratio | 5000:1 (Static) 30,000:1 (Dynamic) |
| Color Gamut | 72% NTSC (CIE1931) (Typ.) |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178° (H) / 178° (V) |
| Aspect Ratio | 16:9 |
| Surface Hardness | 9H (Pencil) 7 (Mohs) |
| Surface Glass | Anti-Glare & Anti-Fingerprint glass |
| Surface Haze | 25% Haze |
| Glass Bonding Method | Zero Lamination |
| Display Area | 1895.04 × 1065.96 mm |
| Working Duration | 7 × 16 H |
| Transmittance | 88% ± 3 |
| Lifespan | 50,000 hours |
| Touch | |
|---|---|
| Type | Infrared Touch Screen |
| Touch Point | Up to 50-point multi-touch |
| Touch Response Time | ≤ 2 ms |
| Minimum Touch Object | ≥ 1.5 mm (≥ 90% touching area) |
| Touch Precision | ± 0.5 mm (≥ 90% touching area) |
| Touch Resolution | 32768 × 32768 |
| Built‑in System | |
|---|---|
| Operating System | Android 14.0 |
| Memory | 8 GB |
| Built‑in Storage | 128 GB |
| Processor | Quad-core Cortex-A76 × 4 (2.4 GHz) and quad-core Cortex-A55 × 4 (1.8 GHz) |
| GPU | Mali-G610 MC4 |
| HDCP Version | 2.3 & 2.0 & 1.4 |
| Camera | |
|---|---|
| Pixel | 48 MP (Photo) & 8 MP (Video) |
| Camera Function | Supports intelligent switching between Android system, OPS, and PC |
| Field Angle | 93.4° diag / 84.5° horiz / 54.1° vert |
| Distortion | ≤ 2.5% |
| Camera Resolution | Up to 4K |
| Microphone | |
|---|---|
| Specification | Omni-directional 8-array layout |
| Functions | Echo reduction, smart noise cancellation |
| Voice Distance | 12 m |
| Sampling Rate | 32 K |
| Depth | 16 bit |
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
Home/Computer Peripherals/Monitors/Interactive Panel/HIKVISION DS-D5C86RB/B2L (EDLA) 86-inch 4K Interac...
Similar Products

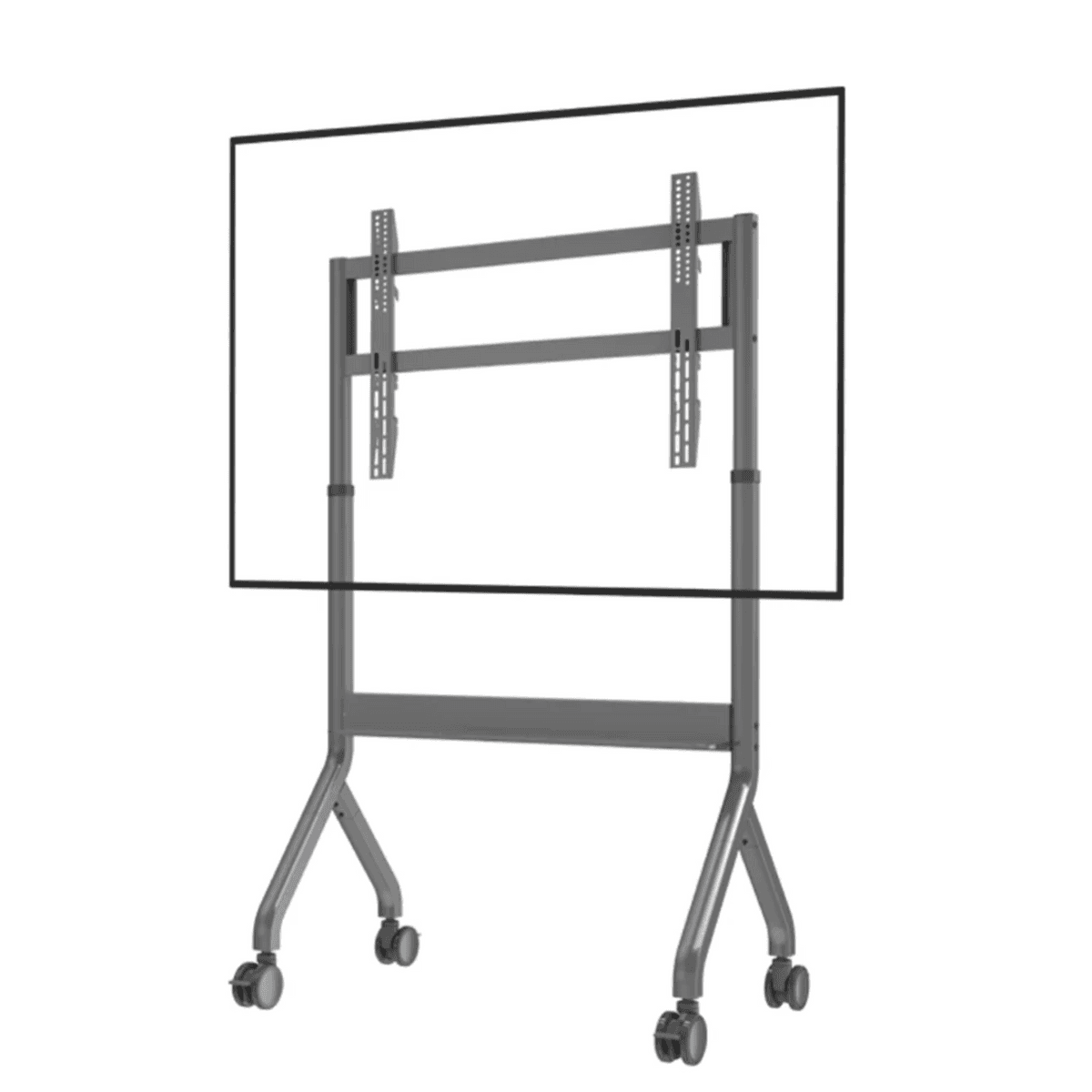

EQ TEX 75-90 Manual Lift Stand for Interactive Displays, 75"-90" Screens, 120kg Load Capacity, Secure Locking System
