Samsung QB13R-M Series 13" Smart Display Signage Display for Business, 1,920 x 1,080 ADS Panel, Tizen 4.0 OS, 8GB Flash Memory, HDMI, USB, Audio Out, RJ45 In, RS232 In, WiFi | LH13QBRMBGCXUE
Model :
SKU : LED-SAMSUNG QB13R-M 13"
Description

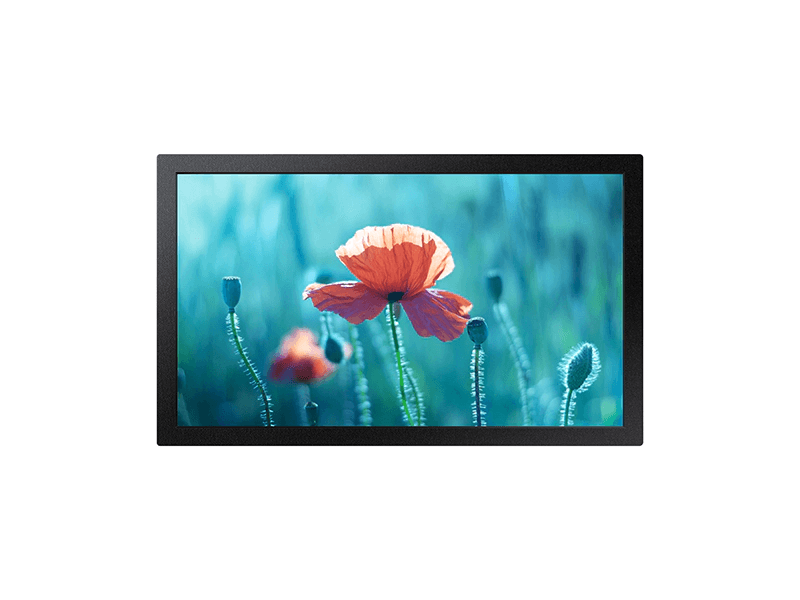

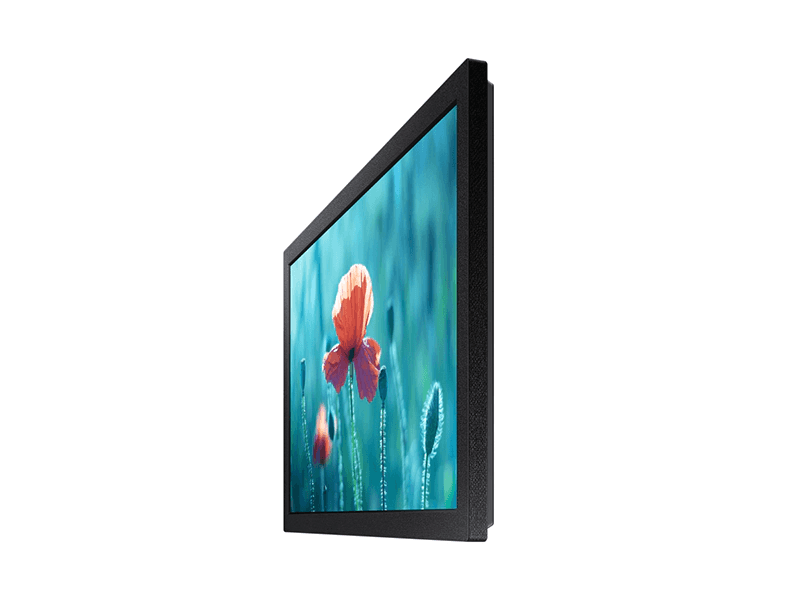

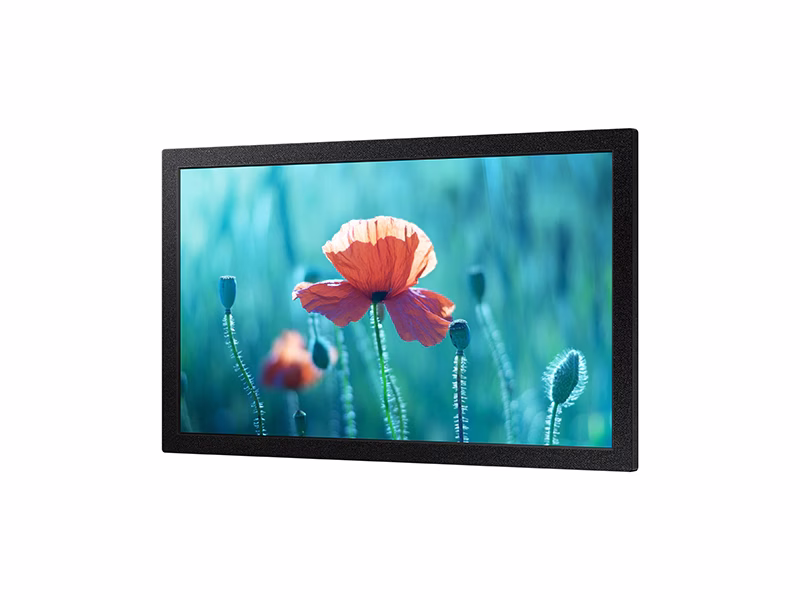

The Samsung QB13R-M 13-inch Smart Signage Display is a compact professional digital signage solution designed for businesses that need clear, reliable, and remotely manageable visual communication in space-constrained environments. Featuring a 13-inch Full HD 1920 × 1080 ADS panel, Samsung Tizen platform, built-in Wi-Fi, and versatile connectivity, the QB13R-M is ideal for retail counters, reception areas, restaurants, meeting rooms, transportation facilities, and corporate environments.
Despite its compact size, the Samsung QB13R-M delivers crisp Full HD resolution, allowing businesses to display promotional content, menus, schedules, advertisements, corporate information, and digital messaging with excellent clarity. The ADS panel provides wide viewing angles, helping content remain clearly visible when viewed from different positions.
Powered by Samsung's Tizen smart signage platform, the QB13R-M provides an integrated environment for digital signage applications and content management without requiring a separate external media player for many deployments. Its 8GB internal flash memory provides onboard capacity for applications and digital signage content.
The compact design makes the QB13R-M particularly useful in locations where conventional large-format commercial displays are impractical. It can be deployed on counters, shelves, walls, information points, and other customer-facing locations.

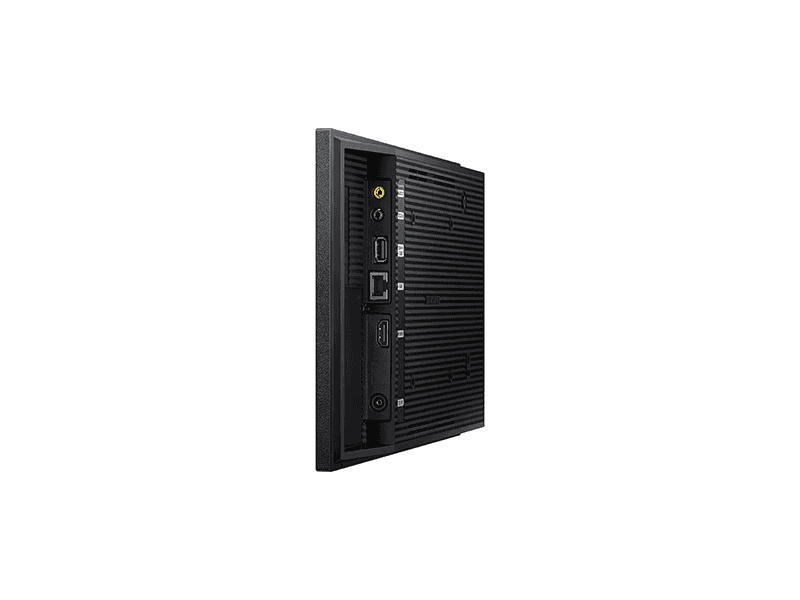

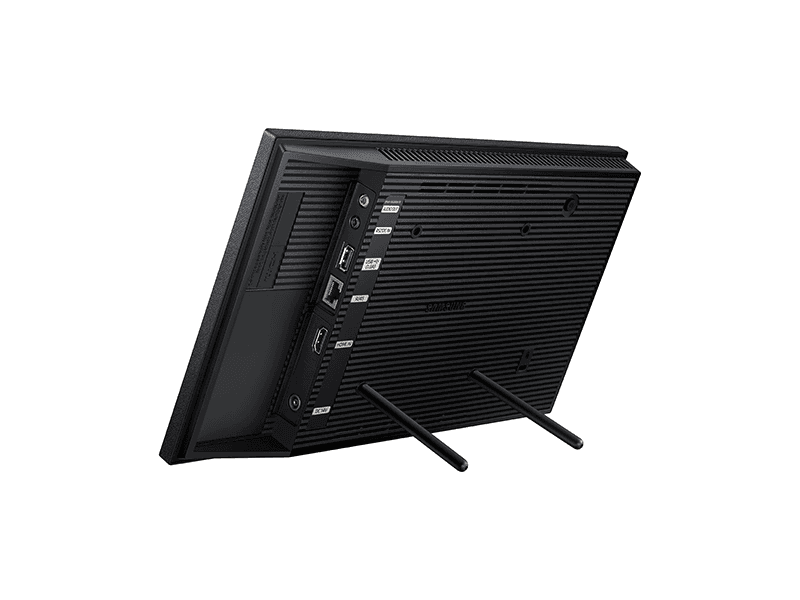

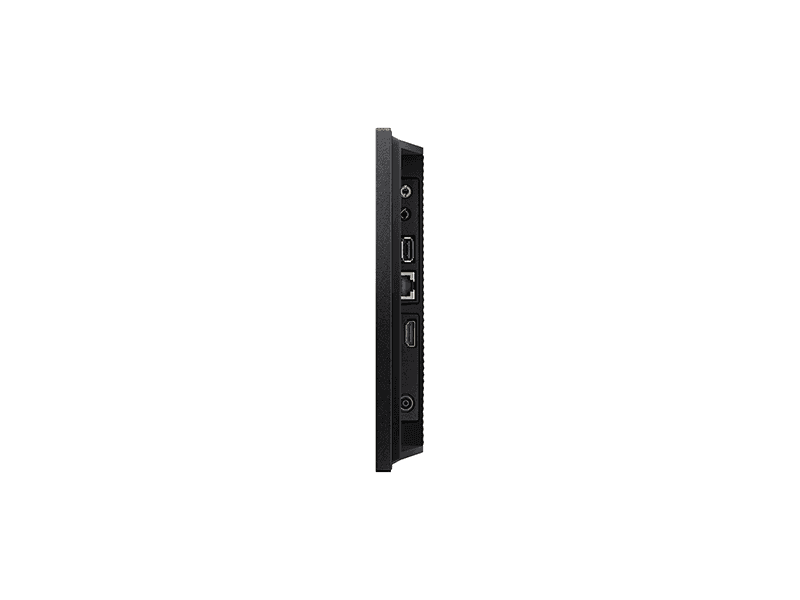

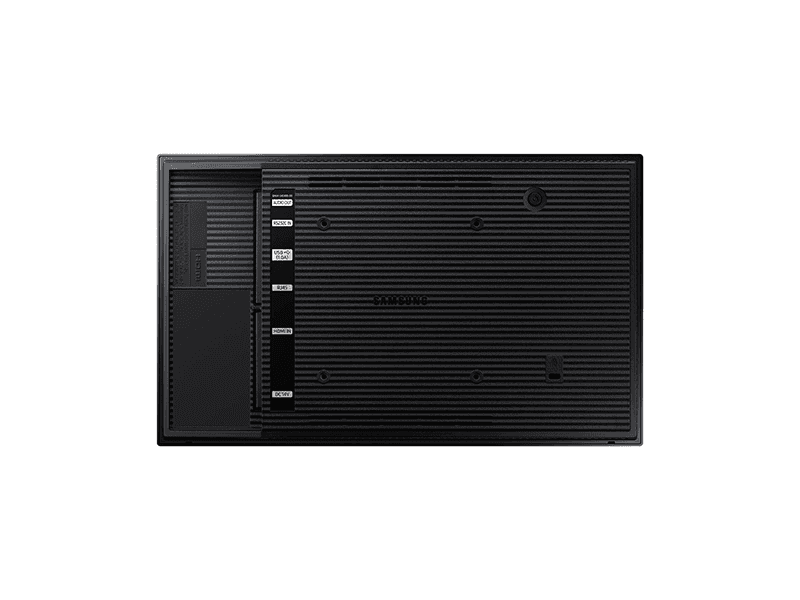

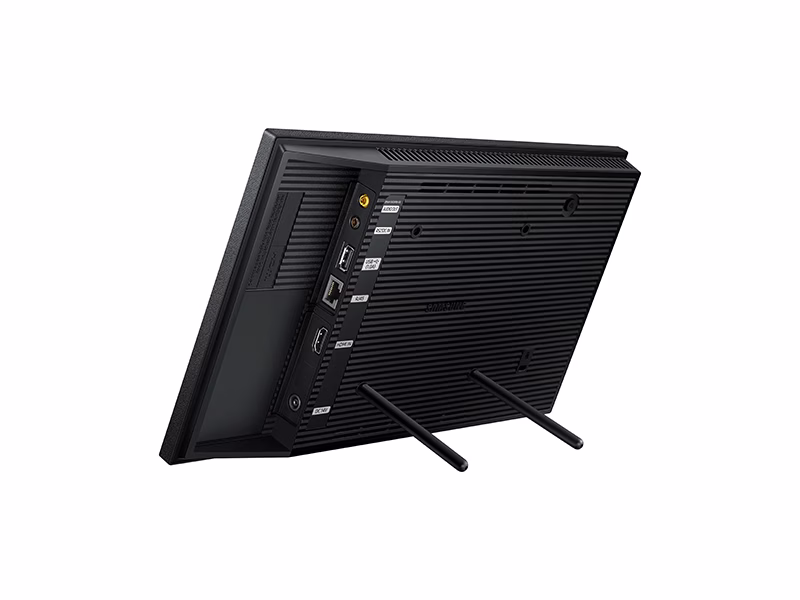

Built-in Wi-Fi and Ethernet connectivity provide flexible network integration for content distribution and remote signage management. Physical connectivity options including HDMI, USB, audio output, RJ45 and RS232 allow the display to integrate with external media sources, networks, and professional control systems.
Unlike a conventional consumer monitor, the Samsung QB13R-M Series is designed specifically for commercial signage environments, making it an excellent choice for businesses seeking a compact professional display for continuous digital communication.
Specification
Samsung QB13R-M 13" Full HD Smart Digital Signage Display – 1920×1080 ADS Panel, Tizen OS, Wi-Fi, HDMI, USB, RJ45, 8GB Storage | LH13QBRMBGCXUE
| Screen Size | 13" |
| Resolution | 1,920 x 1,080 |
| Contrast Ratio (Dynamic) | 10,000:1 |
| Viewing Angle (H/V) | 178/178 |
| Panel Type | ADS |
| Pixel Pitch (HxV) | 0.153 (H) x 0.153 (V) |
| Brightness (Typical) | 500 nit |
| Response Time (ms) | 30ms |
| Color Gamut | 45% |
| Glass Haze | 25% |
| H-Scanning Frequency | 30~81kHz |
| Maximum Pixel Frequency | 594MHz |
| V-Scanning Frequency | 48~75Hz |
| Operation Time Support | 16/7 |
| Contrast Ratio | 800:1 |
| Connectivity | |
| HDMI In | 1 |
| USB | 1 |
| Audio Out | Stereo Mini Jack |
| RS232 In | Yes |
| RJ45 In | Yes |
| WiFi | Yes |
| Version of HDMI | 1.4 |
| Version of HDCP | 2.2 |
| Power | |
| Power Supply | AC100-240V 50/60Hz |
| Power Consumption (On Mode) | 27.5W |
| Power Consumption (Sleep Mode) | 0.5W |
| Dimensions | |
| Set Dimension (WxHxD) | 322 x 193.5 x 28.2 mm |
| Package Dimensions (WxHxD) | 376 x 132 x 248 mm |
| Weight | |
| Set Weight | 0.9 kg |
| Package Weight | 1.7 kg |
| Operation Conditions | |
| Temperature | 0???~ 40??? |
| Humidity | 10 ~ 80%, non-condensing |
| Mechanical Specification | |
| VESA Mount | 100 x 100 mm |
| Bezel Width | 12.2 mm |
| Frame Material | Non-Glossy |
| Optional Feature | |
| Stand | Inbox (Simple Stand) (2ea) |
| SoC | |
| OS Version | Tizen 4.0 |
| Flash Memory Size | 8GB |
| Certification and Compliance | |
| EMC | Class B |
| Safety | 60950-1, 62368-1 |
