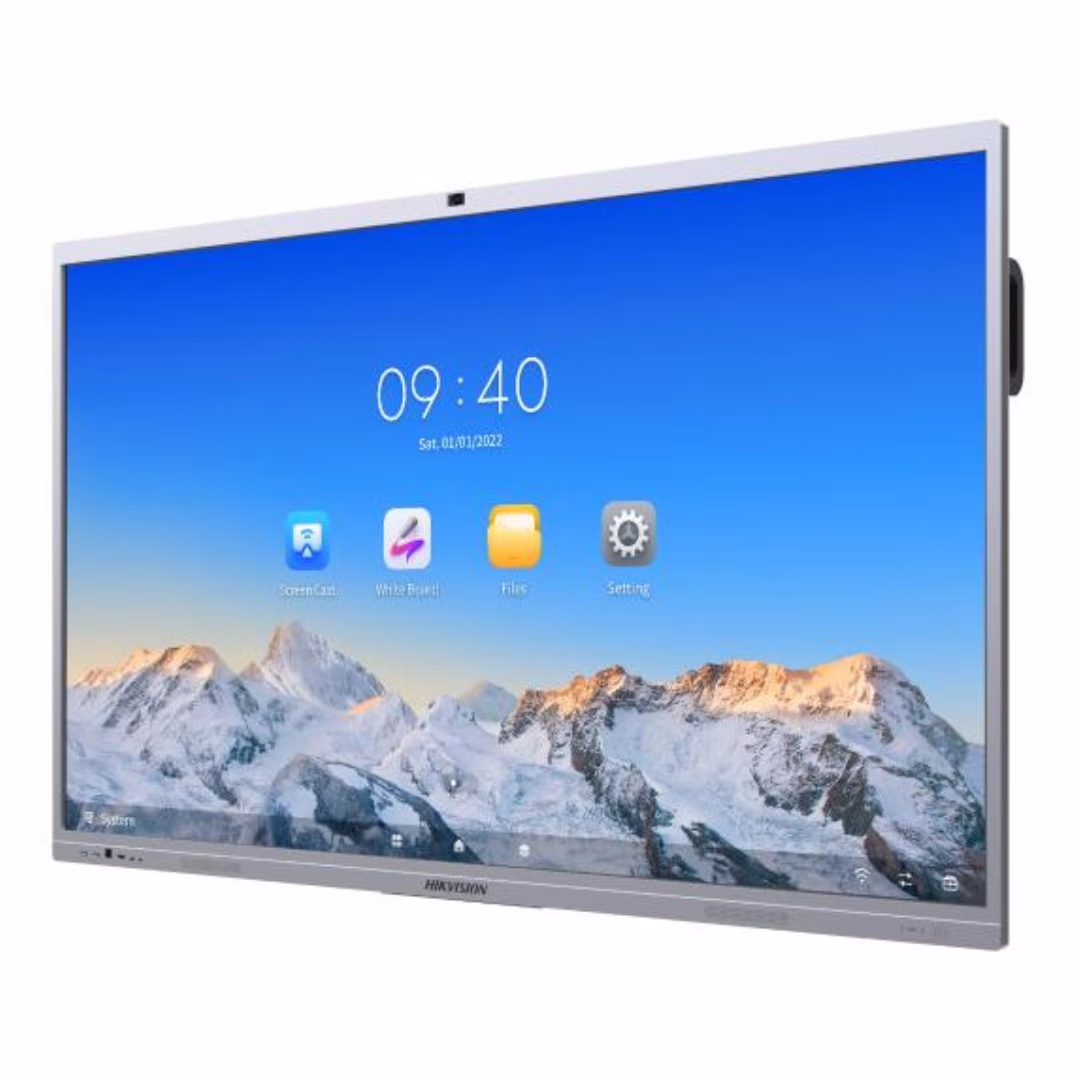

Hikvision DS-D5C98RB/B Hikvision Interactive Flat Panel Display With Web Cam, 98 inch 4K DLED 3840x2160 60 Hz Display, 5 ms, VA Panel, 8GB RAM 128GB ROM, Android 13.0, Up to 50 point multi-touch, EDLA
Model : DS-D5CRB/B
SKU : DS-D5C98RB/B EDLA
Size :
98 Inches
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description

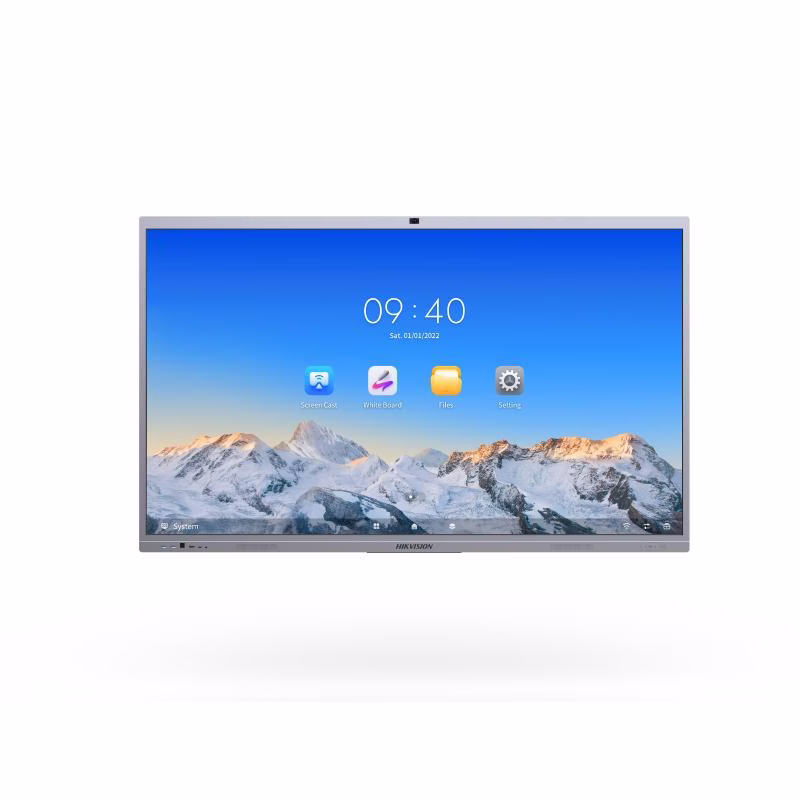

Hikvision DS-D5C98RB/B Interactive Flat Panel Display with Webcam
Experience seamless collaboration and smarter presentations with the Hikvision DS-D5C98RB/B Interactive Flat Panel Display. Designed for modern classrooms, meeting rooms, and conference spaces, this 98-inch 4K UHD display combines stunning visuals with powerful interactive features.
Equipped with a built-in high-definition webcam and microphone array, it supports effortless video conferencing and remote collaboration. The multi-touch screen offers smooth and accurate writing, making brainstorming and teaching more engaging. Powered by an intelligent Android system, it provides easy access to apps, wireless screen sharing, and efficient content management.
With robust performance, crisp image quality, and user-friendly controls, the DS-D5C98RB/B is the perfect solution for businesses and educational institutions looking to enhance teamwork, communication, and interactivity.
Specification
Hikvision DS-D5C98RB/B Hikvision Interactive Flat Panel Display With Web Cam, 98 inch 4K DLED 3840x2160 60 Hz Display, 5 ms, VA Panel, 8GB RAM 128GB ROM, Android 13.0, Up to 50 point multi-touch, EDLA Specifications
| Product Model | DS-D5C98RB/B |
| Screen Size | 98 inch |
| Backlight | DLED |
| Pixel Pitch | 0.1645???H????? 0.4935???V???mm |
| Resolution | 3840 ?? 2160 @60 Hz |
| Brightness | 400 cd/m?? (Typ.) |
| Color Depth | 10 bit |
| Display Color | 1.07 G |
| Response Time | 5 ms |
| Panel Type | VA |
| Contrast Ratio | 5000:1 (Static), 30,000:1 (Dynamic) |
| Color Gamut | 72% NTSC (CIE1931) (Typ.) |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178?? (H)/178?? (V) |
| Aspect Ratio | 16:9 |
| Surface Hardness | 9H (Pencil), 7 (Mohs) |
| Surface Glass | Anti-Glare Glass |
| Surface Haze | 25% |
| Glass Bonding Method | Zero Lamination |
| Display Area | 1895.04mm ?? 1065.96mm |
| Working Duration | 7 ?? 16 H |
| Transmittance | 88% ?? 3 |
| Lifespan | 50,000 hours |
| Touch Type | Infrared Touch Screen |
| Touch Point | Up to 50-point multi-touch |
| Touch Response Time | ??? 2 ms |
| Minimum Touch Object | ??? 1.5 mm (??? 90% touching area) |
| Touch Precision | ?? 0.5 mm (??? 90% touching area) |
| Touch Resolution | 32767 ?? 32767 |
| Operating System | Android 13.0 |
| Memory | 8 GB |
| Built-in Storage | 128 GB |
| Processor | Quad-core Cortex-A76 ?? 4 (2.4 GHz) and quad-core Cortex-A55 ?? 4 (1.8 GHz) |
| GPU | Mali-G610 MC4 |
| HDCP Version | 2.3 |
| Camera Pixel | 48MP for Photos & 8 MP for Video |
| Camera Function | Support intelligent switching between Android system, OPS, and PC. |
| Camera Field Angle | 93.4?? (diagonal), 84.5?? (horizontal), 54.1?? (vertical) |
| Camera Distortion | ???2.5% |
| Camera Resolution | Up to 4K |
| Microphone Specification | Omni-directional 8-array layout |
| Microphone Function | Echo reduction and smart noise-cancellation |
| Voice Distance | 12 m |
| Mic Sampling Rate | 32 K |
| Mic Depth | 16 bit |
| Loudspeaker | Built-in 2 ?? 20 W+25W loudspeaker |
| Bluetooth | Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1 |
| NFC | Support screen mirroring by Android phones |
| Light Sensor | Yes |
| Image Processing Technology | Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging; support shadow correction. |
| Audio Processing Technology | Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection. |
| Video & Audio Input | HDMI In (HDMI 2.0) ?? 3, VGA In ?? 1, DP In (DP 1.2) ?? 1, Audio In ?? 1 |
| Video & Audio Output | HDMI Out (HDMI 2.0) ?? 1, Audio Out ?? 1, SPDIF Out ?? 1 |
| Control Interface | TOUCH-USB 3.0 ?? 3, RS232 ?? 1 |
| Network Interface | LAN (1000 Mbps) ?? 2; WIFI AP & Station, 2.4G/5G, WIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 ?? 2 MIMO (2.4 GHz and 5 GHz), authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP |
| Data Transmission Interface | USB 3.0 ?? 4, USB 2.0 ?? 1, Type-C ?? 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W) |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | 300 W (Max) |
| Standby Consumption | ??? 0.5 W |
| Power Interface | 1 ?? 3-pin plug |
| General Interfaces | OPS Slot ?? 1, 6.75 A@19 V/3.4 A@12 V power supply, smart interface ?? 1 |
| Working Temperature | 0??C to 40??C (32??F to 104??F) |
| Working Humidity | 10% to 90% RH (non-condensing) |
| Storage Temperature | -20??C to 60??C (-4??F to 140??F) |
| Storage Humidity | 10% to 90% RH (non-condensing) |
| Dimension (W??H??D) | 1965.3 mm ?? 1187.5 mm ?? 91 mm (77.37" ?? 46.75" ?? 3.58") |
| Package Dimensions (W??H??D) | 2130 mm ?? 1365 mm ?? 335 mm (83.86" ?? 53.74" ?? 13.19") |
| Net Weight | 63.3 kg (139.55 lb) |
| Gross Weight | 82.8 kg (182.52 lb) |
