Hikvision DS-D5C65RB/B(EDLA) 65-inch Interactive Flat Panel Built in Camera, UHD 4K (3840 × 2160), 6ms, VA Panel, 60 Hz, Anti-glare and anti-blocking design, Android Windows（Optional with OPS), Built-in network switch module
Model : DS-D5CRB/B
SKU : DS-D5C65RB/B/EDLA
Size :
65 Inches
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description

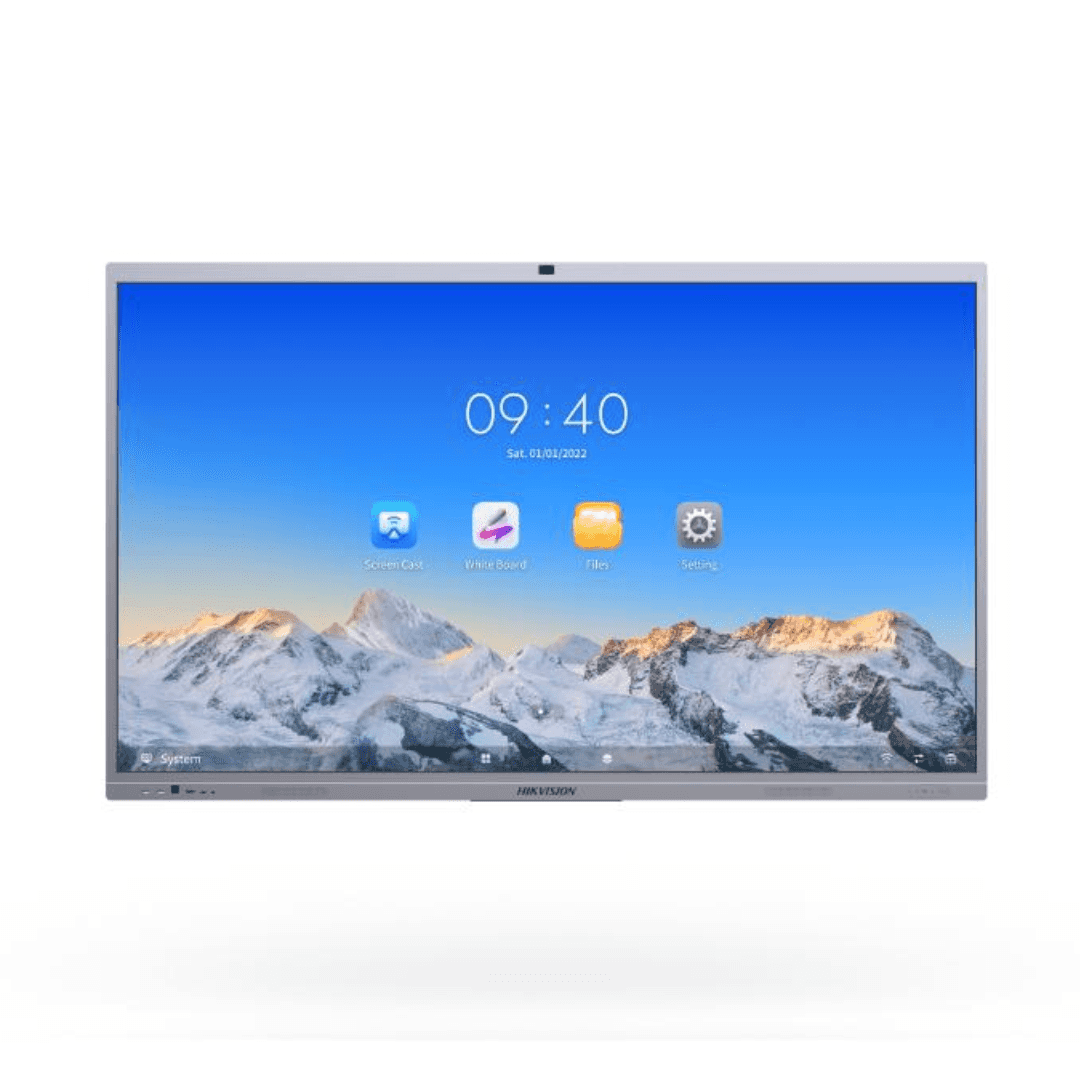

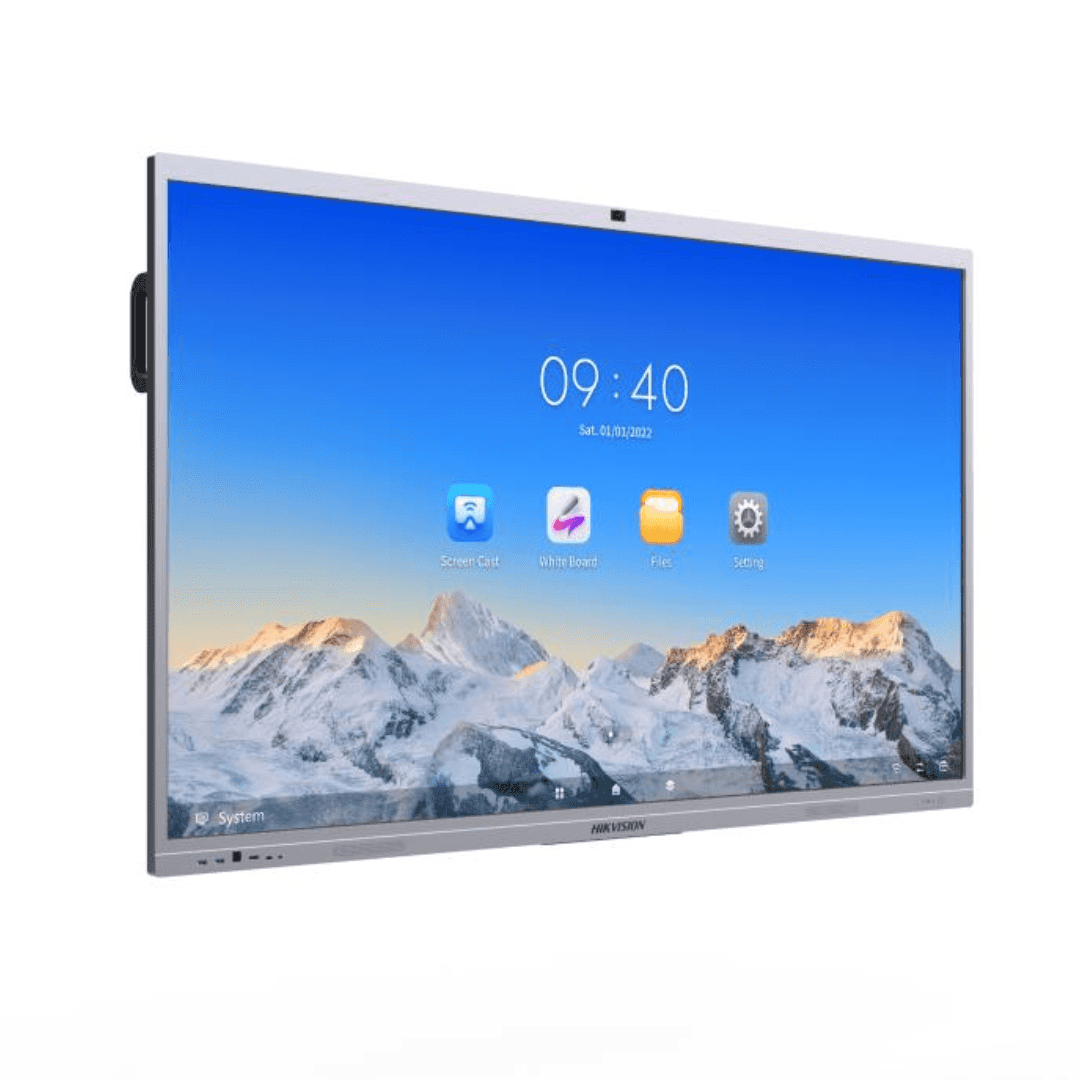

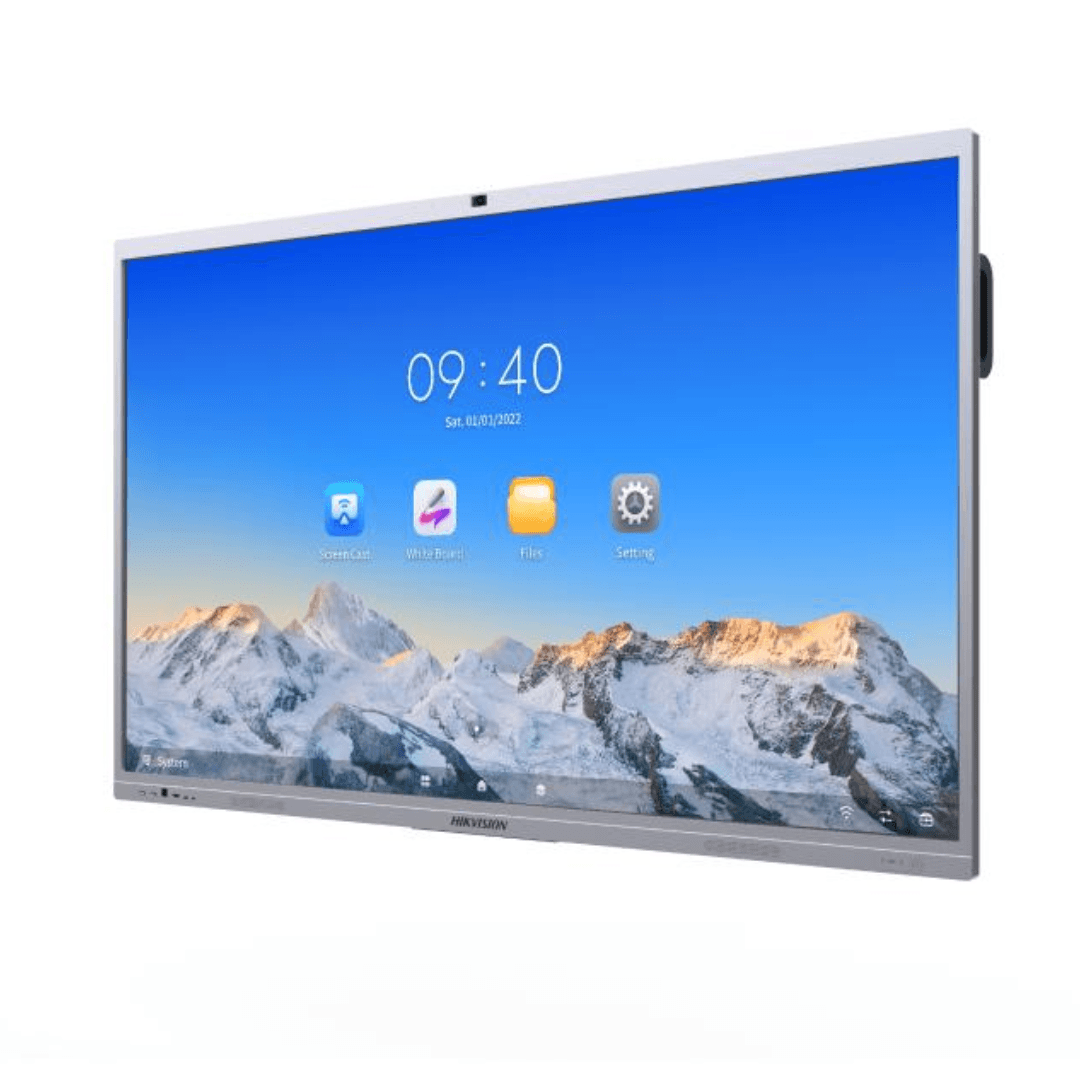

Hikvision DS-D5C65RB/B(EDLA) 65-inch Interactive Flat Panel with Built-in Camera
Upgrade your meetings and classrooms with the Hikvision DS-D5C65RB/B(EDLA) 65-inch Interactive Flat Panel. Designed for seamless collaboration, this smart display combines a vibrant 65-inch screen with a built-in high-definition camera, enabling smooth video conferencing and interactive presentations.
The multi-touch interface ensures accurate writing, drawing, and control, making lessons, workshops, and brainstorming sessions more engaging and productive. With an intelligent Android system, you can access apps, manage content, and share screens wirelessly from laptops, tablets, or smartphones.
Durable, user-friendly, and packed with features, the DS-D5C65RB/B(EDLA) is perfect for educational institutions, offices, and meeting rooms seeking an all-in-one interactive solution.
Key Features:
- 65-inch high-resolution interactive display
- Built-in HD camera for video conferencing
- Multi-touch technology for smooth writing and navigation
- Android-based system with easy-to-use interface
- Wireless screen sharing from multiple devices
- Ideal for classrooms, conference rooms, and collaborative environments
Specification
| Model | DS-D5C65RB/B |
| Display | |
| Screen Size | 65 inch |
| Backlight | DLED |
| Pixel Pitch | 0.124 (H) ?? 0.372 (V) mm |
| Resolution | 3840 ?? 2160 @60 Hz |
| Brightness | 400 cd/m?? (Typ.) |
| Color Depth | 10 bit |
| Display Color | 1.07G |
| Response Time | 6 ms |
| Panel Type | VA |
| Contrast Ratio | 5000:1 (Static) 30,000:1 (Dynamic) |
| Color Gamut | 72% NTSC (CIE1931) (Typ.) |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178??(H)/178??(V) |
| Aspect Ratio | 16:9 |
| Surface Hardness | 9H |
| Surface Glass | Anti-Glare Glass |
| Surface Haze | 25% Haze |
| Glass Bonding Method | Zero Lamination |
| Display Area | 1428.48mmx803.52mm |
| Working Duration | 7 ?? 16H |
| Transmittance | 88% ?? 3 |
| Lifespan | 50,000 hours |
| Touch | |
| Type | Infrared Touch Screen |
| Touch Point | 45 point multi-touch |
| Touch Response Time | < 5 ms |
| Minimum Touch Object | >= 2 mm |
| Touch Precision | ?? 1 mm (??? 90% touching area) |
| Touch Resolution | 32768 ?? 32768 |
| Built-In System | |
| Operation System | Android 13.0 |
| Memory | 8 GB |
| Built-In Storage | 128 GB |
| Processor | Quad-core Cortex-A76 ?? 4 (2.4GHz) and quad-core Cortex-A55 ?? 4 (1.8GHz) |
| GPU | Mali-G610 MC4 |
| HDCP Version | 2.3 |
| Camera | |
| Pixel | Pixel 48MP for Photos & 8 MP for Video |
| Camera Function | Support intelligent switching between Android system, OPS, and PC. |
| Field Angle | 120?? (diagonal), 110?? (horizontal), 75?? (vertical) |
| Distortion | ??? 2.5% |
| Camera Resolution Ratio | Up to 4K |
| Microphone | |
| Specification | Omni-directional 8-array layout |
| Mic Function | Echo reduction and smart noise-cancellation |
| Voice Distance | 12 m |
| Sampling Rate | 32 K |
| Mic Sampling Rate | 16 bit |
| Internal Function | |
| Loudspeaker | Built-in 2 ??20 W+25W loudspeaker; |
| Bluetooth | Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1 |
| NFC | Support screen mirroring by Android phones |
| Light Sensor | Yes |
| Image Processing Technology | Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging???support shadow correction and distortion correction for lens. |
| Audio Processing Technology | Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection. |
| Interface | |
| Video & Audio Input | HDMI In (HDMI 2.0) ?? 3, VGA In ?? 1, DP In (DP 1.2) ?? 1, Audio In ?? 1 |
| Video & Audio Output | HDMI Out (HDMI 2.0) ?? 1, Audio Out ?? 1, SPDIF Out ?? 1 |
| Control Interface | TOUCH-USB 3.0 ?? 3, RS232 ?? 1 |
| Network Interface | LAN (1000 Mbps) ?? 2 |
| WIFI AP&Station, 2.4G/5G | |
| IEEE 802.11 a/b/g/n/ac 2x2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP | |
| Data Transmission Interface | USB 3.0 ?? 4, USB 2.0 ?? 1, Type-C ?? 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W) |
| Power | |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Standby Consumption | ??? 0.5 W |
| Average Consumption | < 107W |
| General | |
| VESA | 600 mm ?? 400 mm (4 ?? M8-25 mm) |
| Product Dimensions | 1491.9 mm ?? 910.6 mm ?? 82.3 mm |
| Accessory | |
| Package Dimensions (W ?? H ?? D) | 1704 mm ?? 251 mm ?? 1073 mm |
| Net Weight | 37.6 kg |
| Gross Weight | 47.6 kg |
| Working Environment | |
| Working Temperature | 0 ??C to 40 ??C (32 ??F to 104??F) |
| Working Humidity | 10%~90% RH |
