Samsung 86″ Interactive E-Board Display, Android OS with EDLA Certification, Built-in Camera, 4K UHD Touchscreen, LH86WAFPLGCXUE
Model : E-Board
SKU : SAMSUNG LH86WAFPLGCXUE
75 Inches
not in stock
65 Inches
not in stock
86 Inches
not in stock
E-Board Android
Built-in Camera
EDLA Certification
Description
Unlimited Learning Possibilities
Key features at a glance

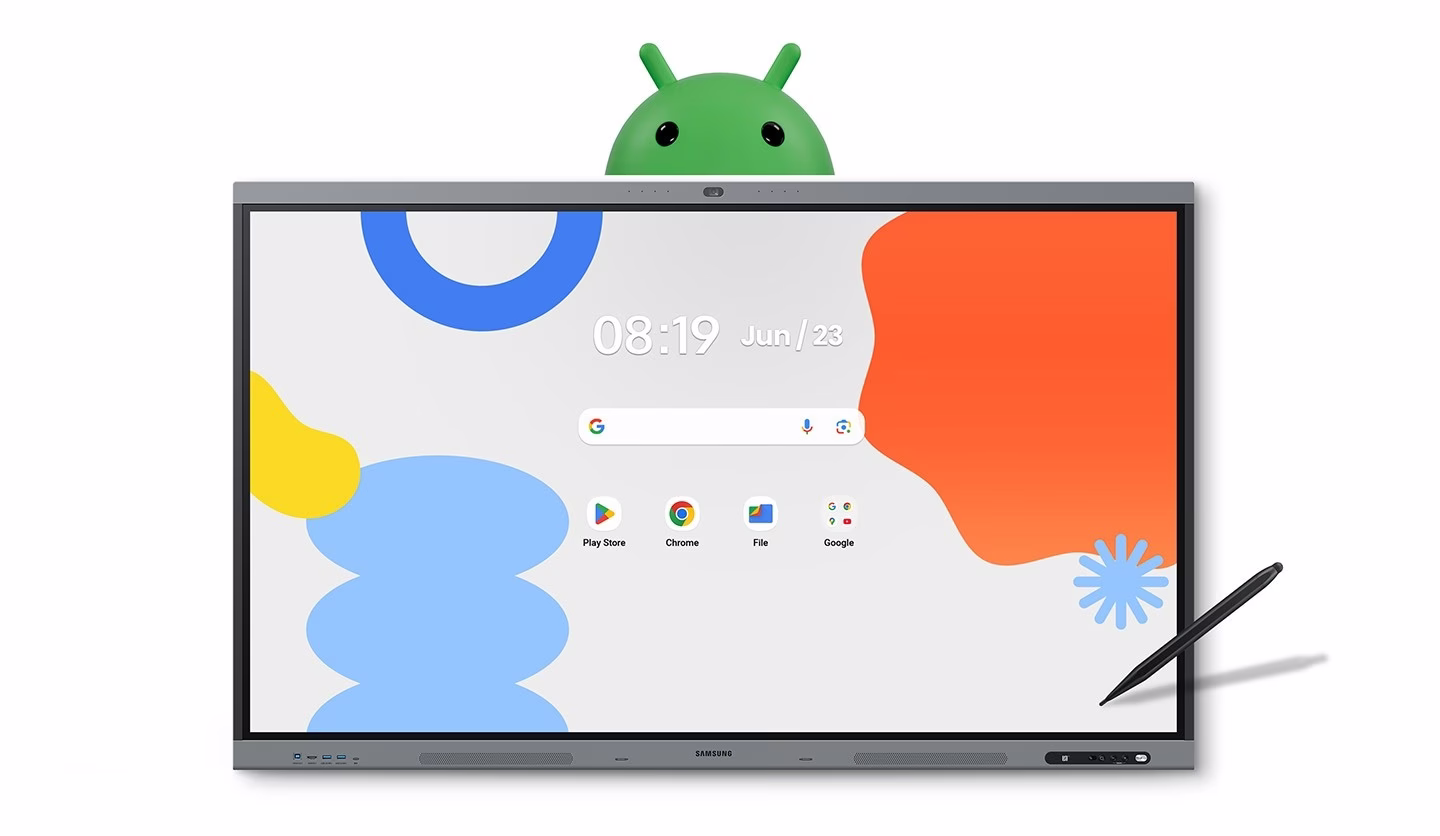

Android™ 15 & Octa-Core CPU
User-friendly UX, powerful performance
Experience intuitive, fast, and fluid performance powered by Android™ 15 and an Octa-core CPU. Whether you’re in the classroom or the meeting room, enjoy smooth access to educational tools, apps, and multitasking features.
EDLA Certification
Seamless access to Google services
As a Google EDLA certified interactive display, the WAFX-P comes with Google apps and services. It supports Google Play and delivers a streamlined experience designed to enhance education and collaboration.

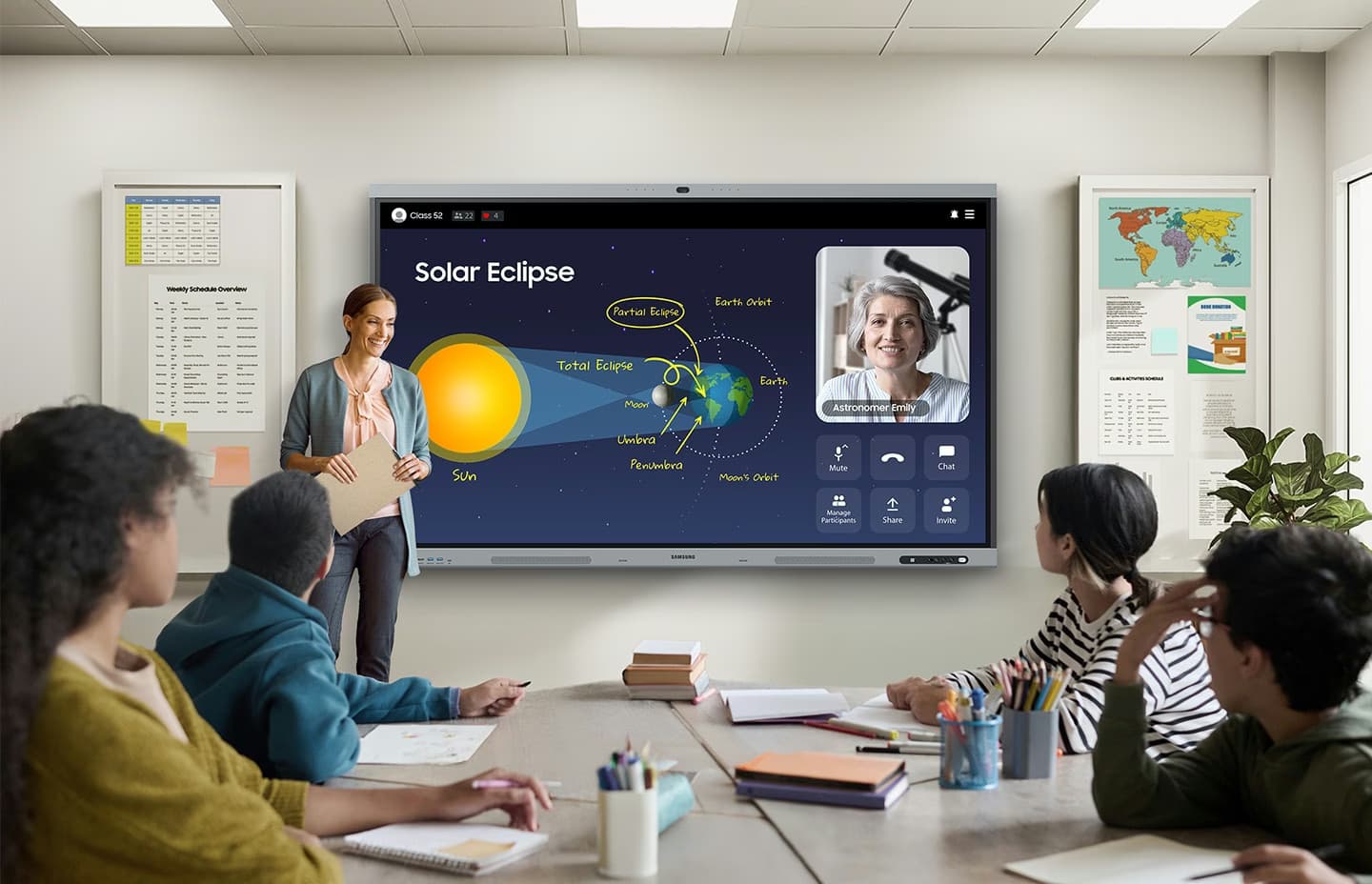

All-in-One Video Call System
Built-in features for frictionless communications
With WAFX-P, starting a remote class or video conference requires no extra equipment or setup. The built-in 48MP camera keeps the speaker in view with Auto Framing, while the microphone captures voices within a 10-meter range, and dual 20W speakers and a built-in woofer deliver powerful audio.
AI Write & Search
Write. Circle. Search smarter
Seamlessly transition your handwritten notes into the digital world. With WAFX-P's embedded AI and digital ink recognition, simply circle handwritten notes on the screen and tap the search icon to access web results, images, and more - all without typing.
Smart Notetaking

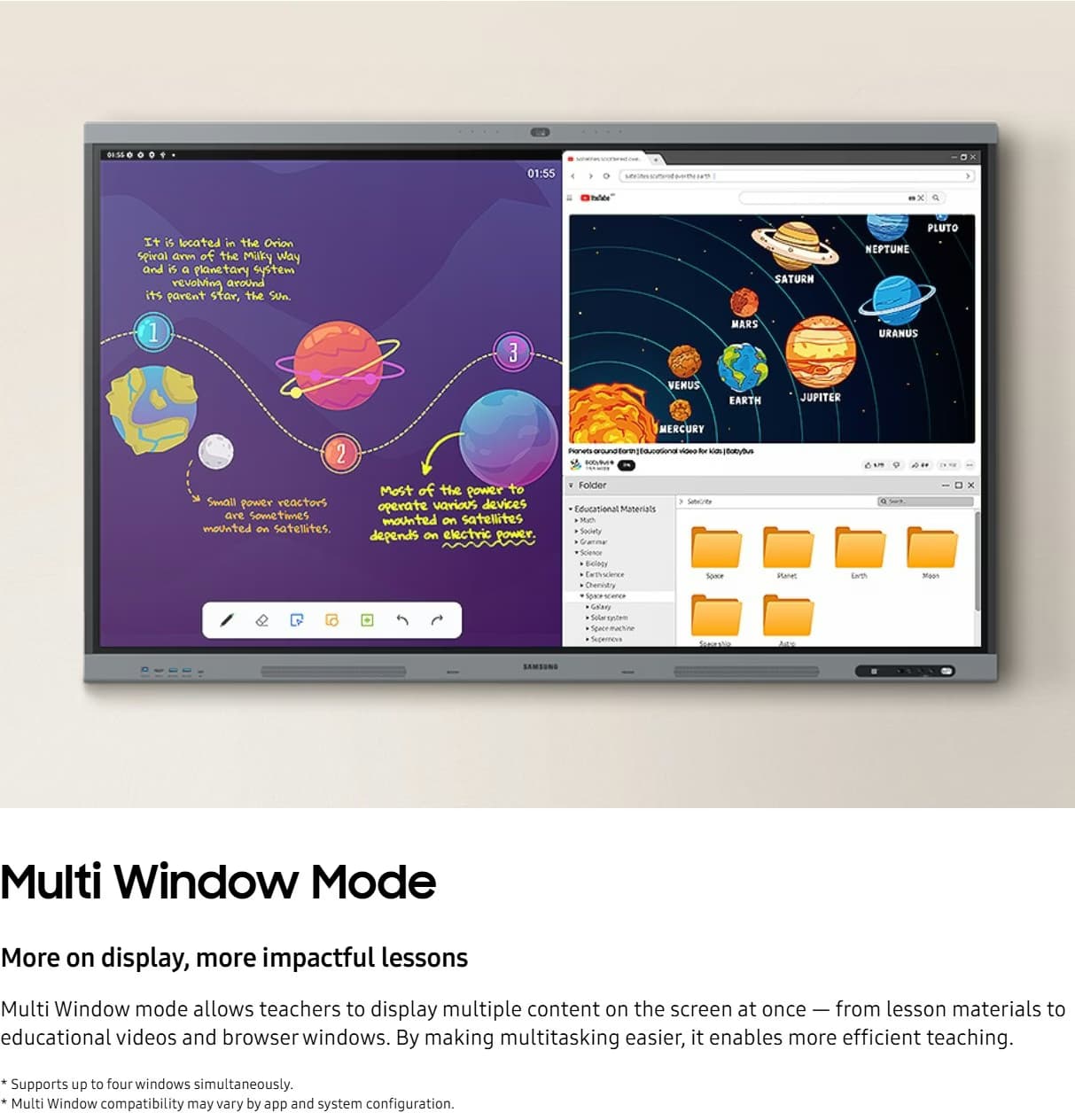

Easy Multitasking
Screen Sharing
Smart, wireless sharing on multiple devices
WAFX-P supports screen sharing from up to 9 devices simultaneously, regardless of OS. Content can be shared between the main display and personal devices, maximizing engagement and inclusivity.

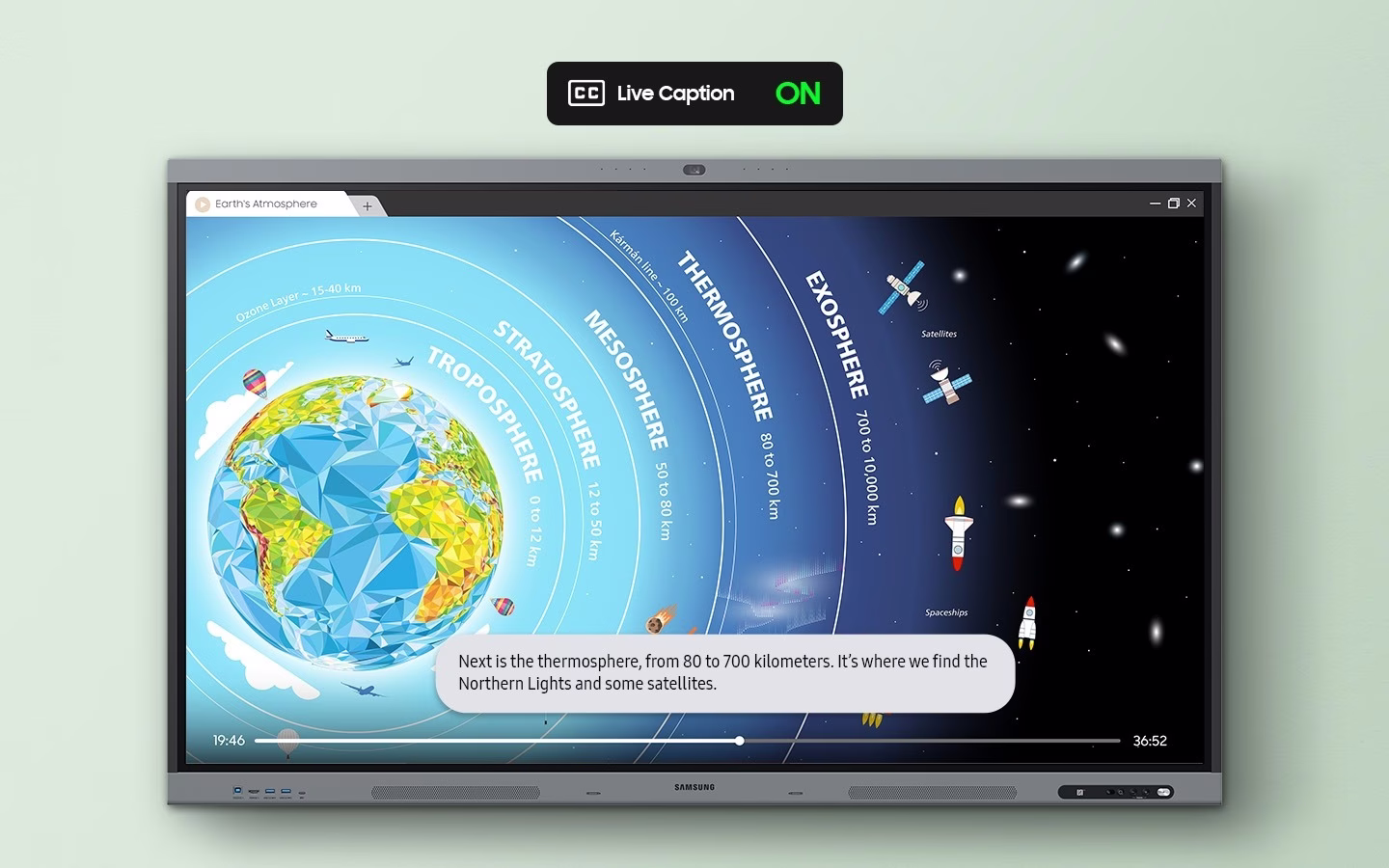

Live Caption
Make content accessible for everyone
Make audio and video playback easier to follow for everyone. With built-in Live Caption on, WAFX-P automatically generates on-screen captions for content with audio features—supporting accessible learning and better engagement across various environments.
Connectivity
Specification
86" 4K IPS Interactive Display Technical Specifications
| Diagonal Size | 86" |
| Panel Type | IPS |
| Resolution | 3,840 × 2,160 (4K UHD) |
| Pixel Pitch (H×V) | 0.493 × 0.493 mm |
| Brightness (Typical) | 450 nit |
| Contrast Ratio | 1,200:1 |
| Viewing Angle (H/V) | 178° / 178° |
| Response Time | 8 ms |
| Color Gamut | 72% |
| Glass Haze | 25% |
| H-Scanning Frequency | 135 kHz |
| Maximum Pixel Frequency | 78 MHz |
| V-Scanning Frequency | 60 Hz |
| Operation Time Support | 12/7 |
| HDMI In | 2 (HDMI 2.1) |
| DisplayPort In | 1 (DP 1.2) |
| HDCP Version | 2.2 |
| USB Ports | 4 |
| IR In | No |
| Audio In | Stereo Mini Jack |
| Audio Out | Stereo Mini Jack |

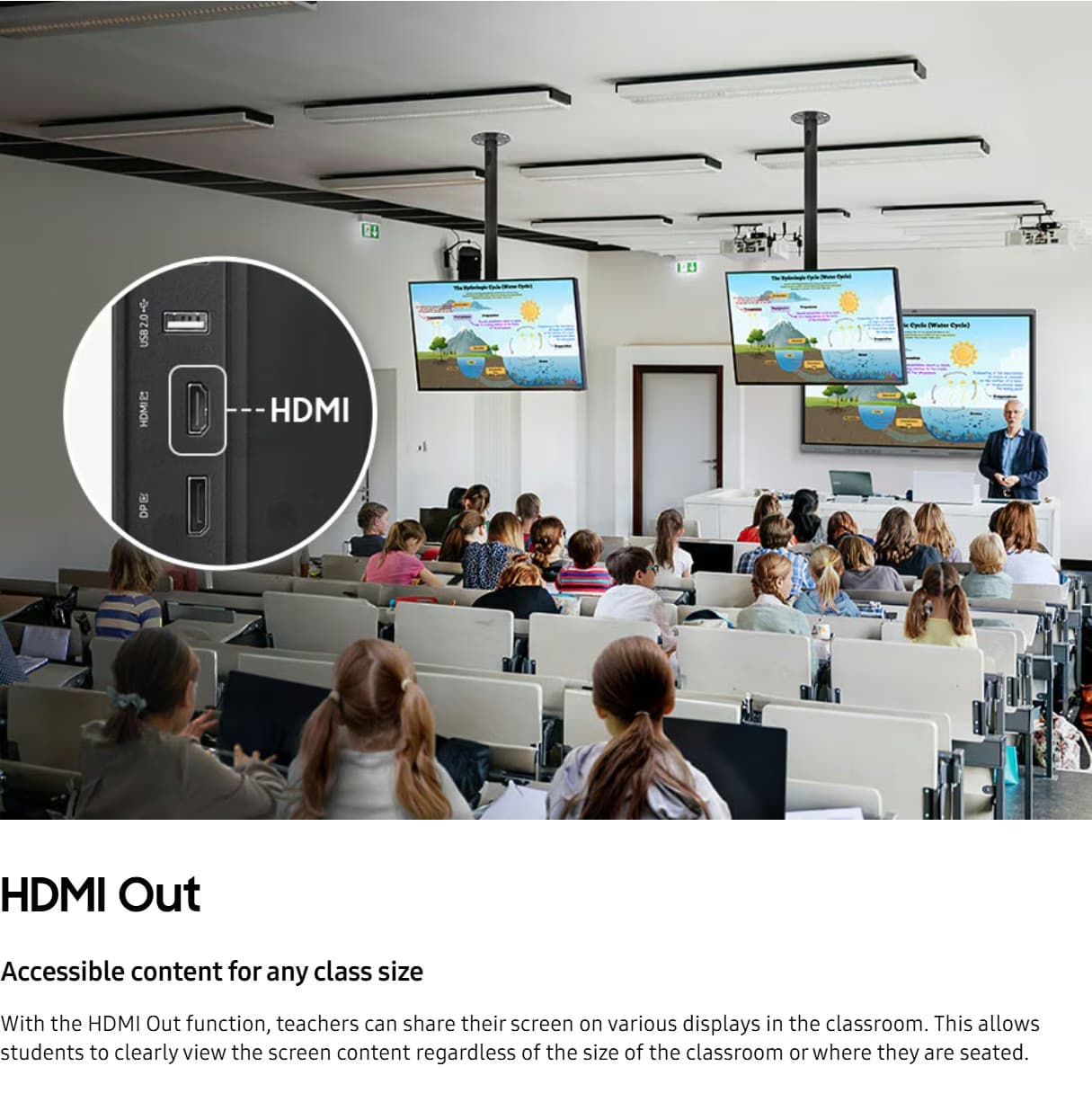

| Video Out | Yes |
| RS232 In | Yes |
| RJ45 In | Yes |
| RJ45 Out | Yes |
| Wi-Fi | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption (On Mode) | 529W |
| Power Consumption (Sleep Mode) | 0.5W |
| Set Dimensions (W×H×D) | 1950.4 × 1174.0 × 87.1 mm |
| Package Dimensions (W×H×D) | 2095 × 1265 × 185 mm |
| Set Weight | 60.9 kg |
| Package Weight | 71.8 kg |
| Operating Temperature | 0°C – 40°C |
| Operating Humidity | 10 – 80% (Non-condensing) |
| VESA Mount | 800 × 600 mm |
| Bezel Width | 14.9 mm |
| Bezel Color | Top/Bottom: Dark Blue-Gray; Sides: Black |
| Frame Material | Aluminium |
| Touch Support | Yes (IR Touch Technology) |
| Operating System | Android 15 |
| Flash Memory | 128GB |
| EMC Certification | FCC CFR Title 47, Part 15, Subpart B / EN55032:2015+A11:2020 |
| Safety Certification | IEC62368-1 / UL62368-1 / IEC60950-1 / IS13252 |
