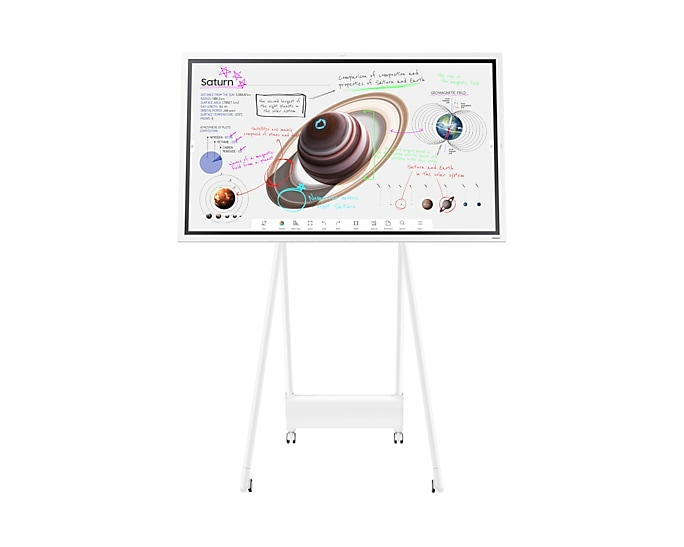

Samsung Flip Pro WM55B Interactive Display with Samsung Slim Mobile stand, Fast & multi-touch, USB, HDMI, DP, LAN Port and Wireless Screen-mirroring
Model :
SKU : SAMSUNG LH55WMBWBGCXUE -17286
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Samsung Flip Pro WM55B Interactive Display with Samsung Slim Mobile stand, Fast & multi-touch, USB, HDMI, DP, LAN Port and Wireless Screen-mirroring Specifications
| Display | |
|---|---|
| Connectivity | |
| Power | |
| Dimensions & Weight | |
| Operation Conditions | |
| Mechanical Specification | |
| Optional Features | |
| SoC | |
| Eco | |
| Touch Technology | |
| Certifications and Compliance | |
| Diagonal Size | 55" |
| Panel Type | VA |
| Resolution | 3,840 x 2,160 |
| Pixel Pitch (H x V, mm) | 0.315 x 0.315 |
| Brightness (Typ) | 350 nits (w/o glass), 220 nits (w/glass) |
| Contrast Ratio | 4000:1 (without glass) |
| Viewing Angle (H/V) | 178?? / 178?? |
| Response Time | 8ms |
| Color Gamut | 72% |
| Glass Haze | 2% (without glass) |
| H-Scanning Frequency | 30???81 kHz |
| V-Scanning Frequency | 48???75 kHz |
| Maximum Pixel Frequency | 594 MHz |
| Operation Time Support | 12/7 |
| HDMI In | 2 (HDMI 2.0) |
| DP In | 1 (DP 1.2) |
| HDCP Version | 2.2 |
| USB Ports | 1 (Rear), 3 Optional (Internal x1, External x1, USB-C x1) |
| Audio Out | Stereo Mini Jack |
| RS232 In | Yes |
| RJ45 In | Yes |
| WiFi | Yes |
| Bluetooth | Yes |
| Power Supply | AC 100???240V, 50/60Hz |
| Power Consumption (On Mode) | 154 W |
| Power Consumption (Sleep Mode) | 0.5 W |
| Set Dimensions (W x H x D) | 1297.4 x 768.2 x 59.9 mm |
| Package Dimensions | 1464 x 915 x 190 mm |
| Set Weight | 28.6 kg |
| Package Weight | 35.9 kg |
| Temperature | 0??? ~ 40??? |
| Humidity | 10% ??? 80%, non-condensing |
| VESA Mount | 400 x 400 mm |
| Bezel Width | 26.2 mm |
| Bezel Color | Gray White |
| Frame Material | Plastic |
| Touch Support | Yes |
| Mount | Yes (Model: WMN-4277SF) |
| Stand | Yes (Model: STN-WM55R) |
| OS Version | Tizen 6.5 |
| Flash Memory Size | 32GB |
| Energy Efficiency Class | A |
| Technology | IR |
| EMC | Class A FCC (USA): Part 15, Subpart B KCC/EK (Korea): Tuner: KN32 / KN35, Tunerless: KN32 / KN35 CE (Europe): EN55032:2012/2015, EN55024:2010, EN55035:2017 VCCI (Japan): VCCI CISPR32:2016 CCC (China): GB/T9254-2008, GB17625.1-2012 BSMI (Taiwan): CNS13438, CNS14336-1, CNS15663 C-Tick (Australia): AS/NZS CISPR32:2015 GOST (Russia/CIS): ROCT CISPR 24-2013, ROCT CISPR 22:2005 |
| Safety | CB (Europe): IEC60950-1 / EN60950-1 CCC (China): GB4943.1-2011 PSB (Singapore): PSB + IEC60950-1 NOM (Mexico): NOM-001-SCFI-1993 / NOM-019-SCFI-1998 IRAM (Argentina): IRAM + IEC60950-1 SASO (Saudi Arabia): SASO + IEC60950-1 BIS (India): IEC60950-1 / IS13252 KC (Korea): K 60950-1 EAC (Russia): EAC + IEC60950-1 INMETRO (Brazil): INMETRO + IEC60950-1 BSMI (Taiwan): BSMI + IEC60950-1 RCM (Australia): IEC60950-1 / AS/NZS 60950-1 UL (USA): cUL60950 |
