Model :
SKU : DS-K4T108

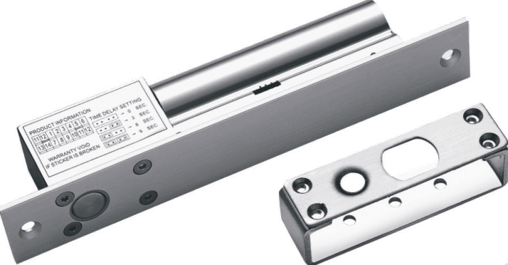

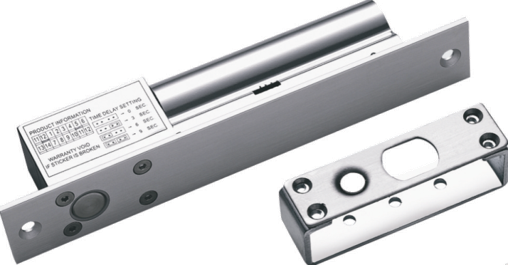

Electric Bolt, 205×34×42mm (8.1×1.3×1.7"), 12VDC, ≤1.2A (Startup Current), 0.2A (Standby)
Auto-locking if induction module is detected
Suitable for wooden door, glass door, metal door
Equipped with internal voltage dependent resistor (MOV)
Signal output of door lock status (NO\NC\COM)
Abrasion-proof materials
Shell is made of aldural and is hard anodizing electroplated.
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
| Power Supply | 12 VDC; ≤ 1.2 A (Startup Current) 0.2 A (Standby) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 0 to 95 % (relative humidity) |
| Dimensions | Lock Body: 205 mm × 34 mm × 42 mm (8.1" × 1.3" × 1.7"), 0.74 kg (1.6 lb) |
| Material | Shell: Hard Anodizing Electroplating Operated |
| Signal Output | Dry Contact Output, Max. Voltage 18V. If the wiring is COM/NC, NO Output: Locking; NC Output: Unlocking. If the wiring is COM/NO, NC Output: Locking; NO Output: Unlocking. |
| Delay Duration | 0/3/6/9s optional |
| Door Type | Wooden Door, Glass Door, Metal Door |
| Unlock Method | Current Interruption |
| Surface Temperature | ≤ Ambient Temperature +10 °C (50 °F) |
| Suitable Door | Wooden Door, Glass Door, and Metal Door |
