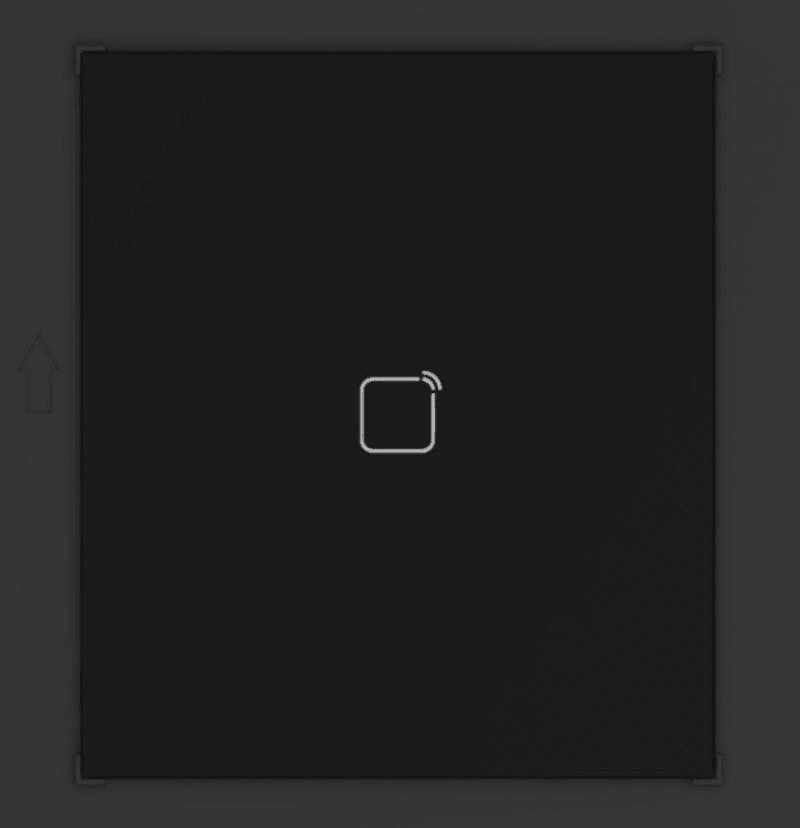

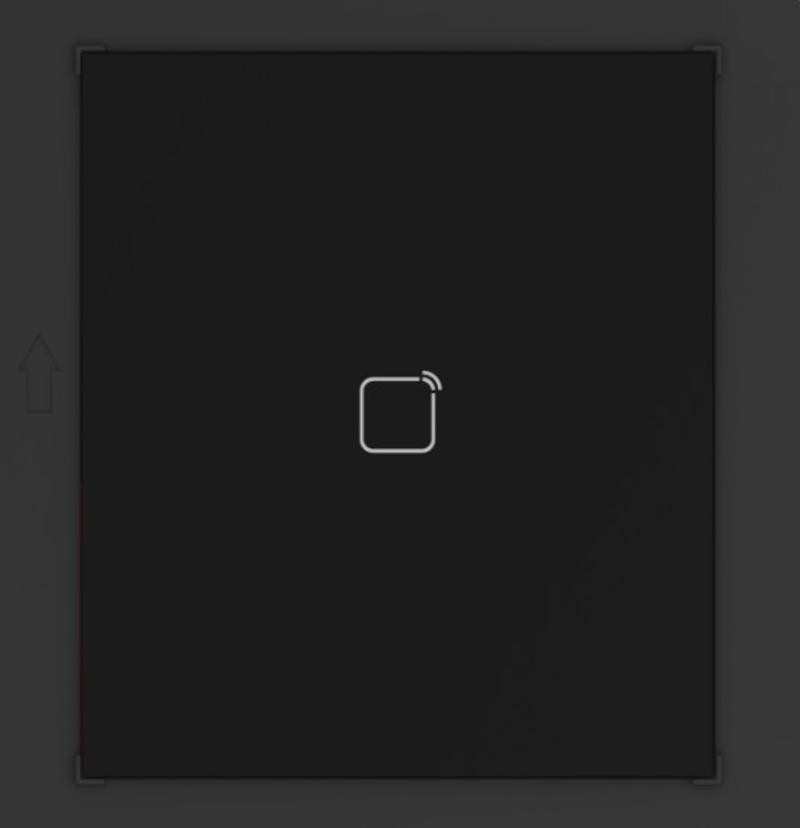

Hikvision DS-KD-M KD8 Series Pro Modular Door Station, M1 card reader module of modular door station, Support unlock door via swiping card, issuing cards, Backlight compensation behind the module, IP65

Hikvision DS-KD-M KD8 Series Pro Modular Door Station, M1 card reader module of modular door station, Support unlock door via swiping card, issuing cards, Backlight compensation behind the module, IP65

Operating System	Embedded Linux operation system
ROM	Not supported.
RAM	Not supported.
CPU	Embedded MCU Processor

Display Parameters

Screen Size	/
Operation Method	/
Type	/
Resolution	/

Video Parameters

Lens	/
Resolution	/
FOV	/
WDR	/
Supplement Light	/
Video Compression Standard	/

Audio Parameters

Audio Compression Standard	Not supported.
Audio Input	/
Audio Output	/
Audio Compression Bitrate	Not supported.
Audio Quality	/
Volume Adjustment	Not supported.

Capacity

User Capacity	/
Face Capacity	/
Card Capacity	/
Linked Network Camera Capacity	/

Network Parameters

Communication Protocol	Not supported.
Wired Network	/
Wi-Fi Standard	/
Bluetooth Version	/
3G/4G Standard	Not supported.

Device Interfaces

Alarm Input	/
Network Interface	/
TAMPER	Not supported.
Exit Button	/
RS-485	1
USB	/
Wiegand	Not supported.
TF Card	/
Alarm Output	/
Lock Control	/
Door Contact Input	/
Power Interface	1

Performances

Multi-Factor Authentication

/

General

Weight	With package: 421 g Without package: 160 g
Protective Level	IP65
Working Temperature	-40?? C to +55?? C (-40?? F to 131?? F)
Working Humidity	10% to 95%
Dimensions	98.5 mm ?? 100 mm ?? 33.7 mm (3.87" ?? 3.95" ?? 1.33")

Application Environment

Outdoor

Power Consumption

Power Consumption

0.8 W
