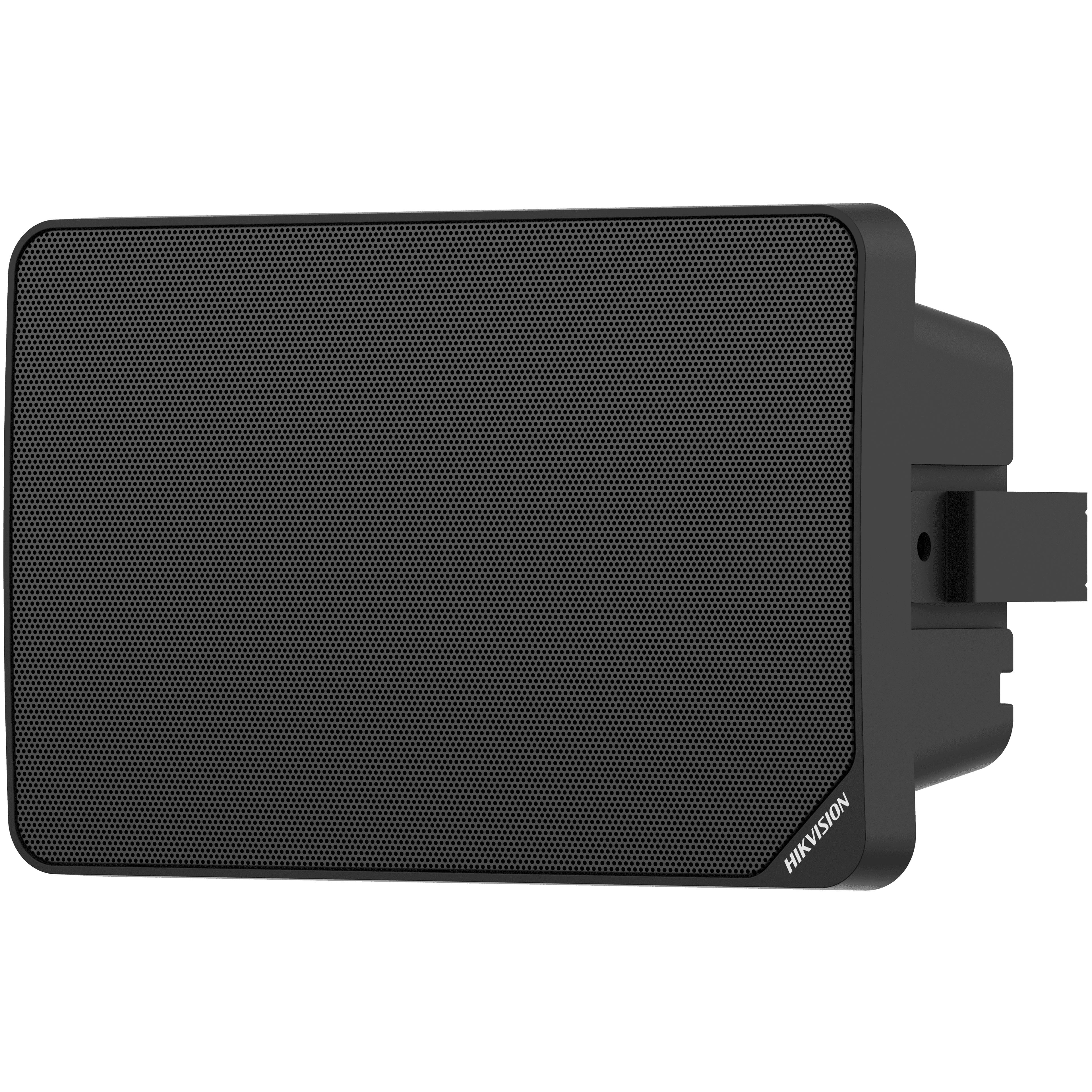

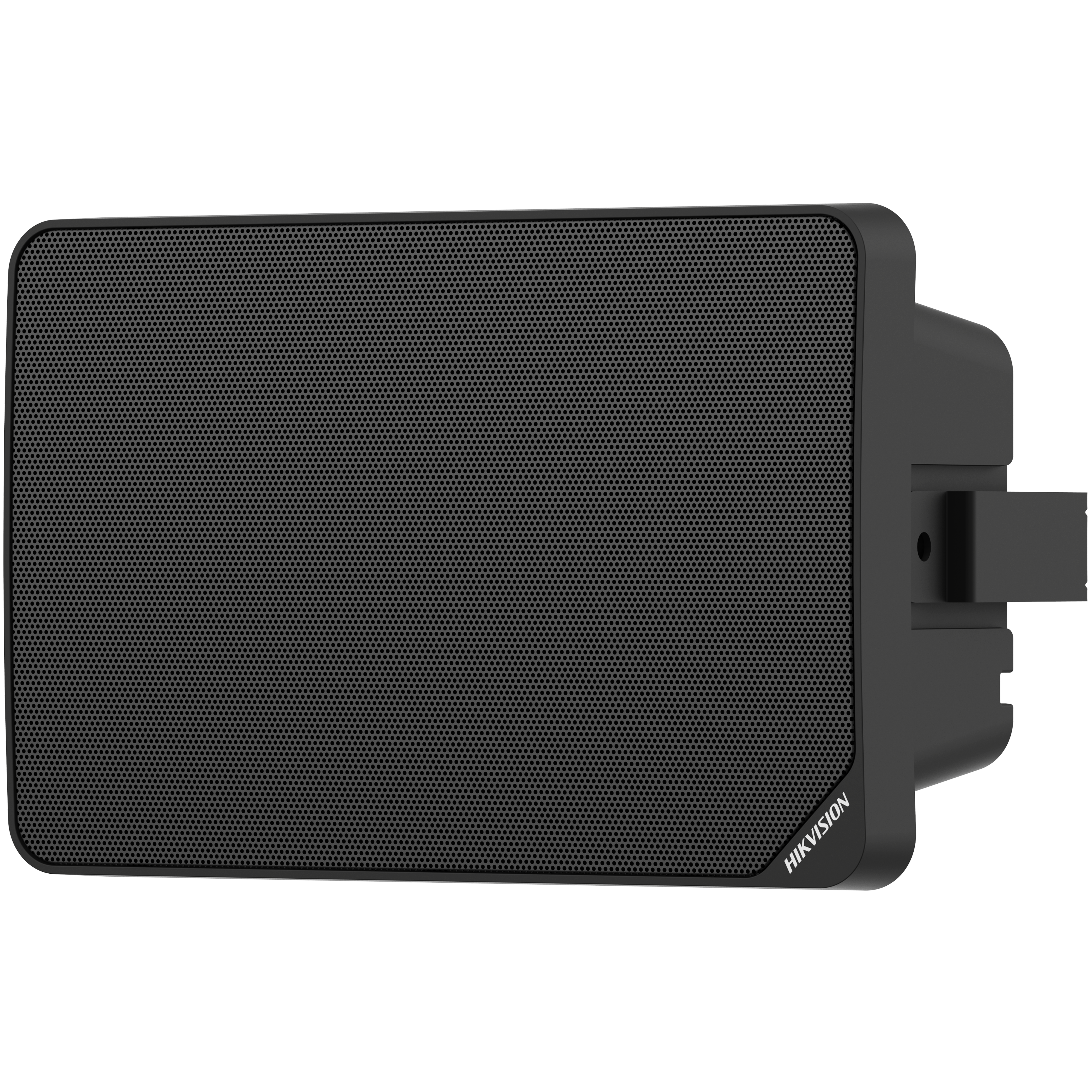

Hikvision DS-QAE0120G1R Analog Cabinet Speaker 20W

Model :

SKU : DS-QAE0120G1R Speaker 20W

About this item

  • 5.25′′ × 1
  • Rated Power: 70 V: 5 W/10 W/15 W/20 W, 100 V: 5 W/10 W/15 W/20 W
  • Sensitivity(1 m, 1 W): 90 dB ± 3 dB
  • Max. SPL: 103 dB
  • Frequency Response: 130 Hz to 17.5 kHz

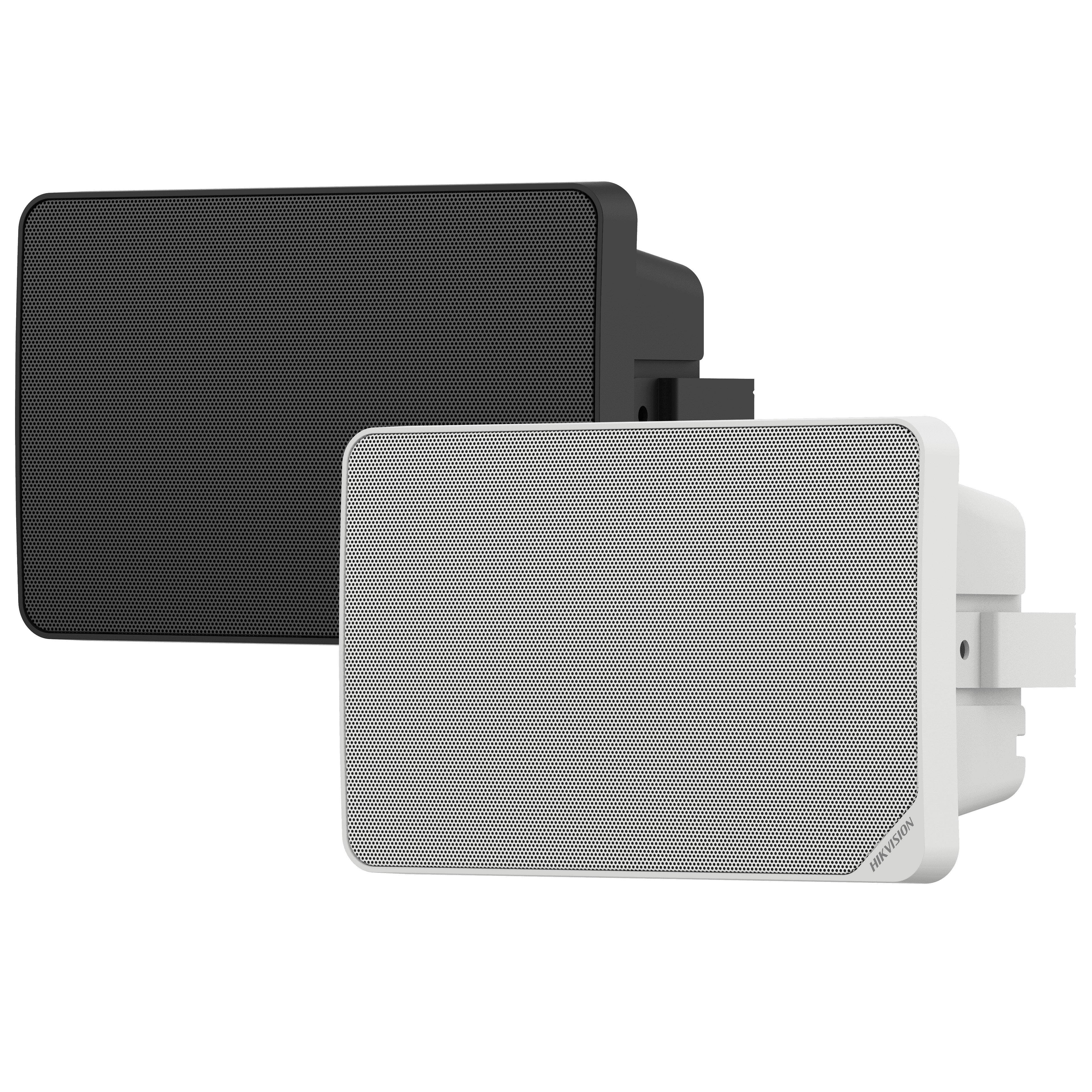

  • White or black appearance optional

dirham-symbol0

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

1

AED 0.00

stock : 1

About this item

Description



Specification

Rated Power70 V: 5 W/10 W/15 W/20 W
100 V: 5 W/10 W/15 W/20 W
Impedance8 Ω
Max. Acoustic Pressure103 dBSPL
Sensitivity (1 m, 1 W)90 dB ± 3dB
DirectionAll directions
Frequency Response130 Hz to 17.5 kHz
Speaker Unit5.25′′ × 1
Coverage AngleHorizontal: 135°
Vertical: 130°
InterfaceAudio In: Fixed pressure in 100 V / Fixed pressure in 70 V / Fixed resistance input 8 Ω × 1
MaterialMain body & Front cover: Plastic, Bracket: Metal
Operating Temperature-30 °C to 60 °C (-22 °F to 140 °F)
Operating Humidity<90% (No condensation)
Dimension268.4 mm × 180.4 mm × 125.12 mm (10.57" × 7.1" × 4.93")
Package Dimension340 mm × 306 mm × 180 mm (13.39" × 12.05" × 7.09")
WeightApprox. 1.5 kg (3.3 lb.)
With Package WeightApprox. 2 kg (4.4 lb.)
ColorWhite or Black (optional)
Packing ListDevice × 1
U-shaped bracket × 1
Screw pack × 1
Installation sticker × 1
Regulatory Compliance and Safety Information × 1
