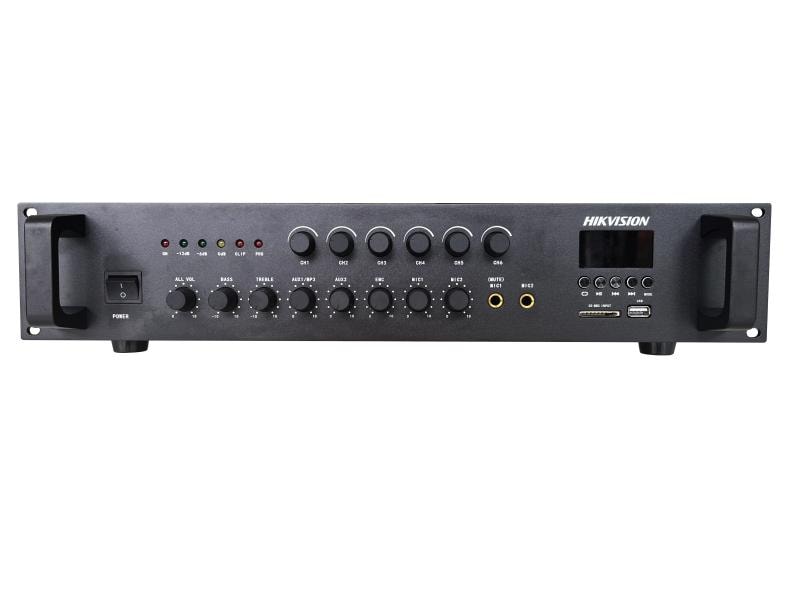

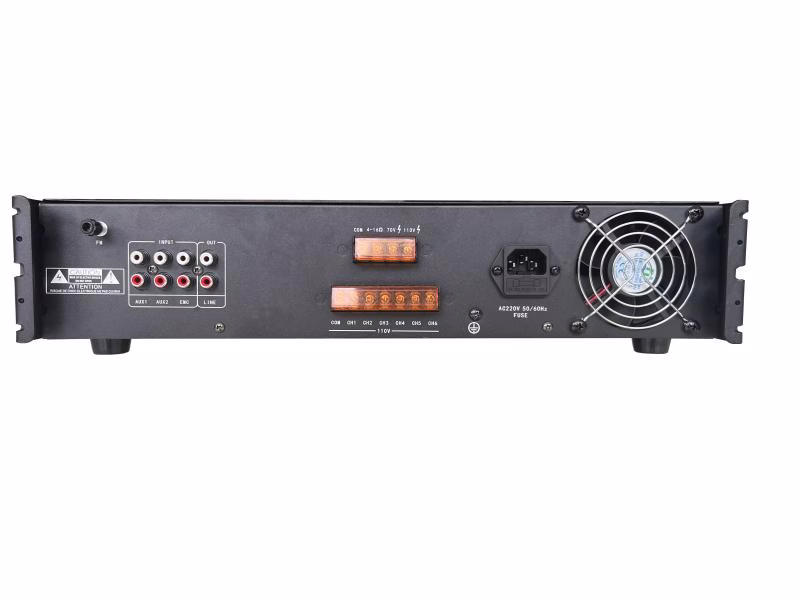

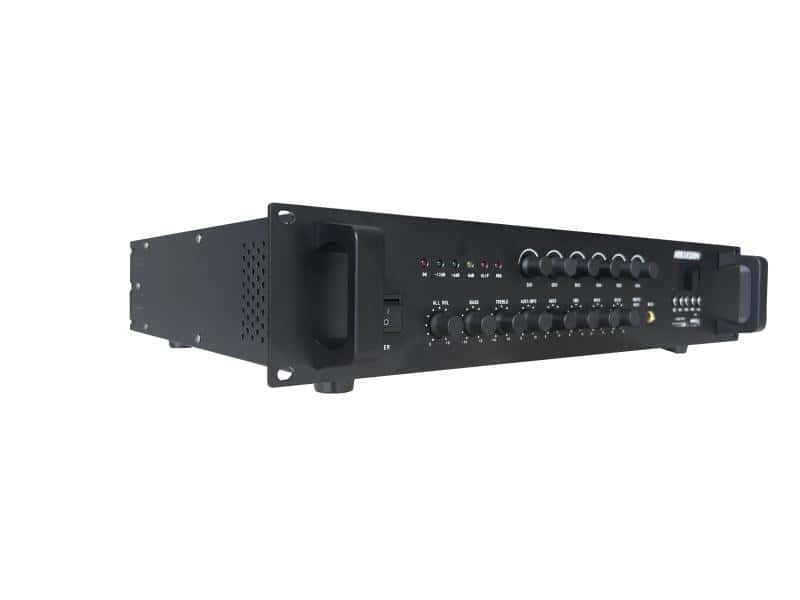

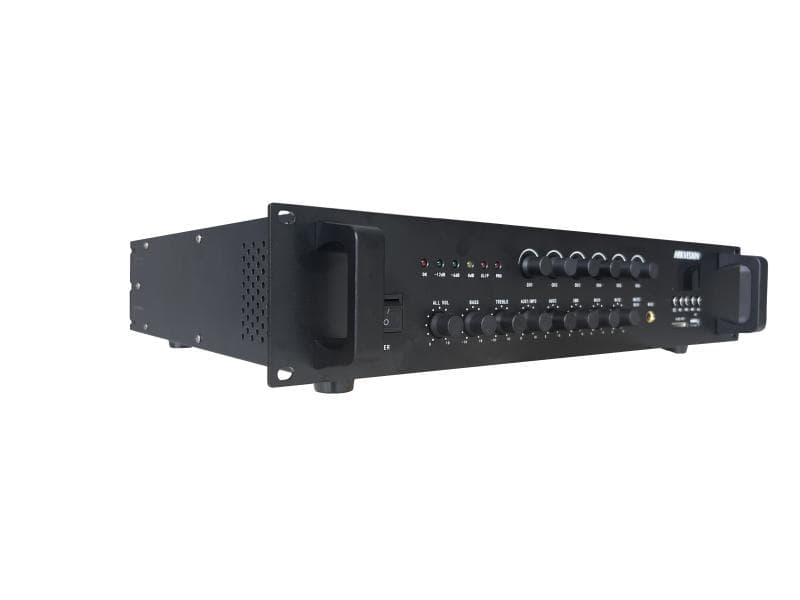

Hikvision DS-QAE0A120G1-VB6 120W 6-Zone Analog Amplifier, 2x AUX, 1x EMC, 2x Microphone Inputs, Built in Bluetooth/MP3
Model :
SKU : DS-QAE0A120G1-VB6 Amplifi
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Hikvision DS-QAE0A120G1-VB6 120W 6-Zone Analog Amplifier, 2x AUX, 1x EMC, 2x Microphone Inputs, Built in Bluetooth/MP3 Specifications
| Rated Power | 120W |
| Sensitivity | Line: -10dB EMC: -10dB MIC: -40dB Line: 0dB |
| Frequency Response | 80Hz-18KHz (??3dB) |
| THD and SNR | THD???0.5% SNR???83dB |
Interface
| Audio In | EMC IN ?? 1, 6.5 mm Microphone ?? 2, AUX IN ?? 2, Bluetooth, USB2.0, SD card |
| Audio Out | Constant Voltage Output ?? 1, 110 V COM, Constant Voltage Output ?? 1, 70 V COM, Constant Impedance Output ?? 1, 4~16?? COM, Partition Output ?? 6, 110 V COM, Line out ?? 1 |
| Volume Knob | MIC Volume Knob ?? 2, Partition 1 Volume Knob ?? 6, All Volume Knob ?? 1, Bass Volume Knob ?? 1, Treble Volume Knob ?? 1, AUX1/MP3 Volume Knob ?? 1, AUX2 Volume Knob ?? 1, EMC Volume Knob ?? 1 |
| USB | USB2.0 |
General Specifications
| Power | 200V-230V???, 50/60Hz 5A |
| Material | Iron |
| Dimension | 484 ?? 88 ?? 360mm |
| Weight | Approx. 9.2 kg (20.28 lb.) |
| Package Dimension | 484 ?? 88 ?? 395mm |
| With Package Weight | Approx. 9.5 Kg (20.94 lb.) |
| Color | Black |
| Packing List | One machine and one power cord |
| Operating Temperature | -10~+40??C (??2), 20%~80% relative humidity |
| Installation | Cabinet installation |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Hikvision DS-QAE0A120G1-VB6 120W 6-Zone Analog Amplifier, 2x AUX, 1x EMC, 2x Microphone Inputs, Built in Bluetooth/MP3 Specifications
| Rated Power | 120W |
| Sensitivity | Line: -10dB EMC: -10dB MIC: -40dB Line: 0dB |
| Frequency Response | 80Hz-18KHz (??3dB) |
| THD and SNR | THD???0.5% SNR???83dB |
Interface
| Audio In | EMC IN ?? 1, 6.5 mm Microphone ?? 2, AUX IN ?? 2, Bluetooth, USB2.0, SD card |
| Audio Out | Constant Voltage Output ?? 1, 110 V COM, Constant Voltage Output ?? 1, 70 V COM, Constant Impedance Output ?? 1, 4~16?? COM, Partition Output ?? 6, 110 V COM, Line out ?? 1 |
| Volume Knob | MIC Volume Knob ?? 2, Partition 1 Volume Knob ?? 6, All Volume Knob ?? 1, Bass Volume Knob ?? 1, Treble Volume Knob ?? 1, AUX1/MP3 Volume Knob ?? 1, AUX2 Volume Knob ?? 1, EMC Volume Knob ?? 1 |
| USB | USB2.0 |
General Specifications
| Power | 200V-230V???, 50/60Hz 5A |
| Material | Iron |
| Dimension | 484 ?? 88 ?? 360mm |
| Weight | Approx. 9.2 kg (20.28 lb.) |
| Package Dimension | 484 ?? 88 ?? 395mm |
| With Package Weight | Approx. 9.5 Kg (20.94 lb.) |
| Color | Black |
| Packing List | One machine and one power cord |
| Operating Temperature | -10~+40??C (??2), 20%~80% relative humidity |
| Installation | Cabinet installation |
