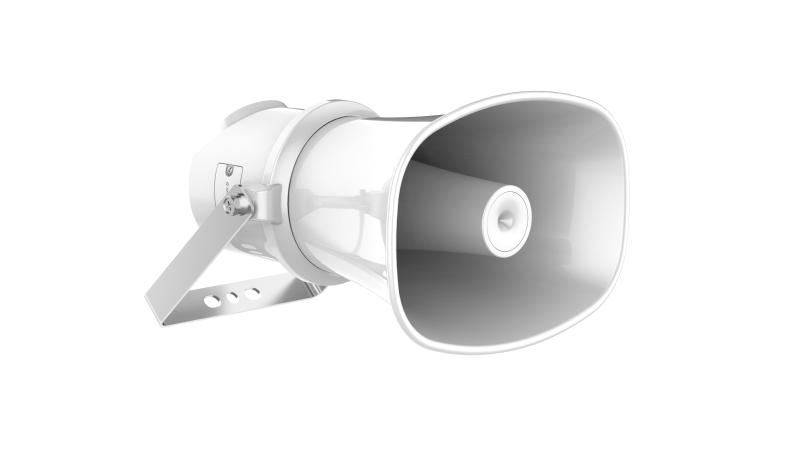

Hikvision DS-QAZ1325G1T 25 W Network Horn Speaker, Support alarm input, Support two-way audio by SIP
Model :
SKU : DS-QAZ1325G1T Speaker 25W
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Hikvision DS-QAZ1325G1T 25 W Network Horn Speaker, Support alarm input, Support two-way audio by SIP Specifications
| Type | electret |
| Amount | 2 |
| Frequency Response | 100 Hz to 20 kHz |
| Sensitivity | -42 dBV/Pa |
| Sampling Rate | 48 kHz |
| Quantization Bits | 16 bit |
Speaker Specifications
| Rated Power | 25 W |
| Impedance | 8 ?? |
| Max. Acoustic Pressure | 124 dBSPL |
| Sensitivity (1 m, 1 W) | 110 dB |
| Direction | 70?? horizontal by 100?? vertical |
| Frequency Response | 300 Hz to 8 kHz |
| SNR | 83 dB |
Function
| Audio Algorithm | AEC, AGC, ANS, DRC |
| Audio Bit Rate | G.711ulaw (64 Kbps), G.711alaw (64 Kbps), MP3 (128 Kbps) |
| Sampling Bit Width | 16 bits |
| Audio File Format | MP3, WAV |
| NTP Timing | Support |
| Broadcast | Regular broadcast, live broadcast, emergency broadcast |
| Two-Way Audio | Support |
| Speech Synthesis | Language Type: Chinese, English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil) |
Network
| Network Protocol | IPv4, HTTP, HTTPS, SIP, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH |
| Interface Protocol (API) | ISAPI, ISUP, SIP, RTP, ONVIF |
| Client | Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone |
| Communication Method | Support wired network communication |
Interface
| Alarm | Alarm input ??1 |
| Ethernet Interface | RJ45 10 M/100 M Adaptive Ethernet port ?? 1 |
| Power Output | 12 VDC, 25 mA (max.) |
| Local Storage | Built-in 4 GB EMMC (Audio file storage is 1 GB.) |
| API | ISAPI, ISUP, SIP, ONVIF |
| Reset | Support |
General
| Material | Metal |
| Operating Temperature | -30 ??C to 60 ??C (-22 ??F to 140 ??F) |
| Operating Humidity | <90% (No condensation) |
| Language | 9 languages: English, French, Spanish, German, Italian, Russian, Japanese, Thai, Portuguese (Brazil) |
| Dimension | 175 mm ?? 237 mm ?? 272 mm (6.9" ?? 9.3" ?? 10.7") |
| Power | 24 VDC, 1167 mA, 28 W |
| Package Dimension | 310 mm ?? 245 mm ?? 400 mm (12.2" ?? 9.6" ?? 15.6") |
| Weight | Approx. 2.1 kg (4.63 lb.) |
| Color | White |
| With Package Weight | Approx. 3.4 kg (7.50 lb.) |
| Packing List | Device ?? 1, Threading cap ?? 1, Regulatory Compliance and Safety Information ?? 1 |
Approval
| Protection | IP67 |
| EMC | CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 |
| RCM | AS/NZS CISPR 32: 2015 |
| IC | ICES-003: Issue 7 |
| Safety | CB: IEC 62368-1:2014, CE-LVD: EN 62368-1:2014/A11:2017 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
Specification
Hikvision DS-QAZ1325G1T 25 W Network Horn Speaker, Support alarm input, Support two-way audio by SIP Specifications
| Type | electret |
| Amount | 2 |
| Frequency Response | 100 Hz to 20 kHz |
| Sensitivity | -42 dBV/Pa |
| Sampling Rate | 48 kHz |
| Quantization Bits | 16 bit |
Speaker Specifications
| Rated Power | 25 W |
| Impedance | 8 ?? |
| Max. Acoustic Pressure | 124 dBSPL |
| Sensitivity (1 m, 1 W) | 110 dB |
| Direction | 70?? horizontal by 100?? vertical |
| Frequency Response | 300 Hz to 8 kHz |
| SNR | 83 dB |
Function
| Audio Algorithm | AEC, AGC, ANS, DRC |
| Audio Bit Rate | G.711ulaw (64 Kbps), G.711alaw (64 Kbps), MP3 (128 Kbps) |
| Sampling Bit Width | 16 bits |
| Audio File Format | MP3, WAV |
| NTP Timing | Support |
| Broadcast | Regular broadcast, live broadcast, emergency broadcast |
| Two-Way Audio | Support |
| Speech Synthesis | Language Type: Chinese, English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil) |
Network
| Network Protocol | IPv4, HTTP, HTTPS, SIP, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH |
| Interface Protocol (API) | ISAPI, ISUP, SIP, RTP, ONVIF |
| Client | Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone |
| Communication Method | Support wired network communication |
Interface
| Alarm | Alarm input ??1 |
| Ethernet Interface | RJ45 10 M/100 M Adaptive Ethernet port ?? 1 |
| Power Output | 12 VDC, 25 mA (max.) |
| Local Storage | Built-in 4 GB EMMC (Audio file storage is 1 GB.) |
| API | ISAPI, ISUP, SIP, ONVIF |
| Reset | Support |
General
| Material | Metal |
| Operating Temperature | -30 ??C to 60 ??C (-22 ??F to 140 ??F) |
| Operating Humidity | <90% (No condensation) |
| Language | 9 languages: English, French, Spanish, German, Italian, Russian, Japanese, Thai, Portuguese (Brazil) |
| Dimension | 175 mm ?? 237 mm ?? 272 mm (6.9" ?? 9.3" ?? 10.7") |
| Power | 24 VDC, 1167 mA, 28 W |
| Package Dimension | 310 mm ?? 245 mm ?? 400 mm (12.2" ?? 9.6" ?? 15.6") |
| Weight | Approx. 2.1 kg (4.63 lb.) |
| Color | White |
| With Package Weight | Approx. 3.4 kg (7.50 lb.) |
| Packing List | Device ?? 1, Threading cap ?? 1, Regulatory Compliance and Safety Information ?? 1 |
Approval
| Protection | IP67 |
| EMC | CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 |
| RCM | AS/NZS CISPR 32: 2015 |
| IC | ICES-003: Issue 7 |
| Safety | CB: IEC 62368-1:2014, CE-LVD: EN 62368-1:2014/A11:2017 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
