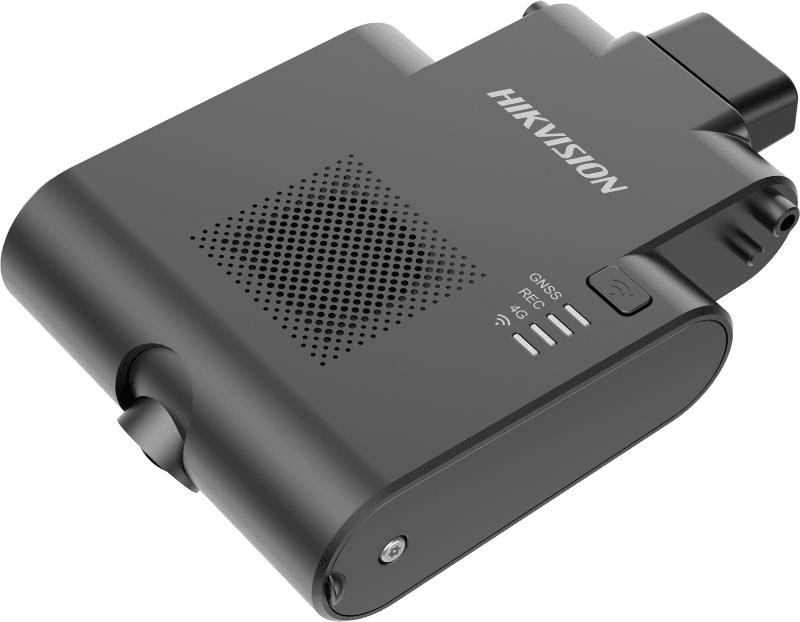

The Hikvision AE-DI2032-G40 (6942160416014) represents an essential layer of protection for your vehicle. Designed with Hikvision’s world-leading surveillance expertise, this dash camera provides more than just video; it provides peace of mind. Its low-profile design ensures it remains discreet behind your rearview mirror, maintaining an unobstructed view while recording every "ALPHA" second of your journey in high definition.
Key Features
1080P Full HD Video Clarity: Record your drive in sharp 1920 x 1080 resolution at 30fps. The high-quality CMOS sensor ensures that license plates and road signs are legible, providing the "ALPHA" tier evidence needed for insurance claims.
122° Ultra-Wide Field of View: The wide-angle lens covers a broad area of the road ahead, reducing blind spots and capturing peripheral events that standard cameras might miss.
Intelligent G-Sensor Technology: Built-in triaxial acceleration sensor automatically detects sudden impacts or emergency braking. It "locks" the current recording to prevent it from being overwritten by the loop-recording feature during a critical incident.
Superior Low-Light Performance: Equipped with an F2.0 aperture, the AE-DI2032-G40 excels during night driving in the UAE, utilizing advanced digital noise reduction to keep footage clear and usable.
Seamless Loop Recording: Automatically overwrites the oldest, unprotected footage when the SD card reaches capacity, ensuring continuous "ALPHA" monitoring without manual intervention.
Integrated Microphone & Speaker: Capture high-quality audio inside the cabin to provide additional context to road incidents. The built-in speaker provides audible status alerts for the camera’s operation.
High-Temperature Resilience: Built to withstand the intense heat of the Abu Dhabi sun, the camera's durable housing ensures stable operation even when the vehicle is parked in direct sunlight.
Why This Dash Cam Stands Out
The Hikvision AE-DI2032-G40 stands out by offering enterprise-level surveillance reliability in a consumer-friendly format. While generic dash cams often fail due to heat or SD card errors, the G40 series is built for mission-critical stability. It is a robust, high-performance tool that guarantees your "ALPHA" driving experience is documented with professional accuracy.
| Camera | |
| Image Sensor | 1/2.7'' Progressive Scan CMOS |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Min. Illumination | 0.01 Lux @ (AGC ON) |
| Lens | Fixed focal lens, 2.1mm |
| Aperture | F2.1 |
| Lens Mount | M12 |
| FOV | Horizontal FOV: 127 Vertical FOV: 73 Diagonal FOV: 137 |
| Video/Audio Input | |
| Audio Input | 1-channel audio |
| Video Input | 3-channel video (default: 1 channel; extension: 2 channels) |
| Encoding/Decoding Parameters | |
| Video Compression | H.265, H.264 |
| Audio Compression | G.711ulaw, G.711alaw, AAC |
| Video Main Stream | CH1: 25fps 1080P 1920 1080 (default) 25fps 720P 1280 720 CH2~CH3: 25fps 720P 1280 720 (default) |
| Video Sub-Stream | CH1: 25fps 720P 1280720 25fps 480P 640480 (default) CH2~CH3: 25fps 480P 640480 (default) |
| Audio | Built-In Mic: Omnidirectional pickup, frequency response 50-20000 Hz Built-In Speaker: Max 1.5 W, with adjustable volume, not less than 70 dB at 1 m distance |
| Wireless Network | |
| Wi-Fi Frequency | 2.4 GHz |
| Positioning | |
| SNR | 37.5 dB |
| Wide Dynamic Range | Supports WDR |
| Image Settings | Adjustable brightness, chroma, contrast, color saturation, and sharpness |
| OSD | Date, Time, GPS, Speed, etc. |
| Auxiliary Interface | |
| Alarm Input | 2 |
| SIM Card Slot | 1, Industry Micro SIM, Plug-in type |
| Power Interface | 1, 8-pin BM Male Terminal |
| Reset Key | 1, Pinhole button |
| RS-232 | 1 |
| Wireless Transmission | |
| Dial-Up | AE-DI2032-G40(B)(EN): Europe FDD-LTE: B1, B3, B5, B7, B8, B20 TDD-LTE: B38, B40, B41 UMTS: B1, B5, B8 GSM/GPRS/EDGE: 900/1800 MHz AE-DI2032-G40(B)(SA): Latin America : FDD-LTE: B1, B2, B3, B4, B5, B7, B8, B28, B66 TDD-LTE: B40 UMTS: B1, B2, B5, B8 GSM/GPRS/EDGE: 850/900/1800/1900 MHz Warning: The device requires industrial SIM card (MP2). The ordinary SIM card (MP1) is prohibited. We are not responsible for any problem caused by the use of any ordinary SIM card. |
| Wi-Fi Protocol | 802.11 b/g/n |
| Smart Function | |
| Driving Status Monitoring (DSM) | Distraction prompt detection, fatigue driving (eyes closed), seatbelt unbuckled detection etc. |
| Advanced Driving Assistance System (ADAS) | Forward Collision Warning (FCW) Pedestrian Collision Warning (PCW) |
| General | |
| System | Embedded Linux |
| Language | Currently only supports English *The language includes APP interface language and voice reminder. |
| Storage | Dual TF Card (up to 256GB for each) Class10 or above is recommended |
| Sensor | Six-axis G-Sensor *Harsh acceleration, Harsh deceleration and Harsh cornering |
| Image Format | JPEG |
| Indicator | Positioning Status Indicator (GNSS) Off: no positioning signal Steady blue: the positioning signal is normal Recording Status Indicator(REC) Off: The built-in or extended camera stops / fails Steady blue: The built-in or extended camera is recording normally Network Status Indicator (4G) Off: No 4G signal Steady blue: 4G signal and the platform connection normal Flashing blue: 4G signal normal but no platform connection Wi-Fi Status Indicator Off: Wi-Fi AP closed Steady blue: Wi-Fi AP open and APP connection normal Flashing blue: Wi-Fi AP open but no APP connection |
| Protection Level | IP4X *The dashcam is not waterproof |
| Power Supply | DC 10V~16V/20V~36V ( P12W ) |
| Product Dimension | 123.0 mm85.0 mm38.9 mm (4.8"3.4"1.5") |
| With Package Dimension | 223 mm153 mm63 mm (8.8"6.0"2.5") |
| Operating Temperature | -20C to 60C (-4F to 140F) |
| Operating Humidity | 10% to 95% (non-condensing) |
| Net Weight | Approx. 270 g (0.6 lb.) |
| With Package Weight | Approx. 900 g (2.0 lb.) |
