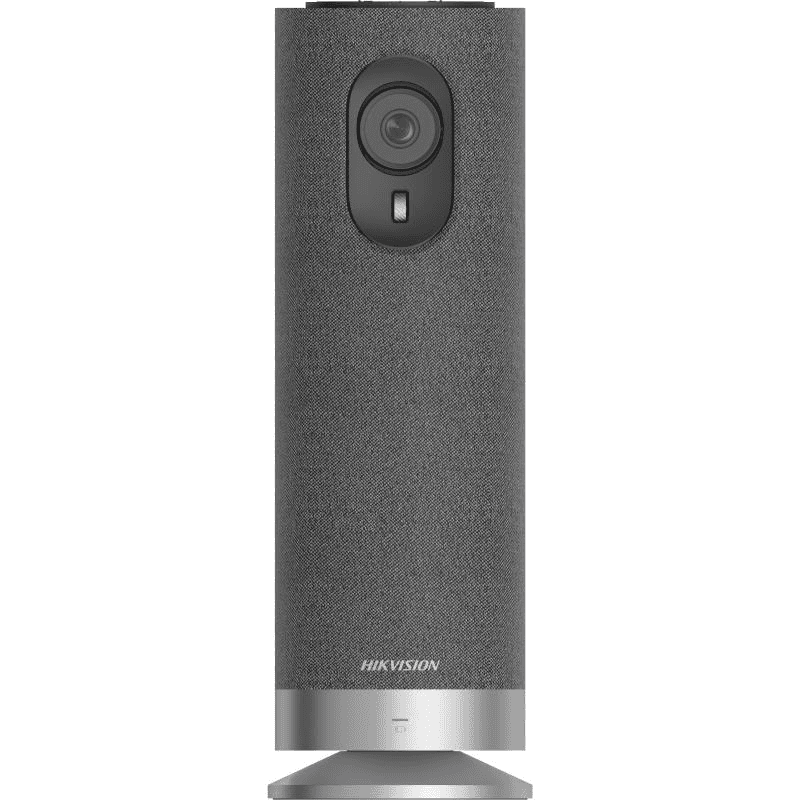

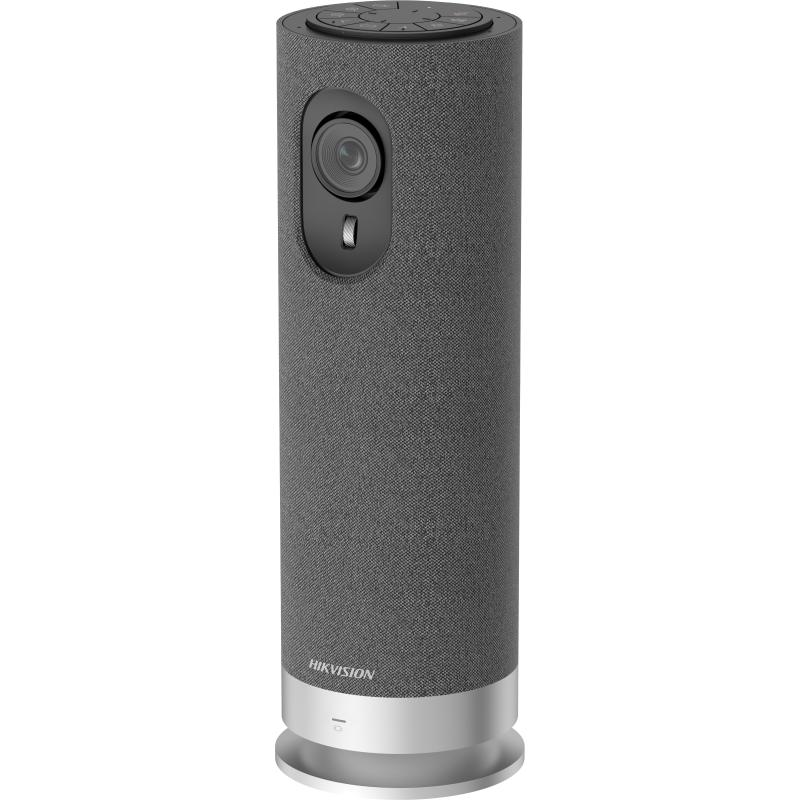

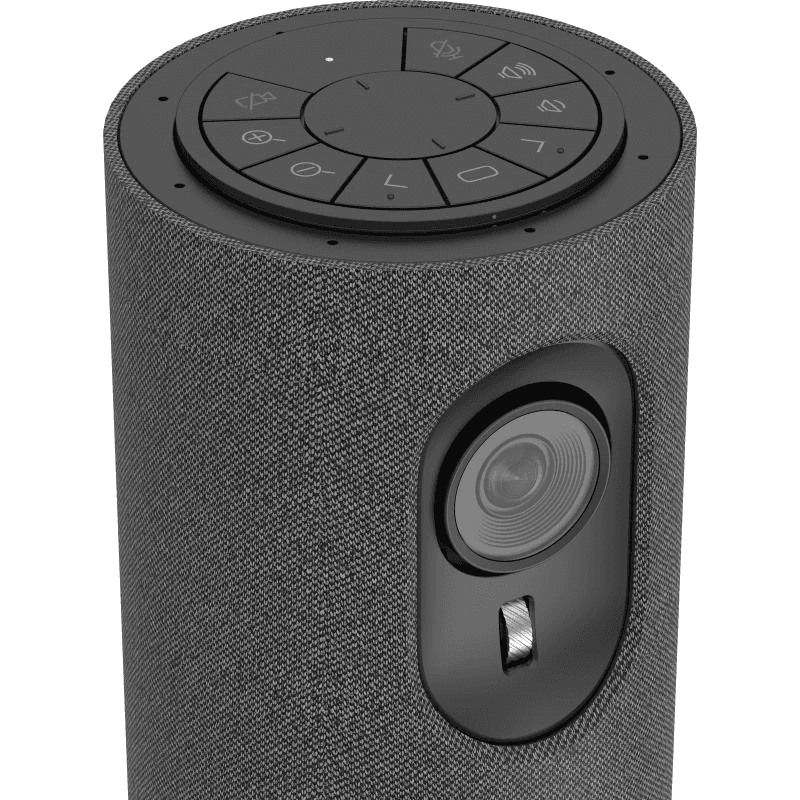

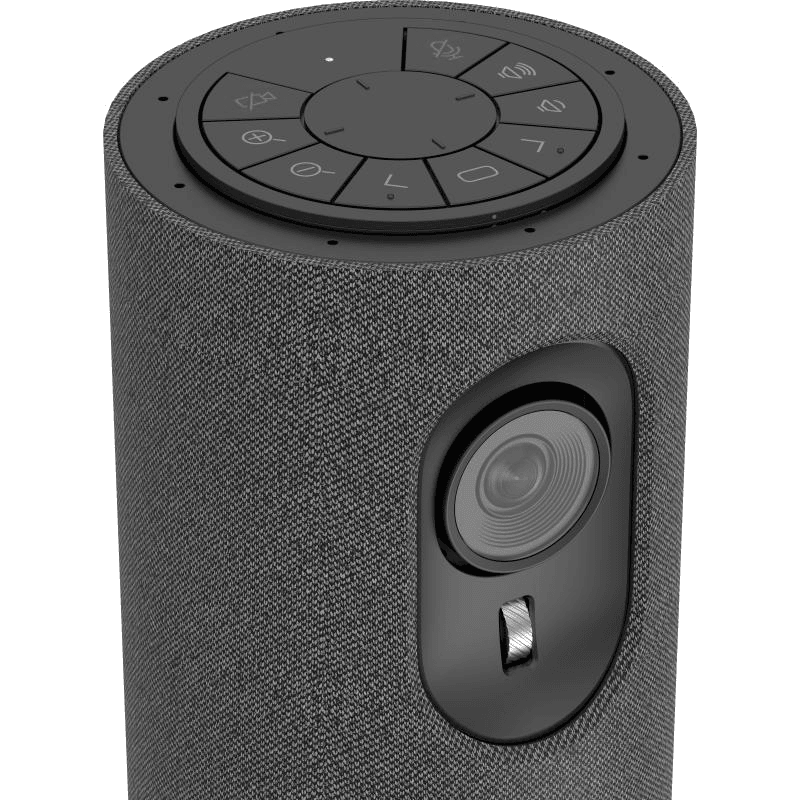

Hikvision UVC-X12 Portable Conference Camera, 2MP (WDR) CMOS, 1920??1080 Resolution, Built-In 4-Micl, USB Type-C interface, 2450 mAh Battery Capacity, Gray | DS-UVC-X12
Model :
SKU : DS-UVC-X12 PORTABLE CONFE
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Hikvision DS-UVC-X12 Portable Conference Camera, High quality imaging with 1920 x 1080 resolution, 120?? Wide Angle, Adopts 4-mic array, Supports 8 meters sound amplification with the built-in HD speaker, Smart Noise Reduction, Echo Suppression, USB 3.0
| Image Sensor | 1/2.7" 2 MP CMOS |
| Max. Resolution | 1920 (H)??1080 (V) |
| Min. Illumination | 0.1 Lux @ (F2.2, AGC ON) |
| Shutter Time | PAL: 1/25 s to 1/50,000 s, NTSC: 1/30 s to 1/50,000 s |
| Angle Adjustment | Tilt: -10?? to 10?? |
| Zoom | 2 ?? |
| Lens Type | 2.8 mm fixed focal lens |
| Focal Length & FOV | horizontal FOV 110??, vertical FOV 75??, diagonal FOV 120?? |
| Object Distance Range | 0.3 m to ??? |
| Microphone | Amount: 4 Polar Pattern: 360?? Omni-directional Pickup Distance: In a radius of up to 5 m Sensitivity: -38 dBV/Pa SNR: 66 dB(A) Frequency Response: 100 Hz to 8 kHz Type: MEMS |
| 3A Algorithm | AEC, ANS, AGC Sampling Rate: 16 kHz |
| Speaker | Rated Power: 5 W Speaker Range: In the radius up to 8 m Total Harmonic Distortion (THD): <3%@1 kHz Maximum Output Loudness: 87 dBSPL@1 m, 1 kHz Effective Bandwidth (-10 DB): 170 Hz to 20 kHz |
| Functions |
Image Function: Auto/Manual/Fixed White Balance, Backlight Compensation, Left/Right Flip / Up/Down Flip/Center Mirror Audio Function: Supports smart noise reduction, echo suppression, anti-reverberation, squeal suppression to enhance speech quality and offer audio in high quality LED Indicator: Solid Red: Mute; Solid White: Working Normally; No Light: Standby Power Indicator: Solid red: low power (???15%); Solid orange: medium power (15%???x???30%); Solid white: enough power (30%???x???100%) |
| Communication | Communication Method: USB cable Wired Communication Distance: 2 m |
| Battery | Capacity: 7.2 V/2450 mAh Charging Temperature: 0 ??? to 45 ??? (32 ??F to 113 ??F) Discharging Temperature: -20 ??? to 60 ??? (-4 ??F to 140 ??F) Storage Temperature: 0 ??C to 35 ??C (32 ??F to 95 ??F) for one year |
| Image |
Frame Rate: MJPG: 1920 ?? 1080@30 fps/25 fps, 1280 ?? 960@30 fps/25 fps, 1280 ?? 720@30 fps/25 fps, 640 ?? 480@30 fps/25 fps, 640 ?? 360@30 fps/25 fps;
YUV2: 1920 ?? 1080@5 fps, 1280 ?? 960@5 fps, 1280 ?? 720@10 fps, 640 ?? 480@30 fps/25 fps, 640 ?? 360@30 fps/25 fps;
H264: 1920 ?? 1080@30 fps/25 fps, 1280 ?? 960@30 fps/25 fps, 1280 ?? 720@30 fps/25 fps, 640 ?? 480@30 fps/25 fps, 640 ?? 360@30 fps/25 fps Wide Dynamic Range (WDR): ???120 dB |
| Interface | Cable in package: Type C to Type A interface Device Interface: USB Type C interface |
| Compatibility |
System Requirement: Recommended systems - Windows 7/8/10/11 - Android 8.1 and above version - Linux 4.14 and above version - macOS 10.12 and above version - Chrome OS |
| General |
Operating Condition: -10 ??C to 45 ??C (14 ??F to 113 ??F). Humidity 90% or less (non-condensing) Material: Main body: Plastic with cloth; Base: Metal Packing List: Camera ?? 1; Privacy Shutter ?? 1; Remote Control (with battery) ?? 1; USB 3.0 cable (2 m) ?? 1; User Manual Card ?? 1 |
| Power | 5 VDC ?? 5% (USB cable), max. 4.5 W |
| Dimension | ??91.7 mm ?? 271.3 mm (??3.61" ?? 10.68") |
| Package Dimension | 337 mm ?? 150 mm ?? 156 mm (13.27" ?? 5.91" ?? 6.14") |
| Weight | Approx. 930 g (2.05 lb.) |
| With Package Weight | Approx. 1465 g (3.23 lb.) |
| Color | Silver gray |
Specification
Hikvision DS-UVC-X12 Portable Conference Camera, High quality imaging with 1920 x 1080 resolution, 120?? Wide Angle, Adopts 4-mic array, Supports 8 meters sound amplification with the built-in HD speaker, Smart Noise Reduction, Echo Suppression, USB 3.0
| Image Sensor | 1/2.7" 2 MP CMOS |
| Max. Resolution | 1920 (H)??1080 (V) |
| Min. Illumination | 0.1 Lux @ (F2.2, AGC ON) |
| Shutter Time | PAL: 1/25 s to 1/50,000 s, NTSC: 1/30 s to 1/50,000 s |
| Angle Adjustment | Tilt: -10?? to 10?? |
| Zoom | 2 ?? |
| Lens Type | 2.8 mm fixed focal lens |
| Focal Length & FOV | horizontal FOV 110??, vertical FOV 75??, diagonal FOV 120?? |
| Object Distance Range | 0.3 m to ??? |
| Microphone | Amount: 4 Polar Pattern: 360?? Omni-directional Pickup Distance: In a radius of up to 5 m Sensitivity: -38 dBV/Pa SNR: 66 dB(A) Frequency Response: 100 Hz to 8 kHz Type: MEMS |
| 3A Algorithm | AEC, ANS, AGC Sampling Rate: 16 kHz |
| Speaker | Rated Power: 5 W Speaker Range: In the radius up to 8 m Total Harmonic Distortion (THD): <3%@1 kHz Maximum Output Loudness: 87 dBSPL@1 m, 1 kHz Effective Bandwidth (-10 DB): 170 Hz to 20 kHz |
| Functions |
Image Function: Auto/Manual/Fixed White Balance, Backlight Compensation, Left/Right Flip / Up/Down Flip/Center Mirror Audio Function: Supports smart noise reduction, echo suppression, anti-reverberation, squeal suppression to enhance speech quality and offer audio in high quality LED Indicator: Solid Red: Mute; Solid White: Working Normally; No Light: Standby Power Indicator: Solid red: low power (???15%); Solid orange: medium power (15%???x???30%); Solid white: enough power (30%???x???100%) |
| Communication | Communication Method: USB cable Wired Communication Distance: 2 m |
| Battery | Capacity: 7.2 V/2450 mAh Charging Temperature: 0 ??? to 45 ??? (32 ??F to 113 ??F) Discharging Temperature: -20 ??? to 60 ??? (-4 ??F to 140 ??F) Storage Temperature: 0 ??C to 35 ??C (32 ??F to 95 ??F) for one year |
| Image |
Frame Rate: MJPG: 1920 ?? 1080@30 fps/25 fps, 1280 ?? 960@30 fps/25 fps, 1280 ?? 720@30 fps/25 fps, 640 ?? 480@30 fps/25 fps, 640 ?? 360@30 fps/25 fps;
YUV2: 1920 ?? 1080@5 fps, 1280 ?? 960@5 fps, 1280 ?? 720@10 fps, 640 ?? 480@30 fps/25 fps, 640 ?? 360@30 fps/25 fps;
H264: 1920 ?? 1080@30 fps/25 fps, 1280 ?? 960@30 fps/25 fps, 1280 ?? 720@30 fps/25 fps, 640 ?? 480@30 fps/25 fps, 640 ?? 360@30 fps/25 fps Wide Dynamic Range (WDR): ???120 dB |
| Interface | Cable in package: Type C to Type A interface Device Interface: USB Type C interface |
| Compatibility |
System Requirement: Recommended systems - Windows 7/8/10/11 - Android 8.1 and above version - Linux 4.14 and above version - macOS 10.12 and above version - Chrome OS |
| General |
Operating Condition: -10 ??C to 45 ??C (14 ??F to 113 ??F). Humidity 90% or less (non-condensing) Material: Main body: Plastic with cloth; Base: Metal Packing List: Camera ?? 1; Privacy Shutter ?? 1; Remote Control (with battery) ?? 1; USB 3.0 cable (2 m) ?? 1; User Manual Card ?? 1 |
| Power | 5 VDC ?? 5% (USB cable), max. 4.5 W |
| Dimension | ??91.7 mm ?? 271.3 mm (??3.61" ?? 10.68") |
| Package Dimension | 337 mm ?? 150 mm ?? 156 mm (13.27" ?? 5.91" ?? 6.14") |
| Weight | Approx. 930 g (2.05 lb.) |
| With Package Weight | Approx. 1465 g (3.23 lb.) |
| Color | Silver gray |
