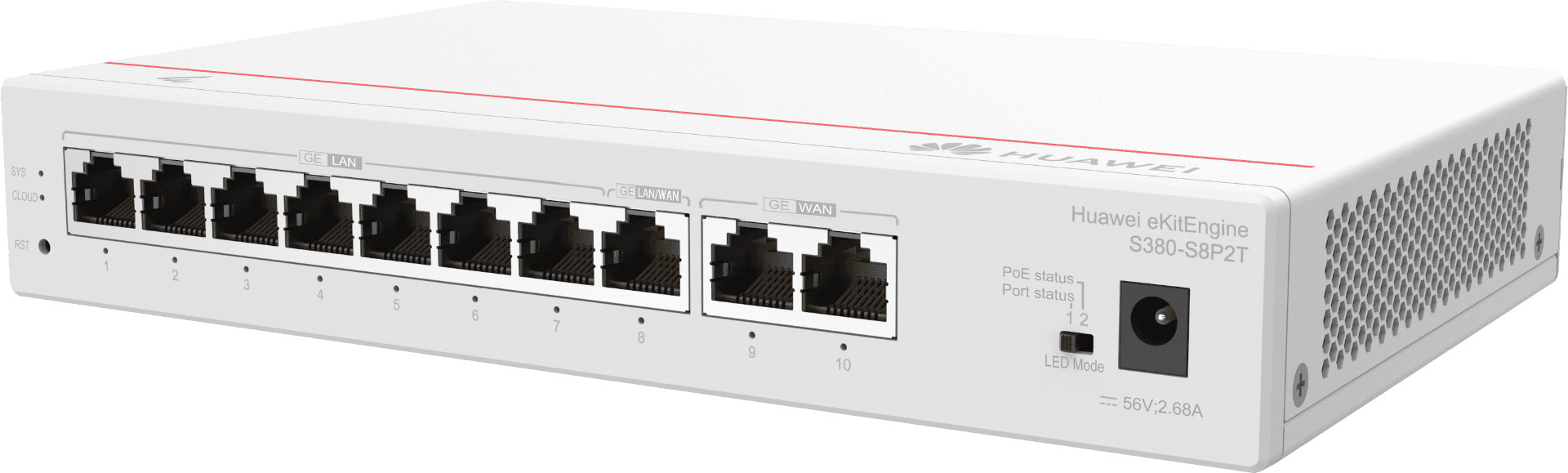

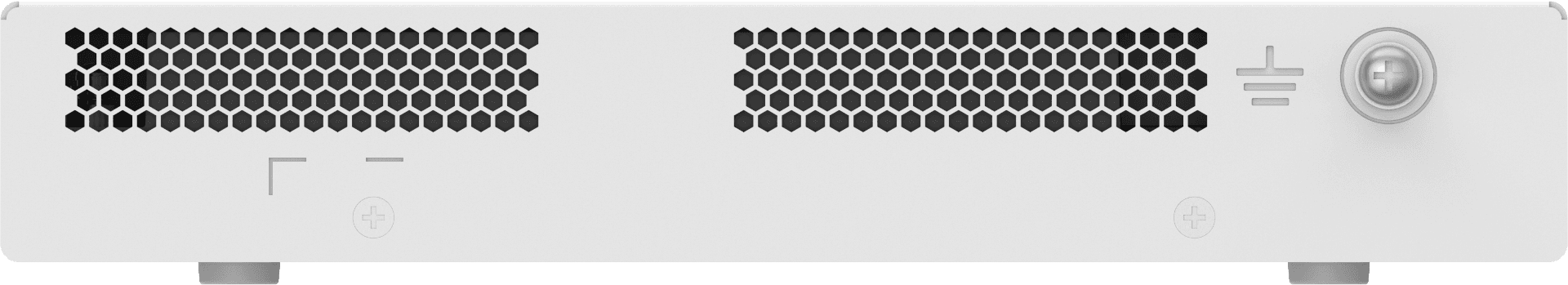

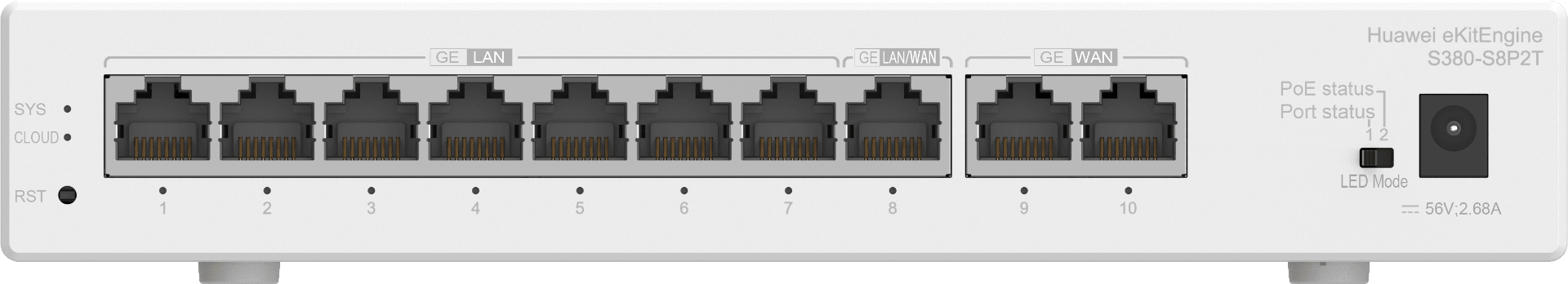

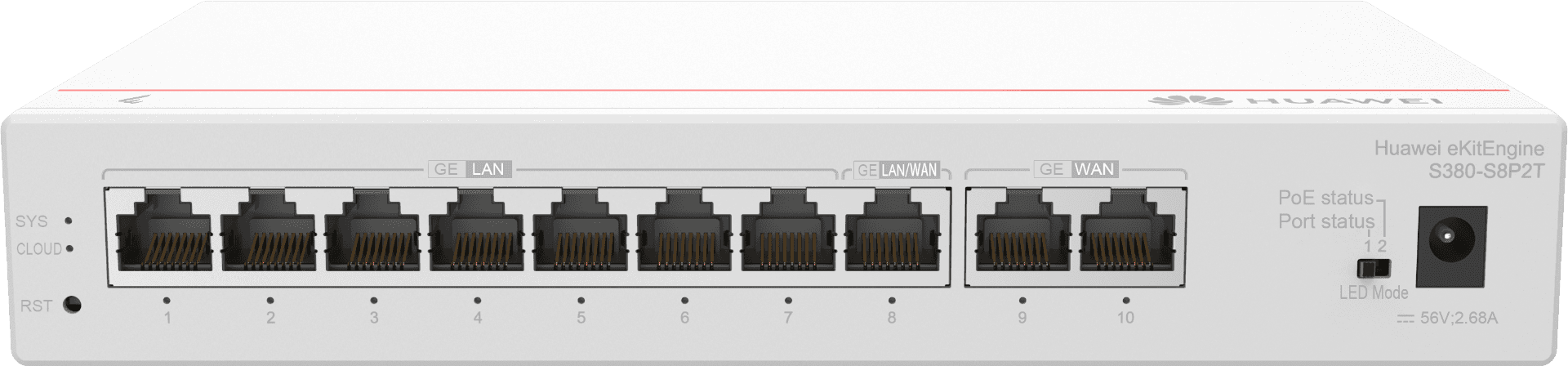

Huawei eKitEngine Gateway S380-S8P2T, 2*GE WAN, 8*GE LAN(PoE+, 124W)
Model :
SKU : S380-S8P2T-b2b
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Huawei S1024-PR Ethernet Switch Specifications
| Dimensions without packaging (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.) |
| Dimensions with packaging (H x W x D) | 150.0 mm x 275.0 mm x 200.0 mm (5.91 in. x 10.83 in. x 7.87 in.) |
| Chassis Height | 0.8U |
| Installation Type | Desk mounting, Wall mounting |
| Weight without packaging | 1.5 kg (3.31 lb) |
| Weight with packaging | 1.8 kg (3.97 lb) |
| Typical Power Consumption | 12.4 W |
| Maximum Power Consumption | 145.8 W (PoE: 124 W) |
| Static Power Consumption | 7.53 W |
| 100% Power Consumption | 12.52 W |
| Maximum Number of Physical Ports | 10 |
| Operating Temperature | 0??C to 40??C (32??F to 104??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Operating Temperature Variation Rate | At an altitude of 1800-5000 m (5906-16404 ft.), the highest operating temperature decreases by 1??C (1.8??F) for every 220 m (722 ft.) increase in altitude. |
| Storage Temperature | ???40??C to +70??C (???40??F to +158??F) |
| Operating Relative Humidity | 5% RH to 95% RH (non-condensing) |
| Operating Altitude | 0???5000 m (0???16404 ft.) |
| Storage Altitude | 0???5000 m (0???16404 ft.) |

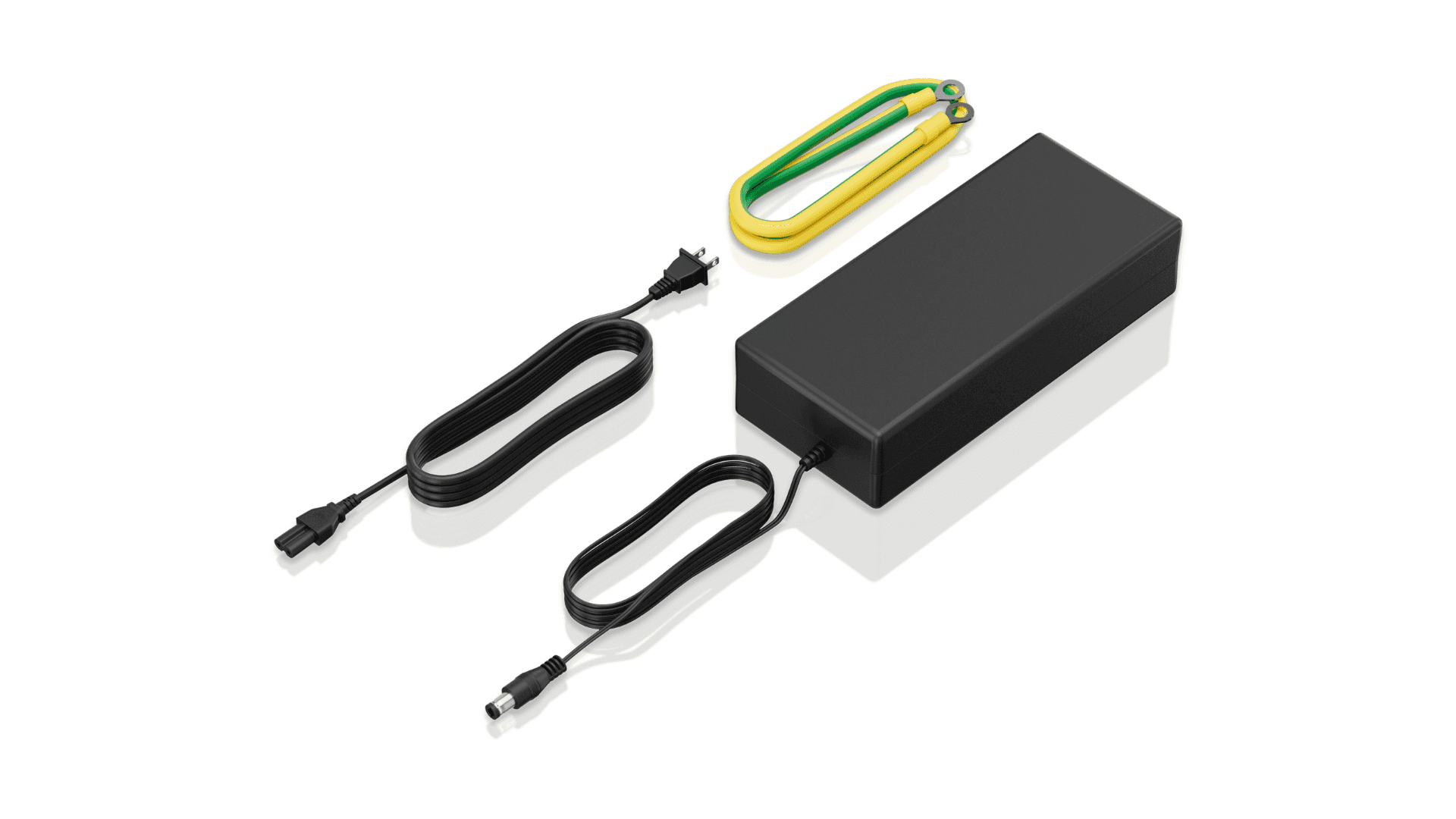

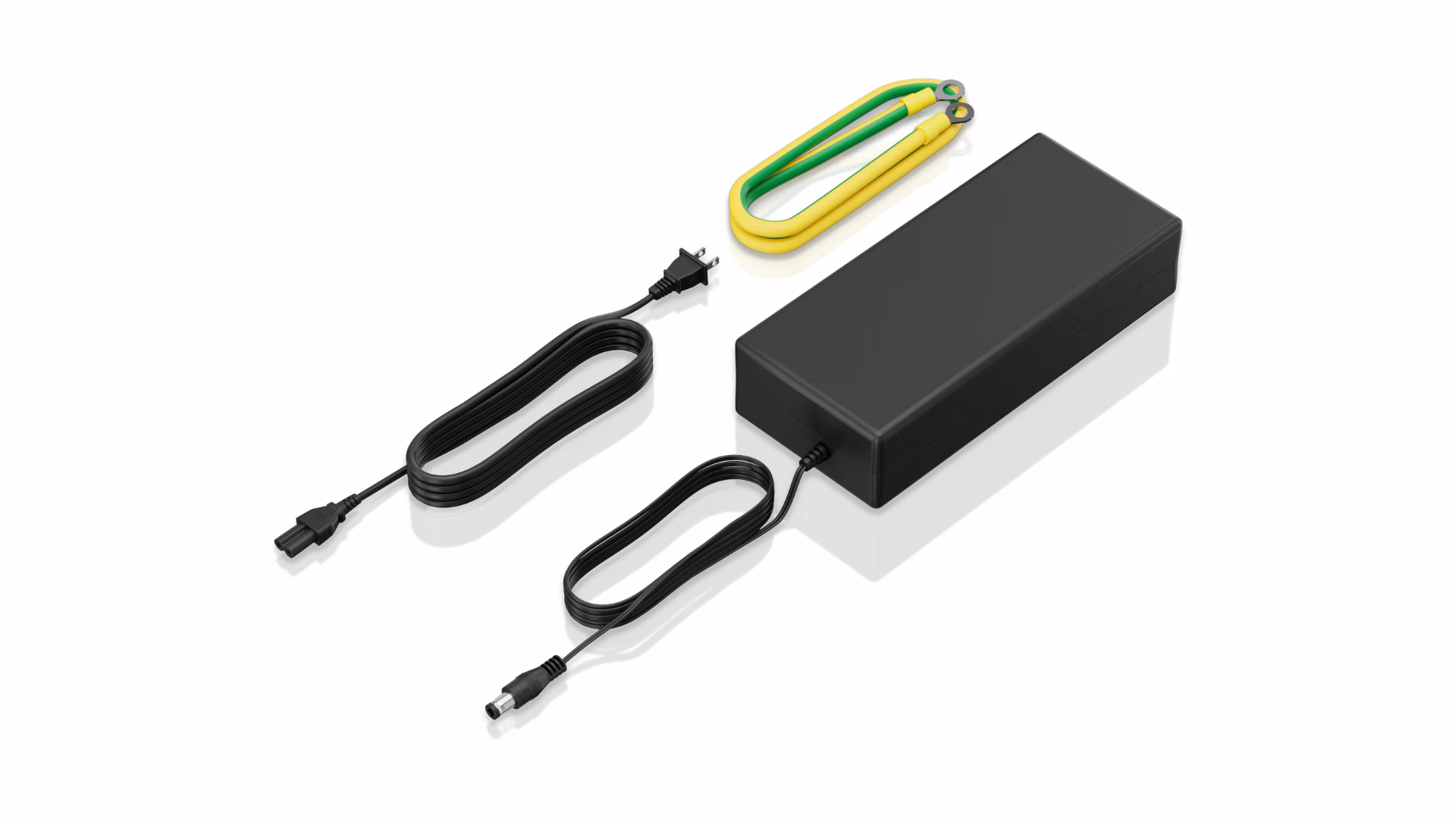

| Power Supply Mode | Power Adapter |
| Rated Input Voltage | Power adapter input: 100???240 V AC; 50/60 Hz Power adapter output: 56 V DC |
| Input Voltage Range | Power adapter input: 90???290 V AC; 47???63 Hz |
| Maximum Input Current | 2.68 A |
| Ethernet Management Port | LAN port |
| Service Port Surge Protection | Common mode: ??4 kV |
| Power Supply Surge Protection | Power adapter: ??6 kV in differential mode and ??6 kV in common mode |
| Ingress Protection Level | IP20 (dustproof/waterproof) |
| Heat Dissipation Mode | Natural heat dissipation |
| PoE | Supported |
| Maximum PoE Power Consumption | 124 W |
| PoE+ Power Interfaces | 8 |
| Full Load PoE Power Consumption (15.4W, 802.3af) | 8 |
| Full Load PoE Power Consumption (30W, 802.3at) | 4 |
| Certification | EMC certification, Safety certification, Manufacturing certification |
Specification
Huawei S1024-PR Ethernet Switch Specifications
| Dimensions without packaging (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.) |
| Dimensions with packaging (H x W x D) | 150.0 mm x 275.0 mm x 200.0 mm (5.91 in. x 10.83 in. x 7.87 in.) |
| Chassis Height | 0.8U |
| Installation Type | Desk mounting, Wall mounting |
| Weight without packaging | 1.5 kg (3.31 lb) |
| Weight with packaging | 1.8 kg (3.97 lb) |
| Typical Power Consumption | 12.4 W |
| Maximum Power Consumption | 145.8 W (PoE: 124 W) |
| Static Power Consumption | 7.53 W |
| 100% Power Consumption | 12.52 W |
| Maximum Number of Physical Ports | 10 |
| Operating Temperature | 0??C to 40??C (32??F to 104??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Operating Temperature Variation Rate | At an altitude of 1800-5000 m (5906-16404 ft.), the highest operating temperature decreases by 1??C (1.8??F) for every 220 m (722 ft.) increase in altitude. |
| Storage Temperature | ???40??C to +70??C (???40??F to +158??F) |
| Operating Relative Humidity | 5% RH to 95% RH (non-condensing) |
| Operating Altitude | 0???5000 m (0???16404 ft.) |
| Storage Altitude | 0???5000 m (0???16404 ft.) |
| Power Supply Mode | Power Adapter |
| Rated Input Voltage | Power adapter input: 100???240 V AC; 50/60 Hz Power adapter output: 56 V DC |
| Input Voltage Range | Power adapter input: 90???290 V AC; 47???63 Hz |
| Maximum Input Current | 2.68 A |
| Ethernet Management Port | LAN port |
| Service Port Surge Protection | Common mode: ??4 kV |
| Power Supply Surge Protection | Power adapter: ??6 kV in differential mode and ??6 kV in common mode |
| Ingress Protection Level | IP20 (dustproof/waterproof) |
| Heat Dissipation Mode | Natural heat dissipation |
| PoE | Supported |
| Maximum PoE Power Consumption | 124 W |
| PoE+ Power Interfaces | 8 |
| Full Load PoE Power Consumption (15.4W, 802.3af) | 8 |
| Full Load PoE Power Consumption (30W, 802.3at) | 4 |
| Certification | EMC certification, Safety certification, Manufacturing certification |
