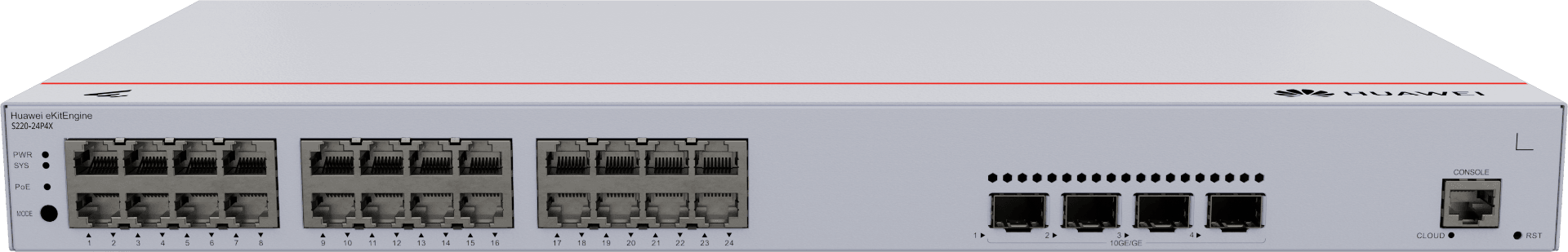

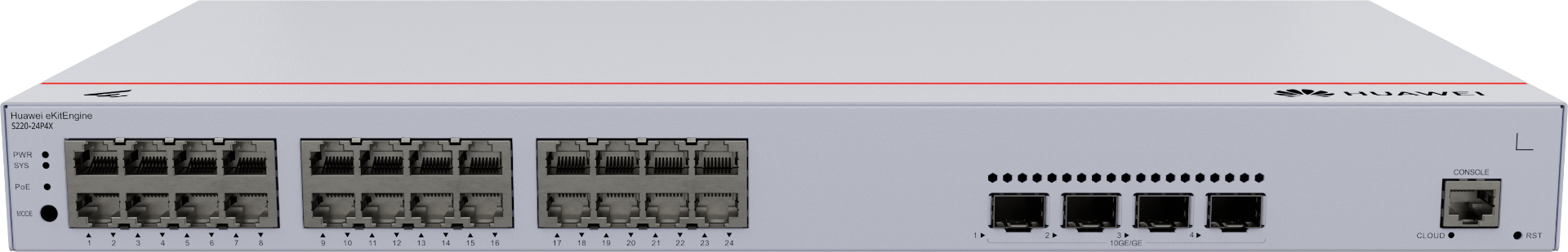

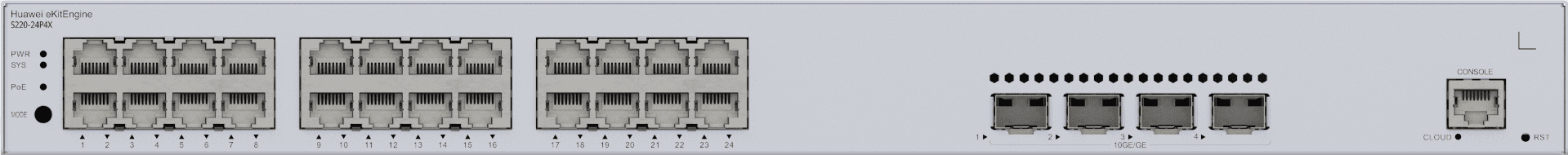

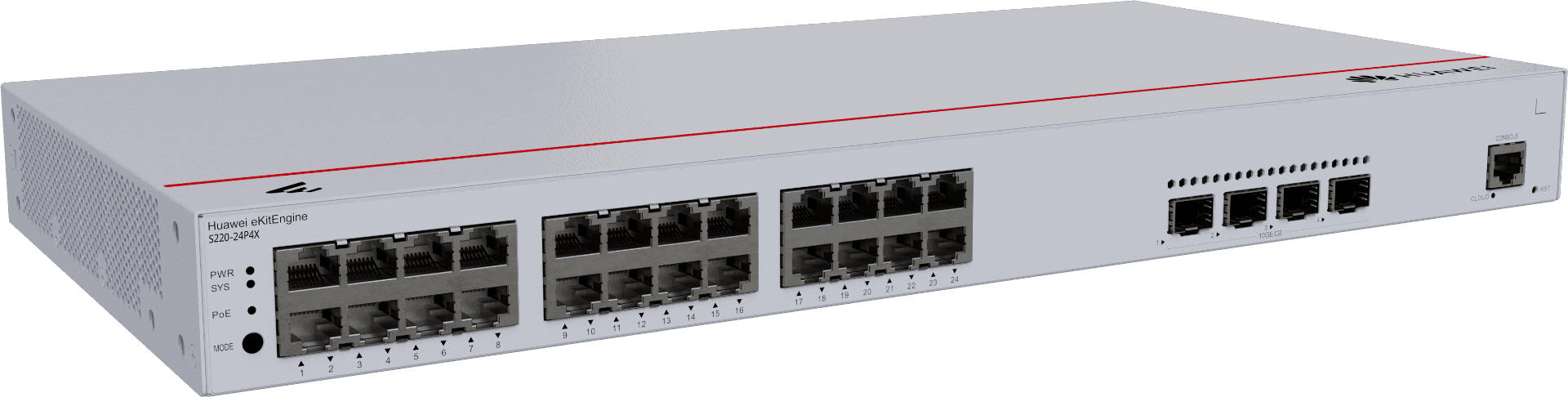

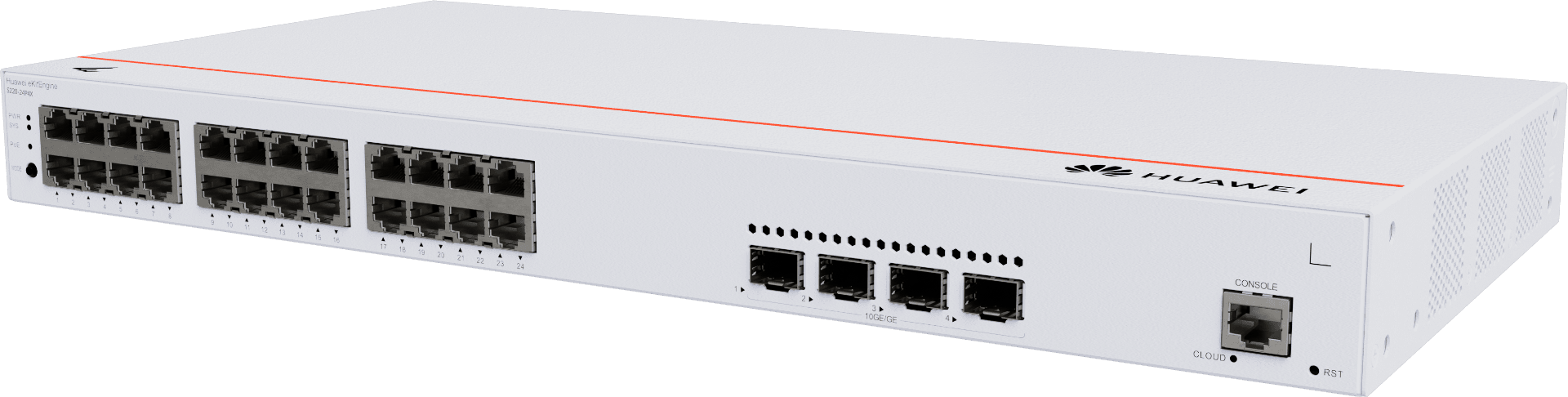

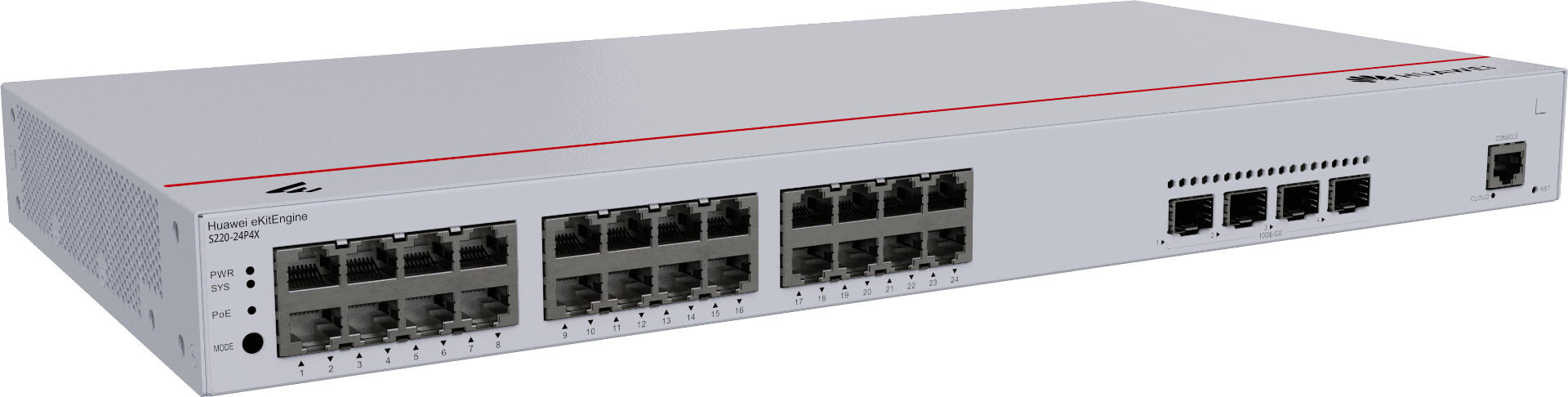

Huawei S220-24P4X Switches, 24 x 10/100/1000BASE-T Ports, 4 x 10GE SFP+ Ports, 400W PoE+, Built In AC Power, 95Mpps Packet Forwarding Rate, 128Gbit/s Switching Capacity | 98012376
Model :
SKU : S220-24P4X-b2b
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Here is the updated HTML table based on the provided specifications: ```html
Product Specifications
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 |
| Installation type | Rack mounting, Desk mounting, Wall mounting |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 2.92 (6.44) |
| Weight with packaging [kg(lb)] | 3.79 (8.36) |
| Typical power consumption [W] | 37.12 |
| Maximum power consumption [W] | - Without PoE: 44.35 W - Full PoE load: 485.91 W (PoE: 400 W) |
| Static power consumption [W] | 27.07 |
| 100% power consumption [W] | 37.12 |
| Number of fan modules | 2 |
| Maximum number of physical ports on the entire device | 28 |
| Maximum number of 10GE ports | 4 |
| Maximum number of GE ports | 28 |
| Maximum number of FE ports | 24 |
| Uplink ports | 4 x 10GE SFP+ ports |
| Downlink ports | 24 x 10/100/1000BASE-T ports (400 W, PoE+) |
| Long-term operating temperature [??C(??F)] | -5??C to +50??C (23??F to 122??F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on the operating temperature variation rate [??C(??F)] | When the altitude is 1800???5000 m (5906???16404 ft.), the highest operating temperature reduces by 1??C (1.8??F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0??C (32??F). |
| Storage temperature [??C(??F)] | ???40??C to +70??C (???40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0???5000 m (0???16404 ft.) |
| Storage altitude [m(ft.)] | 0???5000 m (0???16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | - AC input: 100 V AC to 240 V AC, 50/60 Hz - High-voltage DC input: 240 V DC |
| Input voltage range [V] | - AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz - High-voltage DC input: 190 V DC to 290 V DC |
| Maximum input current [A] | 6 A |
| Console port | RJ45 |
| Service port surge protection [kV] | Common mode: ??7 kV |
| Power supply surge protection [kV] | Differential mode: ??6 kV; common mode: ??6 kV |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Supported |
| Maximum PoE power consumption [W] | 400 |
| PoE+ power interfaces | 24 |
| Full load PoE power consumption 15.4W (802.3af) | 24 |
| Full load PoE power consumption 30W (802.3at) | 13 |
| Certification | EMC certification, Safety certification, Manufacturing certification |
```
