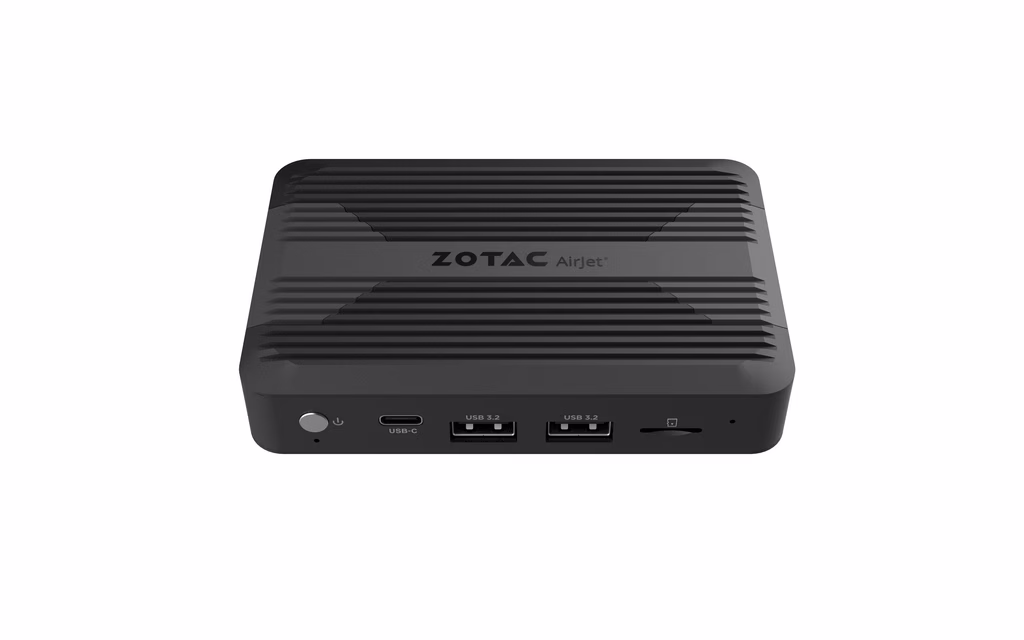

Intel Core i3-N300 processor (8-core, 0.8 GHz, up to 3.8 GHz), 8GB LPDDR5 onboard memory, 512GB M.2 NVMe SSD Pre-installed, Window 11 Home Edition

PRODUCT SPECIFICATIONS

Expand All

Computing System

• Processor

  Intel Core i3-N300 processor (8-core, 0.8 GHz, up to 3.8 GHz)

• Chipset

  Intel

• System Memory

  8GB LPDDR5 onboard memory

Graphics

• Graphics Engine

  Intel UHD Graphics (Integrated)

• Video Output

  HDMI 2.0 (up to 3840x2160@60Hz)
  DisplayPort 1.4 (up to 4096x2160@60Hz)
  DP1.4 via USB-C (3840x2160 @ 60Hz)
  Triple Display Ready

Storage

• Hard Drive

  N/A

• Storage

  N/A

• Optical Drive

  N/A

• mSATA

  N/A

• M.2

  512GB M.2 NVMe SSD Pre-installed

• Card Reader

  Micro SDHC/SDXC

I/O Ports

• Audio

  1 x Headphone/microphone combo jack

• USB Port

  3 x USB 3.2 (1 Type-C)

• LAN

  10/100/1000 Ethernet

• Antenna

  Internal

• Wifi

  WiFi 6

• Bluetooth

  Bluetooth 5.2

• Legacy I/O

  N/A

• CIR Infrared Port

  N/A

• Thunderbolt

  N/A

• IDE

  N/A

Mechanical

• Kensington Lock

  N/A

• LED Indicators

  N/A

• Power Supply

  AC Adapter
  O/P: DC 5V/5A

• Cooling system

  Solid State Active Cooling

• ZBOX Dimensions

  114.8mm x 76mm x 23.8mm (4.52in x 2.99in x 0.94in)

• Case Mounting

  Mounting Bracket

Miscellaneous

• Supported OS

  Windows 11 Home pre-installed (Home N for Europe regions)

• Accessories

  Universal Power Adapter with Multiple Plugs
  Mounting bracket
  2 x Mount screws
  CTIA / OMTP adapter
  Warranty Card
  Quick Install Guide
  USB drive with O/S Recovery

Available SKU

• Available SKU

  ZBOX-PI430AJ-GLB-W4B
  ZBOX-PI430AJ-BE-W5B
