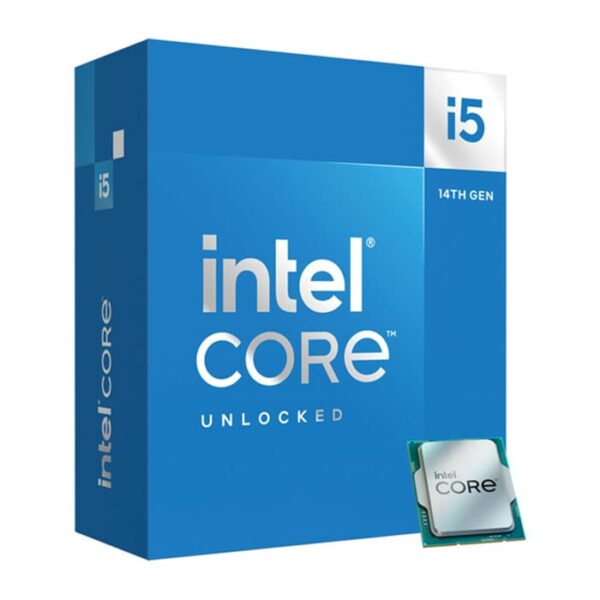

Intel Core i5-14600K Processor 24M Cache, up to 5.3 GHz, 14-Cores 20-Threads | BX8071514600K
Model :
SKU : PRC-INTEL CORE I5-14600K
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Essentials
Product Collection
Code Name
Vertical Segment
Desktop
Processor Number
i5-14600K
Lithography
Intel 7
Use Conditions
PC/Client/Tablet, Workstation
CPU Specifications
Total Cores
14
# of Performance-cores
6
# of Efficient-cores
8
Total Threads
20
Max Turbo Frequency
5.3 GHz
Performance-core Max Turbo Frequency
5.3 GHz
Efficient-core Max Turbo Frequency
4 GHz
Performance-core Base Frequency
3.5 GHz
Efficient-core Base Frequency
2.6 GHz
Cache
24 MB Intel?? Smart Cache
Total L2 Cache
20 MB
Processor Base Power
125 W
Maximum Turbo Power
181 W
Supplemental Information
Marketing Status
Launched
Launch Date
Q4'23
Embedded Options Available
No
Memory Specifications
Max Memory Size (dependent on memory type)
192 GB
Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels
2
Max Memory Bandwidth
89.6 GB/s
ECC Memory Supported ???
Yes
GPU Specifications
Processor Graphics ???
Intel?? UHD Graphics 770
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.55 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
32
Max Resolution (HDMI)???
4096 x 2160 @ 60Hz
Max Resolution (DP)???
7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)???
5120 x 3200 @ 120Hz
DirectX* Support
12
OpenGL* Support
4.5
OpenCL* Support
3.0
Multi-Format Codec Engines
2
Intel?? Quick Sync Video
Yes
Intel?? Clear Video HD Technology
Yes
# of Displays Supported ???
4
Device ID
0xA780
Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max # of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations ???
Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020A
TJUNCTION
100??C
Package Size
45.0 mm x 37.5 mm
Advanced Technologies
Intel?? Gaussian & Neural Accelerator
3.0
Intel?? Thread Director
Yes
Intel?? Deep Learning Boost (Intel?? DL Boost) on CPU
Yes
Intel?? Speed Shift Technology
Yes
Intel?? Turbo Boost Technology ???
2.0
Intel?? Hyper-Threading Technology ???
Yes
Intel?? 64 ???
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel?? SSE4.1, Intel?? SSE4.2, Intel?? AVX2
Idle States
Yes
Enhanced Intel SpeedStep?? Technology
Yes
Thermal Monitoring Technologies
Yes
Intel?? Volume Management Device (VMD)
Yes
Security & Reliability
Intel?? Standard Manageability (ISM) ???
Yes
Intel?? Control-Flow Enforcement Technology
Yes
Intel?? AES New Instructions
Yes
Secure Key
Yes
Intel?? OS Guard
Yes
Execute Disable Bit ???
Yes
Intel?? Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel?? Virtualization Technology (VT-x) ???
Yes
Intel?? Virtualization Technology for Directed I/O (VT-d) ???
Yes
Intel?? VT-x with Extended Page Tables (EPT) ???
Yes
