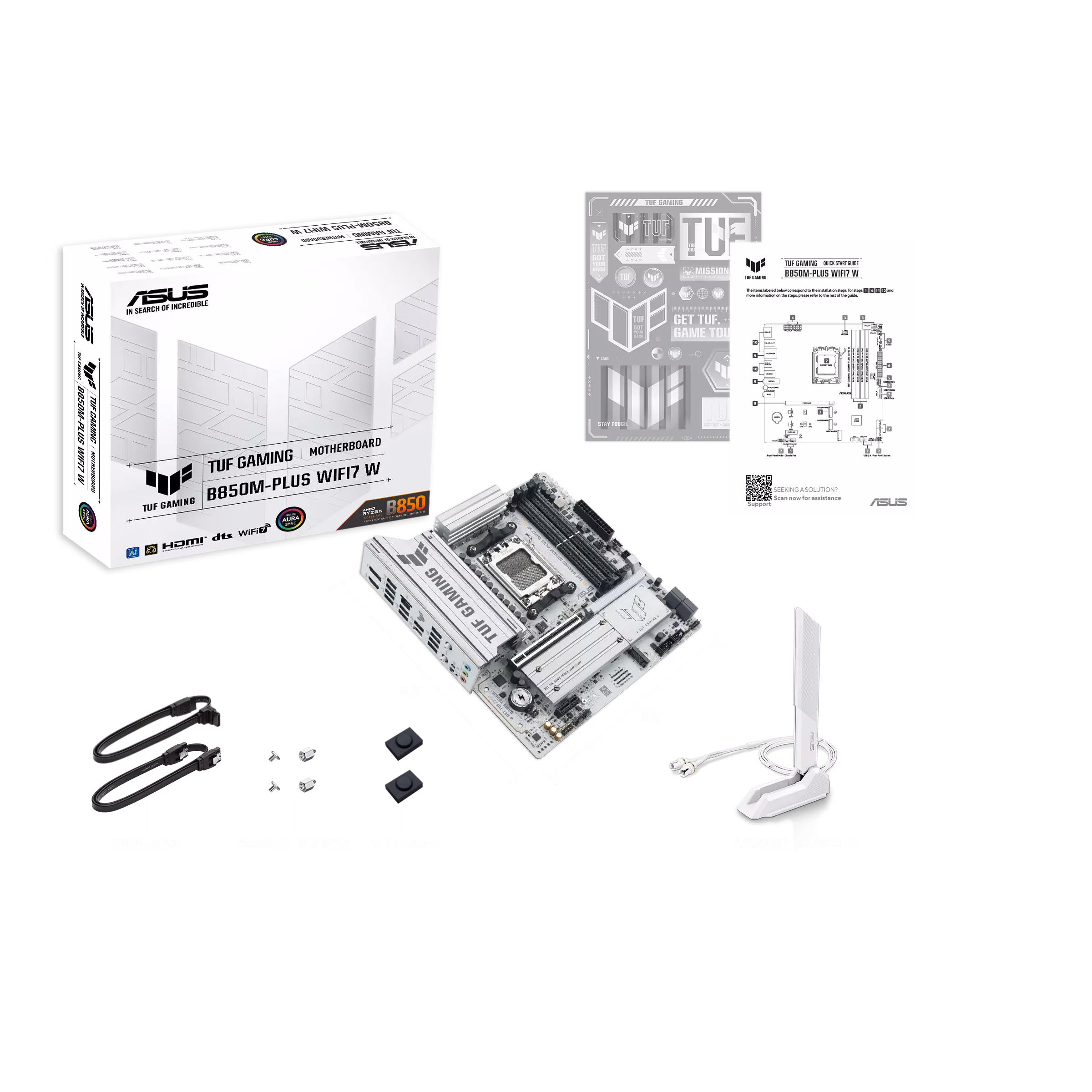

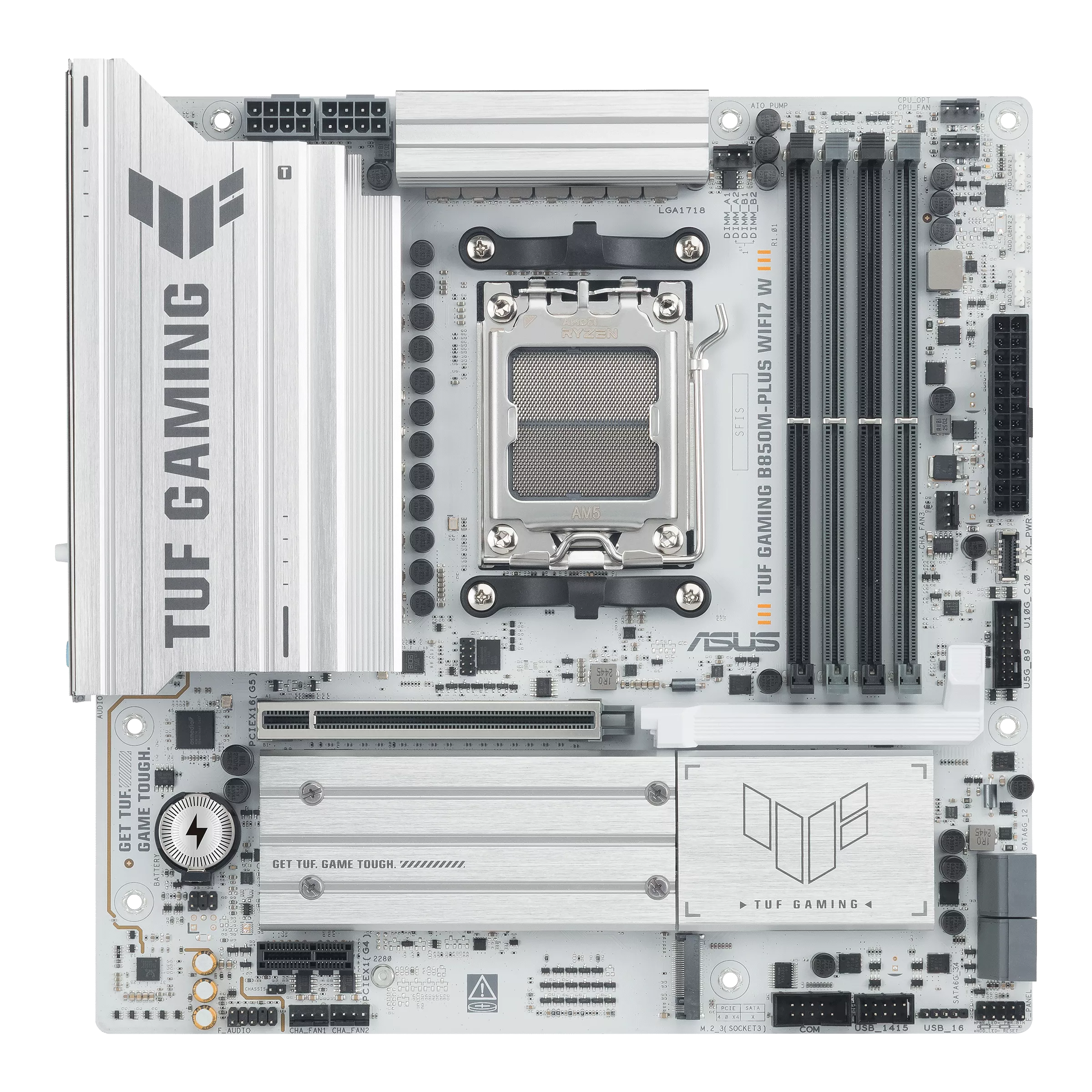

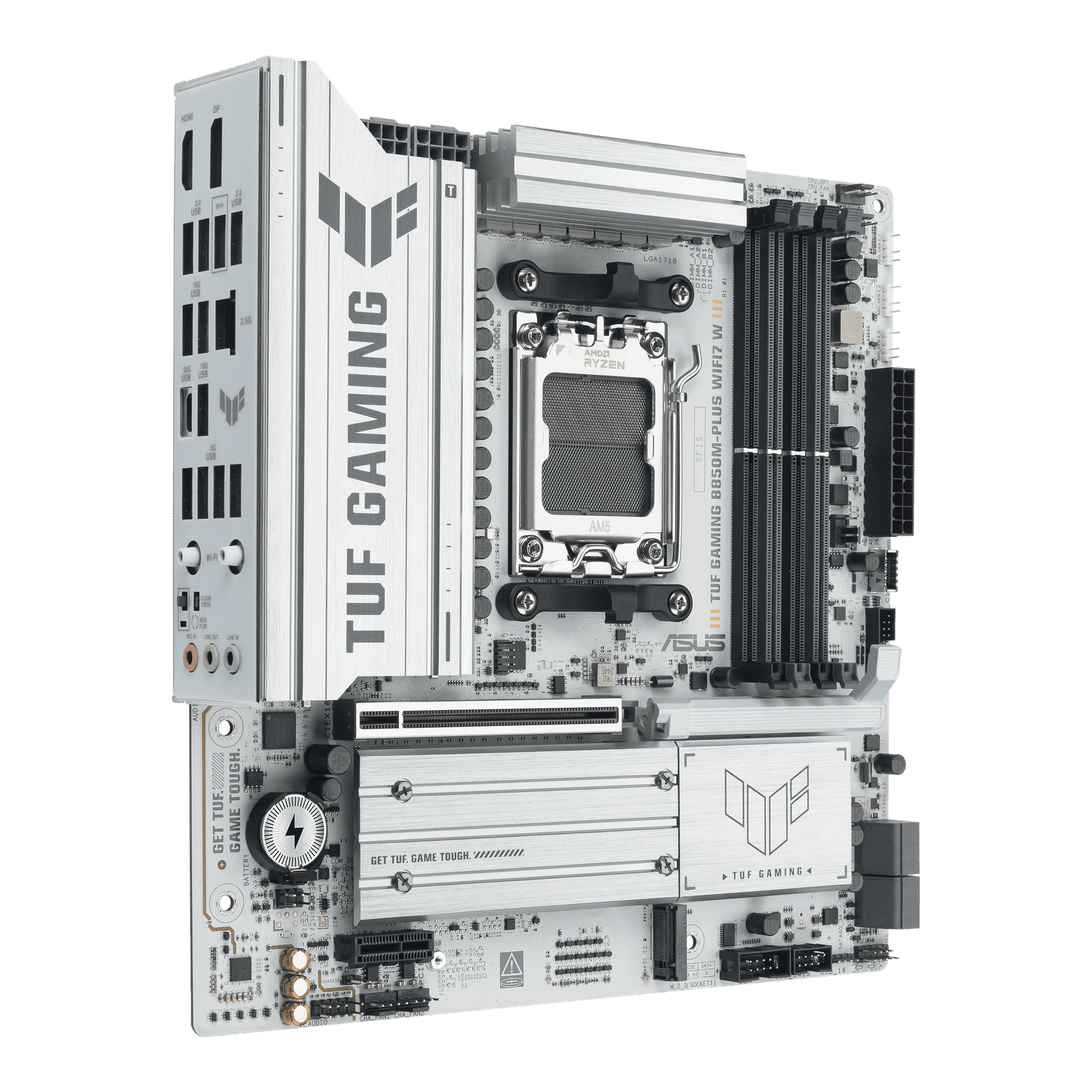

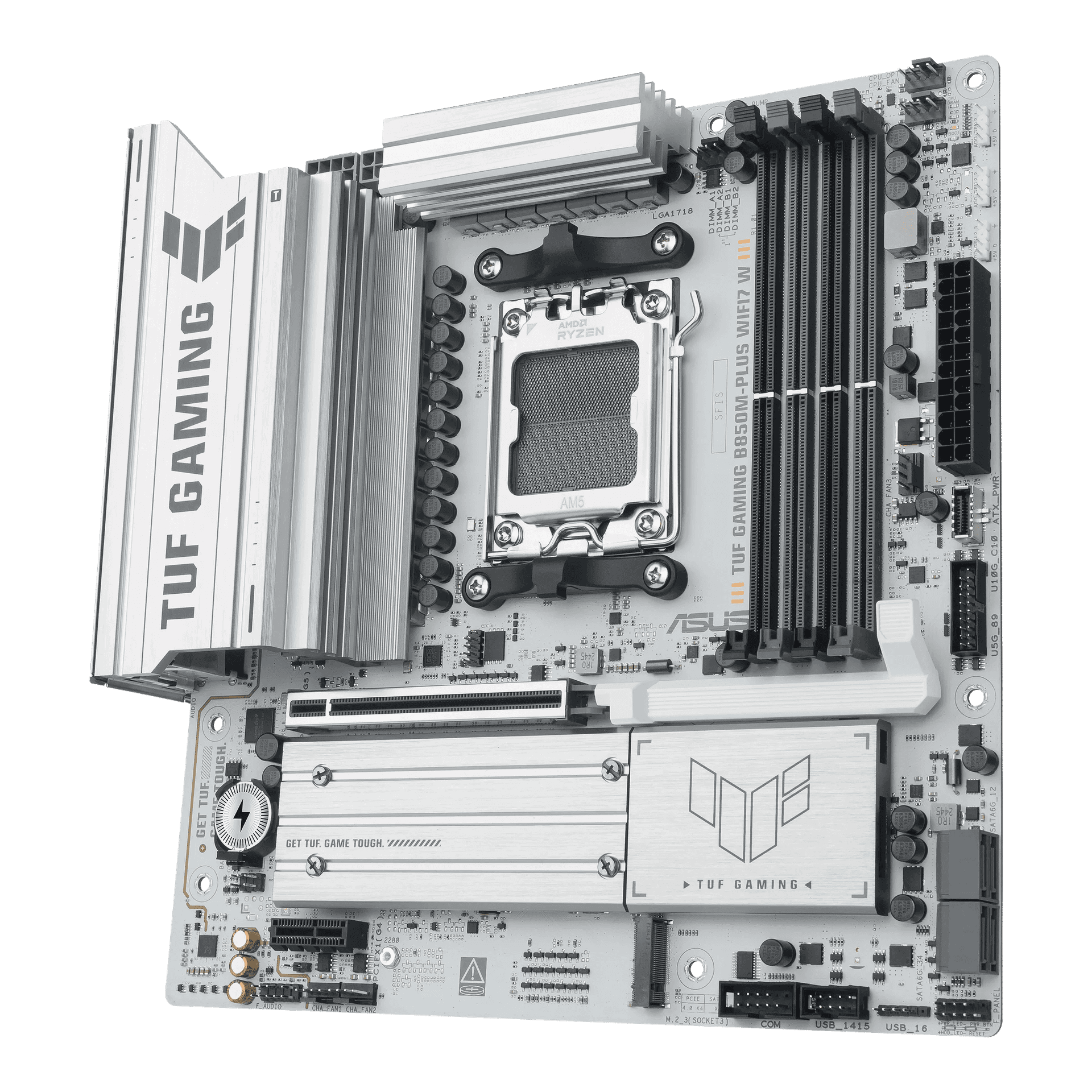

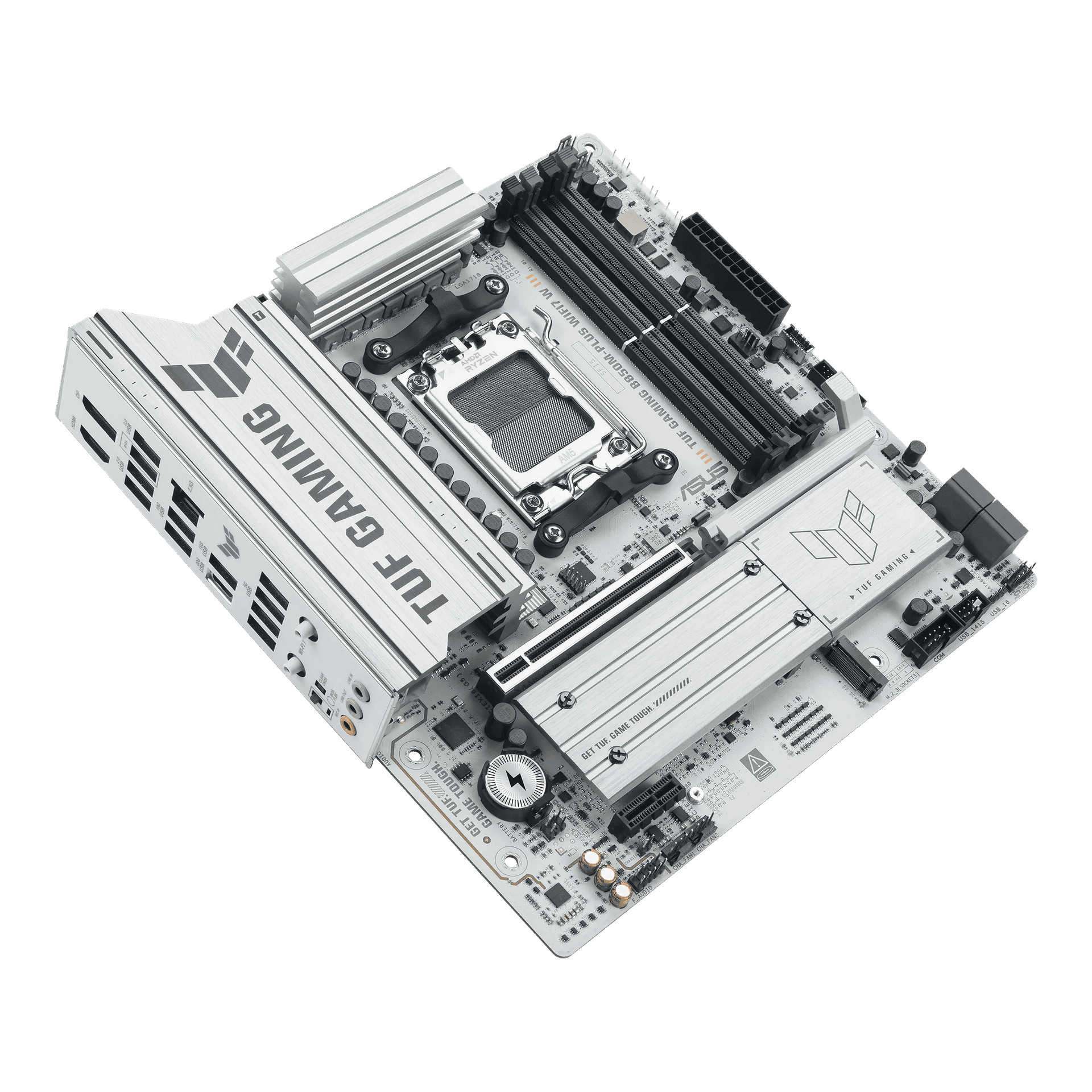

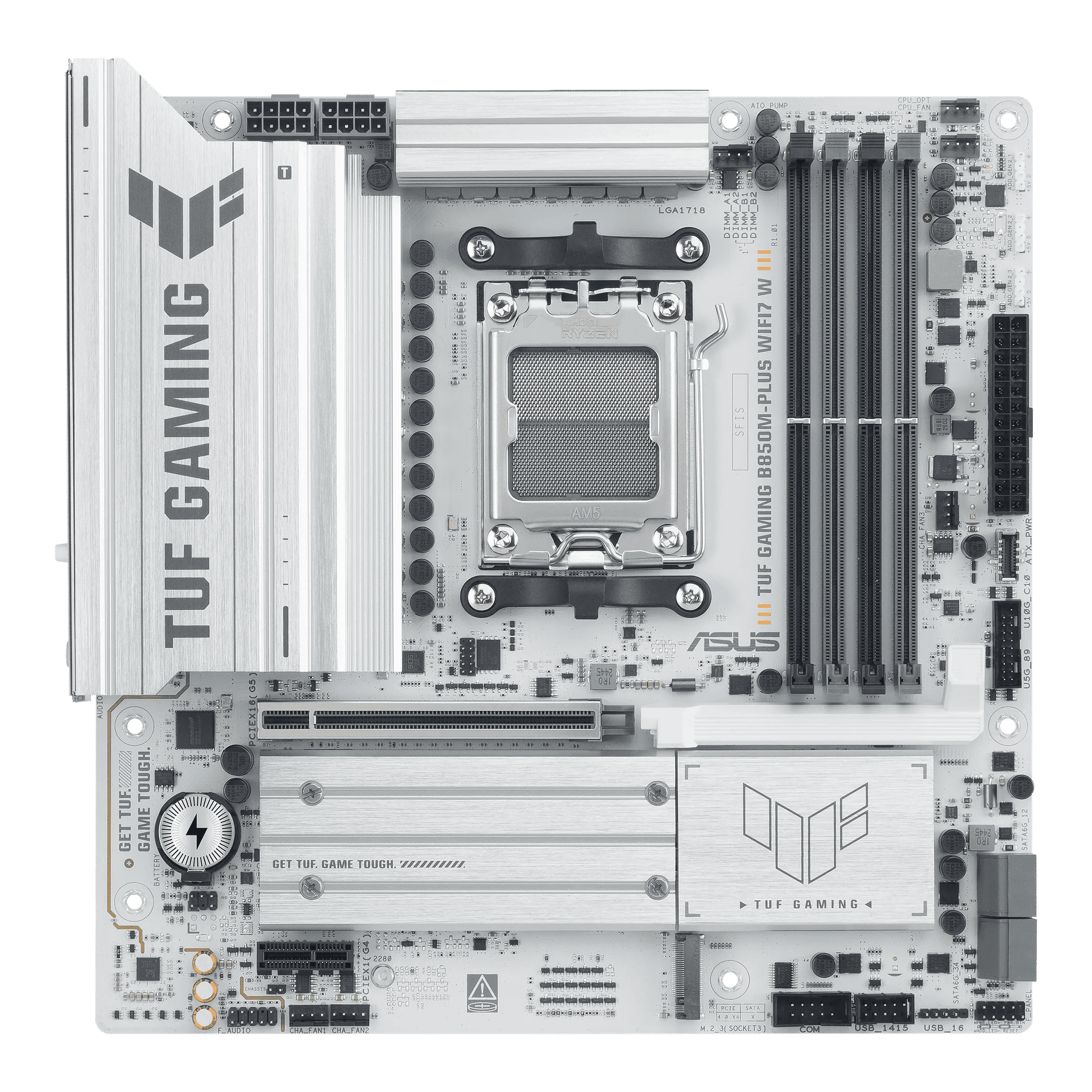

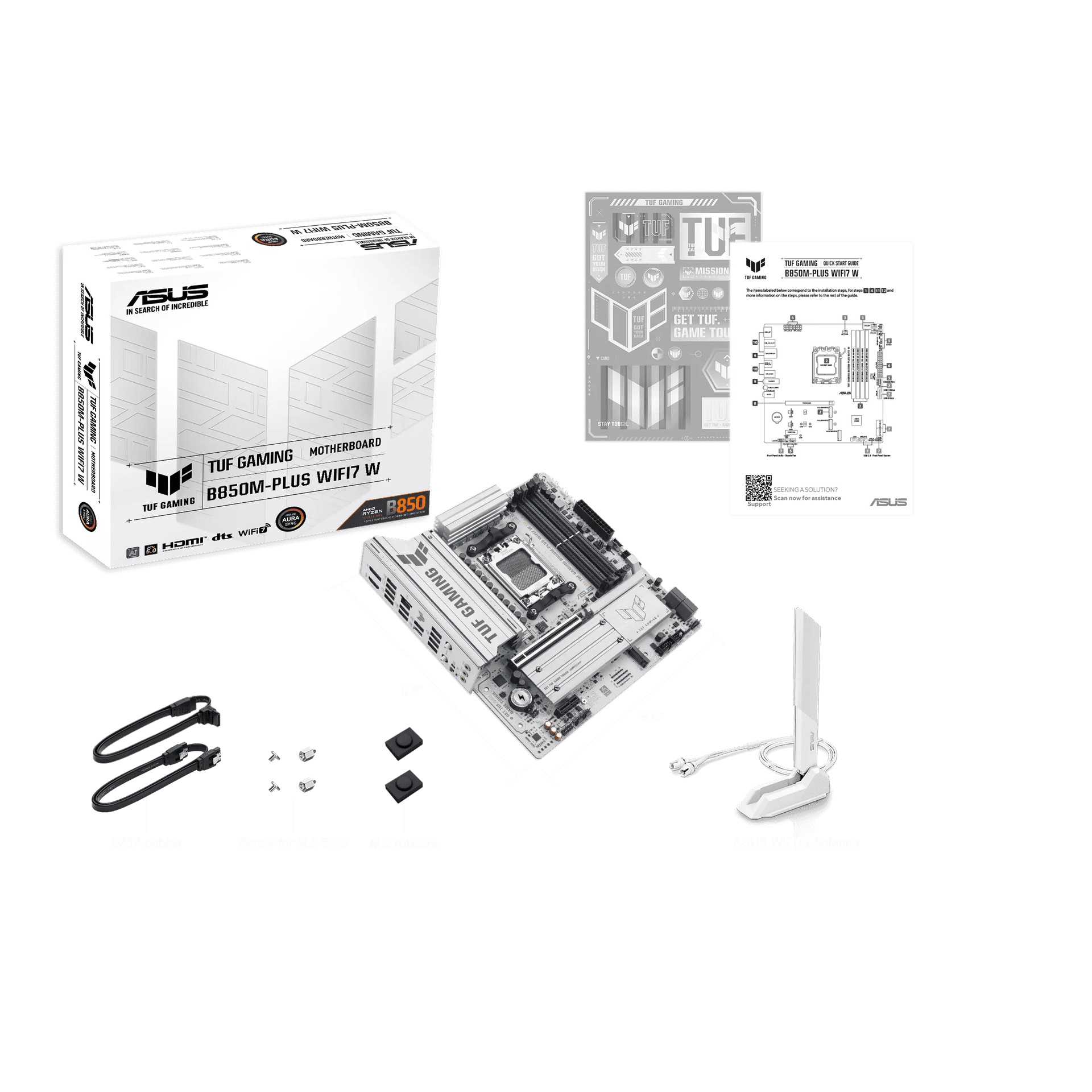

ASUS TUF GAMING B850M-PLUS WIFI7 W Micro-ATX AMD AM5 Motherboard, 4x DIMM slots, max. 256GB DDR5, PCIe 5.0, Wi-Fi 7, 2.5Gb LAN | 90MB1MD0-M0EAY0

Model :

SKU : MB-ASU TU B850M-PLUS W7 W

About this item

Build a resilient, high-performance gaming rig with the ASUS TUF GAMING B850M-PLUS WIFI7 W. This Micro-ATX motherboard is engineered for the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors, featuring the powerful AMD B850 chipset. Dressed in a striking white-themed design, it offers cutting-edge connectivity with Wi-Fi 7, a 2.5Gb Ethernet port, and PCIe 5.0 support for both graphics cards and M.2 storage. With a robust power design, advanced cooling solutions, and signature TUF durability, the B850M-PLUS WIFI7 W provides the stable foundation needed for marathon gaming and extreme multitasking.

dirham-symbol0

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

1

AED 0.00

stock : 1

About this item

Description

Future-Ready Battle Station: ASUS TUF GAMING B850M-PLUS WIFI7 W

The TUF GAMING B850M-PLUS WIFI7 W takes the legendary durability of the TUF series and pairs it with the latest technological breakthroughs for the AM5 platform. Designed with a clean, white aesthetic, this board is perfect for users looking to build a high-speed, modern Micro-ATX system that doesn't compromise on power or connectivity.

Next-Gen Speed with PCIe 5.0 & DDR5: Maximize your performance with full support for PCIe 5.0 x16 for the latest GPUs and a PCIe 5.0 M.2 slot for lightning-fast storage speeds. This board is built to handle the massive bandwidth of DDR5 memory, supporting overclocked speeds of 8000+ MT/s. Whether you are gaming at 4K or rendering complex 3D scenes, the B850M-PLUS ensures your data flows without bottlenecks.



Ultrafast Wi-Fi 7 & 2.5Gb Networking: Stay ahead of the competition with the latest Wi-Fi 7 technology, offering significantly higher speeds, lower latency, and better reliability than previous generations. Paired with a Realtek 2.5Gb Ethernet port and ASUS TUF LANGuard protection, your online gaming and streaming experiences remain smooth, stable, and secure from surges.

Military-Grade TUF Durability: ASUS TUF Protection ensures your investment lasts. The board features a Digital VRM with DrMOS for steady power delivery to your Ryzen CPU, alongside ESD Guards and overvoltage protection. The SafeSlot and SafeDIMM reinforcements prevent physical damage from heavy graphics cards and memory modules, while the stainless-steel back I/O ensures long-term corrosion resistance.



DIY Friendly with ASUS Q-Design: Building your PC is easier than ever with ASUS Q-Design features. The PCIe Slot Q-Release allows you to remove your GPU with one finger, while the M.2 Q-Latch eliminates the need for tiny, easy-to-lose screws. The Q-LED diagnostic lights quickly identify issues with your CPU, RAM, or VGA during boot-up, saving you hours of troubleshooting.

Specification

TUF GAMING B850M-PLUS WIFI7 W Specifications

CPU
Chipset
Memory
Graphics
Expansion Slots
Storage
RAID
Networking
USB
Audio
Internal Connectors
Special Features
BIOS
Operating System
Form Factor
ModelTUF GAMING B850M-PLUS WIFI7 W
CPU SocketAMD Socket AM5
CPU SupportAMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
ChipsetAMD B850
Memory Slots4 × DDR5 DIMM
Max Capacity256 GB
Memory SpeedUp to 8000+ MT/s (OC)
ArchitectureDual Channel
Memory SupportECC / Non-ECC Un-buffered, AMD EXPO™, ASUS AEMP
Display Outputs1 × DisplayPort 1.4, 1 × HDMI 2.1
Max ResolutionDP: 8K@30Hz, HDMI: 4K@60Hz
PCIe x16Ryzen 9000/7000: PCIe 5.0 x16
Ryzen 8000: PCIe 4.0 x16
PCIe x11 × PCIe 4.0 x1
M.2 Slots1 × PCIe 5.0 x4 (Ryzen 9000/7000)
2 × PCIe 4.0 x4
SATA4 × SATA 6Gb/s
RAID SupportRAID 0 / 1 / 5 / 10 (CPU dependent)
EthernetRealtek 2.5Gb Ethernet with TUF LANGuard

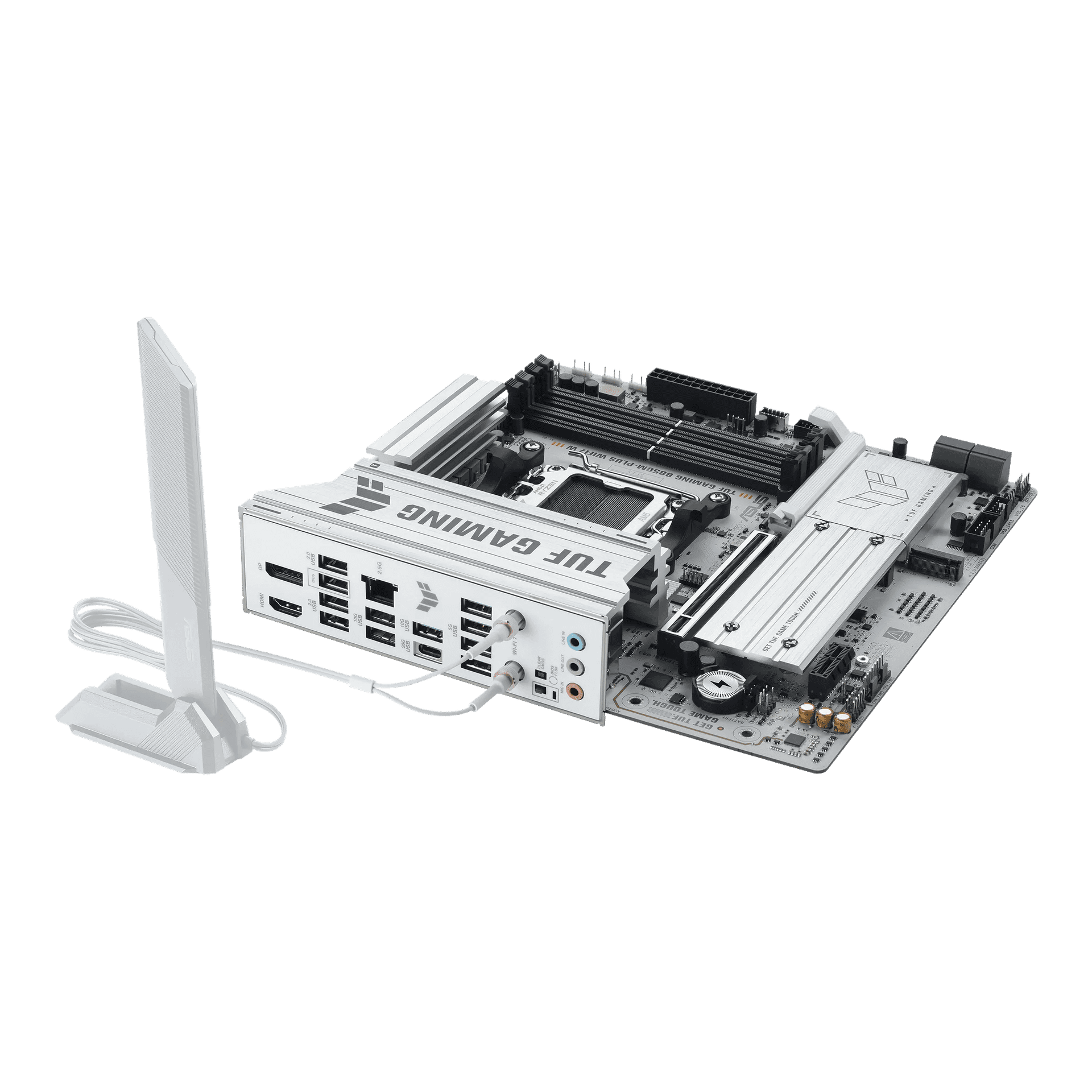

WirelessWi-Fi 7 (802.11be), 2×2, 2.4/5/6 GHz
BluetoothBluetooth® 5.4

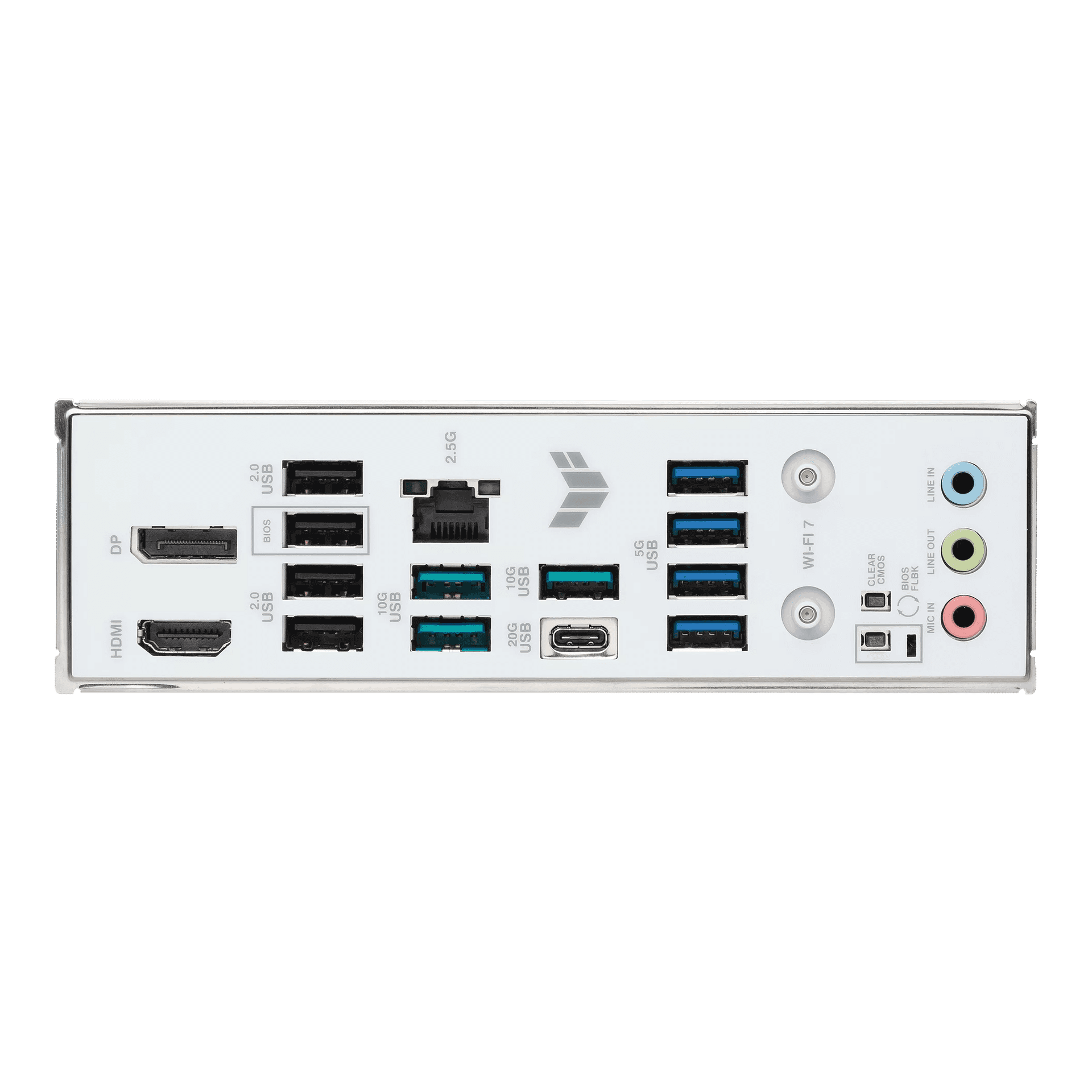

Rear USB1 × USB-C 20Gbps
3 × USB-A 10Gbps
4 × USB-A 5Gbps
4 × USB 2.0
Front USB1 × USB-C 10Gbps
2 × USB-A 5Gbps
3 × USB 2.0
Audio CodecRealtek ALC1220P 7.1 HD Audio
Audio Features120 dB SNR, Audio Shielding, Premium Capacitors
Fan HeadersCPU, CPU OPT, AIO Pump, 3 × Chassis Fan
RGB3 × Addressable RGB Gen2 Headers
ProtectionDIGI+ VRM, SafeSlot, ESD Guards, Stainless-Steel I/O
EZ DIYBIOS FlashBack™, Q-Latch, Q-DIMM, Pre-mounted I/O Shield
BIOS256 Mb UEFI AMI BIOS
OS SupportWindows 11
Form FactorMicro-ATX
Dimensions9.6 × 9.6 inches (24.4 × 24.4 cm)
