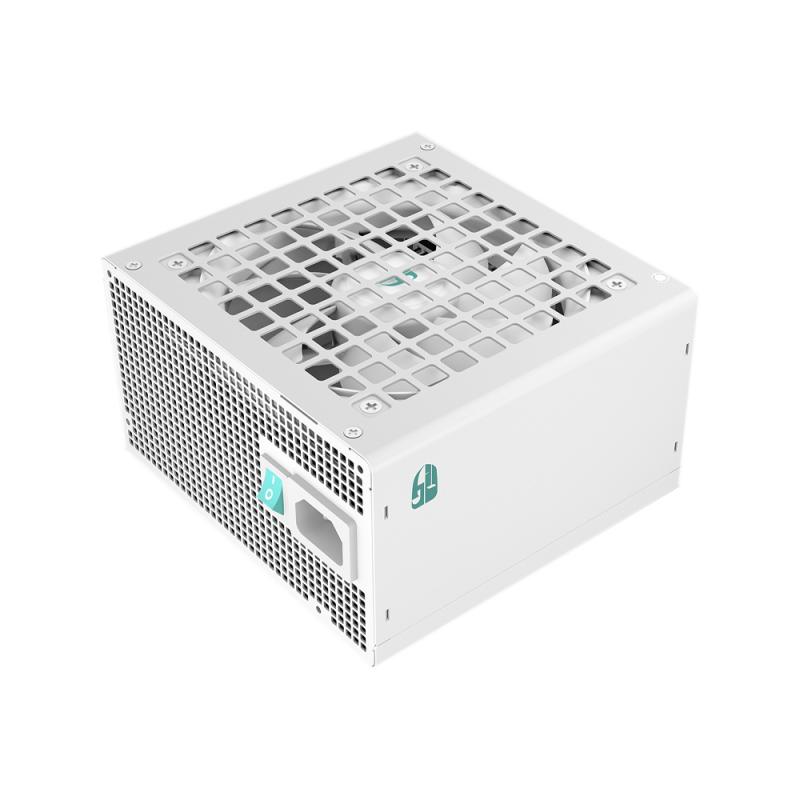

DeepCool Gamerstorm PQ1000G 1000W ATX 3.1 Fully Modular PSU (White), PCIe 5.1 12V-2x6, 80 PLUS Gold, FDB (Fluid Dynamic Bearing) | R-PQA00G-FD1W-JGUK-V1
Model : PQ-G
SKU : PS-DEEPCOOL PQ1000G GOL W
Power (W) :
1000W White
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
White Powerhouse: DeepCool PQ1000G 1000W ATX 3.1 Fully Modular PSU
The DeepCool (Gamerstorm) PQ1000G is an elite power supply engineered to provide stable, clean, and consistent power to high-performance gaming and workstation PCs. This unit is built to handle extreme power excursions, ensuring system stability today and tomorrow.
ATX 3.1 & PCIe 5.1 Compliance:
- Power Excursion Ready: Engineered to provide 2.5 times the 12V CEM peak power and three times the rated power of the 12V-2x6 cable for 0.1 ms, eliminating issues with sudden power spikes (transient loads).

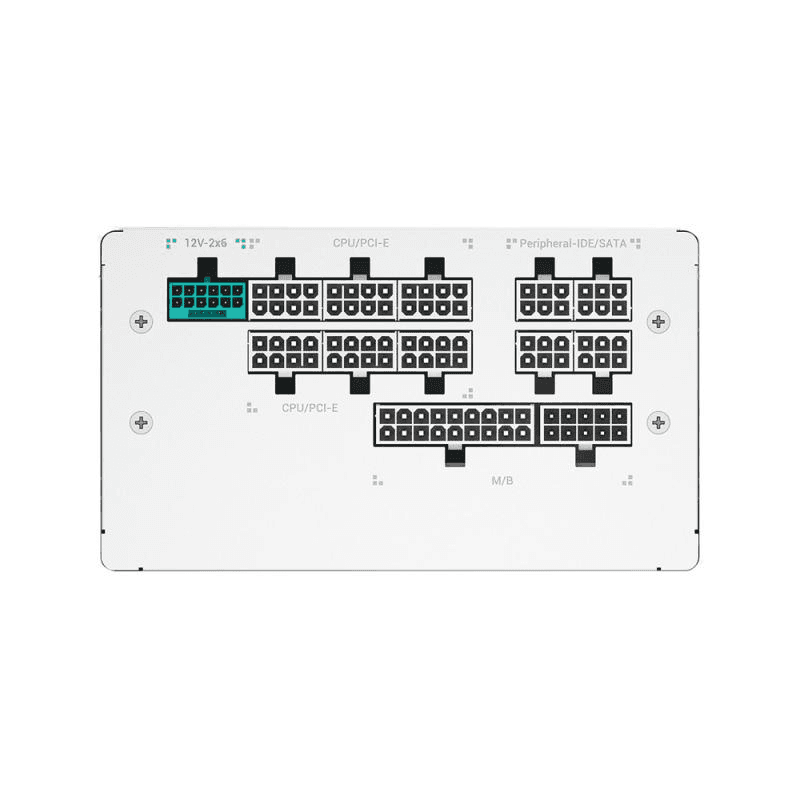

Native 12V-2x6 Connector: Includes a high-grade, sleeved, 105°C-resistant 16AWG copper-core 12V-2x6 cable to directly support the latest GPUs, rated to provide up to 450W (or up to 600W according to some third-party reviews).
Reliability and Efficiency:
- The Gold Standard: 80 PLUS Gold certified, ensuring at least 90% efficiency at 50% typical load, significantly reducing heat generation and operating costs. It also carries Cybenetics PLATINUM/PPLP Gold ratings for efficiency.
- Trust-Worthy Stability: Features a robust internal topology (Active PFC + Half Bridge SRC LLC + DC to DC) and premium Full Japanese Electrolytic Capacitors (rated for 105°C), ensuring maximum component longevity.
Extended Hold-Up Time: Maintains a hold-up time of ≥ 16 ms under a 100% full load, exceeding the ATX 3.1 compliance requirements.
Design and Protection:
- Fully Modular Design: Allows for superior cable management by letting you use only the cables necessary for your specific components.
- Compact ATX Form Factor: The unit's short depth of 140 mm allows for easy integration into the vast majority of PC cases that support ATX PSUs.
- Dynamic FDB Fan: Equipped with a 120 mm Fluid Dynamic Bearing (FDB) fan that adjusts its speed based on the internal temperature, ensuring quiet operation and a long lifespan (100,000 MTBF).
- Worry-Free Coverage: Backed by an extensive 10-Year Limited Warranty for complete peace of mind.
- Comprehensive Protections: Features a full suite of safeguards: OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP
Specification
| Total Output | 1000W |
| Type | ATX12V V3.1 |
| Product Dimensions | 150 × 140 × 86 mm (W × L × H) |
| Efficiency Certification | 80Plus Gold / Cybenetics PLATINUM / PPLP Gold |
| Fan Size | 120 × 120 × 25 mm (W × L × H) |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| Capacitors | Full Japanese Electrolytic Capacitors |
| Power Good Signal | 100–150 ms |
| Hold Up Time | ≥ 16 ms (Full Load) |
| Efficiency | ≥ 90% under typical load (50% loading) |
| Protection | OPP / OVP / SCP / OTP / OCP / UVP / SIP / NLO |
| Operation Temperature | 0 – 40 °C |
| Regulatory | EAC |
| ErP Regulation | ErP 2013 |
| Environment Protection | EAC |
| MTBF | 100,000 Hours |
