MSI PRO B860-P LGA 1851 ATX Motherboard, Intel Core Ultra (Series 2) Support, DDR5 8800+ MT/s, PCIe 5.0, Thunderbolt 4 | 911-7E41-002
Model :
SKU : MB-MSI PRO B860-P DDR5
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
The Future of Productivity: MSI PRO B860-P LGA 1851 Motherboard
The MSI PRO series is designed for professionals who demand efficiency and reliability. The PRO B860-P offers a sleek, harmonious silver aesthetic that fits perfectly in any modern PC build while delivering the power required for intensive AI processing and multitasking.
Next-Gen Performance & Memory: Built on the Intel B860 chipset, this motherboard is fully optimized for Intel Core Ultra Processors (Series 2). Experience unmatched memory performance with DDR5 Support reaching overclocked speeds of 8800+ MT/s. Whether you are rendering complex 3D models or running high-bandwidth applications, the 12+1+1+1 Duet Rail Power System ensures your CPU receives stable, precise power through its 8+4-pin connectors.
Lightning-Fast Data & Connectivity:
PCIe 5.0 Technology: Stay ahead of the curve with a PCIe 5.0 x16 slot for the latest graphics cards and Lightning Gen 5 x4 M.2 support for ultra-fast NVMe SSD storage.
Thunderbolt™ 4: Enjoy 40Gbps data transfer speeds and 8K display support through the onboard Thunderbolt 4 port, perfect for high-speed external storage and professional multimedia setups.
5G Super LAN: Overcome networking bottlenecks with Realtek 5Gbps LAN, providing secure and stable high-speed data transmission for professional use.
Cooling & DIY Friendly Features: The PRO B860-P is built to run cool under pressure. Its Frozr Guard thermal solution features an Extended Heatsink, 7W/mK MOSFET thermal pads, and the EZ M.2 Shield Frozr II to prevent thermal throttling. For builders, MSI's EZ DIY suite includes the EZ PCIe Clip II and EZ M.2 Clips, allowing for tool-less hardware installation and removal—even in cramped chassis spaces.
Studio-Grade Audio Experience: Equipped with Audio Boost, this motherboard delivers high-fidelity sound quality using premium audio capacitors. Experience studio-grade immersion that enhances both professional conferencing and competitive gaming
Specification
| Chipset | Intel® B860 |
| CPU Support | Supports Intel® Core™ Ultra Processors (Series 2) Socket LGA 1851 |
| Memory Slots | 4 × DDR5 UDIMM |
| Max Memory Capacity | 256GB |
| Memory Support | DDR5 8800 – 6400 MT/s (OC) DDR5 6400 – 4800 MT/s (JEDEC) Max Overclocking Frequency: • 1DPC 1R: up to 8800+ MT/s • 1DPC 2R: up to 7200+ MT/s • 2DPC 1R: up to 6400+ MT/s • 2DPC 2R: up to 5600+ MT/s Supports Intel® POR & JEDEC Speed Supports Memory Overclocking & Intel® XMP 3.0 Dual-Controller Dual-Channel Mode Non-ECC, Un-buffered Memory Supports CUDIMM • DIMM slots feature single-sided latches • Memory speed may vary by CPU & configuration |
| Onboard Graphics | 1 × HDMI™ 2.1 (Max 4K @ 60Hz) 1 × DisplayPort 1.4 (Max 4K @ 60Hz) 1 × Type-C DisplayPort (Thunderbolt™ 4) Supports DP 2.1 (UHBR20) over USB-C Max Resolution: 4K @ 120Hz / 8K @ 60Hz *Available only on CPUs with integrated graphics |
| Expansion Slots | 1 × PCIe 5.0 x16 (From CPU) 1 × PCIe 4.0 x1 (From Chipset) 1 × PCIe 4.0 x4 (From Chipset) 1 × PCIe 4.0 x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 3 × M.2 Slots • M.2_1 (CPU): PCIe 5.0 x4, 2280/2260 • M.2_2 (Chipset): PCIe 4.0 x4, 2280/2260/2242 • M.2_3 (Chipset): PCIe 4.0 x2, 2280/2260 4 × SATA 6Gb/s *Refer to manual for M.2 heatsink restrictions |
| RAID | RAID 0 / 1 / 5 / 10 (SATA Storage Devices) |
| Onboard Thunderbolt | 1 × Thunderbolt™ 4 (Rear) Up to 40Gbps (Thunderbolt devices) Up to 20Gbps (USB4 devices) Up to 10Gbps (USB 3.2 devices) Supports 5V/3A (15W) charging Daisy-chain up to 3 TB4 or 5 TB3 devices Supports up to 8K Display |
| USB (Rear) | 4 × USB 2.0 2 × USB 5Gbps Type-A 2 × USB 10Gbps Type-A 1 × Thunderbolt™ 4 Type-C |
| USB (Front) | 4 × USB 2.0 4 × USB 5Gbps Type-A 1 × USB 10Gbps Type-C |
| LAN | Realtek® 8126 5Gbps LAN |
| Internal I/O | 1 × Thunderbolt 5 Card Connector (JTBT5, RTD3) 1 × ATX Power Connector 2 × CPU Power Connectors 1 × PCIe Power Connector (8-pin) 1 × CPU Fan Header 1 × Pump / System Fan Header 4 × System Fan Headers 2 × Front Panel Headers (JFP) 1 × Chassis Intrusion (JCI) 1 × Front Audio (JAUD) 1 × COM Port (JCOM) 1 × Tuning Controller Header (JDASH) 2 × ARGB Gen2 Headers (JARGB_V2) 1 × RGB Header (JRGB) 1 × TPM Header (TPM 2.0) 4 × USB 2.0 Headers 4 × USB 5Gbps Headers 1 × USB 10Gbps Type-C Header |
| LED Features | 4 × EZ Debug LED |

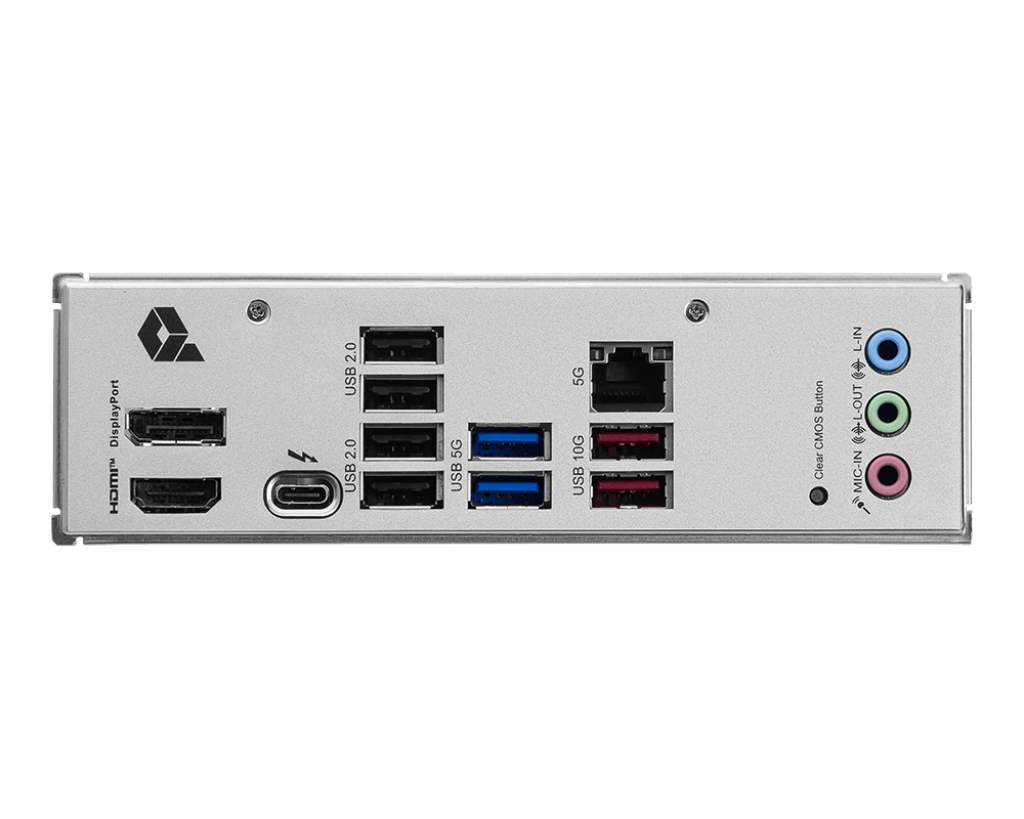

| Back Panel Ports | DisplayPort HDMI™ Thunderbolt™ 4 (40Gbps Type-C) USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Audio Jacks Clear CMOS Button |
| Operating System | Windows® 11 64-bit |
