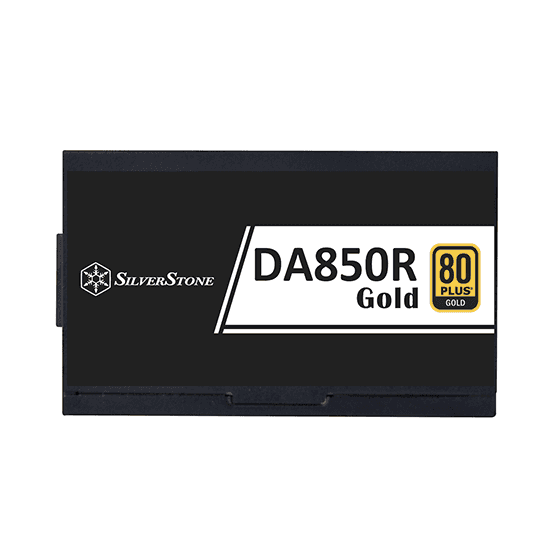

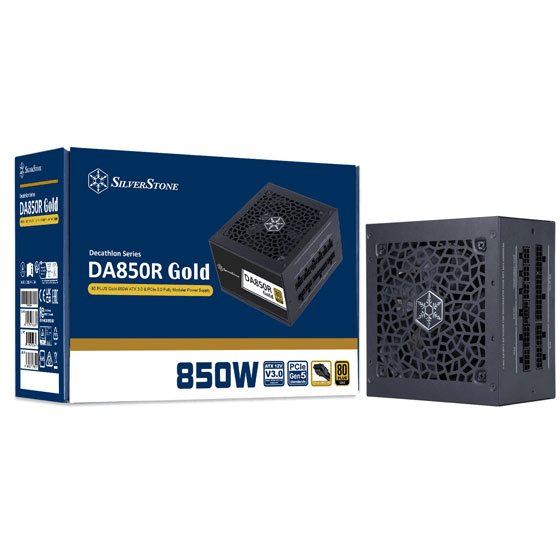

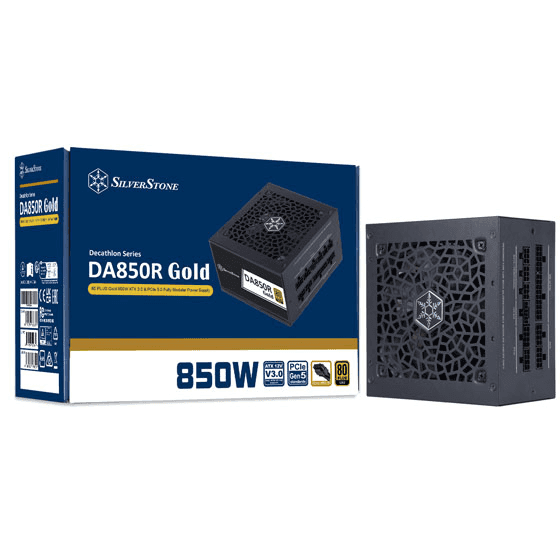

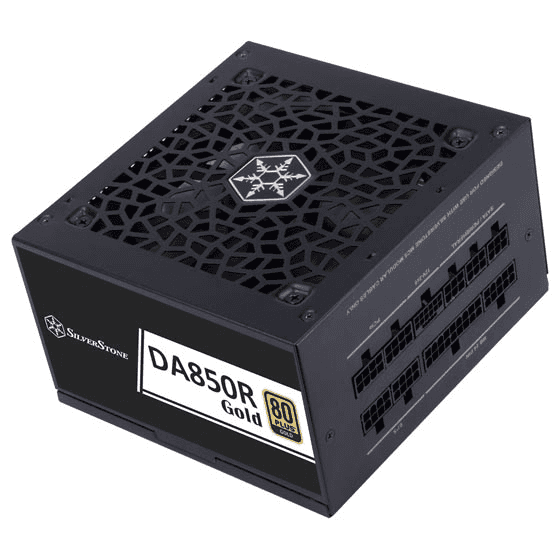

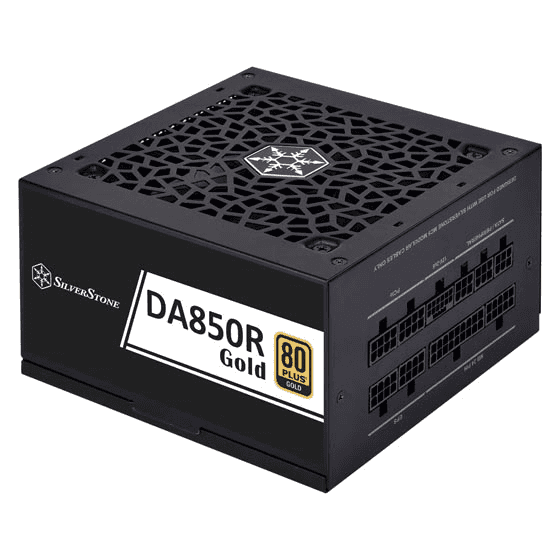

SilverStone Decathlon 850R Gold 850W Fully Modular ATX Power Supply (PSU), 80 PLUS Gold, ATX 3.1 & PCIe 5.0 Ready, 12V-2x6 Connector, Fully Modular | SST-TR850R-GM
Model :
SKU : PS-SILVERSTO TRITON 850RZ
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Future-Proof Power: SilverStone Decathlon 850R Gold ATX 3.1 PSU
The SilverStone Decathlon 850R Gold delivers reliable, efficient, and future-proof power for high-performance gaming and professional workstations. With a Max DC Output of 850W and full compliance with the latest industry standards, this PSU handles peak power demands with ease.
Next-Generation Compatibility & Performance:
- ATX 3.1 & PCIe 5.0: Meets the latest Intel ATX 3.1 standard and is equipped with a dedicated 12V-2x6 PCIe connector, engineered to support the power excursion (transient power spikes) required by the newest PCIe Gen 5 graphics cards.
- 80 PLUS Gold Efficiency: Provides high energy efficiency (≥87% & <89%) to reduce wasted heat and electricity costs, with continuous power output guaranteed at a demanding 50°C operating temperature.
- Massive +12V Rail: The single +12V rail provides the full 850W, delivering stable and consistent power to the CPU and GPU.
Premium Design & Quiet Operation:
- Full Modular Design: The fully modular cable system allows for maximum flexibility, cleaner cable management, and improved airflow within the case.

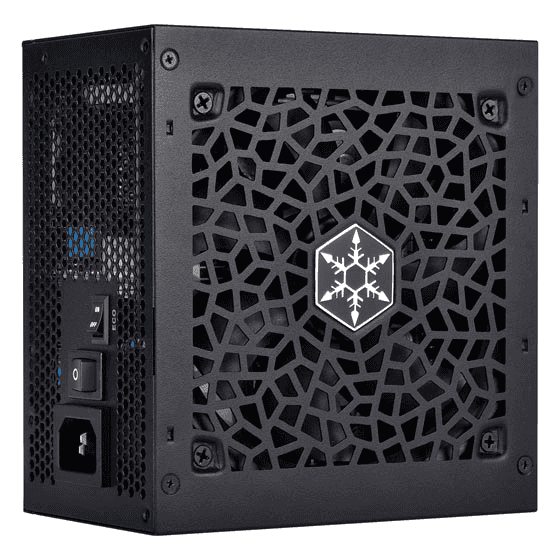

- Silent Cooling: Features a quiet 120mm fan with an advanced semi-fanless operation (ECO mode), allowing the fan to remain off at low loads for a 0 dBA noise level, enhancing acoustic performance.
- Compact Footprint: Measuring just 140mm (D), this PSU is one of the more compact high-wattage units, making it an excellent choice for smaller cases where space is a premium.
- Advanced Protection: Complete set of protective features, including Over Current Protection (OCP), Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), and Under Voltage Protection (UVP), ensuring the safety of your components.

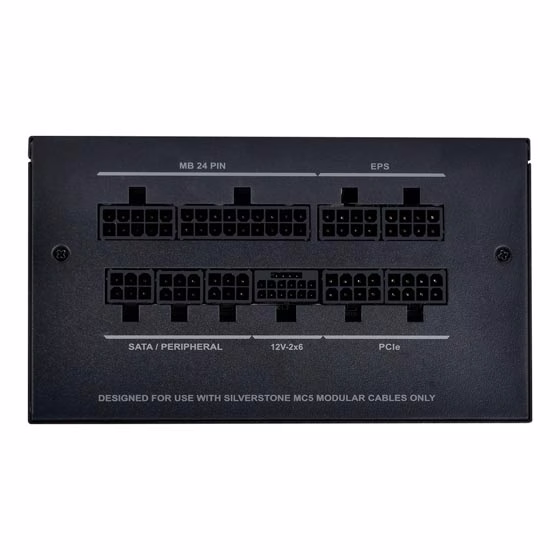

Connectors Included:
- 1 x 24 / 20-Pin motherboard connector
- 2 x 8 / 4-Pin EPS / ATX 12V connector (CPU)
- 1 x 12V-2x6 connector (PCIe Gen5)
- 4 x 8 / 6-Pin PCIe connectors
- 8 x SATA connectors
- 4 x 4-Pin Peripheral connector
Specification
| Product Number | SST-DA850R-GMA-WWW (White) SST-DA850R-GMA (Black) |
| Model (Safety Certification) | SST-AX0850MCGD-D |
| Color | White (Lead-Free Paint) Black (Lead-Free Paint) |
| Max DC Output | 850 W |
| Power Density | 471 W/L |
| Input Voltage | 90 – 264 Vrms |
| Input Frequency Range | 47 – 63 Hz |
| PFC | Active PFC (PF > 0.9 at Full Load) |
| Efficiency | ≥87% and <89% |
| Certification | 80 PLUS Gold |
| MTBF | 100,000 Hours |
| Operating Temperature | 0°C – 50°C |

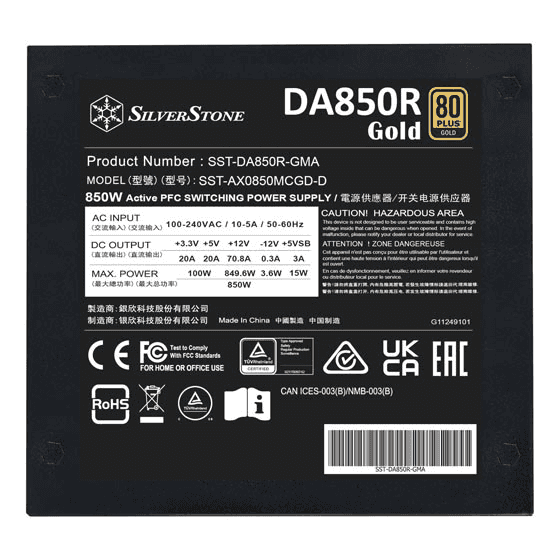

| DC Output Load Range | +3.3V: 20A (±3%) +5V: 20A (±3%) +12V: 70.8A (+5% / -7%) +5VSB: 3A (±5%) -12V: 0.3A (±8%) |
| Ripple & Noise | +3.3V: 40mVp-p +5V: 40mVp-p +12V: 80mVp-p +5VSB: 40mVp-p -12V: 80mVp-p |
| Combined Power | +3.3V & +5V: 100 W +12V: 850 W |
| Protection Features | Over Current Protection (OCP) Over Power Protection (OPP) Over Voltage Protection (OVP) Under Voltage Protection (UVP) Short Circuit Protection (SCP) Over Temperature Protection (OTP) |
| Connectors | 1 × 24/20-Pin Motherboard 2 × 8/4-Pin EPS / ATX 12V 4 × 8/6-Pin PCIe 1 × 12V-2x6 8 × SATA 4 × 4-Pin Peripheral |
| Cooling System | Silent 120mm Fan |
| Noise Level | 0 dBA Minimum |
| Form Factor | ATX (PS2) |
| Dimensions | 150 × 86 × 140 mm (W × H × D) 5.91 × 3.39 × 5.51 in |
| Weight | 2.13 kg |
| Compatibility Note | Not Compatible with PP05-E and PP06 Cables |
