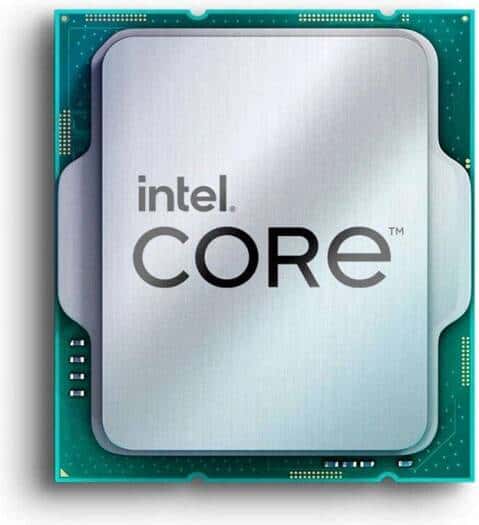

Intel Core i5 processor 14400 20M Cache up to 4.70 GHz, 10 Cores, Up to DDR5 4800 MT/s, LGA1700 ,Thread Director, Gaussian & Neural Accelerator, Speed Shift Technology, OS Guard | BX8071514400
Model :
SKU : PRC-INTEL CORE I5-14400
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Intel Core i5 processor 14400 20M Cache up to 4.70 GHz, 10 Cores, Up to DDR5 4800 MT/s, LGA1700 ,Thread Director, Gaussian & Neural Accelerator, Speed Shift Technology, OS Guard | BX8071514400
| Total Cores | 10 |
| # of Performance-cores | 6 |
| # of Efficient-cores | 4 |
| Total Threads | 16 |
| Max Turbo Frequency | 4.7 GHz |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core Base Frequency | 2.5 GHz |
| Efficient-core Base Frequency | 1.8 GHz |
| Cache | 20 MB Intel?? Smart Cache |
| Total L2 Cache | 9.5 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 148 W |
| Marketing Status | Launched |
| Launch Date | Q1'24 |
| Max Memory Size (dependent on memory type) | 192 GB |
| Memory Types | Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 76.8 GB/s |
| GPU Name | Intel?? UHD Graphics 730 |
| Graphics Max Dynamic Frequency | 1.55 GHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 24 |
| Max Resolution (HDMI) | 4096 x 2160 @ 60Hz |
| Max Resolution (DP) | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel) | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3.0 |
| Multi-Format Codec Engines | 1 |
| Intel?? Quick Sync Video | Yes |
| Intel?? Clear Video HD Technology | Yes |
| # of Displays Supported | 4 |
| Device ID | 0x4682/0xA782 |
| Direct Media Interface (DMI) Revision | 4.0 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations | Up to 1x16+4, 2x8+4 |
| Max # of PCI Express Lanes | 20 |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020C |
| TJUNCTION | 100??C |
| Package Size | 45.0 mm x 37.5 mm |
| Intel?? Gaussian & Neural Accelerator | 3.0 |
| Intel?? Thread Director | Yes |
| Intel?? Deep Learning Boost (Intel?? DL Boost) on CPU | Yes |
| Intel?? Speed Shift Technology | Yes |
| Intel?? Turbo Boost Technology | 2.0 |
| Intel?? Hyper-Threading Technology | Yes |
| Intel?? 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel?? SSE4.1, Intel?? SSE4.2, Intel?? AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep?? Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel?? Volume Management Device (VMD) | Yes |
| Intel?? Standard Manageability (ISM) | Yes |
| Intel?? Control-Flow Enforcement Technology | Yes |
| Intel?? AES New Instructions | Yes |
| Secure Key | Yes |
| Intel?? OS Guard | Yes |
| Execute Disable Bit | Yes |
| Intel?? Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel?? Virtualization Technology (VT-x) | Yes |
| Intel?? Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel?? VT-x with Extended Page Tables (EPT) | Yes |
Specification
Intel Core i5 processor 14400 20M Cache up to 4.70 GHz, 10 Cores, Up to DDR5 4800 MT/s, LGA1700 ,Thread Director, Gaussian & Neural Accelerator, Speed Shift Technology, OS Guard | BX8071514400
| Total Cores | 10 |
| # of Performance-cores | 6 |
| # of Efficient-cores | 4 |
| Total Threads | 16 |
| Max Turbo Frequency | 4.7 GHz |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core Base Frequency | 2.5 GHz |
| Efficient-core Base Frequency | 1.8 GHz |
| Cache | 20 MB Intel?? Smart Cache |
| Total L2 Cache | 9.5 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 148 W |
| Marketing Status | Launched |
| Launch Date | Q1'24 |
| Max Memory Size (dependent on memory type) | 192 GB |
| Memory Types | Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 76.8 GB/s |
| GPU Name | Intel?? UHD Graphics 730 |
| Graphics Max Dynamic Frequency | 1.55 GHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 24 |
| Max Resolution (HDMI) | 4096 x 2160 @ 60Hz |
| Max Resolution (DP) | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel) | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3.0 |
| Multi-Format Codec Engines | 1 |
| Intel?? Quick Sync Video | Yes |
| Intel?? Clear Video HD Technology | Yes |
| # of Displays Supported | 4 |
| Device ID | 0x4682/0xA782 |
| Direct Media Interface (DMI) Revision | 4.0 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations | Up to 1x16+4, 2x8+4 |
| Max # of PCI Express Lanes | 20 |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020C |
| TJUNCTION | 100??C |
| Package Size | 45.0 mm x 37.5 mm |
| Intel?? Gaussian & Neural Accelerator | 3.0 |
| Intel?? Thread Director | Yes |
| Intel?? Deep Learning Boost (Intel?? DL Boost) on CPU | Yes |
| Intel?? Speed Shift Technology | Yes |
| Intel?? Turbo Boost Technology | 2.0 |
| Intel?? Hyper-Threading Technology | Yes |
| Intel?? 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel?? SSE4.1, Intel?? SSE4.2, Intel?? AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep?? Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel?? Volume Management Device (VMD) | Yes |
| Intel?? Standard Manageability (ISM) | Yes |
| Intel?? Control-Flow Enforcement Technology | Yes |
| Intel?? AES New Instructions | Yes |
| Secure Key | Yes |
| Intel?? OS Guard | Yes |
| Execute Disable Bit | Yes |
| Intel?? Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel?? Virtualization Technology (VT-x) | Yes |
| Intel?? Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel?? VT-x with Extended Page Tables (EPT) | Yes |
