609.00Home/PC Components/CPUs / Processors/Intel Core i7 processor 14700 33M Cache up to 5.40...

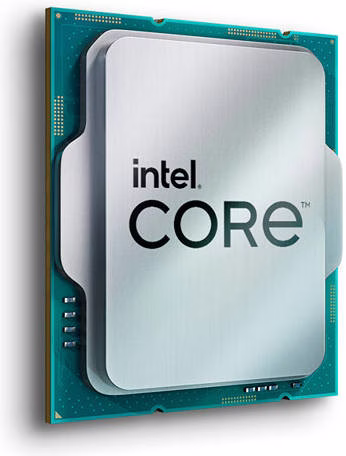

Intel Core i7 processor 14700 33M Cache up to 5.40 GHz, Cores 20, Threads 28, Up to DDR5 5600 MT/s, LGA1700, Thread Director, (Intel DL Boost) on CPU, Speed Shift Technology, Turbo Boost Max Technology 3.0 | BX8071514700
Model :
SKU : PRC-INTE CORE I7-14700
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; margin-top: 20px; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
Intel Core i7 processor 14700 33M Cache up to 5.40 GHz, Cores 20, Threads 28, Up to DDR5 5600 MT/s, LGA1700, Thread Director, (Intel DL Boost) on CPU, Speed Shift Technology, Turbo Boost Max Technology 3.0 | BX8071514700
| Total Cores | 20 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 12 |
| Total Threads | 28 |
| Max Turbo Frequency | 5.4 GHz |
| Intel?? Turbo Boost Max Technology 3.0 Frequency ??? | 5.4 GHz |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core Base Frequency | 2.1 GHz |
| Efficient-core Base Frequency | 1.5 GHz |
| Cache | 33 MB Intel?? Smart Cache |
| Total L2 Cache | 28 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 219 W |
| Marketing Status | Launched |
| Launch Date | Q1'24 |
| Embedded Options Available | Yes |
| Max Memory Size (dependent on memory type) | 192 GB |
| Memory Types | Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 89.6 GB/s |
| ECC Memory Supported ??? | Yes |
| GPU Name??? | Intel?? UHD Graphics 770 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.6 GHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI)??? | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)??? | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel)??? | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3.0 |
| Multi-Format Codec Engines | 2 |
| Intel?? Quick Sync Video | Yes |
| Intel?? Clear Video HD Technology | Yes |
| # of Displays Supported ??? | 4 |
| Device ID | 0xA780 |
| Direct Media Interface (DMI) Revision | 4.0 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ??? | Up to 1x16+4, 2x8+4 |
| Max # of PCI Express Lanes | 20 |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020C |
| TJUNCTION | 100??C |
| Package Size | 45.0 mm x 37.5 mm |
| Intel?? Gaussian & Neural Accelerator | 3.0 |
| Intel?? Thread Director | Yes |
| Intel?? Deep Learning Boost (Intel?? DL Boost) on CPU | Yes |
| Intel?? Speed Shift Technology | Yes |
| Intel?? Turbo Boost Max Technology 3.0 ??? | Yes |
| Intel?? Turbo Boost Technology ??? | 2.0 |
| Intel?? Hyper-Threading Technology ??? | Yes |
| Intel?? 64 ??? | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel?? SSE4.1, Intel?? SSE4.2, Intel?? AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep?? Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel?? Volume Management Device (VMD) | Yes |
| Intel?? Standard Manageability (ISM) ??? | Yes |
| Intel?? Control-Flow Enforcement Technology | Yes |
| Intel?? AES New Instructions | Yes |
| Secure Key | Yes |
| Intel?? OS Guard | Yes |
| Execute Disable Bit ??? | Yes |
| Intel?? Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel?? Virtualization Technology (VT-x) ??? | Yes |
| Intel?? Virtualization Technology for Directed I/O (VT-d) ??? | Yes |
| Intel?? VT-x with Extended Page Tables (EPT) ??? | Yes |
Specification
table { border-collapse: collapse; width: 100%; margin-top: 20px; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
Intel Core i7 processor 14700 33M Cache up to 5.40 GHz, Cores 20, Threads 28, Up to DDR5 5600 MT/s, LGA1700, Thread Director, (Intel DL Boost) on CPU, Speed Shift Technology, Turbo Boost Max Technology 3.0 | BX8071514700
| Total Cores | 20 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 12 |
| Total Threads | 28 |
| Max Turbo Frequency | 5.4 GHz |
| Intel?? Turbo Boost Max Technology 3.0 Frequency ??? | 5.4 GHz |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core Base Frequency | 2.1 GHz |
| Efficient-core Base Frequency | 1.5 GHz |
| Cache | 33 MB Intel?? Smart Cache |
| Total L2 Cache | 28 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 219 W |
| Marketing Status | Launched |
| Launch Date | Q1'24 |
| Embedded Options Available | Yes |
| Max Memory Size (dependent on memory type) | 192 GB |
| Memory Types | Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 89.6 GB/s |
| ECC Memory Supported ??? | Yes |
| GPU Name??? | Intel?? UHD Graphics 770 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.6 GHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI)??? | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)??? | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel)??? | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3.0 |
| Multi-Format Codec Engines | 2 |
| Intel?? Quick Sync Video | Yes |
| Intel?? Clear Video HD Technology | Yes |
| # of Displays Supported ??? | 4 |
| Device ID | 0xA780 |
| Direct Media Interface (DMI) Revision | 4.0 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ??? | Up to 1x16+4, 2x8+4 |
| Max # of PCI Express Lanes | 20 |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020C |
| TJUNCTION | 100??C |
| Package Size | 45.0 mm x 37.5 mm |
| Intel?? Gaussian & Neural Accelerator | 3.0 |
| Intel?? Thread Director | Yes |
| Intel?? Deep Learning Boost (Intel?? DL Boost) on CPU | Yes |
| Intel?? Speed Shift Technology | Yes |
| Intel?? Turbo Boost Max Technology 3.0 ??? | Yes |
| Intel?? Turbo Boost Technology ??? | 2.0 |
| Intel?? Hyper-Threading Technology ??? | Yes |
| Intel?? 64 ??? | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel?? SSE4.1, Intel?? SSE4.2, Intel?? AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep?? Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel?? Volume Management Device (VMD) | Yes |
| Intel?? Standard Manageability (ISM) ??? | Yes |
| Intel?? Control-Flow Enforcement Technology | Yes |
| Intel?? AES New Instructions | Yes |
| Secure Key | Yes |
| Intel?? OS Guard | Yes |
| Execute Disable Bit ??? | Yes |
| Intel?? Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel?? Virtualization Technology (VT-x) ??? | Yes |
| Intel?? Virtualization Technology for Directed I/O (VT-d) ??? | Yes |
| Intel?? VT-x with Extended Page Tables (EPT) ??? | Yes |
