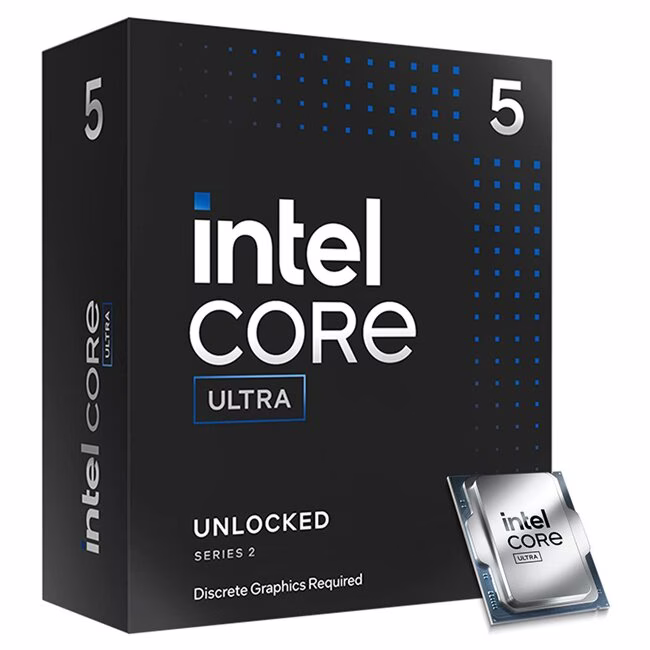

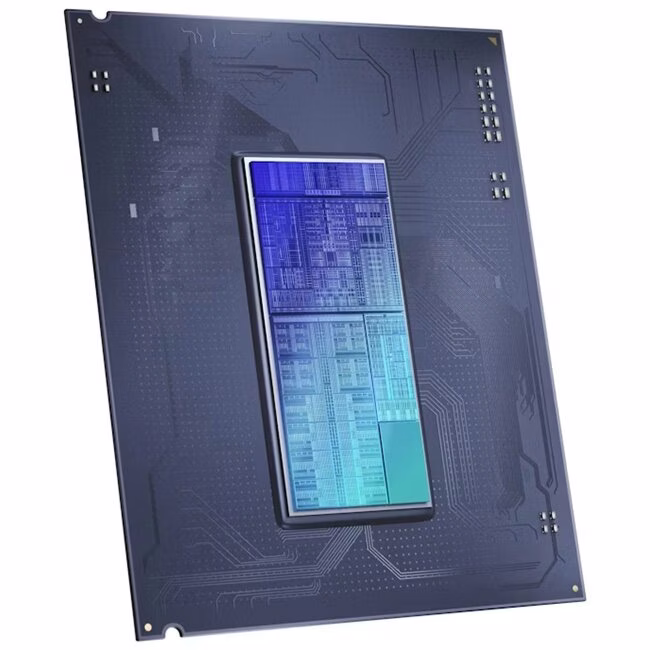

Intel Core Ultra 5 245K Processor, Arrow Lake, 24M Cache, up to 5.20 GHz, 14 Cores, 14 Threads, LGA1851, Intel AI Boost | BX80768245K
Model :
SKU : PRC-INTEL CORE ULTRA 5
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Intel Core Ultra 5 Processor, 245K 24M Cache, up to 5.20 GHz, 14 Cores, 14 Threads, LGA1851, Intel AI Boost | BX80768245K) Specifications
General Information
| Product Collection | Intel?? Core??? Ultra Processors (Series 2) |
| Code Name | Products formerly Arrow Lake |
| Vertical Segment | Desktop |
| Processor Number | 245K |
| Overall Peak TOPS (Int8) | 30 |
| Recommended Customer Price | $309.00-$319.00 |
CPU Specifications
| Total Cores | 14 |
| # of Performance-cores | 6 |
| # of Efficient-cores | 8 |
| Total Threads | 14 |
| Max Turbo Frequency | 5.2 GHz |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core Base Frequency | 4.2 GHz |
| Efficient-core Base Frequency | 3.6 GHz |
| Cache | 24 MB Intel?? Smart Cache |
| Total L2 Cache | 26 MB |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 159 W |
| Intel?? Deep Learning Boost (Intel?? DL Boost) on CPU | Yes |
| AI Software Frameworks Supported by CPU | OpenVINO???, WindowsML, DirectML, ONNX RT, WebNN |
| CPU Lithography | TSMC N3B |
Memory Specifications
| Max Memory Size | 192 GB |
| Memory Types | Up to DDR5 6400 MT/s |
| Maximum Memory Speed | 6400 MHz |
| Max # of Memory Channels | 2 |
| ECC Memory Supported | Yes |
GPU Specifications
| GPU Name | Intel?? Graphics |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.9 GHz |
| GPU Peak TOPS (Int8) | 8 |
| Graphics Output | DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b |
| Xe-cores | 4 |
| Max Resolution (HDMI) | 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL) |
| Max Resolution (DP) | 8K @ 60Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
NPU Specifications
| NPU Name | Intel?? AI Boost |
| NPU Peak TOPS (Int8) | 13 |
| Sparsity Support | Yes |
| Windows Studio Effects Support | Yes |
Expansion Options
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Intel?? Thunderbolt??? 4 | Yes |
| PCI Express Revision | 5.0 and 4.0 |
| Max # of PCI Express Lanes | 24 |
Package Specifications
| Sockets Supported | FCLGA1851 |
| Max Operating Temperature | 105 ??C |
Advanced Technologies
| Intel?? Volume Management Device (VMD) | Yes |
| Intel?? Thread Director | Yes |
| Intel?? Turbo Boost Technology | 2.0 |
Security & Reliability
| Intel vPro?? Eligibility | Intel vPro?? Enterprise, Intel vPro?? Platform |
| Intel?? Threat Detection Technology (TDT) | Yes |
| Intel?? Control-Flow Enforcement Technology | Yes |
| Intel?? Trusted Execution Technology | Yes |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Intel Core Ultra 5 Processor, 245K 24M Cache, up to 5.20 GHz, 14 Cores, 14 Threads, LGA1851, Intel AI Boost | BX80768245K) Specifications
General Information
| Product Collection | Intel?? Core??? Ultra Processors (Series 2) |
| Code Name | Products formerly Arrow Lake |
| Vertical Segment | Desktop |
| Processor Number | 245K |
| Overall Peak TOPS (Int8) | 30 |
| Recommended Customer Price | $309.00-$319.00 |
CPU Specifications
| Total Cores | 14 |
| # of Performance-cores | 6 |
| # of Efficient-cores | 8 |
| Total Threads | 14 |
| Max Turbo Frequency | 5.2 GHz |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core Base Frequency | 4.2 GHz |
| Efficient-core Base Frequency | 3.6 GHz |
| Cache | 24 MB Intel?? Smart Cache |
| Total L2 Cache | 26 MB |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 159 W |
| Intel?? Deep Learning Boost (Intel?? DL Boost) on CPU | Yes |
| AI Software Frameworks Supported by CPU | OpenVINO???, WindowsML, DirectML, ONNX RT, WebNN |
| CPU Lithography | TSMC N3B |
Memory Specifications
| Max Memory Size | 192 GB |
| Memory Types | Up to DDR5 6400 MT/s |
| Maximum Memory Speed | 6400 MHz |
| Max # of Memory Channels | 2 |
| ECC Memory Supported | Yes |
GPU Specifications
| GPU Name | Intel?? Graphics |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.9 GHz |
| GPU Peak TOPS (Int8) | 8 |
| Graphics Output | DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b |
| Xe-cores | 4 |
| Max Resolution (HDMI) | 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL) |
| Max Resolution (DP) | 8K @ 60Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
NPU Specifications
| NPU Name | Intel?? AI Boost |
| NPU Peak TOPS (Int8) | 13 |
| Sparsity Support | Yes |
| Windows Studio Effects Support | Yes |
Expansion Options
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Intel?? Thunderbolt??? 4 | Yes |
| PCI Express Revision | 5.0 and 4.0 |
| Max # of PCI Express Lanes | 24 |
Package Specifications
| Sockets Supported | FCLGA1851 |
| Max Operating Temperature | 105 ??C |
Advanced Technologies
| Intel?? Volume Management Device (VMD) | Yes |
| Intel?? Thread Director | Yes |
| Intel?? Turbo Boost Technology | 2.0 |
Security & Reliability
| Intel vPro?? Eligibility | Intel vPro?? Enterprise, Intel vPro?? Platform |
| Intel?? Threat Detection Technology (TDT) | Yes |
| Intel?? Control-Flow Enforcement Technology | Yes |
| Intel?? Trusted Execution Technology | Yes |
