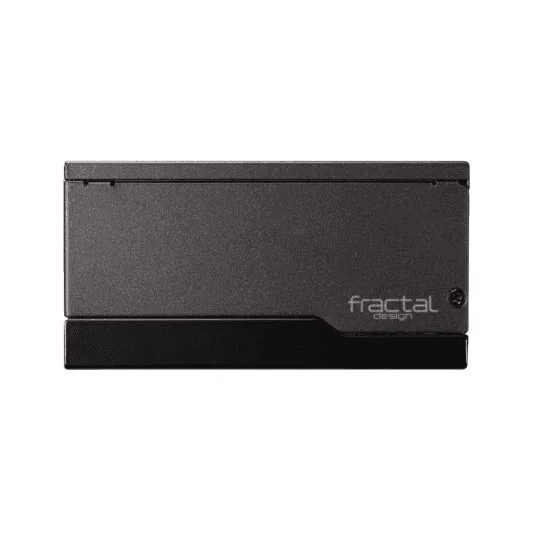

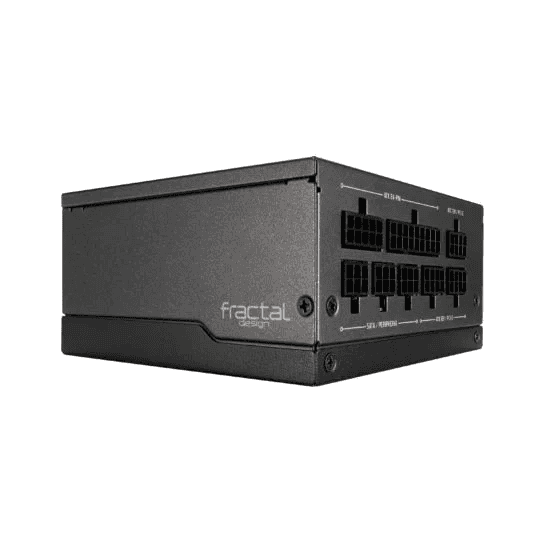

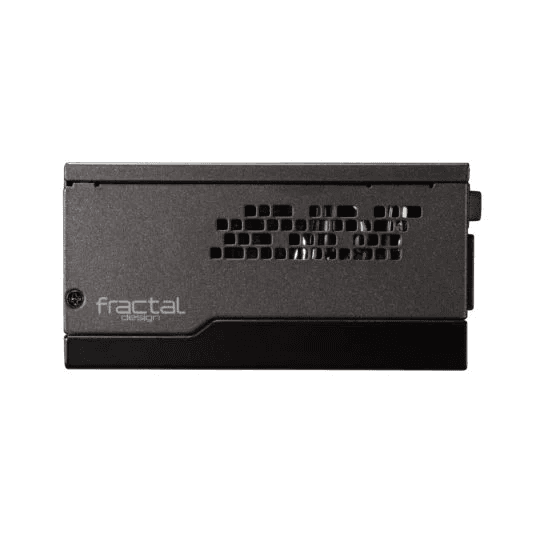

Fractal Ion SFX-L 650W Gold Full Modular Power Supply, UltraFlex DC wires, 80 PLUS Gold, Large 120 mm fan, Black | FD-PSU-ION-SFX-650G-BK
Model :
SKU : PS-FRACTAL SFX 650G
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Fractal Ion SFX-L 650W Gold Full Modular Power Supply, UltraFlex DC wires, 80 PLUS Gold, Large 120 mm fan, Black | FD-PSU-ION-SFX-650G-BK Specifications
| 80PLUS?? Certification | Gold |
| Modular Cables | Fully modular |

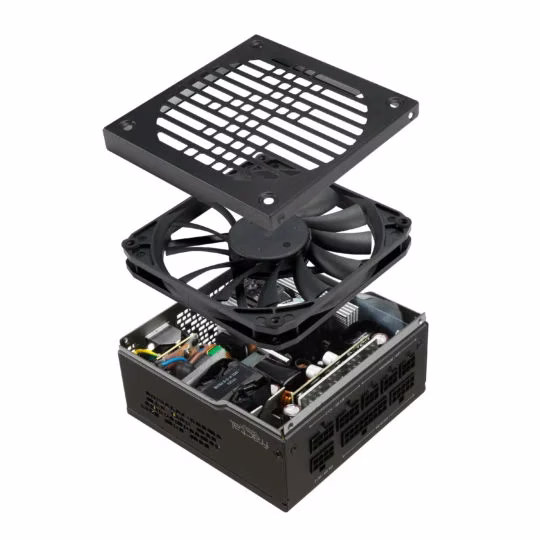

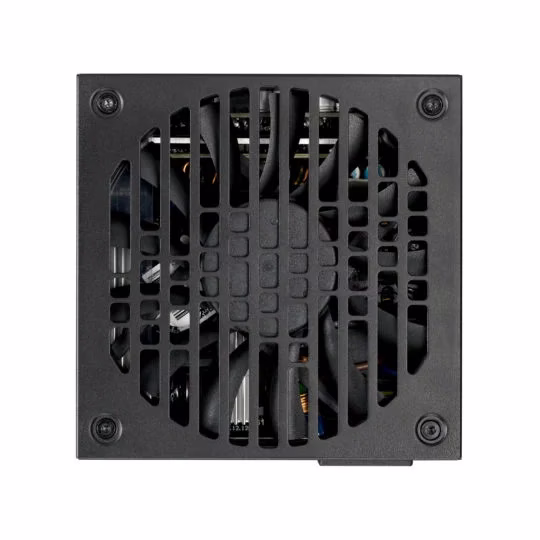

| Fan Type | Slim (15 mm) FDB bearing 120 mm fan |
| Maximum Operating Temperature (Full Load) | 40??C - Maximum 80% load at 50??C |
| Semi-passive Operation | Yes (Zero RPM) |
| Capacitors | 105??C Japanese Polymer |
| Life Expectancy (MTBF) at Max Output Load | 100,000 hours |
| PSU Form Factor | SFX-L* |
| Cable Type | Modular 24-pin: Braided sleeve UltraFlex??? wire - Others: Flat UltraFlex??? wire |
| PSU Color | Black/Gunmetal |
| Cable Color | Black |
| Protection Features | Over voltage protection - Under voltage protection - Over power protection - Short circuit protection - Over current protection - Over temperature protection |
| Input Voltage | 100-240V AC |
| Input Frequency | 50-60 Hz |
| Input Current | 8A/4A (650G) |
| Number of 12V Rails | 1 |
| Standby Efficiency | ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb) |
| Sleep State Compliance | C6/C7 |
| Approvals & Certifications | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE |
| Warranty | 10 Years |
| *Note | Ion SFX-L is not compatible with Node 202 |

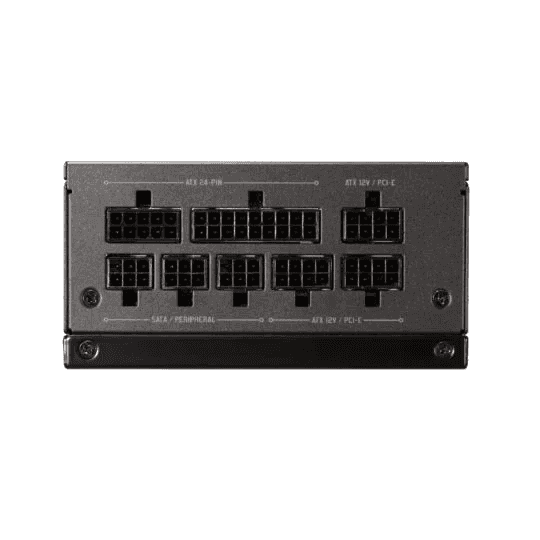

| Connectors |

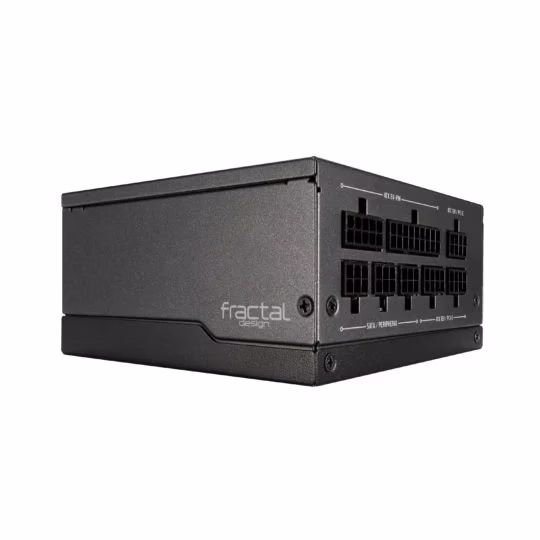

ATX: 1 EPS/ATX12V: 1 PCIe: 4 SATA: 8 Peripheral: 2 |
| Cable Configuration (Length in mm Between Connectors) |
ATX 24-pin: 350 EPS/ATX12V 4+4 pin: 400 PCIe 6+2 pin: 400+100 x2 SATA: 300+200+200+100 x2 Peripheral: 300+200 |
| DC Output |

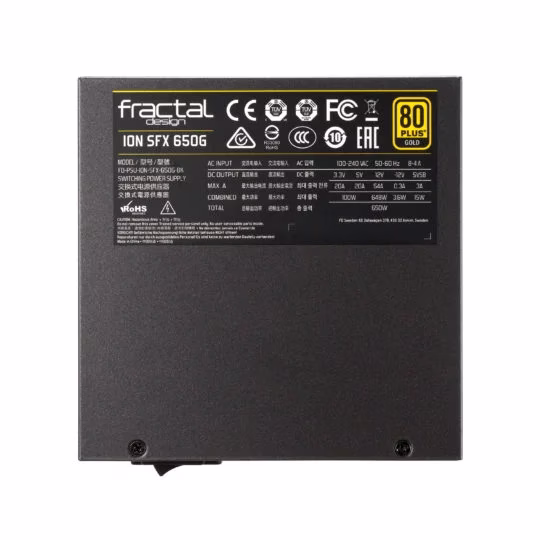

3.3V: 20A 5V: 20A 3.3V and 5V Combined: 100W 12V: 54A -12V: 0.3A +5Vsb: 3A Total Power: 650W |
| Other |

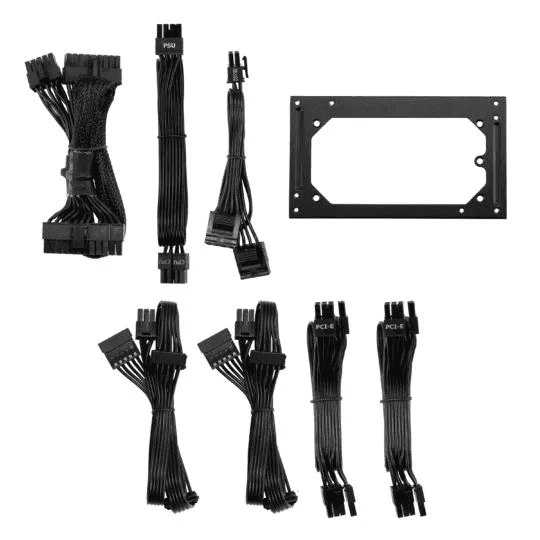

Package contents: ??? Ion SFX-L PSU with protective bag ??? Modular cables in a convenient storage bag ??? Screw pack with Velcro cable ties ??? SFX-to-ATX bracket ??? AC power cord (localized) ??? User manual |
| Unit Dimensions (LxWxH) | 125 x 125 x 63.5 mm |
| Net Weight (Unit Only) | 1.15 kg |
| Package Dimensions (LxWxH) | 260 x 170 x 95 mm |
| Package Weight | 2.07 kg |
| EAN | 7340172702023 |
| UPC | 843276102029 |
| Product Code | FD-PSU-ION-SFX-650G-BK |
