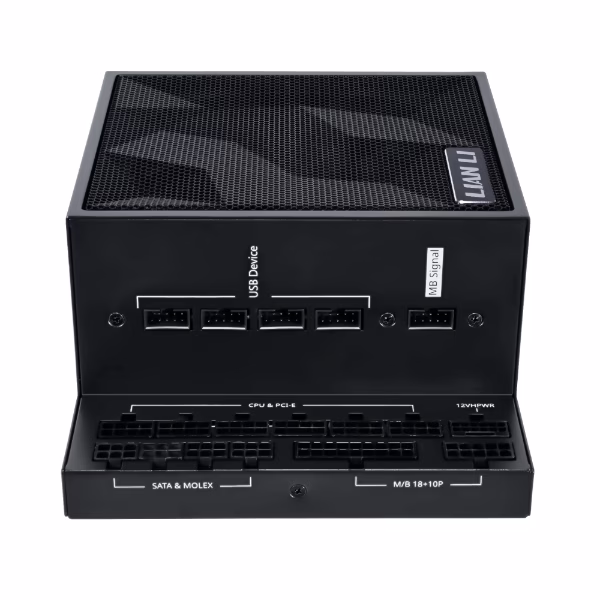

Lian Li EDGE 1000W ATX 3.1 Black Powersupply PSU, 80 PLUS PLATINUM, Built-in USB Hub, Dual Chamber Design, 12V-2x6, PCIE5.1 | EDGE1000

Model :

SKU : PS-LIAN LI EDGE1000 BLK

About this item

The LIAN LI EDGE 1000W is a fully modular ATX power supply engineered for performance and aesthetics. It boasts 80 PLUS Platinum and Cybenetics Platinum certifications, delivering exceptional efficiency up to 92.36. Its unique L-Shape design is perfectly tailored for optimal cable management in dual-chamber cases. Key features include an integrated USB expansion hub with 4 internal USB 2.0 headers, ATX 3.1 compliance with a dedicated 12V-2x6 connector utilizing R&D developed alloy copper soldered terminals, and premium German EPCOS bulk capacitors for superior reliability. Available in Black or White, this PSU comes with fully modular sleeved cables and a 10-year warranty.

dirham-symbol0

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

1

AED 0.00

stock : 1

About this item

Description

The LIAN LI EDGE 1000W is a fully modular ATX power supply engineered for performance and aesthetics. It boasts 80 PLUS Platinum and Cybenetics Platinum certifications, delivering exceptional efficiency up to $92.36\%$. Its unique L-Shape design is perfectly tailored for optimal cable management in dual-chamber cases. Key features include an integrated USB expansion hub with 4 internal USB 2.0 headers, ATX 3.1 compliance with a dedicated 12V-2x6 connector utilizing R&D developed alloy copper soldered terminals, and premium German EPCOS bulk capacitors for superior reliability. Available in Black or White, this PSU comes with fully modular sleeved cables and a 10-year warranty.



3. Product Description (Long & SEO Optimized)





Elite Efficiency and Aesthetics: LIAN LI EDGE 1000W Platinum PSU



The LIAN LI EDGE 1000W is designed for high-performance systems utilizing modern aesthetics like dual-chamber cases. It delivers stable, highly efficient power while solving common cable clutter issues associated with sophisticated builds.

Aesthetic and Functional Innovation:

  • L-Shape Design: This proprietary structure is tailored for dual-chamber cases, optimizing the orientation of cable connections to hide bulk, resulting in a significantly cleaner internal appearance.
  • Integrated USB Expansion Hub: A unique and highly valuable feature, the PSU includes a built-in USB expansion hub offering 4 internal USB 2.0 headers. This eliminates the need for external hubs or splitters for connecting AIO coolers, RGB controllers, and internal displays.

Next-Generation Performance and Quality:

  • Platinum Efficiency: With certifications from both 80 PLUS PLATINUM and Cybenetics PLATINUM, the EDGE 1000W ensures minimal energy waste and heat generation.
  • ATX 3.1 Compliance: Fully supports the ATX 3.1 standard and is ready for the latest high-power GPUs. The PSU includes a native 12V-2x6 connector, utilizing specialized in-house R&D 12V-2x6 alloy copper soldered terminals for maximum safety and current delivery to PCIe 5.1 graphics cards.
  • Premium Internals: Reliability is assured with the integration of German EPCOS bulk capacitors, an industrial-grade choice for superior performance stability and longevity.

Builder-Focused Features:

The unit is fully modular and comes equipped with high-quality sleeved cables with pre-installed cable combs on the MB, CPU, and GPU connectors, ensuring a perfect, professional finish.

Specification

Model NameEDGE850EDGE1000EDGE1300
Model No.EG0850EG1000EG1300
ColorBlack / WhiteBlack / WhiteBlack / White
Dimensions(D)182 mm x (W)86 mm x (H)150 mm
Power Supply DesignFully Modular
MaterialSteel
Form FactorATX 3.1
Certification80 PLUS Platinum / Cybenetics Platinum / PPLP Platinum
Max. DC Output850W1000W1300W
Combined +3.3V & +5V120W120W120W
Combined +12V849.6W996W1296W
Input Voltage100–240Vac100–240Vac100–240Vac
Input Frequency Range10–5A 50–60Hz12–6A 50–60Hz15–7.5A 50–60Hz
PFCActive PFC, PF > 0.90 under full load @ 115Vac, 60Hz
Efficiency92.41% MAX92.36% MAX92.39% MAX
Protective CircuitOCP / OVP / OTP / OPP / SCP / UVP / SIP / NLP
Connectors1 x 24/20-pin motherboard (500mm)
2 x 8/4+4-pin CPU (550mm)
3 x 8/6+2-pin PCIe (550mm)
1 x 12V-2×6 (550mm)
4 x 4-pin Peripheral (500-150-150-150mm)
4 x SATA (400-150-150-150mm)
4 x SATA (300-15-15-15mm)
4 x Y-Type SATA (400mm-125mm x2)
USB 9-pin to USB 9-pin (350mm)
USB 9-pin to Type-A (550mm)
1 x 24/20-pin motherboard (500mm)
2 x 8/4+4-pin CPU (550mm)
4 x 8/6+2-pin PCIe (550mm)
1 x 12V-2×6 (550mm)
4 x 4-pin Peripheral (500-150-150-150mm)
4 x SATA (400-150-150-150mm)
4 x SATA (300-15-15-15mm)
4 x Y-Type SATA (400mm-125mm x2)
USB 9-pin to USB 9-pin (350mm)
USB 9-pin to Type-A (550mm)
1 x 24/20-pin motherboard (500mm)
2 x 8/4+4-pin CPU (550mm)
4 x 8/6+2-pin PCIe (550mm)
1 x 12V-2×6 (550mm)
1 x 12V-2×6 to 2×8-pin (550mm)
4 x 4-pin Peripheral (500-150-150-150mm)
4 x SATA (400-150-150-150mm)
4 x SATA (300-15-15-15mm)
4 x Y-Type SATA (400mm-125mm x2)
USB 9-pin to USB 9-pin (350mm)
USB 9-pin to Type-A (550mm)
Fan Type120mm FDB Fan
Fan Speed2000 RPM2400 RPM
Fan Noise Level25.96 dBA33.61 dBA
Warranty10 Years
