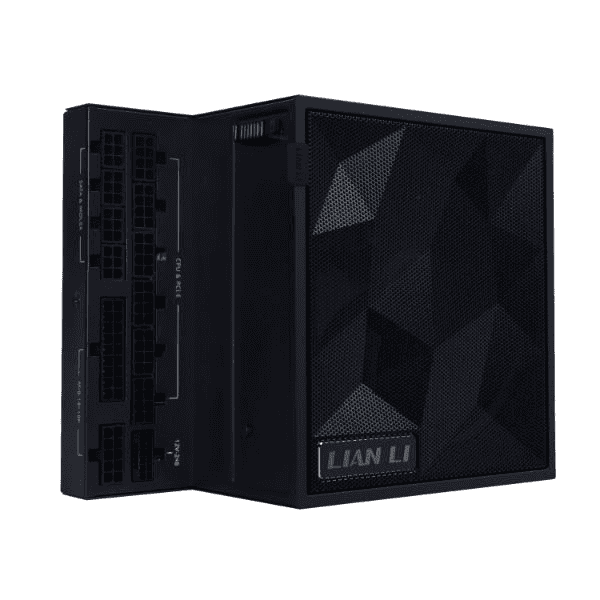

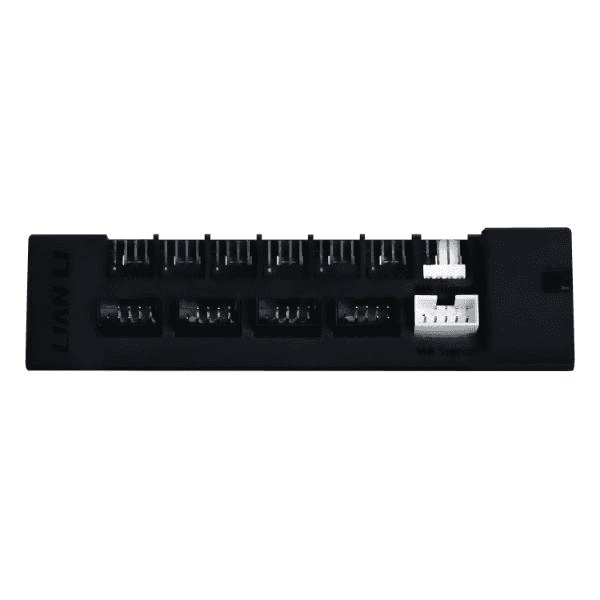

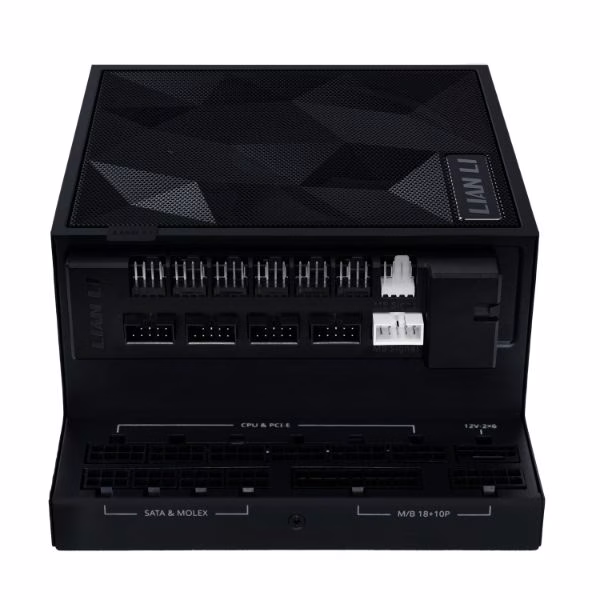

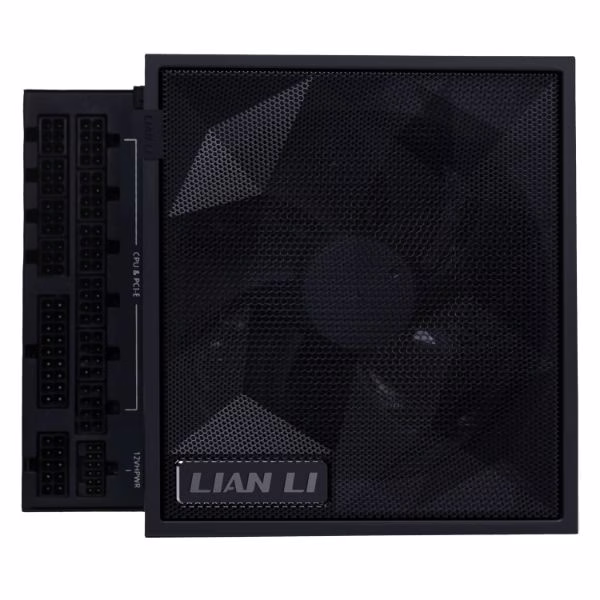

Lian Li EDGE GOLD 1000W ATX PSU Power Supply, ATX 3.1, PCIe 5.1 ready, Detachable USB hub with 4 internal USB 2.0, Removable magnetic fan dust filter, Fully modular braided-texture cables, 80 PLUS Gold efficiency, Black | G9P.EG1000G.BH00.UK
Model :
SKU : PS-LIAN LI EG1000G BLACK
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
| Model | EG1000G |
|---|---|
| Product Name | EDGE GOLD 1000 |
| Dimensions | 182 x 86 x 150 mm (D x W x H) |
| Power Supply Design | Fully Modular |
| Color | Black / White |
| Material | Steel |
| Form Factor | ATX 3.1 |
| Certification | 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD |
| Max. DC Output | 1000W |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 996W |
| Input Voltage | 100-240Vac |
| Input Frequency Range | 12-6A, 50-60Hz |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz |
| Efficiency | Up to 91.24% MAX |
| Protective Circuits | OCP (Over Current Protection) OVP (Over Voltage Protection) OTP (Over Temperature Protection) OPP (Over Power Protection) SCP (Short Circuit Protection) UVP (Under Voltage Protection) |
| Connectors | 1 ?? 24/20-Pin Motherboard Connector (620mm) 1 ?? 8/4+4 Pin CPU/ATX 12V Connector (750mm) 1 ?? 4+4 Pin CPU/ATX 12V Connector (750mm) 1 ?? 6+2 Pin PCIe Connector (650mm + 100mm) 4 ?? SATA Connector (300mm-15mm-15mm-15mm) 4 ?? Y Type SATA Connector (375mm-150mm-150mm-150mm) 4 ?? SATA Connector (400mm-150mm-150mm-150mm) 4 ?? 4-Pin Peripheral Connector (500mm-150mm-150mm-150mm) 1 ?? 12V ??? 2X6 600W Connector (650mm) 1 ?? USB 9pin ??? USB 9pin Connector (470mm) 1 ?? USB 9pin ??? Type A Connector (550mm) |
| Cooling | 120mm FDB Fan Fan Speed: 2400 RPM Fan Noise Level: 39.3 dBA |
| Warranty | 10 Years (Hub: 2 Years) |
