Model : EDGE Gold
SKU : PS-LIAN LI EG1200G BLACK

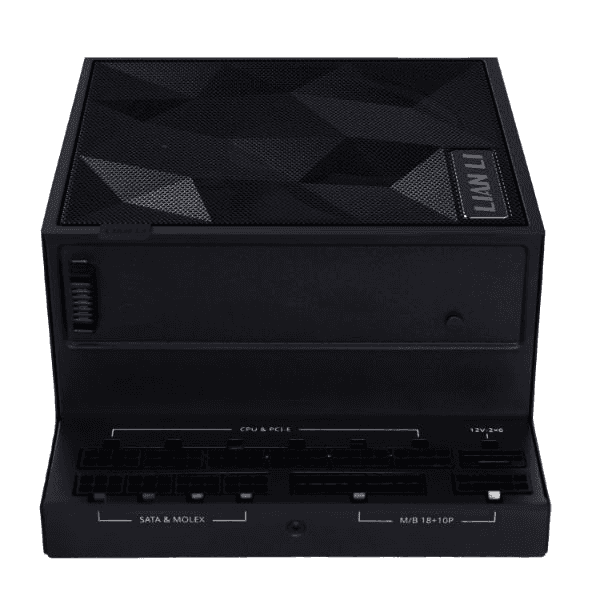

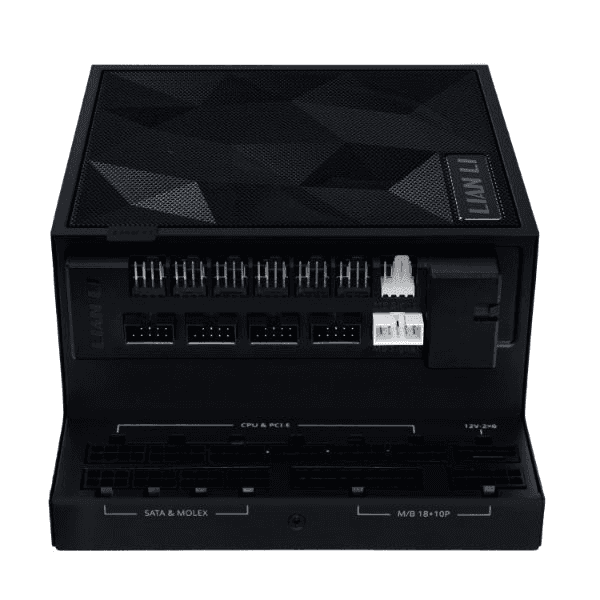

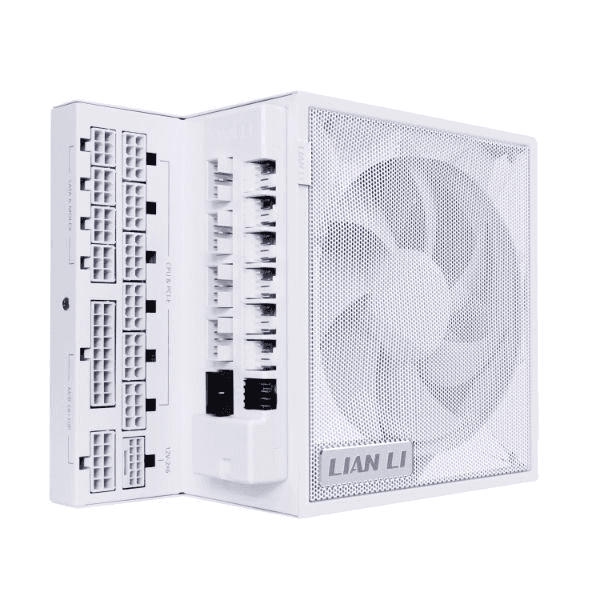

The LIAN LI EDGE GOLD 1200W is a fully modular ATX power supply engineered for powerful builds, particularly those using dual-chamber cases. Its distinctive L-Shape design streamlines cable management and aesthetic appeal in unique chassis layouts. Rated for 80 PLUS Gold efficiency (up to 91.64), it ensures stable power delivery. This 1200W model is PCIe 5.1 ready and includes a reinforced 12V-2x6 600W cable with R&D alloy copper terminals. A key feature is the detachable hub which provides 4 internal USB 2.0 headers and 6 PWM headers, simplifying system-wide connectivity and fan control
The LIAN LI EDGE GOLD 1200W is the ideal power solution for high-end gaming and creator PCs requiring superior efficiency and thoughtful design integration. This fully modular, black unit excels in power stability and system organization.
Dual-Chamber Optimized Design:

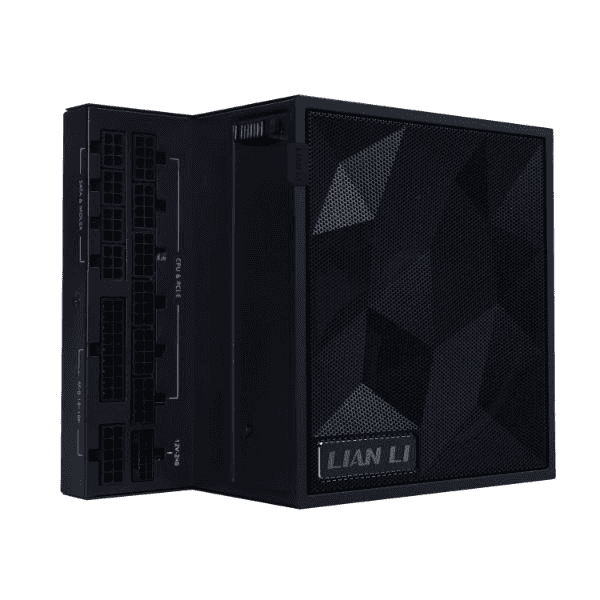

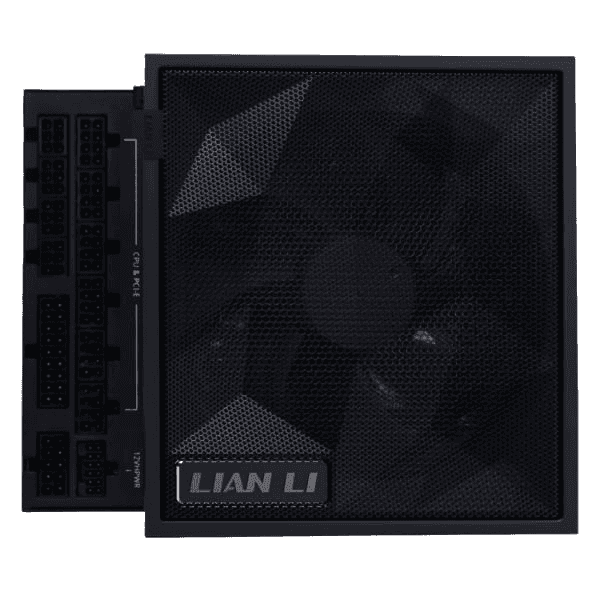

L-Shape Design: This unique form factor is specifically tailored for dual-chamber cases (like the O11 series), allowing the fully modular cable connectors to be oriented for cleaner, less visible routing behind the motherboard tray.
Reliability and Next-Gen Readiness:
Gold Efficiency: Certified 80 PLUS Gold and Cybenetics GOLD, providing excellent power efficiency up to 91.64
Builder-Focused Features:
The unit features fully modular, braided-texture cables for superior flexibility and a premium feel.12 Cable combs are pre-installed on the main MB, CPU, and GPU connectors, guaranteeing a tidy finish. It also includes a removable magnetic fan dust filter for easy cleaning 13
| Product Name | EDGE GOLD 750 / EDGE GOLD 850 / EDGE GOLD 1000 / EDGE GOLD 1200 |
| Model | EG0750G / EG0850G / EG1000G / EG1200G |
| Dimensions | (D)182 mm X (W)86 mm X (H)150 mm |
| Power Supply Design | Fully modular |
| Color | Black / Black & White |
| Material | Steel |
| Form Factor | ATX 3.1 |
| Certification | 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD |
| Max. DC Output | 750W / 850W / 1000W / 1200W |
| Combined +3.3V & +5V | 120W (All Models) |
| Combined +12V | 744W / 849W / 996W / 1200W |
| Input Voltage | 100-240Vac |
| Input Frequency Range | 9-4.5A / 10-5A / 12-6A / 15-7.5A @ 50-60Hz |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz |
| Efficiency | 90.52% MAX / 90.71% MAX / 91.24% MAX / 91.64% MAX |
| Protective Circuit | OCP / OVP / OTP / OPP / SCP / UVP |
| Connectors |
|
| Fan Type | 120mm FDB Fan |
| Fan Speed | 2000RPM / 2400RPM |
| Fan Noise Level | 30.9dBA / 39.3dBA |
| Warranty | 10 Years (Hub 2 Years) |
