Lian Li EDGE GOLD 1200W ATX White Powersupply PSU, 80 PLUS Gold, L-Shape Design, Detachable USB & PWM Hub, PCIe 5.1 Ready | G9P.EG1200G.WH00.UK

Model : EDGE Gold

SKU : PS-LIAN LI EG1200G WHITE

Power (W) :
1200W White

About this item

The LIAN LI EDGE GOLD 1200W is a premium, high-power ATX 3.1 power supply engineered for modern, complex PC builds in a stunning White finish. It achieves 80 PLUS Gold certification (up to $91.64% $ efficiency) and is PCIe 5.1 ready with an in-house R&D 12V-2x6 alloy copper soldered terminal connector (600W). The unique L-Shape design simplifies cable routing in dual-chamber cases, while the exclusive Detachable USB and PWM Hub (4 internal USB 2.0 headers, 6 PWM headers) provides centralized system control.2 Built with German-made industrial-grade EPCOS capacitors, the EDGE 1200W offers stability, longevity, and a clean aesthetic via its fully modular braided-texture cables.3



About this item

Description



Optimized Power for Dual Chambers: LIAN LI EDGE GOLD 1200W (White)



The LIAN LI EDGE GOLD 1200W is specifically designed to meet the demands of enthusiast-grade hardware while providing unique builder-focused features. Its all-white aesthetic and revolutionary design make it the perfect pairing for premium dual-chamber chassis setups.

Innovative Connectivity and Aesthetics:

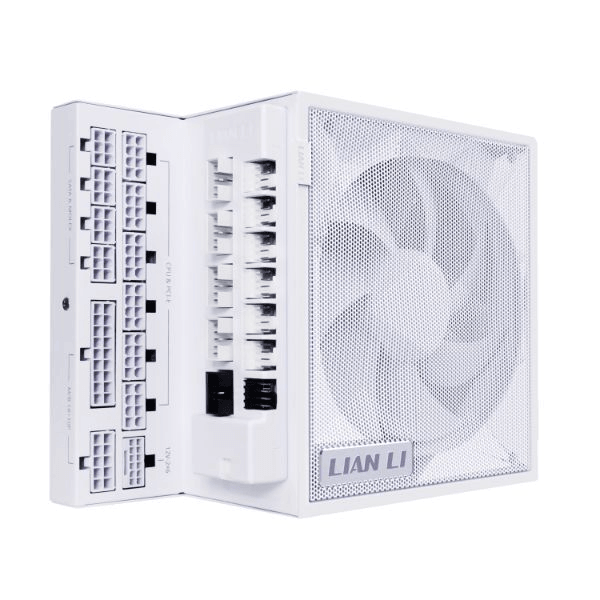

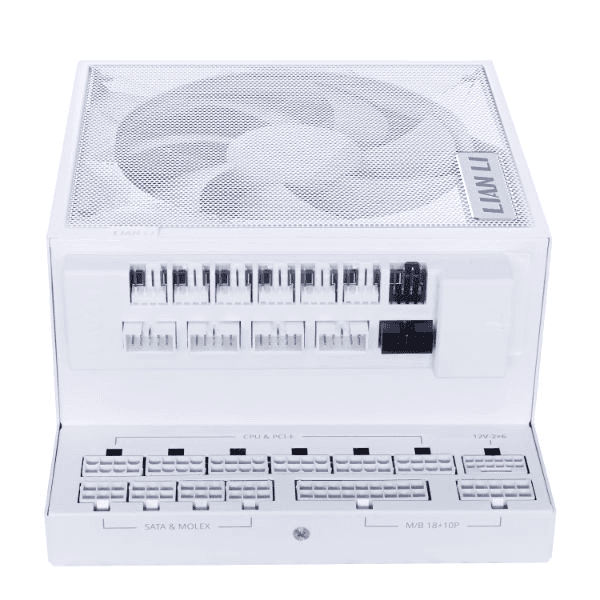

  • L-Shape Design: This unique structure is tailored for dual-chamber cases, orienting connections for cleaner routing and better visibility from the main chamber.

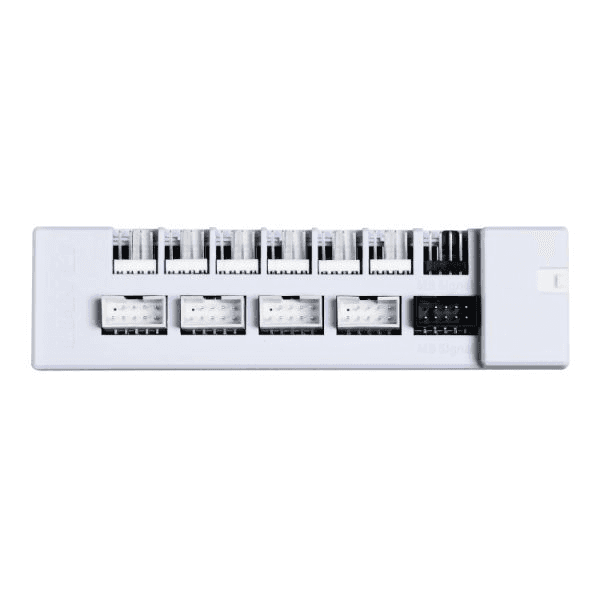

  • Detachable Central Hub: The EDGE 1200W features an industry-first Detachable USB and PWM Hub, providing centralized connectivity for complex builds:
  • 4 Internal USB 2.0 Headers
    • 6 PWM Fan Headers
  • Aesthetic Focus: Includes fully modular braided-texture cables with pre-installed cable combs on all essential connectors (MB/CPU/GPU) for a professional, high-end look.



High Performance and Reliability:

  • 80 PLUS Gold Efficiency: Certified Gold by both 80 PLUS and Cybenetics, maximizing power delivery efficiency and reducing operating heat
  • PCIe 5.1 & ATX 3.1 Ready: Ensures full compliance and stability with next-generation components.



  • Premium Internals: Constructed with German top-end, industrial-grade EPCOS capacitors for superior ripple suppression and long-term reliability, backed by a 10-Year Warranty on the PSU (2 Years on the hub).
  • Maintenance Feature: Includes a Removable Magnetic Fan Dust Filter for easy cleaning and maintenance.

Specification

Product NameEDGE GOLD 750 / EDGE GOLD 850 / EDGE GOLD 1000 / EDGE GOLD 1200
ModelEG0750G / EG0850G / EG1000G / EG1200G
Dimensions(D)182 mm X (W)86 mm X (H)150 mm
Power Supply DesignFully modular
ColorBlack / Black & White
MaterialSteel
Form FactorATX 3.1
Certification80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD
Max. DC Output750W / 850W / 1000W / 1200W
Combined +3.3V & +5V120W (All Models)
Combined +12V744W / 849W / 996W / 1200W
Input Voltage100-240Vac
Input Frequency Range9-4.5A / 10-5A / 12-6A / 15-7.5A @ 50-60Hz
PFCActive PFC, PF > 0.90 under full load @ 115Vac, 60Hz
Efficiency90.52% MAX / 90.71% MAX / 91.24% MAX / 91.64% MAX
Protective CircuitOCP / OVP / OTP / OPP / SCP / UVP
Connectors
  • 1 x 24/20-Pin motherboard connector (620mm)
  • 1 x 8 pin CPU/ATX 12V connector (750mm)
  • 1 x 4+4 Pin CPU connector (750mm)
  • 1 x 6+2 Pin GPU connector (650mm+100mm)
  • SATA & SATA-Y connectors
  • 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm)
  • 1 x 12V – 2X6 (450W or 600W depending on model)
  • Additional USB 9-pin connectors on higher models
Fan Type120mm FDB Fan
Fan Speed2000RPM / 2400RPM
Fan Noise Level30.9dBA / 39.3dBA
Warranty10 Years (Hub 2 Years)
